by Bob.
Sat Aug 15, 2020 12:07 pm
Forum: Series 3
Topic: E-Type Parts?
Replies: 5
Views: 90
Great Britain

Re: E-Type Parts?

The "Similar Topics" box only appears when logged in - for me at least.
by Bob.
Fri Aug 14, 2020 3:11 pm
Forum: Series 1
Topic: Fuel pipe routing
Replies: 3
Views: 173
Great Britain

Re: Fuel pipe routing

Glad to help.
BTW The later type fuel pipe looks like cad plated steel rather than copper.
by Bob.
Fri Aug 14, 2020 12:00 pm
Forum: Series 1
Topic: Fuel pipe routing
Replies: 3
Views: 173
Great Britain

Re: Fuel pipe routing

Hi Tadek As a S3 owner I hesitate to enter the dangerous world of S1 originality but as no one else has responded here goes. I have a few images showing the ARB v fuel pipe routing area. Discarding those where replacement piping is evident, this leaves twelve images with what look like original pipe...
by Bob.
Fri Aug 07, 2020 12:13 pm
Forum: Series 3
Topic: Stromberg jet height
Replies: 10
Views: 338
Great Britain

Re: Stromberg jet height

I found Burlen quite happy to provide individual items, give them a ring.
by Bob.
Wed Aug 05, 2020 1:05 pm
Forum: Series 3
Topic: Stromberg jet height
Replies: 10
Views: 338
Great Britain

Re: Stromberg jet height

Jet outer land 2.5±0.3mm below the bridge face (orifice is 0.5mm lower). Data was verbal from Burlen Fuel Systems Ltd in Jan 2017 after they had consulted their drawings. It worked for me with factory settings of 16.5±0.5mm for float levels and 1.5psi fuel pressure. (sorry for mixing units) See also...
by Bob.
Sun Aug 02, 2020 11:25 am
Forum: Series 3
Topic: Air conditioning RHD
Replies: 8
Views: 255
Great Britain

Re: Air conditioning RHD

Classic Auto Air offer this system https://www.classicautoair.com/shop/1973-jaguar-e-type-series-3-rhd-air-conditioning-system/ https://i.postimg.cc/LsrD79R8/AC-Classic-Auto-Air.jpg Clayton Classics offer a passenger footwell system for S3 http://claytonclassics.co.uk/parts-upgrades/204-air-conditio...
by Bob.
Sat Aug 01, 2020 12:01 pm
Forum: Technical
Topic: Adjusting Stromberg idle mixture 4.2, 2 + 2...
Replies: 8
Views: 348
Great Britain

Re: Adjusting Stromberg idle mixture 4.2, 2 + 2...

So in that case the only option to get mixture adjustment through the range on the version fitted to S2 is to get Joe Curto to modify them to take the old style adjustable jet/ fixed needle set up. ISTR Joe is in New York.
by Bob.
Thu Jul 30, 2020 4:14 pm
Forum: Technical
Topic: Adjusting Stromberg idle mixture 4.2, 2 + 2...
Replies: 8
Views: 348
Great Britain

Re: Adjusting Stromberg idle mixture 4.2, 2 + 2...

Hi Mike, Plenty of reading in the links Steve has given you. As suggested, the screw you are pointing at is the "summer" or "winter" selector for the choke, so nothing to do with normal running. If the carbs are original, there is a limited amount of mixture adjustment available by removing the air ...
by Bob.
Mon Jul 27, 2020 6:58 pm
Forum: Series 3
Topic: E7 resistant fuel line
Replies: 3
Views: 296
Great Britain

Re: E7 resistant fuel line

Hi Peter,
You may have more luck on the V12 section of jag-lovers here: https://forums.jag-lovers.com/c/v12-engine/19
Bob
by Bob.
Mon Jul 27, 2020 4:49 pm
Forum: Series 3
Topic: Location of rear water drain tube from bootlid opening.
Replies: 3
Views: 189
Great Britain

Re: Location of rear water drain tube from bootlid opening.

Hi Thor,
I have circled it. I think on the OTS it is joined with the fuel filler box drain via a "Y" piece just inside the floor but completely hidden by the fuel tank .

by Bob.
Mon Jul 27, 2020 4:29 pm
Forum: Series 3
Topic: Stromberg Temperature Valves
Replies: 3
Views: 232
Great Britain

Re: Stromberg Temperature Valves

Hi Nigel The temperature compensator is an emission control device intended to compensate for variations in fuel air ratio caused by heat transfer from the engine to the carb body, eg when car is stationary. It is intended to be fully closed up until 45°C (approx) and fully open by 60°C. If you want...
by Bob.
Mon Jul 27, 2020 8:11 am
Forum: Series 1
Topic: Correct length of IRS lower control arm for S1
Replies: 8
Views: 358
Great Britain

Re: Correct length of IRS lower control arm for S1

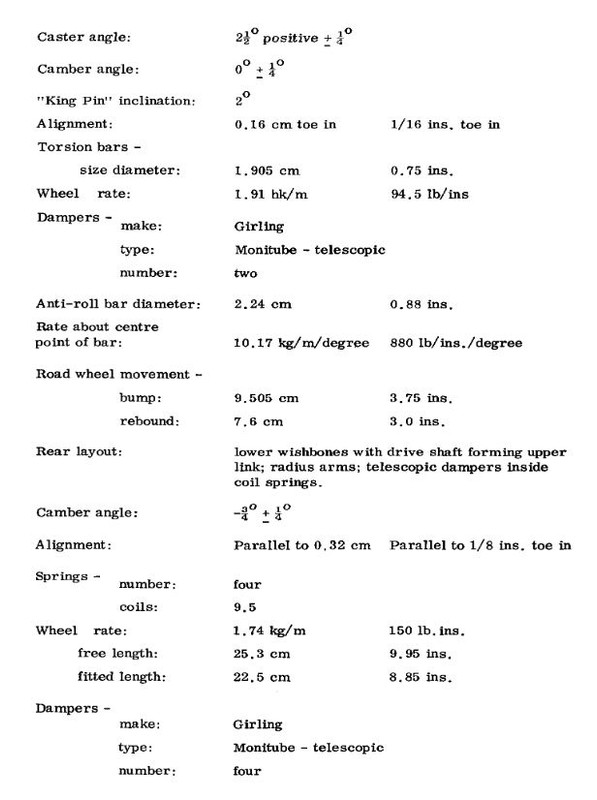

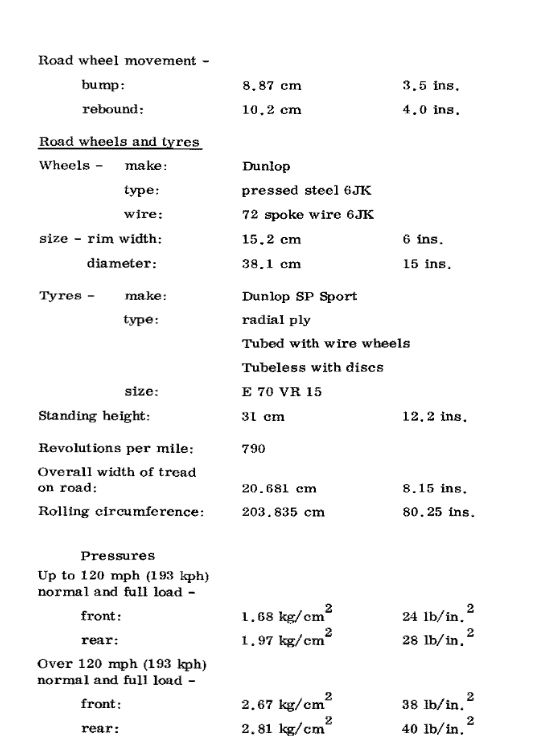

Hi Philip The picture from the ROM shows dimensions for a S3 lower link. Rear track of S3 is 53.75", track of S1 is 50". AFAIK track increase of S3 was done by simply fitting longer bottom links and driveshaft from 420G. Leave you to do the sum to get dimension B for S1. https://i.postimg.cc/xCXV91C...
by Bob.
Sun Jul 26, 2020 7:56 pm
Forum: Series 3
Topic: Location of rear water drain tube from bootlid opening.
Replies: 3
Views: 189
Great Britain

Re: Location of rear water drain tube from bootlid opening.

Hi Thor
This may give you an idea. I am sure someone will be along with dimensions. (click on image to enlarge)

by Bob.
Sun Jul 26, 2020 11:01 am
Forum: Series 3
Topic: Fuel return valve series 3 V12
Replies: 7
Views: 305
Great Britain

Re: Fuel return valve series 3 V12

When I first had my S3 and was trying to solve rich running problems, amongst other issues I found the return pipe blocked inside the fuel tank. It was adjacent to silver soldering between the take off and return pipes, done presumably to stiffen the assembly. Probably caused years ago by internal c...
by Bob.
Sat Jul 25, 2020 1:16 pm
Forum: Series 3
Topic: Fuel return valve series 3 V12
Replies: 7
Views: 305
Great Britain

Re: Fuel return valve series 3 V12

Hi Simon, My view is that the system you have now is normal for an S3. The "before" scenario is typical of a non recirculating system as fitted to the S1/S2 cars but the system in S3 is designed to recirculate fuel continuously to keep it cool enough to avoid vapour locks as underbonnet temperatures...
by Bob.
Tue Jul 07, 2020 8:12 am
Forum: Series 3
Topic: Series 3 Manual Gearbox Photo Request
Replies: 4
Views: 380
Great Britain

Re: Series 3 Manual Gearbox Photo Request

Hi
No photo but you might find this discussion and the diagrams useful. https://forums.jag-lovers.com/t/series- ... est/385364
Hope this helps,
Bob
by Bob.
Wed Jul 01, 2020 11:47 am
Forum: Series 3
Topic: Setting the carburettor jet distance below the bridge
Replies: 8
Views: 516
Great Britain

Re: Setting the carburettor jet distance below the bridge

Hi Nigel I imagine a small arbour press would be the ideal tool for the job and heating the bodies to about 200°C would reduce the interference fit, but I did it at room temperature and by drifting. If starting from scratch press/drive the jet in from the float chamber side. With the carb inverted a...
by Bob.
Tue Jun 30, 2020 8:37 pm
Forum: Technical
Topic: Series 3 Drivers Footrest Location
Replies: 4
Views: 289
Great Britain

Re: Series 3 Drivers Footrest Location

Neat metalworking Ross. One point, the PM shows it attached with three screws rather than via the four holes you have incorporated. The use of three might define where Jaguar intended it to fit when you look at the metalwork behind the trim.
Bob
by Bob.
Mon Jun 29, 2020 11:36 am
Forum: Series 3
Topic: Setting the carburettor jet distance below the bridge
Replies: 8
Views: 516
Great Britain

Re: Setting the carburettor jet distance below the bridge

When I rebuilt my carburettors (a few years ago) I went to great lengths to set my new carb jets 1.5mm (60 thou) below the bridge. The problem is that I have no more adjustment to try and get things a little more richer. Hi Doddsy - (sorry don't know your name) I would question setting the jets to ...
by Bob.
Mon Jun 29, 2020 10:31 am
Forum: Technical
Topic: Series 3 Drivers Footrest Location
Replies: 4
Views: 289
Great Britain

Re: Series 3 Drivers Footrest Location

Hi Ross, I have only seen footrests fitted to LHD cars - is yours still LHD? Those I have pictures of vary in shape (some flat, others curved) and position so I suspect some were fabricated locally then fitted to suit the owner's preference within the constraints of the metalwork behind the trim. If...
