Search found 73 matches

by grimes6
Wed Aug 19, 2020 8:15 am
Forum: Series 2
Topic: Auto box Inhibitor switch
Replies: 4
Views: 269
Australia

Re: Auto box Inhibitor switch

This switch looks the same as c15270 switch which was fitted to all Mark 2 saloons fitted with the dg gearbox.
by grimes6
Sat Jul 04, 2020 2:49 am
Forum: Series 2
Topic: New Member ..LHD to RHD conversion.
Replies: 11
Views: 1270
Australia

Re: New Member ..LHD to RHD conversion.

Hi Phil,

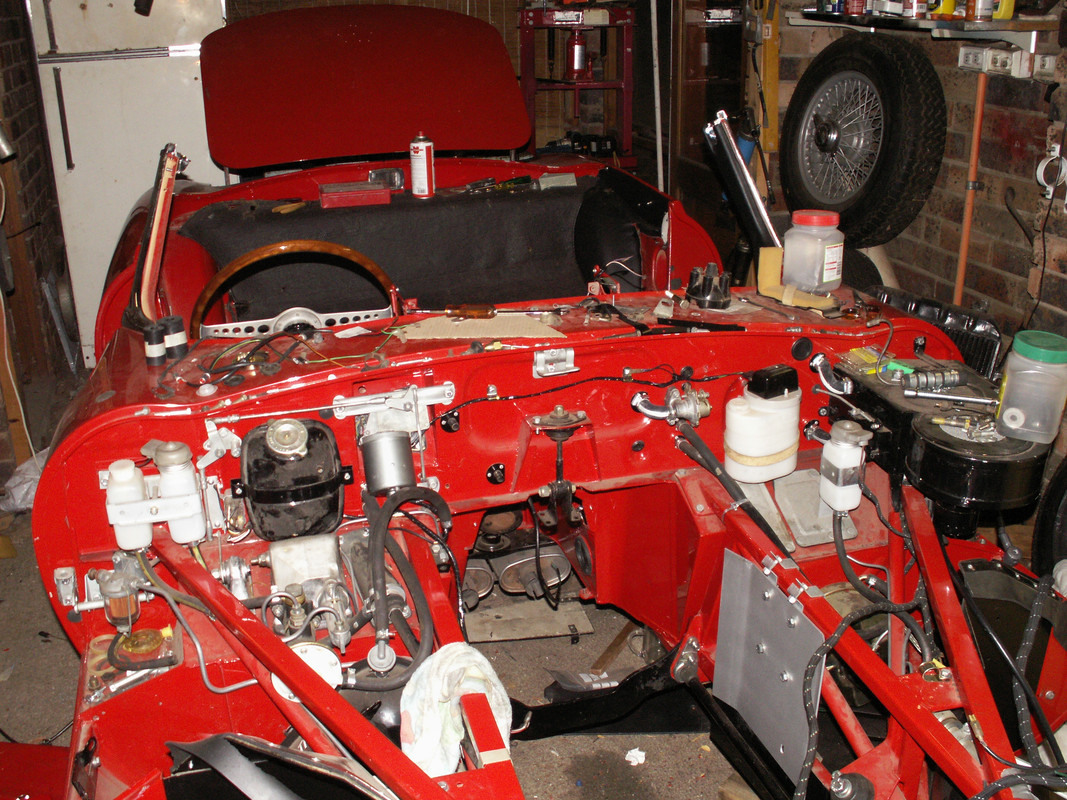

Please find attached a pic. of my original rhd roadster firewall. I can send you other pics. if you want any further info.

Regards,
Greg
by grimes6
Tue Jun 23, 2020 6:31 am
Forum: Series 1
Topic: Brass shim washers
Replies: 5
Views: 558
Australia

Re: Brass shim washers

There are 16x BD20013/4 ( available sngbarratt) on each side of spring eyes and 2 x bd20013/1 and 2 x bd20013/2 (available sngbarratt) brass washers on the shouldered bolts . They do a "bonnet balance link washer kit (bd20013k) which has 4 washers .

Greg
by grimes6
Tue Jun 23, 2020 2:28 am
Forum: Series 1
Topic: Brass shim washers
Replies: 5
Views: 558
Australia

Re: Brass shim washers

SNG Barratt have them for 3.01 pounds (BD20013k).

Regards,
Greg
by grimes6
Wed Jun 03, 2020 11:37 pm
Forum: Series 1
Topic: v. late 3.8's
Replies: 21
Views: 1881
Australia

Re: v. late 3.8's

A person I got to know in the 90's who actually worked at Brown's lane as an upholsterer told me Jaguar never wasted anything. He said the cut off dates were not strictly adhered to. They would keep using the older part until is was totally gone . The date reflected the change date in theory but not...
by grimes6
Thu Apr 02, 2020 8:56 pm
Forum: Series 2
Topic: Door card attachment
Replies: 8
Views: 1214
Australia

Re: Door card attachment

Simon,
Sorry for the confusion in my previous post but the parts book lists 22 clips and 22 snapsacks . 11 of each per door although I have found on a couple of occasions Jaguar did not follow the parts book details.

Regards,
Greg
by grimes6
Thu Apr 02, 2020 2:32 pm
Forum: Series 2
Topic: Door card attachment
Replies: 8
Views: 1214
Australia

Re: Door card attachment

The parts book lists 22 clips and nylon snapsacks - 11 per door

Regards,
Greg
by grimes6
Mon Mar 30, 2020 10:35 pm
Forum: Technical
Topic: Where does this go?
Replies: 6
Views: 635
Australia

Re: Where does this go?

Always on the RHS.
by grimes6
Mon Mar 30, 2020 12:55 am
Forum: Technical
Topic: Where does this go?
Replies: 6
Views: 635
Australia

Re: Where does this go?

Attached image from Chris Vine's excellent website of his restoration of a Series 2 roadster. I have found this an invaluable resource in my roadster restoration. Well done Chris !!!!!!

Regards,
Greg
by grimes6
Mon Mar 30, 2020 12:37 am
Forum: Technical
Topic: Heat shield - how many clips ?
Replies: 0
Views: 776
Australia

Heat shield - how many clips ?

I have another question. The exhaust heatshield is listed in the parts book as C28201 and is listed as having a bracket b285582 which attaches to the lower frame. It lists this bracket as having ufs125/6r set screw attaching the bracket to the heat shield. My question is - does this bracket also hol...
by grimes6
Sun Mar 08, 2020 10:57 pm
Forum: Series 2
Topic: Oil pressure relief valve help needed
Replies: 4
Views: 870
Australia

Re: Oil pressure relief valve help needed

This oil filter housing is from a series2 fitted to later cars from eng. nos 7r2298 (swb) and 7e35583 (2+2) . There are ones available on Ebay but they are expensive.
Greg
by grimes6
Sat Mar 07, 2020 6:02 am
Forum: Technical
Topic: part ID required
Replies: 5
Views: 1849
Australia

Re: part ID required

What series E type does this fit ? I have a series 2 and I can't see it fitting this model.
Regards,
Greg
by grimes6
Wed Jan 29, 2020 2:32 am
Forum: Series 1
Topic: Hose clips
Replies: 22
Views: 3096
Australia

Re: Hose clips

7/8" Hose clips were original on the Mark 2's previous to the straight port models. It may be worth checking with the Mark 2 people for a source . Jagara Spares in Sydney would be a good start.
by grimes6
Fri Jan 03, 2020 10:41 pm
Forum: Series 2
Topic: Top Price S2 2+2
Replies: 15
Views: 2069
Australia

Re: Top Price S2 2+2

I thought all the Series 2's bonnet struts were on the LHS of the bonnet ??
by grimes6
Sun Dec 22, 2019 5:44 am
Forum: Pub Chat
Topic: Reeeeally tempted..
Replies: 41
Views: 8057
Australia

Re: Reeeeally tempted..

One of the original Bathurst cars came to Tamworth a few years after the race. The body panels were acid dipped and were so thin that they were only held together by the paint ! The car was sold but I don't know where it ended up.

Greg
by grimes6
Wed Nov 13, 2019 8:46 pm
Forum: Technical
Topic: BD29068 captive nuts (Series 2 rhd)
Replies: 8
Views: 1258
Australia

Re: BD29068 captive nuts (Series 2 rhd)

Many thanks. I really can't see any other way of fitting the two panels - as soon as you fit the first shield you cannot access the second for attachment . I wonder how they did it on the production line - small children ???
Thanks to all who have replied .

Regards,
Greg
by grimes6
Wed Nov 13, 2019 8:13 am
Forum: Technical
Topic: BD29068 captive nuts (Series 2 rhd)
Replies: 8
Views: 1258
Australia

Re: BD29068 captive nuts (Series 2 rhd)

Many thanks for the replies. I have fitted the shield with the two brackets and the other bracket which is riveted to the shield . This riveted bracket is attached to the top of the frame by a 1" setscrew (see attached image). All of this is fine until you try to fit the mud shield which has a brack...
by grimes6
Tue Nov 12, 2019 3:00 am
Forum: Technical
Topic: BD29068 captive nuts (Series 2 rhd)
Replies: 8
Views: 1258
Australia

Re: BD29068 captive nuts (Series 2 rhd)

I have been able to find two versions of "captive" nuts. Does anybody recognise either of these ?

Regards,
Greg


by grimes6
Mon Nov 11, 2019 3:52 am
Forum: Technical
Topic: BD29068 captive nuts (Series 2 rhd)
Replies: 8
Views: 1258
Australia

BD29068 captive nuts (Series 2 rhd)

I am fitting the shield assembly (bd28671 ) protecting the air cleaner inner tubes (for triple su,s ). The parts book lists 2 captive nuts (BD 29068) for the two set screws attached to the frame brackets. Can anyone please supply an image or description of these captive nuts and what they attach to ...
by grimes6
Mon Oct 28, 2019 10:34 am
Forum: Technical
Topic: 4 speed all syncro gear box
Replies: 4
Views: 2956
Australia

Re: 4 speed all syncro gear box

c27491


c24181
