Rear Suspension, ride height

Talk about E-Types here

Gfhug
Posts: 1770
Joined: Thu Jun 19, 2014 3:08 pm
Location: Near Andover, Hampshire,in D.O. Blighty
Great Britain

#61 Re: Rear Suspension, ride height

Post by Gfhug » Tue May 14, 2019 8:20 am

Steve, et al, my car on standard springs and Jeremy's on CMC's spring both sit about 8 inch IRS plate to ground and the front and rear wheel arches are the same height and the cars look symmetrical fore/aft. Mine also has renewed front suspension parts and all dimensions were correct.
How does 50EE compare I wonder? And others with their different height IRS compare front to rear?
What is (was back in the day) correct?

Geoff
S2 FHC Light Blue

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

mgcjag
Moderator
Posts: 4244
Joined: Fri Jul 09, 2010 6:15 pm
Location: Ludlow Shropshire
Great Britain

#62 Re: Rear Suspension, ride height

Post by mgcjag » Sat May 18, 2019 8:50 am

Hi Mark.....any answer to this yet......Steve
Steve
1969 S2 2+2 & Building a C type replica

Link:
BBcode:
HTML:
Hide post links
Show post links


Geoff Green
Posts: 124
Joined: Tue Apr 22, 2014 3:13 am
United States of America

#63 Re: Rear Suspension, ride height

Post by Geoff Green » Sat May 18, 2019 11:27 pm

Concours with rain today. Judging under cover and I managed to get photos of 6 car rear suspension lower arms. One photo shown as all are about the same. Note the cars were without driver or other items like luggage or passenger and I did not check fuel level.

I extended the photo horizontal and axle lines out to obtain an accurate reading with my angle gauge. All were 4.8 to 5.5 with the average 5.2 degrees with the diff end higher than the hub end.

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

PeterCrespin
Posts: 3960
Joined: Fri Mar 05, 2010 8:22 pm
Location: Gaithersburg, Maryland.
Contact:
United States of America

#64 Re: Rear Suspension, ride height

Post by PeterCrespin » Sun May 19, 2019 1:19 am

Geoff Green wrote:
Sat May 18, 2019 11:27 pm
All were 4.8 to 5.5 with the average 5.2 degrees with the diff end higher than the hub end.

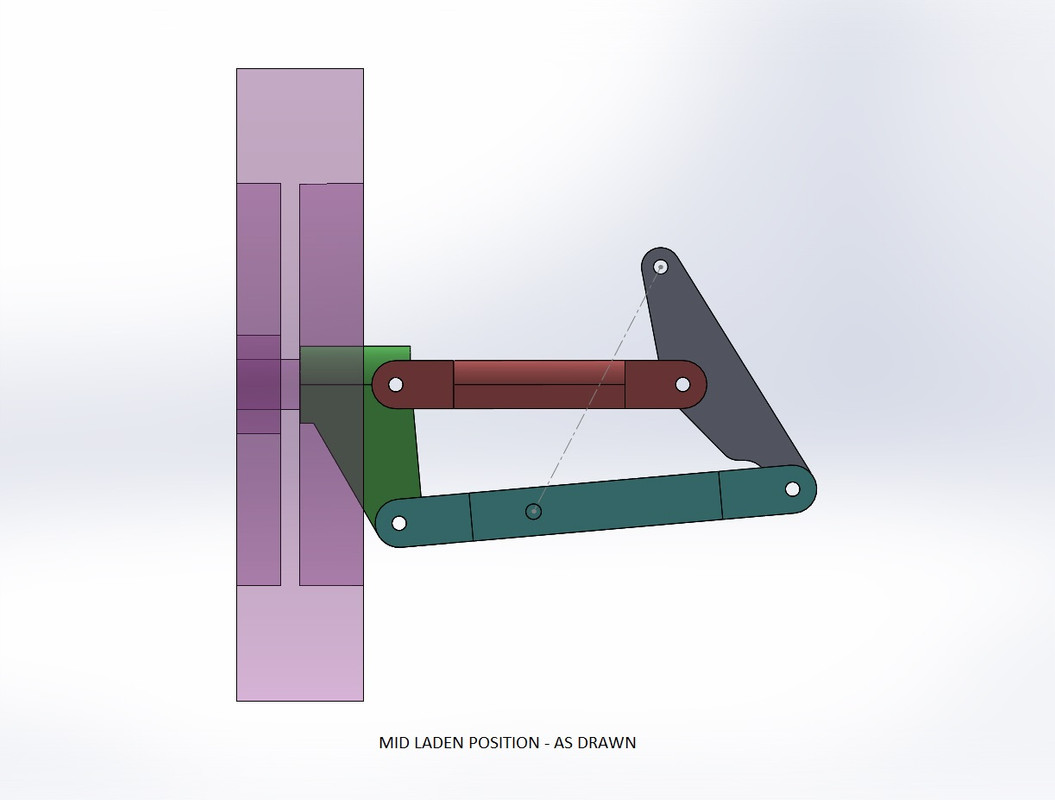

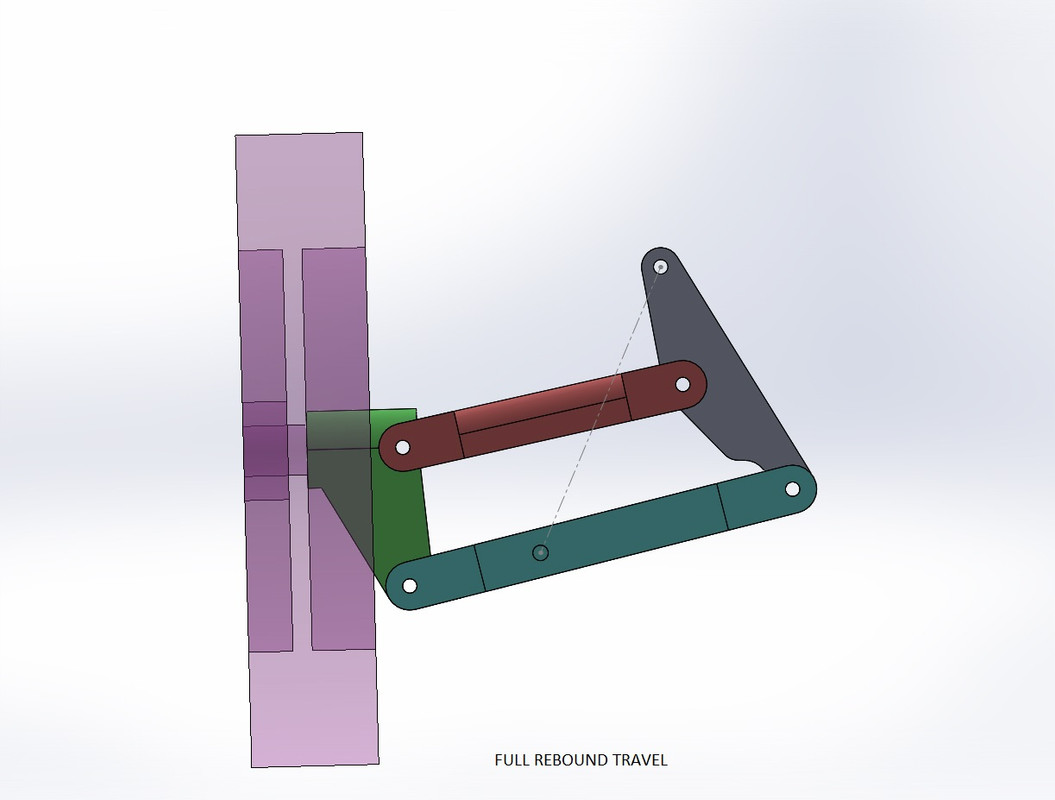

As per post 42:

"Had that drawing in mind when I posted Stu. Trouble is, I’ve driven too many miles behind many Es and in my mind’s eye I see only wishbones sloping down by varying degrees."

By the time you see one with horizontal wishbones you're usually looking at a heavily laden car, often a V12 2+2, not your average mid-laden day tripper.
1E75339 UberLynx D-Type; 1R27190 70 FHC; 1E78478; 79 S2 XJ12L; 97 XJ6L

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Series1 Stu
Posts: 845
Joined: Thu Feb 02, 2017 12:26 pm
Location: Shropshire
Great Britain

#65 Re: Rear Suspension, ride height

Post by Series1 Stu » Sun May 19, 2019 9:07 pm

Ah. Did I not say the drive shafts are horizontal so as to reduce wear on the journals? If not then I meant to.

Regards
Stuart

If you can't make it work, make it complicated!

'62 FHC - Work In (slow) Progress
'69 Daimler 420 Sovereign
'94 X300 XJR basket case

Link:
BBcode:
HTML:
Hide post links
Show post links

Post Reply Previous topicNext topic
