#1 Rear Suspension, ride height

Post by MarkS » Sat May 04, 2019 12:01 pm

I know this has been visited before, but I'm still looking for a solution..

I recently had new shocks and springs fitted to my series 1. This has resulted in the ride height being increased by at least 2 inches. I've read that new replacement springs are often longer, or stiffer than the originals. But the ones I have fitted just seem to go beyond any acceptable change in ride height. (see photo)
Does anyone know what are the correct size of rear springs in terms of length/ steel thickness/ compressability etc. so I can check what I should have, with what I've been sold.




Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

malcolm
Posts: 1481
Joined: Fri Jan 03, 2014 10:44 am
Location: Fleet
Great Britain

#2 Re: Rear Suspension, ride height

Post by malcolm » Sat May 04, 2019 12:19 pm

Can you show a picture of the car from the side? Might help assess the height?
Malcolm
I only fit in a 2+2, so got one!
1969 Series 2 2+2
2009 Jaguar XF-S

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
MarkS
Posts: 40
Joined: Fri May 16, 2014 4:09 pm
Location: Shropshire
Great Britain

#3 Re: Rear Suspension, ride height

Post by MarkS » Sat May 04, 2019 12:24 pm

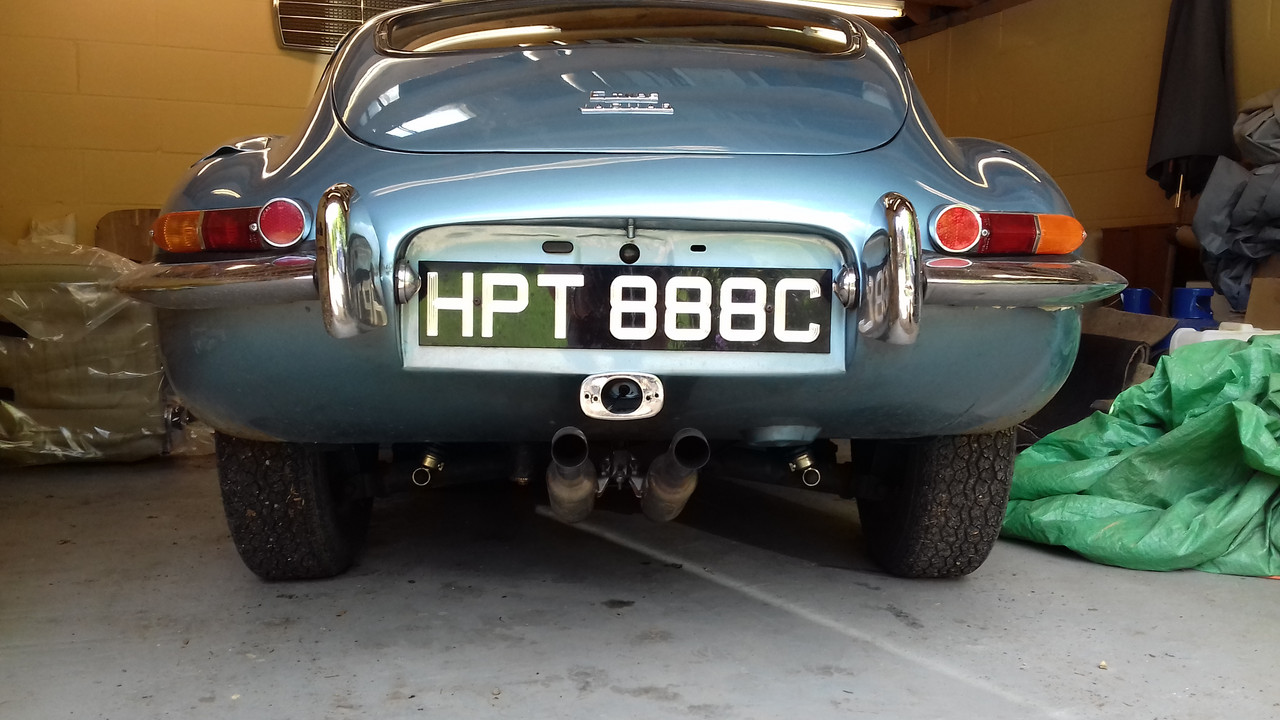

I've taken a picture of the rear of the car because it best shows the negative camber of the rear wheels, caused by a high ride height. Like I said, its 2" higher than what it's supposed to be.

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

mgcjag
Moderator
Posts: 4449
Joined: Fri Jul 09, 2010 6:15 pm
Location: Ludlow Shropshire
Great Britain

#4 Re: Rear Suspension, ride height

Post by mgcjag » Sat May 04, 2019 12:28 pm

Hi Mark...As you are aware there is no specified rear ride height for S1/S2 cars AFAIK....that said quite a while ago i asked on the forum for members to measure from the lowest lip on the IRS base plate to ground.....most came at about 7.25-------7.5in....so this is a good start point.....i currently have my shocks/springs off the car if this could be of use....they are boge/sng springs....as sold for all S1/2 models...on my S2 2+2 the rear measurement is 7.25in...im in Ludlow if its any help your welcom to come over to look at shocks/springs or i can photo/ measure..all the best...Steve
Steve
1969 S2 2+2 & Building a C type replica

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

mgcjag
Moderator
Posts: 4449
Joined: Fri Jul 09, 2010 6:15 pm
Location: Ludlow Shropshire
Great Britain

#5 Re: Rear Suspension, ride height

Post by mgcjag » Sat May 04, 2019 12:31 pm

From the photo it looks like you have pos camber..top out....Steve
Steve
1969 S2 2+2 & Building a C type replica

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
MarkS
Posts: 40
Joined: Fri May 16, 2014 4:09 pm
Location: Shropshire
Great Britain

#6 Re: Rear Suspension, ride height

Post by MarkS » Sat May 04, 2019 1:26 pm

Hi Steve,

Thanks for your help. Yes, I did read your original post of ride-height, and I measured mine which is a little over 9". Which is why I said that mine is riding 2" too high.

I could really use some help with the length of the original spring (I've gone and stupidly thrown mine away).I understand that ride height will be determined by compressability and length of spring. I heard that the original (red) springs have a compressability of 220 lbF/inch. But I can't confirm that without measuring the dimensions with a vernier. (and of course, original springs will be tired, and a bit rusty, so it won't be that accurate)


Now then, after market springs are 280mm in length AND (I heard) had a compressibility of 300lbF/inch. But I can't confirm this... So, I wondered if anyone could shed more light on this...?

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

mgcjag
Moderator
Posts: 4449
Joined: Fri Jul 09, 2010 6:15 pm
Location: Ludlow Shropshire
Great Britain

#7 Re: Rear Suspension, ride height

Post by mgcjag » Sat May 04, 2019 1:40 pm

Hi Mark...from the Jag service manual
Steve
1969 S2 2+2 & Building a C type replica

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

mgcjag
Moderator
Posts: 4449
Joined: Fri Jul 09, 2010 6:15 pm
Location: Ludlow Shropshire
Great Britain

#8 Re: Rear Suspension, ride height

Post by mgcjag » Sat May 04, 2019 2:08 pm

Hi Mark...just to add..its not just the springs that set the ride height but also the shock perches.....the distance from where the spring sits top and bottom to its mounting point.....As mine give a known ride height of 7.25 in it could be worth you comparing.....What shocks do you have.....Steve
Steve
1969 S2 2+2 & Building a C type replica

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
MarkS
Posts: 40
Joined: Fri May 16, 2014 4:09 pm
Location: Shropshire
Great Britain

#9 Re: Rear Suspension, ride height

Post by MarkS » Sat May 04, 2019 2:32 pm

Steve,

I have Gaz shocks which are adjustable for ride height, and they are at their maximum position for lowering the ride height.
Thanks for the data. Now all I need is the OD.

By the way, is this spec from the FSM for Series 1.5 4.2 or is it the early and later 3.8s..? The reason I ask is because I found the same data on the JagLovers forum where the OP said he didn't have the data for the 4.2, which would be different. He, incidentally worked out the poundage as 205 and 190 (much less)

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

mgcjag
Moderator
Posts: 4449
Joined: Fri Jul 09, 2010 6:15 pm
Location: Ludlow Shropshire
Great Britain

#10 Re: Rear Suspension, ride height

Post by mgcjag » Sat May 04, 2019 2:55 pm

Hi Mark.....data from 1st section in Jag manual..so 3.8 section.....other sections dont show a change..so dont know...would help if you try to put your name and car model in the Signature area......I would also double check your shocks with the supplier.....problems with springs are not usually 2 inches.....where are springs from...Steve
Steve
1969 S2 2+2 & Building a C type replica

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
MarkS
Posts: 40
Joined: Fri May 16, 2014 4:09 pm
Location: Shropshire
Great Britain

#11 Re: Rear Suspension, ride height

Post by MarkS » Sat May 04, 2019 3:21 pm

The springs were sold with the Gaz shocks. They were specific for the series 1.5, so they should be correct....

I won't be the first to complain about excessive ride height after fitting new springs from specialist parts suppliers. The springs they supply are not like the originals. Barrats show one with a different free-length. The diameter of the wire is also different.. all leading to a different poundage, thus ride-height.

Next week I will check with spring specialist.
Last edited by MarkS on Sat May 04, 2019 5:15 pm, edited 1 time in total.

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
MarkS
Posts: 40
Joined: Fri May 16, 2014 4:09 pm
Location: Shropshire
Great Britain

#12 Re: Rear Suspension, ride height

Post by MarkS » Sat May 04, 2019 3:25 pm

Steve, why did you say, 'problems with springs aren't usually 2inches...?

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

mgcjag
Moderator
Posts: 4449
Joined: Fri Jul 09, 2010 6:15 pm
Location: Ludlow Shropshire
Great Britain

#13 Re: Rear Suspension, ride height

Post by mgcjag » Sat May 04, 2019 3:39 pm

Hi Mark...I dont think i have heard of anyone with 2in extra hight with just a spring problem.....you have gone for an adjustable after market option so you cant just dismiss the shocks......you have mentioned S1.5 twice now.....but you car is C reg...1965? S1?
Steve
1969 S2 2+2 & Building a C type replica

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

andrewh
Posts: 2348
Joined: Fri Dec 21, 2007 8:31 am
Location: kent
Great Britain

#14 Re: Rear Suspension, ride height

Post by andrewh » Sat May 04, 2019 4:12 pm

I think some more detailed photos would be helpful, from the side, from underneath and preferably with one shock off the car. Perhaps you have been sent springs off another model by mistake?
1962 3.8 Series One FHC

http://etype860897.blogspot.com/

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Simonpfhc
Posts: 464
Joined: Mon Aug 27, 2012 12:38 pm
Location: Surrey
Great Britain

#15 Re: Rear Suspension, ride height

Post by Simonpfhc » Sat May 04, 2019 4:38 pm

Hi Mark,

A while ago, I started a whole thread on this exact subject. Have a read through as it will give you a lot of info on standard and aftermarket springs:

http://forum.etypeuk.com/viewtopic.php? ... ND+springs

Cheers
Simon
62 3.8 FHC
91 Porsche 928GT

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
MarkS
Posts: 40
Joined: Fri May 16, 2014 4:09 pm
Location: Shropshire
Great Britain

#16 Re: Rear Suspension, ride height

Post by MarkS » Sat May 04, 2019 5:14 pm

Hi Simon, Thanks very much for that.. wish I'd seen it before..!

-anyone want to buy a set of springs?

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

abowie
Posts: 2307
Joined: Wed Sep 07, 2011 9:15 pm
Location: Australia
Contact:
Australia

#17 Re: Rear Suspension, ride height

Post by abowie » Sat May 04, 2019 9:41 pm

andrewh wrote:
Sat May 04, 2019 4:12 pm
Perhaps you have been sent springs off another model by mistake?
Exactly. The replacement springs are not suitable for E Types.

Put your old springs back on and throw the new ones in the bin.
Andrew.
881824, 1E21538. 889457..oops
http://www.projectetype.com/index.php/the-blog.html
Adelaide, Australia

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
MarkS
Posts: 40
Joined: Fri May 16, 2014 4:09 pm
Location: Shropshire
Great Britain

#18 Re: Rear Suspension, ride height

Post by MarkS » Sat May 04, 2019 10:28 pm

If only i could..

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

PeterCrespin
Posts: 4021
Joined: Fri Mar 05, 2010 8:22 pm
Location: Gaithersburg, Maryland.
Contact:
United States of America

#19 Re: Rear Suspension, ride height

Post by PeterCrespin » Sat May 04, 2019 11:01 pm

The positive camber looks exactly like a car with normal springs that has been lowered off the jack to the floor and not yet driven. Had you driven it before the photo?


For a 2" rise in ride height, identical rate springs would be less than two inches longer than before.
1E75339 UberLynx D-Type; 1R27190 70 FHC; 1E78478; 97 XJ6L

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
MarkS
Posts: 40
Joined: Fri May 16, 2014 4:09 pm
Location: Shropshire
Great Britain

#20 Re: Rear Suspension, ride height

Post by MarkS » Sun May 05, 2019 8:32 am

Hi Peter,
Yes, I have driven the car about quite a bit.
PeterCrespin wrote:
Sat May 04, 2019 11:01 pm
For a 2" rise in ride height, identical rate springs would be less than two inches longer than before.
I agree that the relation between length and ride height is not a linear one, (mainly because of the angle from the vertical, (pythagoras)), but also because the angle must effect the loading on the spring.
Having said that, I believe the rate is far more important, and, (in the formula for stiffness/rate) that is largely governed by the thickness of the wire.
