#41 Re: New Reproduction Parts for E-Type's

Post by 265bhp » Mon Nov 27, 2017 11:05 pm

Looks very good Simon
It's a shame the reproduction GRP Housings BD19714 are often so badly made....don't suppose you know of a good quality source..?
Regards
Jonathan
1963 3.8 FHC in slow restoration mode

Link:
BBcode:
HTML:
Hide post links
Show post links


tim wood
Posts: 465
Joined: Fri Nov 20, 2009 6:52 pm
Location: Leighton Buzzard UK
Great Britain

#42 Re: New Reproduction Parts for E-Type's

Post by tim wood » Tue Nov 28, 2017 8:10 am

I purchased a reproduction housing from an ebay seller called 'Andy-puddle' . Haven’t fitted it yet but looks superb and much better finished than others I have viewed.
The item number is: 272769747111 - £42 + P&P

Tim
Series 1 2+2 now sold
Series 1.5 OTS in opalescent maroon with beige interior now back home from California and in my garage !

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
Heuer
Administrator
Posts: 12033
Joined: Sat Mar 01, 2008 5:29 pm
Location: Nottinghamshire
Great Britain

#43 Re: New Reproduction Parts for E-Type's

Post by Heuer » Thu Dec 07, 2017 7:38 pm

Richard Smith is now producing:
C15419 Locknut, clamping shaft to inner column

C20067 Selector lever on end of change speed lever (all Jaguar synchro boxes)

As always contact Richard if you want any of these parts. Tel.01270 780954
David Jones
S1 OTS OSB; S1 FHC ODB

Add your E-Type to our World Map: viewtopic.php?f=1&t=1810

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
Heuer
Administrator
Posts: 12033
Joined: Sat Mar 01, 2008 5:29 pm
Location: Nottinghamshire
Great Britain

#44 Re: New Reproduction Parts for E-Type's

Post by Heuer » Sun Jan 14, 2018 11:31 am

Richard Smith is now reproducing part #8747 which is the air filter baffle clip for the 3.8 brake servo.

Contact Richard if you need one.
David Jones
S1 OTS OSB; S1 FHC ODB

Add your E-Type to our World Map: viewtopic.php?f=1&t=1810

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
Heuer
Administrator
Posts: 12033
Joined: Sat Mar 01, 2008 5:29 pm
Location: Nottinghamshire
Great Britain

#45 Re: New Reproduction Parts for E-Type's

Post by Heuer » Fri Feb 09, 2018 11:30 am

Richard Smith is now producing the speedometer fixing kit which is used on all series of cars:

These had no Jaguar part number as they were supplied with the speedometer. Contact Richard directly if you need a set.
David Jones
S1 OTS OSB; S1 FHC ODB

Add your E-Type to our World Map: viewtopic.php?f=1&t=1810

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
Heuer
Administrator
Posts: 12033
Joined: Sat Mar 01, 2008 5:29 pm
Location: Nottinghamshire
Great Britain

#46 Re: New Reproduction Parts for E-Type's

Post by Heuer » Sat Feb 17, 2018 7:41 pm

Richard now has the tacho retaining brackets available:
David Jones
S1 OTS OSB; S1 FHC ODB

Add your E-Type to our World Map: viewtopic.php?f=1&t=1810

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

andrewh
Posts: 2274
Joined: Fri Dec 21, 2007 8:31 am
Location: kent
Great Britain

#47 Re: New Reproduction Parts for E-Type's

Post by andrewh » Sat Feb 17, 2018 8:56 pm

Does anyone reproduce the heater box plenum? I did buy one a few years back but its a rough old thing and didnt fit well. This is the manifold that bolts to the bonnet and directs ram air into the heater fan.
1962 3.8 Series One FHC

http://etype860897.blogspot.com/

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
Heuer
Administrator
Posts: 12033
Joined: Sat Mar 01, 2008 5:29 pm
Location: Nottinghamshire
Great Britain

#48 Re: New Reproduction Parts for E-Type's

Post by Heuer » Sun Feb 18, 2018 12:25 pm

Richard seems to be on a roll - another previously unavailable part C17909 choke control assembly:

Richard already produces the heater control assembly (see earlier in the thread). Contact Richard directly if you need one.
David Jones
S1 OTS OSB; S1 FHC ODB

Add your E-Type to our World Map: viewtopic.php?f=1&t=1810

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
Heuer
Administrator
Posts: 12033
Joined: Sat Mar 01, 2008 5:29 pm
Location: Nottinghamshire
Great Britain

#49 Re: New Reproduction Parts for E-Type's

Post by Heuer » Sat Feb 24, 2018 11:25 am

"Hi David, please see attached image of new item which is C15619 the splined upper steering column shaft, fits all E Types."

Cheers

Richard.

Richard M.Smith,
R.M & J.Smith Ltd.,
P.O.Box 249,Nantwich,Cheshire,
CW5 9AR
United Kingdom.
Tel. 01270 780954
David Jones
S1 OTS OSB; S1 FHC ODB

Add your E-Type to our World Map: viewtopic.php?f=1&t=1810

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
Heuer
Administrator
Posts: 12033
Joined: Sat Mar 01, 2008 5:29 pm
Location: Nottinghamshire
Great Britain

#50 Re: New Reproduction Parts for E-Type's

Post by Heuer » Tue Mar 13, 2018 2:21 pm

Julian Barratt has been in touch to say they now have the new improved brake light switch in stock. This has been tested by Forum member Julian (Cactusman) and has been used on the SNGB E-Type since 2016.
Direct link: https://www.sngbarratt.com/uk/#!/Englis ... 4beb9c38a3

Part number is C16062U (the “U” is the important bit!) and they are available now from the SNGB web site and there will be stock at Stoneleigh. At last a hydraulic brake light switch that can be relied upon.
David Jones
S1 OTS OSB; S1 FHC ODB

Add your E-Type to our World Map: viewtopic.php?f=1&t=1810

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
Heuer
Administrator
Posts: 12033
Joined: Sat Mar 01, 2008 5:29 pm
Location: Nottinghamshire
Great Britain

#51 Re: New Reproduction Parts for E-Type's

Post by Heuer » Wed Mar 14, 2018 5:34 pm

SNGB have now reproduced the flat topped plenum seen on the 3.8 cars (up to about March 1963).
Direct link: https://www.sngbarratt.com/uk/#!/Englis ... 7bd59e3310

Jaguar changed the plenum to the fluted version but the part number C17533 remained the same. SNGB differentiate the flat topped version by having a /1 suffix so order C17533/1 if you need one.
David Jones
S1 OTS OSB; S1 FHC ODB

Add your E-Type to our World Map: viewtopic.php?f=1&t=1810

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
Heuer
Administrator
Posts: 12033
Joined: Sat Mar 01, 2008 5:29 pm
Location: Nottinghamshire
Great Britain

#52 Re: New Reproduction Parts for E-Type's

Post by Heuer » Wed Apr 04, 2018 1:31 pm

The rubber seal between the bumpers and bodywork parts BD18947/1 and BD18947/2 were originally very narrow unlike the reproduction seals available today.


Current reproduction seal:

The seals increased in thickness culminating with the very thick S3 seals. We assume this was because production tolerances increased and the wider seals allowed the bumper fitting to be easier and quicker with a greater margin for error. Once you see the narrow seal on a car you realise how big and ugly the later seals are especially if you car is painted in anything other than black.

The correct narrow bumper seals made to original specification are available from the exclusive distributor E-Conic if you want a set: angus.moss@e-conic.net They can be used on any S1 car although were originally used up until early 1963.
David Jones
S1 OTS OSB; S1 FHC ODB

Add your E-Type to our World Map: viewtopic.php?f=1&t=1810

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
Heuer
Administrator
Posts: 12033
Joined: Sat Mar 01, 2008 5:29 pm
Location: Nottinghamshire
Great Britain

#53 Re: New Reproduction Parts for E-Type's

Post by Heuer » Fri Apr 27, 2018 1:20 pm

Angus Moss has made a short run of the 'Special Wrench for Handbrake Adjustment' C18636, a specially made 4⅛in long 5/32in AF Allen key with a black oxide finish. Although the manual handbrake adjustment was replaced by the self adjusting mechanism in February 1962 Jaguar forgot to delete the tool from the toolkit and so continued to be supplied throughout 3.8 production and also included within all 4.2 E-type Toolkits up to 1968 although there is no mention of it in the J37 SPC. A real oddity but it has been observed in all 4.2 toolkits. For some reason they are usually missing from the tool kit, certainly it had gone from the otherwise complete and original one in my FHC! Originals command very high prices and reproduction ones that appear on eBay are nothing more then standard cut down Allen keys with no attempt to replicate the angled end or the chamfered head. Angus used a well preserved original as a template for this copy which is indistinguishable from the Jaguar one in every respect.


Angus is selling these for £50 + postage + VAT whilst stocks last. Contact him via PM or email if you want one: angus@mossjaguar.com
David Jones
S1 OTS OSB; S1 FHC ODB

Add your E-Type to our World Map: viewtopic.php?f=1&t=1810

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
Heuer
Administrator
Posts: 12033
Joined: Sat Mar 01, 2008 5:29 pm
Location: Nottinghamshire
Great Britain

#54 Re: New Reproduction Parts for E-Type's

Post by Heuer » Thu Jun 21, 2018 11:21 am

Richard Smith is now producing part C20698 the angled aluminium packer on the mounting of the interior mirror and fitted to all S1 FHC (and 2+2) cars from 861057/888067 - early 1963 onwards.


Another item you probably don't have on your coupe but should have! Contact Richard if you want one and have your mirror at the correct angle.

Richard M.Smith,
R.M & J.Smith Ltd.,
P.O.Box 249,Nantwich,Cheshire,
CW5 9AR
United Kingdom.

Tel. 01270 780954 E: rmjsmithltd@gmail.com
David Jones
S1 OTS OSB; S1 FHC ODB

Add your E-Type to our World Map: viewtopic.php?f=1&t=1810

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
Heuer
Administrator
Posts: 12033
Joined: Sat Mar 01, 2008 5:29 pm
Location: Nottinghamshire
Great Britain

#55 Re: New Reproduction Parts for E-Type's

Post by Heuer » Wed Jul 04, 2018 4:40 pm

Richard Smith has produced C17269 'spring for Valve Housing' - the conical spring in the 3.8 servo unit.


Contact Richard if you need one.
David Jones
S1 OTS OSB; S1 FHC ODB

Add your E-Type to our World Map: viewtopic.php?f=1&t=1810

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
Heuer
Administrator
Posts: 12033
Joined: Sat Mar 01, 2008 5:29 pm
Location: Nottinghamshire
Great Britain

#56 Re: New Reproduction Parts for E-Type's

Post by Heuer » Wed Sep 19, 2018 10:23 am

Parts BD24406 & BD24407, the FHC window catches fitted to 3.8 cars 861099/888302 onwards and all 4.2's, are now available from Richard Smith:

Contact Richard for price and availability.
David Jones
S1 OTS OSB; S1 FHC ODB

Add your E-Type to our World Map: viewtopic.php?f=1&t=1810

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
Heuer
Administrator
Posts: 12033
Joined: Sat Mar 01, 2008 5:29 pm
Location: Nottinghamshire
Great Britain

#57 Re: New Reproduction Parts for E-Type's

Post by Heuer » Fri Oct 26, 2018 1:43 pm

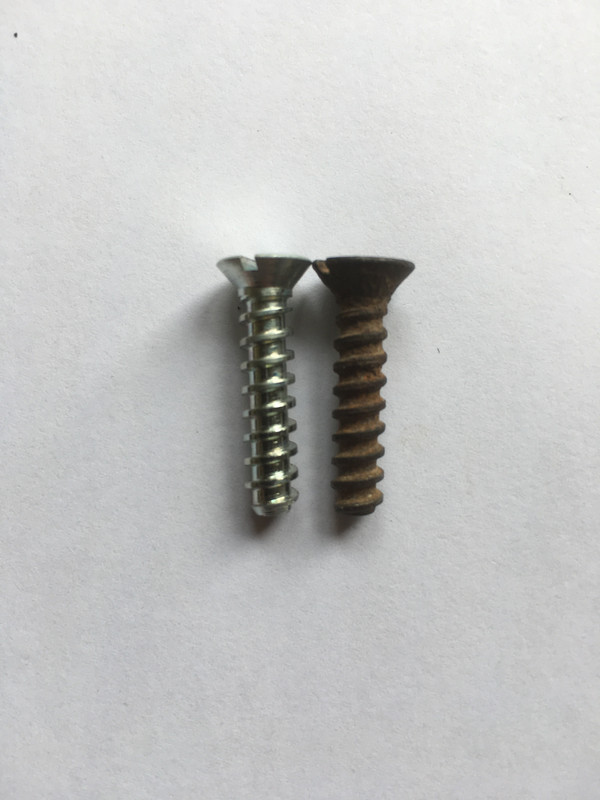

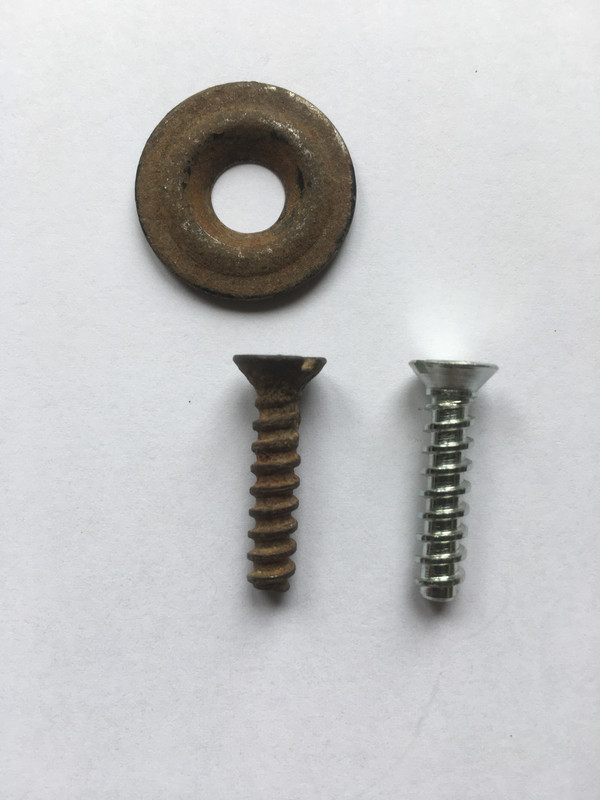

Julian Barratt has been in touch to say they are now producing S1 headlamp chrome retaining screws BD22780 and BD26675 in stainless steel. This came out of a request from Angus because the stock screws quickly rust:


They are available as BD22780/4SS (slot head) and BD26675/4SS (Phillips head) from SNGB
