Wiper Drive Pimary Link, Eccentric, and Wiper Parking.

Technical advice Q&A
User avatar

Topic author
rfs1957
Posts: 909
Joined: Sat Jan 15, 2011 2:52 pm
Location: Montpellier, France
France

#21 Re: Wiper Drive Pimary Link, Eccentric, and Wiper Parking.

Post by rfs1957 » Wed Jan 08, 2020 5:54 pm

Hi Robbie, thanks for that ; any pictures you might have that show how the adjuster cable fits onto the centre pivot would be most welcome - I haven't got my cable yet but it is likely to be incomplete regarding the accessories that attach it to frame, and through which it interacts with the insulated arm.
Rory
3.8 OTS Cream 877393 Built May 28th 1962
1978 Mini Van
(plus bevel and belt single-cylinder Ducatis)

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

rswaffie
Posts: 867
Joined: Sat Jul 19, 2014 7:56 am
Location: Lincolnshire
Great Britain

#22 Re: Wiper Drive Pimary Link, Eccentric, and Wiper Parking.

Post by rswaffie » Wed Jan 08, 2020 7:02 pm

From my 63 FHC, if they help....




Richard

S1 3.8 FHC Opalescent Golden Sand with Tan Trim 889504
Now running-in my diy nut ‘n’ bolt restoration. :wrench: :hammer: :fingerscrossed:

Link:
BBcode:
HTML:
Hide post links
Show post links


Robbiee
Posts: 333
Joined: Sun Aug 16, 2015 12:07 pm
Location: Derbyshire

#23 Re: Wiper Drive Pimary Link, Eccentric, and Wiper Parking.

Post by Robbiee » Wed Jan 08, 2020 9:36 pm

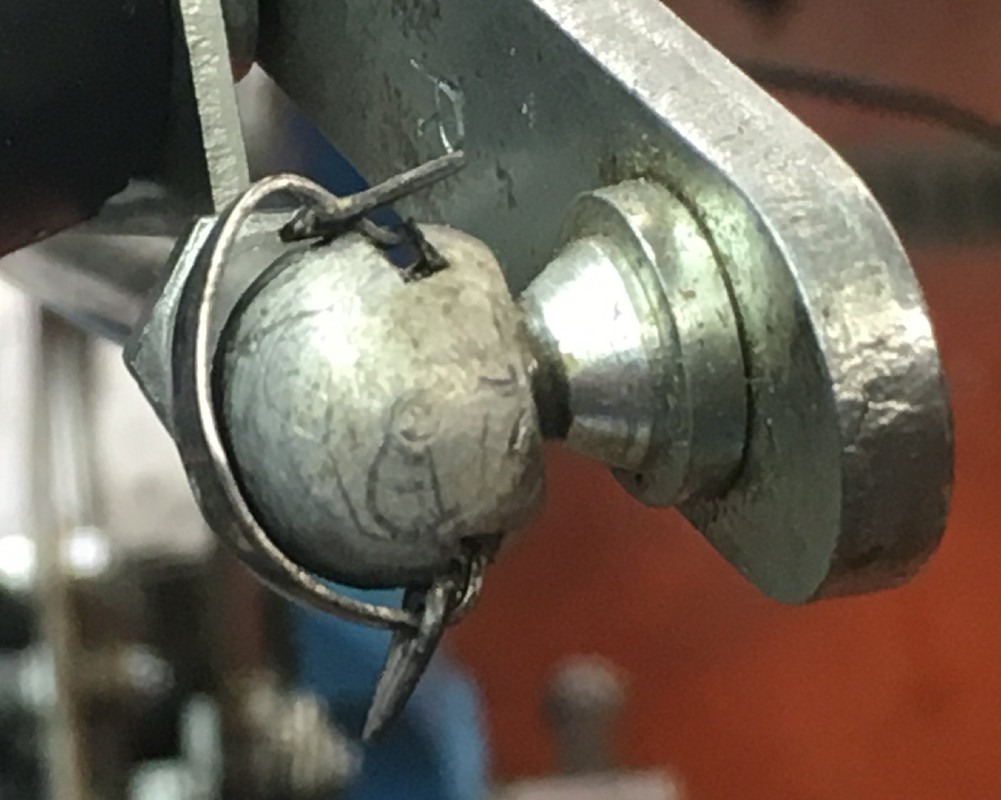

Would this help?


Robbie 1962 3.8 Coupe OSG 1962 OTS ODG

Link:
BBcode:
HTML:
Hide post links
Show post links


Robbiee
Posts: 333
Joined: Sun Aug 16, 2015 12:07 pm
Location: Derbyshire

#24 Re: Wiper Drive Pimary Link, Eccentric, and Wiper Parking.

Post by Robbiee » Wed Jan 08, 2020 9:41 pm

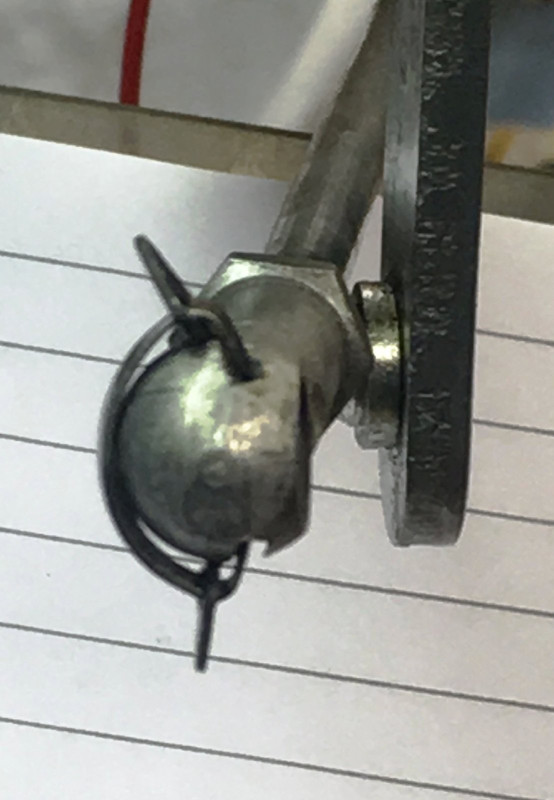

There’s a little washer between the spring and lever here
Robbie 1962 3.8 Coupe OSG 1962 OTS ODG

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
rfs1957
Posts: 909
Joined: Sat Jan 15, 2011 2:52 pm
Location: Montpellier, France
France

#25 Re: Wiper Drive Pimary Link, Eccentric, and Wiper Parking.

Post by rfs1957 » Wed Jan 08, 2020 10:19 pm

Fantastic lads thank you.
Rory
3.8 OTS Cream 877393 Built May 28th 1962
1978 Mini Van
(plus bevel and belt single-cylinder Ducatis)

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
rfs1957
Posts: 909
Joined: Sat Jan 15, 2011 2:52 pm
Location: Montpellier, France
France

#26 Re: Wiper Drive Pimary Link, Eccentric, and Wiper Parking.

Post by rfs1957 » Fri Jan 10, 2020 7:41 pm

I'm sticking my neck out a bit here, as there are a couple of items to come back from zinc-plating before I can set all this up off the car, test the theory on the bench, and see if the motor-wiring modifications I've made have given me the correct rotation.

However, it may yet be of help to someone else, and others may want to contribute - and I'll cast it in stone once I've tried it.

Does this make sense so far ?

The wipers are meant to park in front of the driver, for both LHD and RHD cars (mine is RHD).

The mechanisms are the same for both variants, the "parked" position is obtained on RHD cars by the eccentric going "long" to throw the wiper bell-cranks farther to the left (seen from within the car) than usual, hence the wipers further to the right.

I am going to post the details of the wiring changes that are necessary in a separate post, as I found the info available elsewhere somewhat confusing.

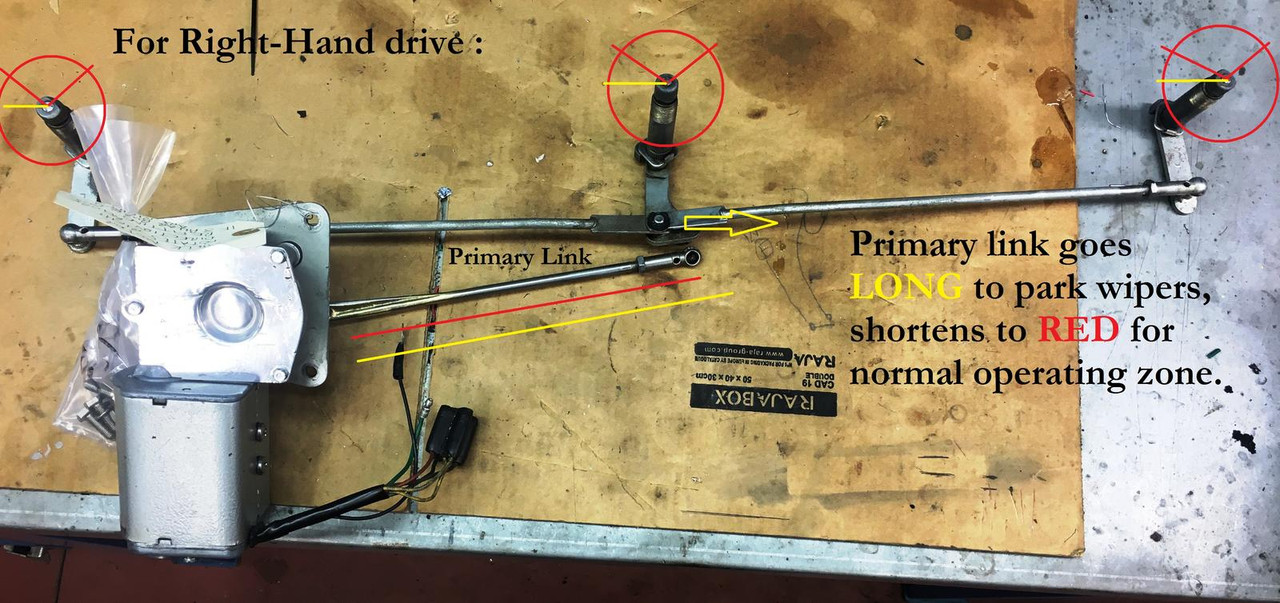

This picture simulates the assembly as seen from the front of the car, with mini-wipers represented.


On LHD cars the eccentric goes "short" to pull the bell-cranks farther to the right (seen from within the car, hence the wipers further to the left.

It is the direction of rotation of the motor that determines how the eccentric behaves, and whether it adopts the "long" or the "short" position, hence the fact that LHD and RHD motors have reversed rotations.


The spring-loaded swash-plate tries to rotate the eccentric in the same direction as the motor crank rotation.

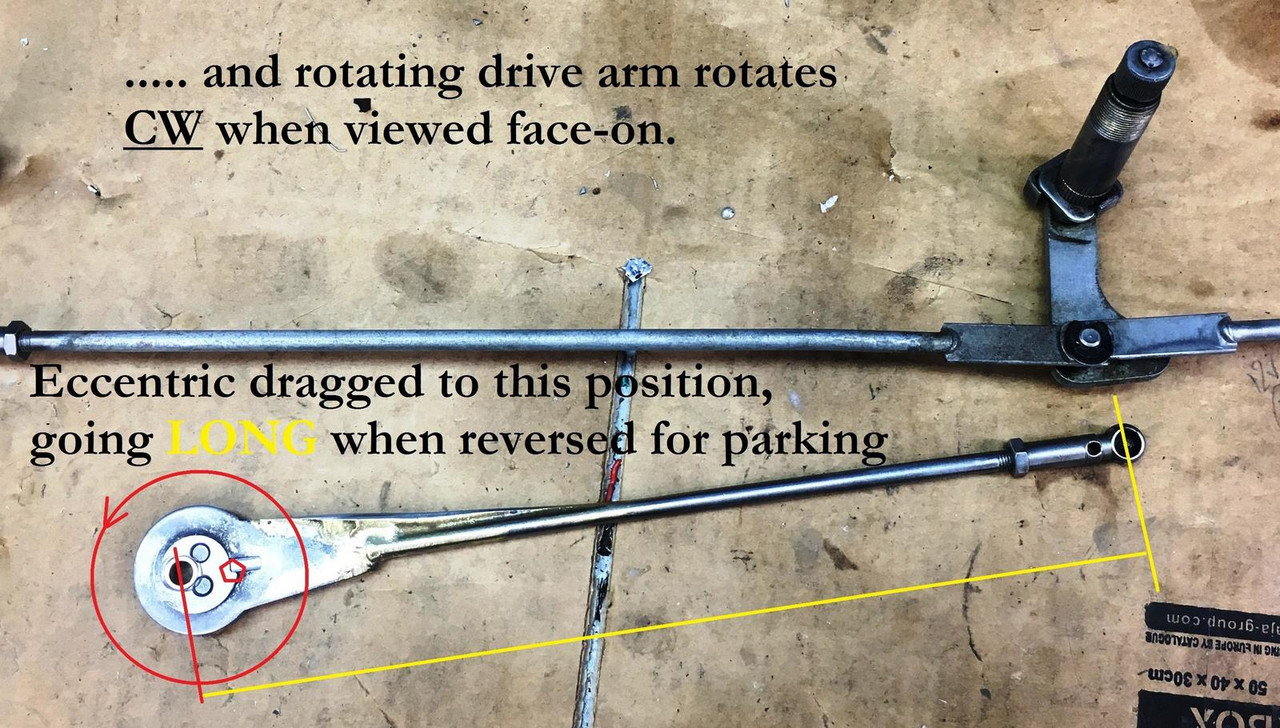

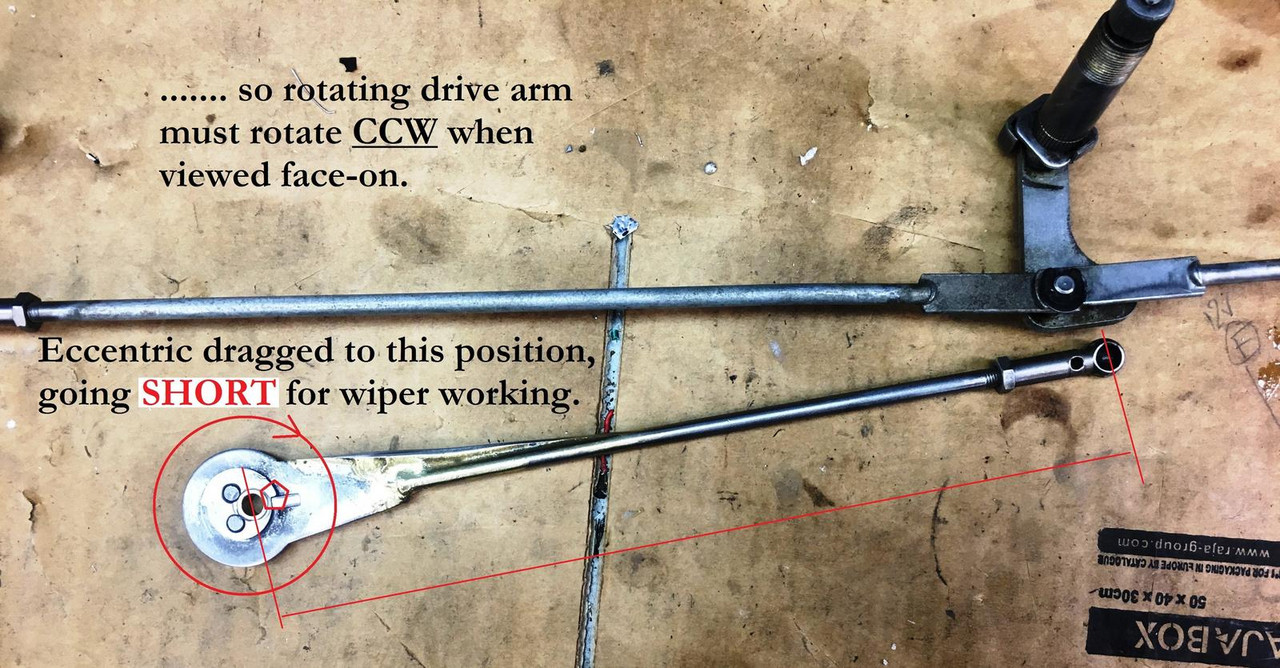

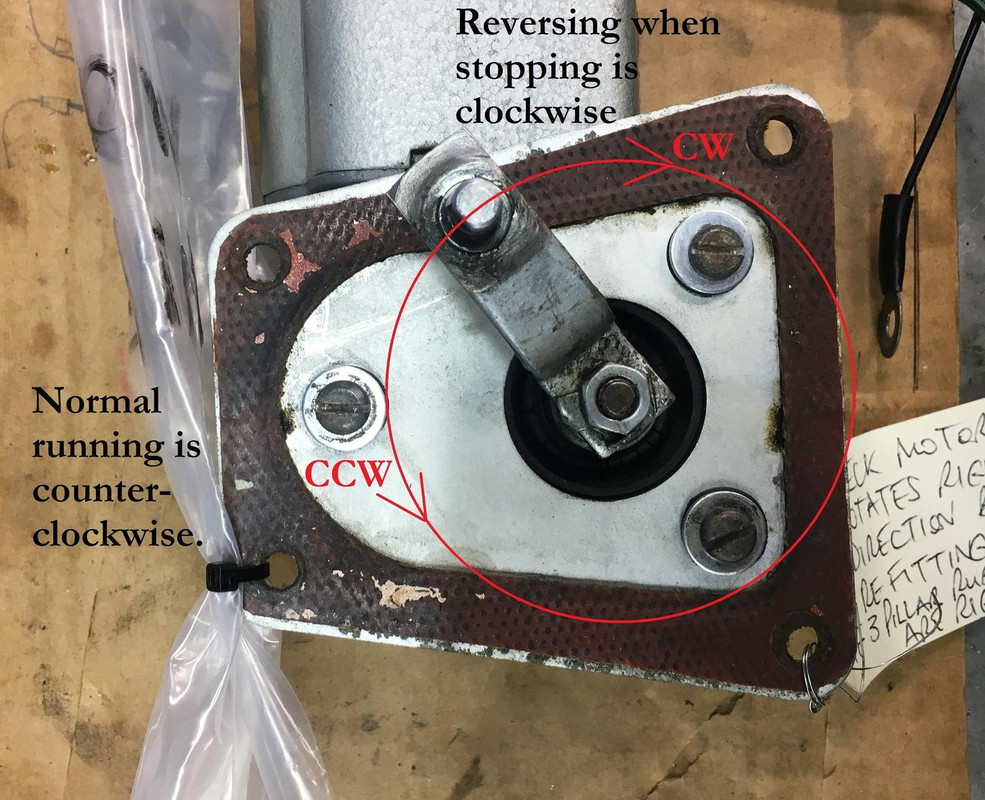

So I think what this means is that when looking at the rotating crank on the motor mechanism, for a RHD car, it should be going CCW (counter-clockwise) during normal operation, and CW (clockwise) during the reversing-to-park cycle.

(Bear in mind that there are mirror-image flips going on here when transposing rotation seen from one side and then from another)


This is confirmed by Joe Hardy's explanation you'll find here, in our Knowledge base, although the references to motor-direction are potentially misleading ; I think he indeed means the output crank when viewed head-on.

http://www.xkedata.com/resources/read/?id=9

"When wired correctly, a RHD motor will be turning the spindle anti-clockwise (viewed from the spindle side) under normal running."

There is a truly magesterial electrical paper here in our Knowledge base

https://www.dropbox.com/s/x7f9u2g650up8 ... l.pdf?dl=1

that covers the wiring and how the switching obtains twin-speeds, and reverse.
Rory
3.8 OTS Cream 877393 Built May 28th 1962
1978 Mini Van
(plus bevel and belt single-cylinder Ducatis)

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
rfs1957
Posts: 909
Joined: Sat Jan 15, 2011 2:52 pm
Location: Montpellier, France
France

#27 Re: Wiper Drive Pimary Link, Eccentric, and Wiper Parking.

Post by rfs1957 » Mon Jan 13, 2020 6:00 pm

Well, that got you lot really excited didn't it.


As I pursue my PhD in wiper-parking, and in order for me for me to complete my thesis, which will include the long-awaited Première of the eccentric being filmed LIVE, in action, has any kind soul got one of these clips they could spare ?



Note, it's the clip I need, preferably with its two "ears", not the ball-joint itself.


Failing that, I see that XKS in the US list them complete with the ball-joint, from - I quote - "a UK cottage-industry", so presumably some supplier does actually have the clips.

Any ideas ?
Rory
3.8 OTS Cream 877393 Built May 28th 1962
1978 Mini Van
(plus bevel and belt single-cylinder Ducatis)

Link:
BBcode:
HTML:
Hide post links
Show post links


1954Etype
Moderator
Posts: 2433
Joined: Sat Sep 27, 2008 12:32 pm
Contact:
Great Britain

#28 Re: Wiper Drive Pimary Link, Eccentric, and Wiper Parking.

Post by 1954Etype » Mon Jan 13, 2020 7:03 pm

Richard Smith does them I believe.
Angus 65 OTS 1E11497. 67 FHC 1E33656

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

rswaffie
Posts: 867
Joined: Sat Jul 19, 2014 7:56 am
Location: Lincolnshire
Great Britain

#29 Re: Wiper Drive Pimary Link, Eccentric, and Wiper Parking.

Post by rswaffie » Mon Jan 13, 2020 7:05 pm

I got mine from Steve Hunt on eBay - he listed them as ‘Jaguar E-type Wiper Rack Snap End Clip’.
Richard

S1 3.8 FHC Opalescent Golden Sand with Tan Trim 889504
Now running-in my diy nut ‘n’ bolt restoration. :wrench: :hammer: :fingerscrossed:

Link:
BBcode:
HTML:
Hide post links
Show post links


Richardhealey
Posts: 149
Joined: Sun Apr 09, 2017 6:31 pm
Location: Berkhamsted
Great Britain

#30 Re: Wiper Drive Pimary Link, Eccentric, and Wiper Parking.

Post by Richardhealey » Mon Jan 13, 2020 8:21 pm

‘...As I pursue my PhD in wiper-parking, and in order for me for me to complete my thesis...’ :lol:

Can’t help...but enjoying the read!
1969 series 2, 2+2... going for a full rebuild.. Gulp...

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
rfs1957
Posts: 909
Joined: Sat Jan 15, 2011 2:52 pm
Location: Montpellier, France
France

#31 Re: Wiper Drive Pimary Link, Eccentric, and Wiper Parking.

Post by rfs1957 » Mon Jan 13, 2020 8:52 pm

Can't find the clips on Ebay any more unfortunately.

HOWEVER it turns out I have a secret Tutor who is overseeing my thesis at a distance and who has offered to post me such a clip tomorrow morning.

Does it get any better ?

I'm used to going to sleep and waking up to an answer from Australia, but not to posting just before my gym class and then returning to find today's problem has been solved.

Many thanks Simon.

PS Anyone else chasing these details might look here too

viewtopic.php?t=5484&sid=0a8e99e39052cc ... b093a5a076
Rory
3.8 OTS Cream 877393 Built May 28th 1962
1978 Mini Van
(plus bevel and belt single-cylinder Ducatis)

Link:
BBcode:
HTML:
Hide post links
Show post links


265bhp
Posts: 612
Joined: Wed Jan 26, 2011 10:29 pm
Location: surrey
Great Britain

#32 Re: Wiper Drive Pimary Link, Eccentric, and Wiper Parking.

Post by 265bhp » Tue Jan 14, 2020 10:07 pm

265bhp wrote:
Sun Jan 05, 2020 9:31 pm
Good point Simon.....need to check again as it was the spindle I had looked at....currently sitting on the tarmac in one of BA’s finest as we wait to take off...so far 30 mins delay... :roll:

Hi Simon
You were indeed correct, my misunderstanding
So now I have to decide whether to pull these 2 ends apart to swop over the components... as naturally they are not handed
1963 3.8 FHC in slow restoration mode
1974 2.7 Carrera now as an RS Touring

Link:
BBcode:
HTML:
Hide post links
Show post links

Post Reply Previous topicNext topic
