#21 Re: A different approach to Engine Stand Adapters

Post by PeterCrespin » Thu Sep 27, 2018 2:59 am

Too late indeed. Rory has now come full circle, since it was never compulsory to hold the block by the rear face, if worried about the overhang. The normal stand mounting brackets can hold the block this way just as easily as any other method and without any fabrication.

I think the 'Simpson Side Strap' gives the best all-round accessibility, but the rear face normal grip is fine by me. I found that standing my 105 kg on cylinder #6 without anything bending, toppling or breaking, was sufficiently close to proving a negative to persuade me there was no problem to solve. Bear in mind that my stand (thank you, Mark Gordon) is a foldaway 6-wheeler rated at 2000lb but still only $129. If you have an unbraced cheap-cheapie then you might be worried with an XK in any position.

if you fit the main gallery plug and upper seal holder before mounting the engine rear to the stand, you have perfect access for every aspect of the build until flywheel fitment. Since the latter is the last thing before clutch and gearbox assembly (when it has to come off the stand anyway), you're basically fine for a full build. I do like the sideways bracket though....
1E75339 UberLynx D-Type; 1R27190 70 FHC; 1E78478; 2001 Vanden Plas

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
rfs1957
Posts: 1111
Joined: Sat Jan 15, 2011 2:52 pm
Location: Montpellier, France
France

#22 Revolutionary XK Engine Stand Adapter ?

Post by rfs1957 » Tue Feb 26, 2019 4:38 pm

Looks like Julian is putting his money where his mouth is.



Pre-Production version undergoing testing right now .............



Good ol' SNGB.
Rory
3.8 OTS Cream 877393 Built May 28th 1962
1978 Mini Van
(plus bevel and belt single-cylinder Ducatis)

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
rfs1957
Posts: 1111
Joined: Sat Jan 15, 2011 2:52 pm
Location: Montpellier, France
France

#23 Re: Revolutionary XK Engine Stand Adapter ?

Post by rfs1957 » Mon Jun 10, 2019 9:02 am

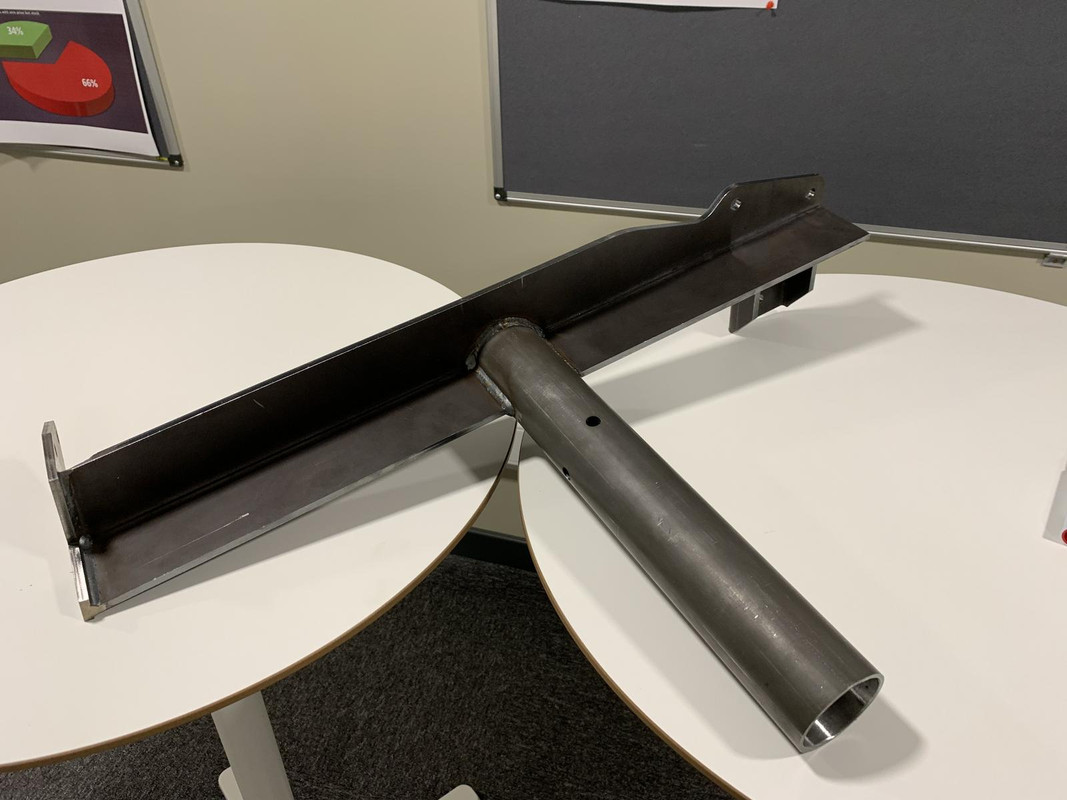

Nearly there ........... latest photos from SNGB.

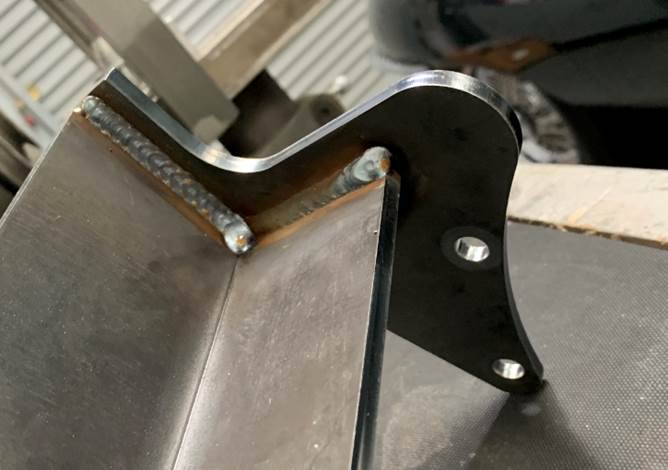

They've made some neat improvements to the bracket shapes, thanks to water-jet cutting.


Last edited by rfs1957 on Fri Aug 02, 2019 2:44 pm, edited 1 time in total.
Rory
3.8 OTS Cream 877393 Built May 28th 1962
1978 Mini Van
(plus bevel and belt single-cylinder Ducatis)

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
rfs1957
Posts: 1111
Joined: Sat Jan 15, 2011 2:52 pm
Location: Montpellier, France
France

#24 Re: Revolutionary XK Engine Stand Adapter ?

Post by rfs1957 » Fri Aug 02, 2019 2:12 pm

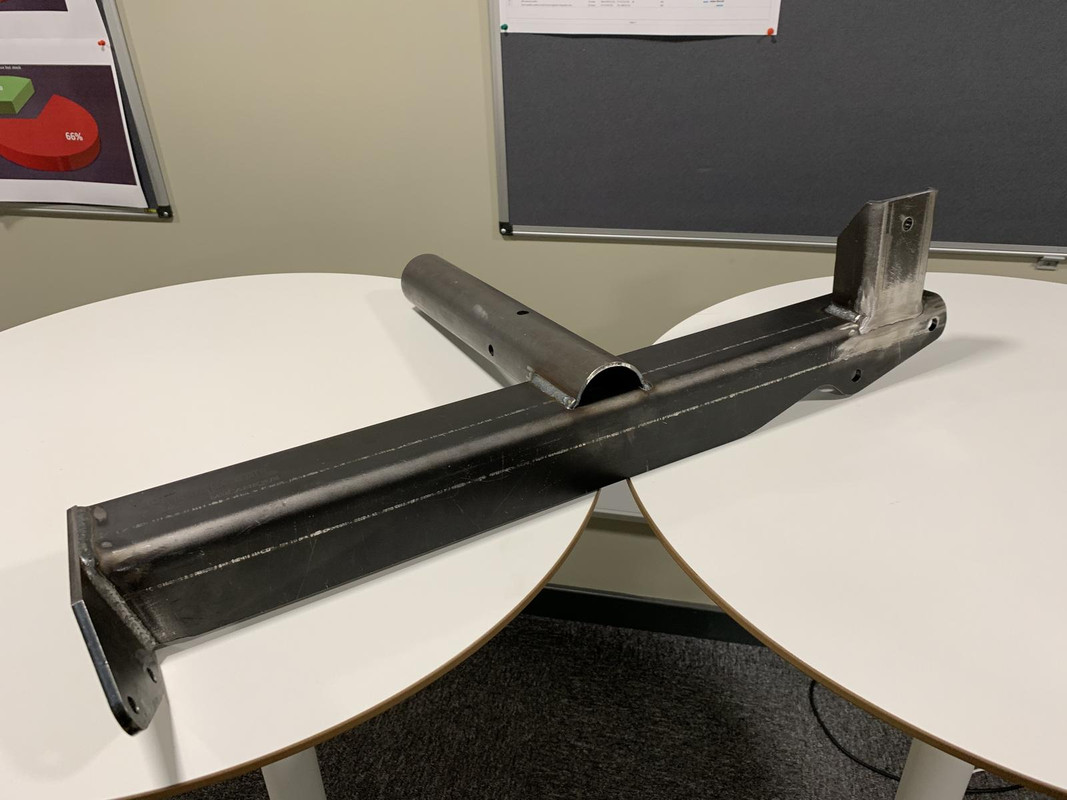

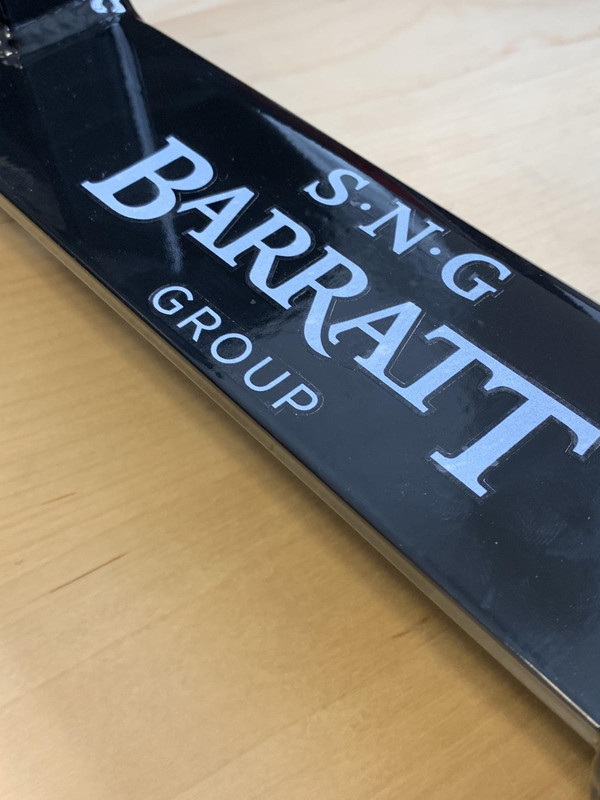

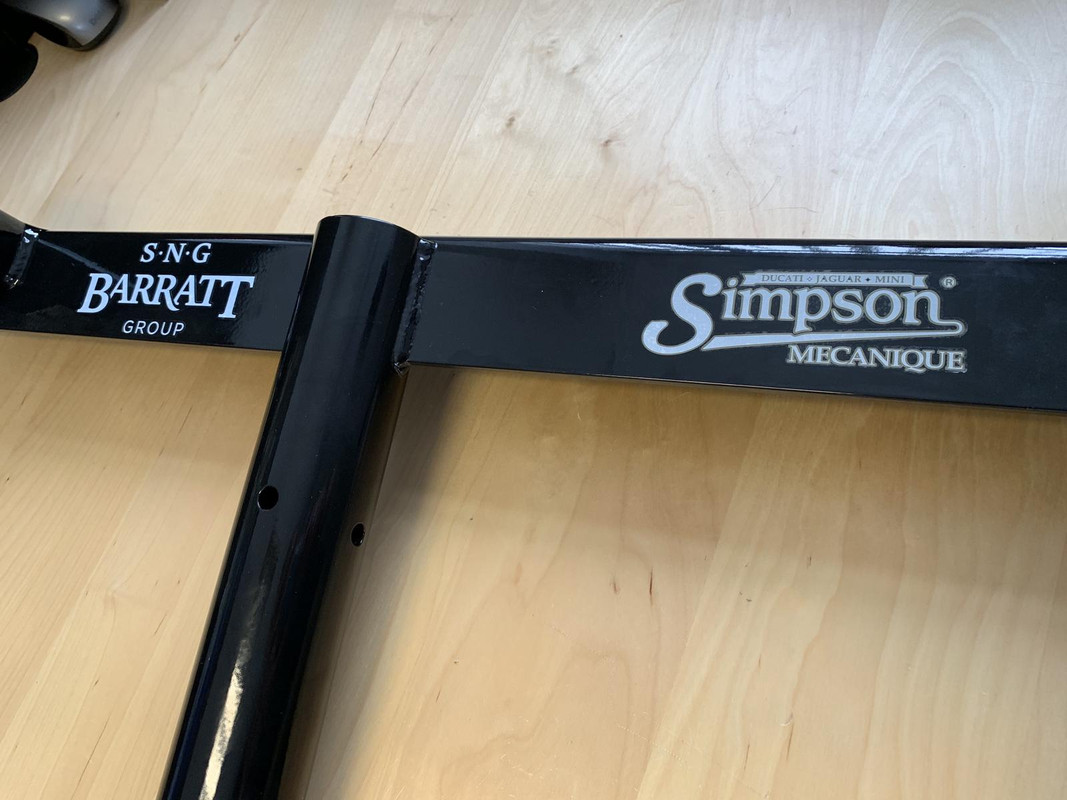

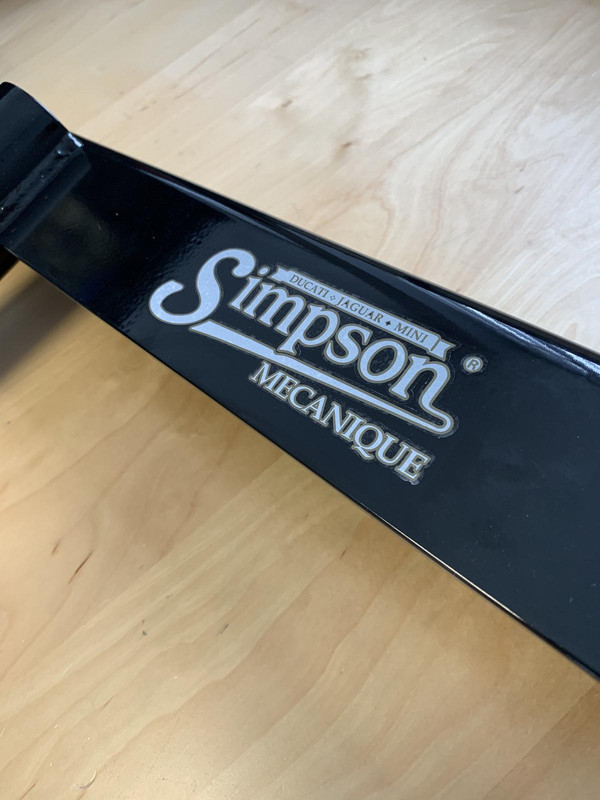

Crawling there, but so far so good ........... this is the pre-production SNGB version.


Got my name in neon lights at last.


Last edited by rfs1957 on Fri Aug 02, 2019 2:24 pm, edited 1 time in total.
Rory
3.8 OTS Cream 877393 Built May 28th 1962
1978 Mini Van
(plus bevel and belt single-cylinder Ducatis)

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
rfs1957
Posts: 1111
Joined: Sat Jan 15, 2011 2:52 pm
Location: Montpellier, France
France

#25 Re: Revolutionary XK Engine Stand Adapter ?

Post by rfs1957 » Fri Aug 02, 2019 2:23 pm

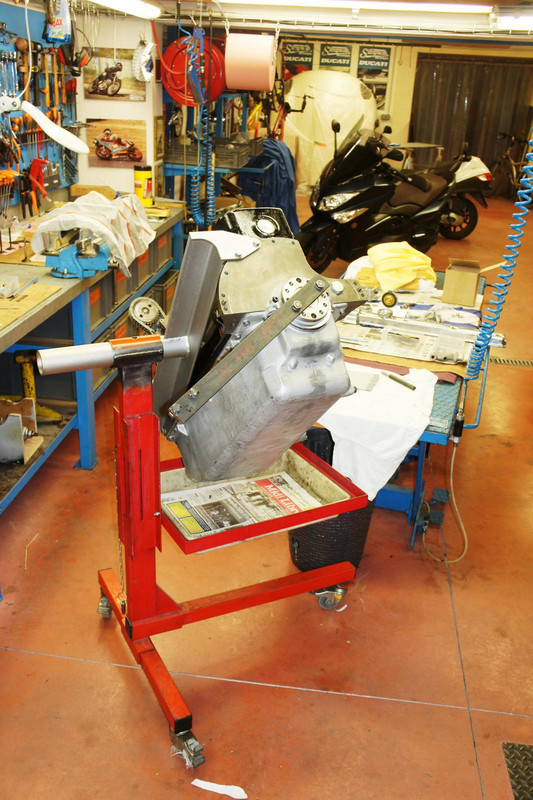

And now that I've got my initial prototype back (and plated !) here are a few for the doubters regarding just how useful this is ...............

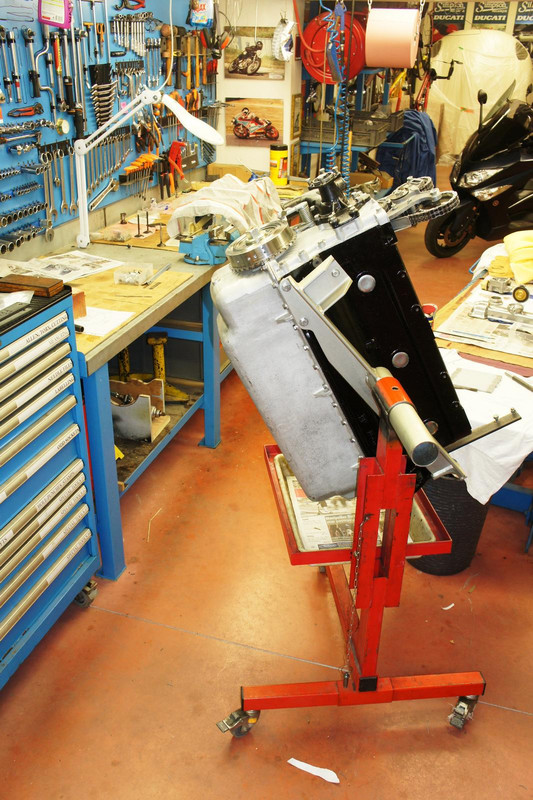

Adjustable angles for access and lighting, whilst doing the timing side ?

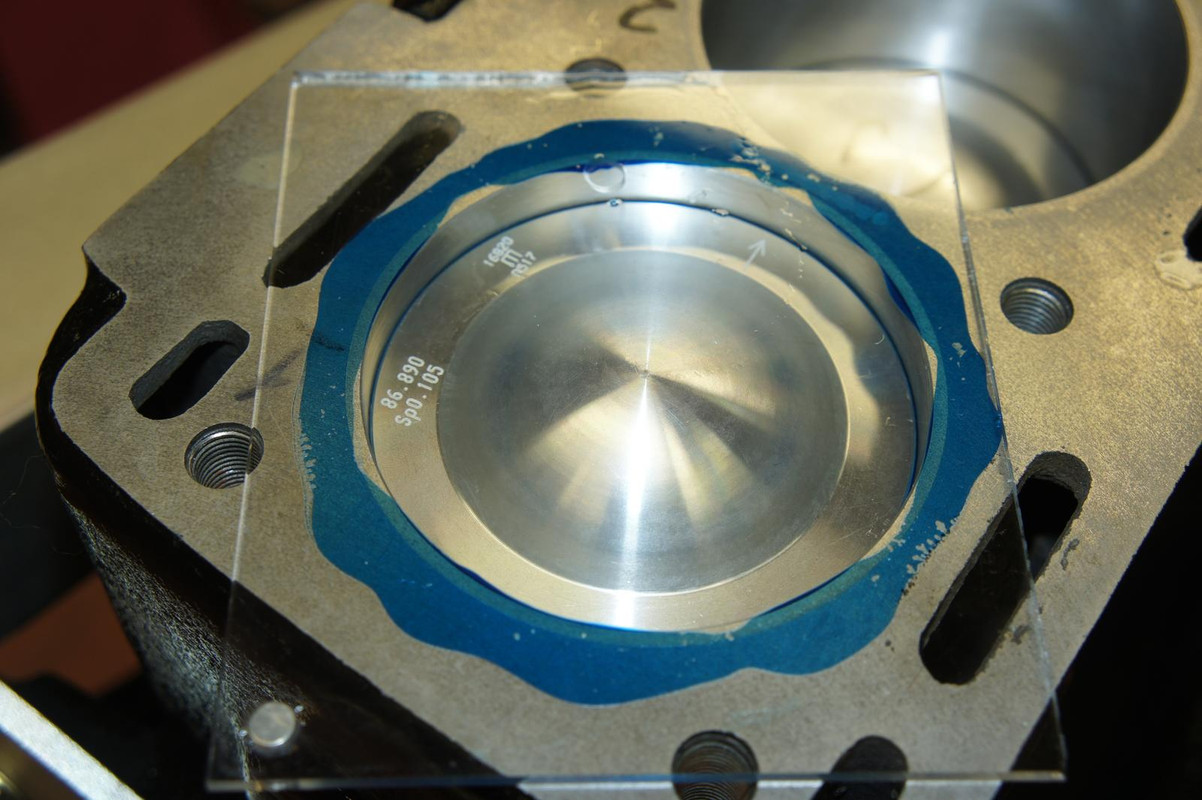

Tweaking the orientation when titrating piston-crown volumes ?
