#1 Brake slave cylinder

Post by Thim » Thu Dec 20, 2018 4:59 pm

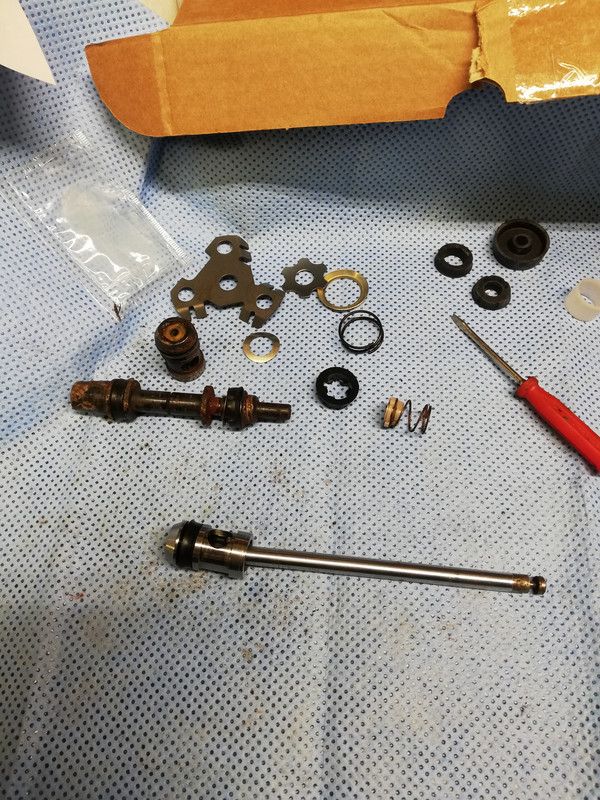

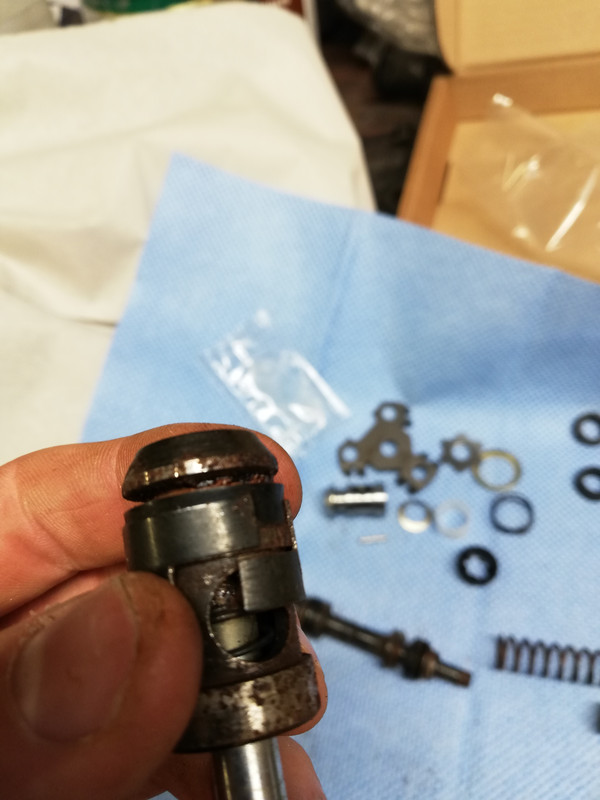

Hey, I'm trying to rebuild my brake slave cylinder / brake vacume cylinder. I'm now very unsure about how the retaining pin is supposed to stress the spring on the slave piston. Anyone who knows?



Jaguar E-type s1, 1967 2+2. Under restoration by myself, slowly seeing the light at the end of the tunnel 👍

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Mich7920
Posts: 481
Joined: Sun Mar 15, 2015 4:43 pm
Location: France
France

#2 Re: Brake slave cylinder

Post by Mich7920 » Fri Dec 21, 2018 9:09 am

Hi Thim,

What I see is that your spring isn't compress and the pin isn't in place.
The pin is inside the piston and dont block it as your's.

The spring comes in support on the pin wich is just alittle bit longer than the axel.
The difficulty is to compress the spring so that the hole's pin is free.
Do that one face after one, the second isn't the more easy...

Mich
Michel
1963 E Type OTS - Angus Restoration
