#1 Boot lid stay

Post by Spark » Thu Apr 16, 2020 4:40 pm

Series 1 2+2
Can anyone help with a picture of how the boot stay fastens to the inside of the boot
Have the top part fitted to boot lid itself but the stay itself seems very tight and under tension when I try and press the bottom bracket back to the bulkhead is this correct?
Any dimensions as to position of bracket or a picture would be a great help please
I know it’s held in place by self tappers I just don’t want to put it under too much stress

Thanks
Phil

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

mgcjag
Moderator
Posts: 5439
Joined: Fri Jul 09, 2010 6:15 pm
Location: Ludlow Shropshire
Great Britain

#2 Re: Boot lid stay

Post by mgcjag » Thu Apr 16, 2020 4:47 pm

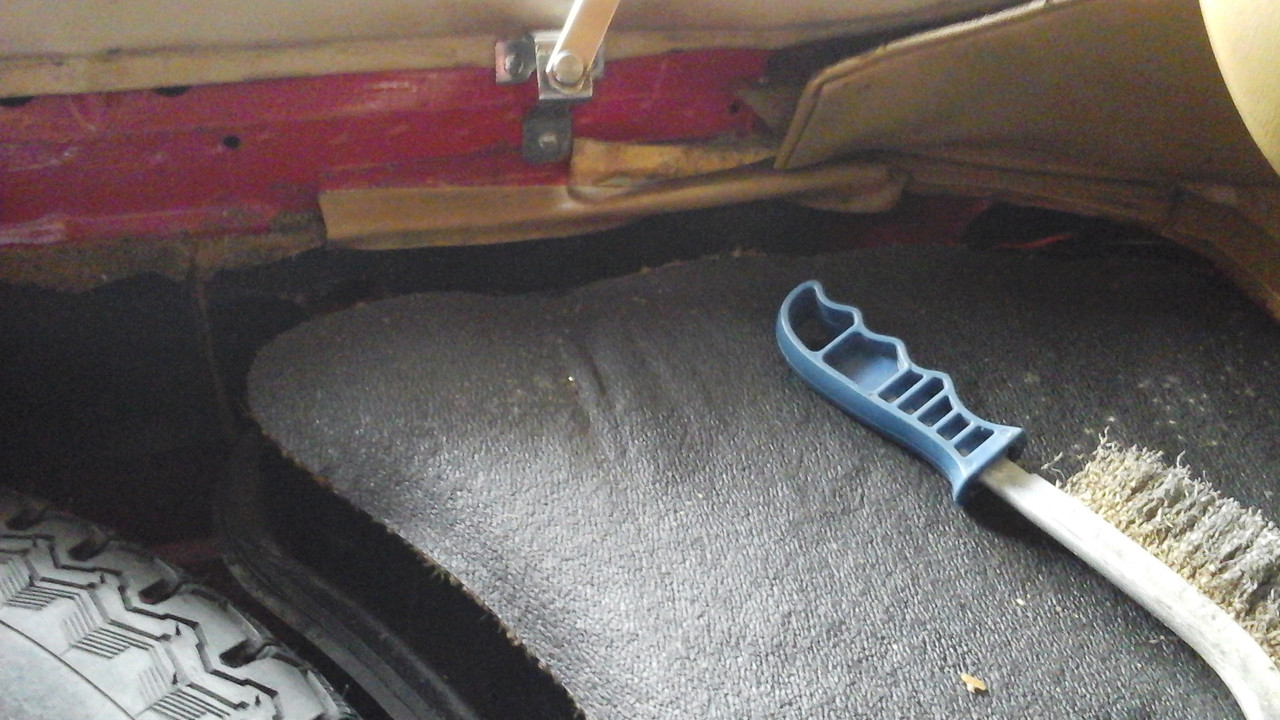

Hi Phil...here,s a ohoto from my S2 2+2...it may help you....you should be able to see original position of yours from the screw holes
Steve
1969 S2 2+2 & Building a C type replica

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
Spark
Posts: 157
Joined: Sat Jul 20, 2013 2:53 pm
Location: Yorkshire
Great Britain

#3 Re: Boot lid stay

Post by Spark » Thu Apr 16, 2020 4:50 pm

That’s brilliant thanks
Does the stay seem tight or have any bend in it
I will need to remove seam sealer applied at paint to find holes
Thanks
Phil

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

mgcjag
Moderator
Posts: 5439
Joined: Fri Jul 09, 2010 6:15 pm
Location: Ludlow Shropshire
Great Britain

#4 Re: Boot lid stay

Post by mgcjag » Thu Apr 16, 2020 5:14 pm

Nothing tight or needed bending...Steve
Steve
1969 S2 2+2 & Building a C type replica

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Jeremy
Posts: 667
Joined: Sat Nov 28, 2015 11:16 pm
Location: West London
Great Britain

#5 Re: Boot lid stay

Post by Jeremy » Thu Apr 16, 2020 7:30 pm

Phil, when I came to refitting my hatch stay, it didn't sit comfortably because Robey's had replaced the sections below the opening when they rebuilt the shell (it was all rotten down there). So IIRC the lower hole wasn't there, but more importantly the bracket wouldn't sit comfortably against the bodywork without straining the stay mechanism, because the contour of the panel was slightly different. So I fitted the stay to the hatch, then measured carefully where the lower bracket wanted to sit, and made up a wedge shaped shim from hardwood to support it. That now sits underneath the trim. Dunno if that's any help?
Jeremy
1967 S1 4.2 FHC

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
Spark
Posts: 157
Joined: Sat Jul 20, 2013 2:53 pm
Location: Yorkshire
Great Britain

#6 Re: Boot lid stay

Post by Spark » Fri Apr 17, 2020 3:25 pm

Jeremy
Thanks for this
Suspect I have the same issue here as the bracket just doesn’t sit flat on the internal panel as you say

Thanks for the suggestion may be the solution

Thanks
Phil
