#1 Head Bolts

Post by colinevans » Fri May 10, 2019 5:11 pm

Hi All

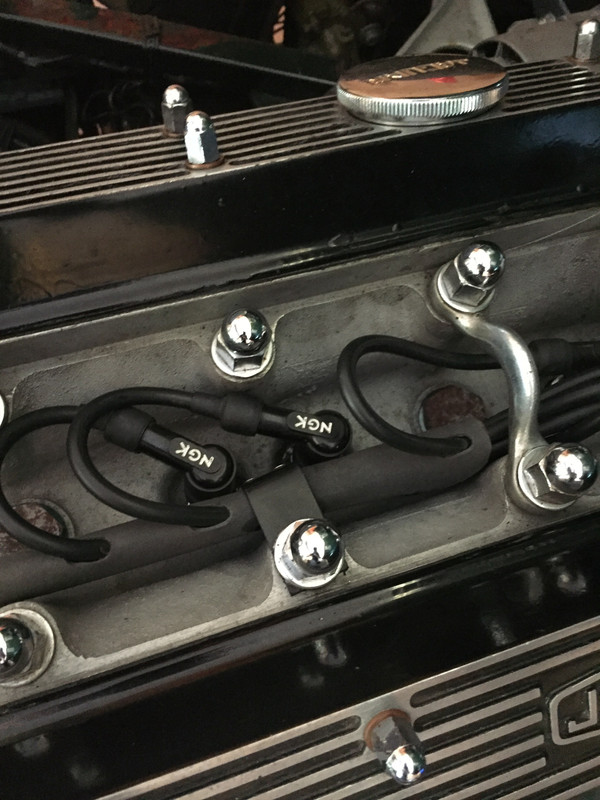

Just made a schoolboy error. I undid one of the long head studs (centre bottom one in the image). Stupid I know (I’m a rank amateur on a steep learning curve!) but I couldn’t work out how to remove the plug leads as they are snug in the protector sleeve that is held down two of the studs.
As soon as I realised what it was I re-inserted and tightened it but it’s now leaking. I’ve read another post that says these long studs go through the water jacket, so I’m hoping it just needs undoing and resealkng maybe with a hylomar type product. I’m crossing fingers here!
It seems to be running OK but I only ran it for a couple of mins as I didn’t want to do more harm.
Appreciate any advice, this forum is fast becoming my first point of reference (and my sanity saver!)
Many thanks.
Colin
Series 2 OTS, 280SL

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

mgcjag
Moderator
Posts: 5662
Joined: Fri Jul 09, 2010 6:15 pm
Location: Ludlow Shropshire
Great Britain

#2 Re: Head Bolts

Post by mgcjag » Fri May 10, 2019 5:32 pm

Hi Colin......i wouldnt go undoing it again....you dont want the stud comming out and water getting down in its threaded hole...asuming the nut is now seated down correctly then just put some leak seal in the coolant...bars leaks etc...Steve
Steve
1969 S2 2+2 & Building a C type replica

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
colinevans
Posts: 58
Joined: Thu Sep 24, 2015 6:54 am
Location: Dorset, UK
Great Britain

#3 Re: Head Bolts

Post by colinevans » Fri May 10, 2019 5:46 pm

Hi Steve
Water would definitely have gone into the threaded hole first time round when I took it out right out of its thread and lifted it. Would Bars be good enough do you think, and is it a permanent fix? It seemed like more than a weep, so it maybe that it didn’t seat properly even though it nipped up ok. I’m letting it all dry out tonight and I’ll have another look in the morning.
Thanks for your help.
Colin
Colin
Series 2 OTS, 280SL

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

mgcjag
Moderator
Posts: 5662
Joined: Fri Jul 09, 2010 6:15 pm
Location: Ludlow Shropshire
Great Britain

#4 Re: Head Bolts

Post by mgcjag » Fri May 10, 2019 6:06 pm

Hi Colin....ok didnt realise the stud had come right out....the problem with this is that not just water but sludge will go down into the threaded hole....making it possible that the stud wont go back down completely.....the nut could feel tight but not actually tightened down......have a real good look at the nut and ensure the washer is fully down and tight against the head....if so your lucky and then just use the leak seal...i have known others to use it and permanantly seal the leak....Steve
Steve
1969 S2 2+2 & Building a C type replica

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
colinevans
Posts: 58
Joined: Thu Sep 24, 2015 6:54 am
Location: Dorset, UK
Great Britain

#5 Re: Head Bolts

Post by colinevans » Fri May 10, 2019 6:12 pm

Will do, thanks Steve.
Colin
Series 2 OTS, 280SL

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

PeterCrespin
Posts: 4350
Joined: Fri Mar 05, 2010 8:22 pm
Location: Gaithersburg, Maryland.
Contact:
United States of America

#6 Re: Head Bolts

Post by PeterCrespin » Fri May 10, 2019 6:33 pm

You must assume the stud has not seated, given it now leaks. Barr’s Leaks will not produce the required 54 ft/lbs of torque/head clamping.

Clamp stud in vice and remove stuck nut. Clean out crud inside nut and check threads. Drain all coolant completely, ideally using the tap or drain plug hopefully fitted at lower left rear of block. Blow crud and water out of blind threaded stud hole in block.
Do not assume it is clean and dry, VERIFY it.
Lock two nuts on the top end of the stud and do a trial run to see it screws fully home. Remove and repeat with some thread lock on the lower end. Allow to cure.
When fully home, remove lock nuts and check the plug wire bracket plus head nut washer are considerably thicker than the gap under the nut when loosely tightened down.
Refit them and torque down head nut.
