#1 Washer bottle connections

Post by Spark » Mon May 27, 2019 9:31 am

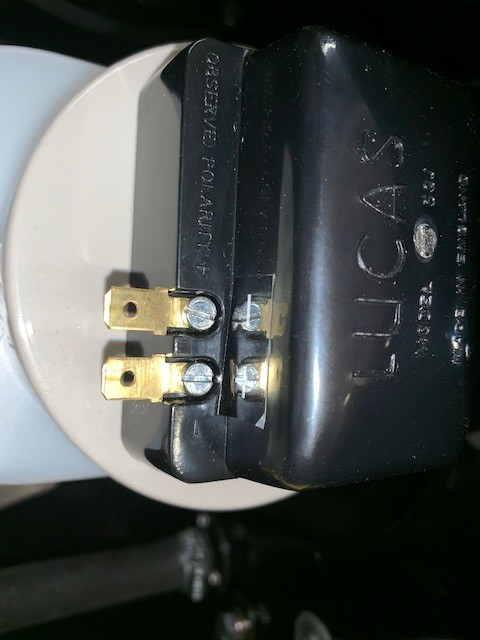

Series 1 2+2 washer bottle

Just received from supplier
The plastic moulding states observe polarity!!!!

Which is correct?
The plastic moulding or the sticker????
What the heck ?

Thanks
Phil
