#1 Churchill J17 tool dimensions

Post by ysmalkie » Tue Oct 29, 2019 6:37 pm

Hello,

I am looking for the J17 tool dimensions. Anyone has one and could measure it up?

Tadek
Tadek

e-type S1 3.8 FHC - in restoration phase...
Jaguar XK120 OTS
Austin-Healey 100 BN2

Link:
BBcode:
HTML:
Hide post links
Show post links


norman m. macleod
Posts: 227
Joined: Sat Mar 21, 2009 11:34 am
Location: Perth, Western Australia
Australia

#2 Re: Churchill J17 tool dimensions

Post by norman m. macleod » Tue Oct 29, 2019 7:45 pm

Hi Tadek,
I have detailed drawing of that tool. I can e-mail it to you if you wish...…. E-mail me on norman_m_macleod@iinet.net.au and confirm if you still need it. By the way, that tool can be purchased from Rob Beere in UK for about GBP90.00 or so...…
Kind regards,
Norman
1967 S1 2+2

Link:
BBcode:
HTML:
Hide post links
Show post links


christopher storey
Posts: 4753
Joined: Sun Mar 09, 2008 3:07 pm
Location: cheshire , england
Great Britain

#3 Re: Churchill J17 tool dimensions

Post by christopher storey » Wed Oct 30, 2019 9:48 am

Or AFAIK it can be hired from the Jaguar Enthusiasts Club

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

abowie
Posts: 2758
Joined: Wed Sep 07, 2011 9:15 pm
Location: Australia
Contact:
Australia

#4 Re: Churchill J17 tool dimensions

Post by abowie » Wed Oct 30, 2019 8:15 pm

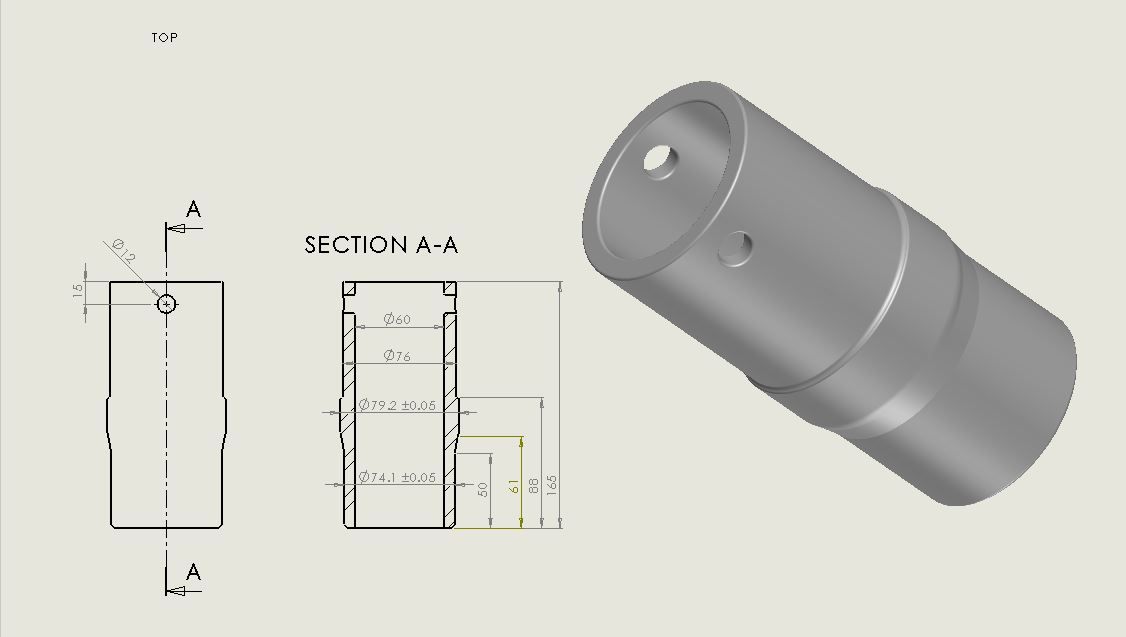

Not my work so no guarantee.

Andrew.
881824, 1E21538. 889457..oops. Jezza the V12 XJS race car.
http://www.projectetype.com/index.php/the-blog.html
Adelaide, Australia

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
ysmalkie
Posts: 216
Joined: Fri May 16, 2014 9:11 am
Location: Poland
Poland

#5 Re: Churchill J17 tool dimensions

Post by ysmalkie » Fri Nov 01, 2019 3:46 pm

Norman, Andrew, many thanks.

I compared the 2 drawings and they differ slightly with the critical dimensions. After round of to 1/100mm it looks as follows:
Norman's drawing translated to mm would be: 73.98 / 79.22 mm
Andrew: 74.10 / 79.20 mm +- 0.05mm
Another measurement I found on JL: 74.09 / 79.36 mm


I wonder where the differences come from.

I have never used this tool before - I presume the larger dimension is the one that actually settles the rope seal??


Tadek
Tadek

e-type S1 3.8 FHC - in restoration phase...
Jaguar XK120 OTS
Austin-Healey 100 BN2

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

abowie
Posts: 2758
Joined: Wed Sep 07, 2011 9:15 pm
Location: Australia
Contact:
Australia

#6 Re: Churchill J17 tool dimensions

Post by abowie » Fri Nov 01, 2019 9:09 pm

It might be just conversion from imperial to metric. As I said I didn't make that image; I'm a jackdaw and collect everything I see and file it away for later use.

I do have access to an original sizing tool although it is not at my house.

If you need let me know and I can measure it with a metric vernier for you next week.

Cheers

PS looking again at my picture I'm wondering whether the 2 critical sizes are in fact 2.900" and 3.100" (close to the 74.1 and 79.2 mm dimensions)
Andrew.
881824, 1E21538. 889457..oops. Jezza the V12 XJS race car.
http://www.projectetype.com/index.php/the-blog.html
Adelaide, Australia

Link:
BBcode:
HTML:
Hide post links
Show post links


Doug Buchan
Posts: 37
Joined: Sun Apr 17, 2011 2:46 pm
Location: Atlantic City, NJ
United States of America

#7 Re: Churchill J17 tool dimensions

Post by Doug Buchan » Sat Nov 02, 2019 1:45 pm

"I have never used this tool before - I presume the larger dimension is the one that actually settles the rope seal??"

Hello Tadek,

You are correct. The first and smaller diameter is the tunnel bore guide followed by the chamfered ramp to final sizing. The tool undersizes the seal slightly. I have both Zelenda and Churchill variants if you need to verify sizes. (Imperial only sorry). I believe there is a thread on JL where a few of us posted the dimensions.

Regards,
Doug
Doug
'67 ots

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
ysmalkie
Posts: 216
Joined: Fri May 16, 2014 9:11 am
Location: Poland
Poland

#8 Re: Churchill J17 tool dimensions

Post by ysmalkie » Sat Nov 02, 2019 4:30 pm

I could not find the thread on JL :-( Would you have a link to it by any chance?

Do you have a micrometer you could measure it with? Any ("" or mm) format is fine..

Help is much appreciated, I prefer to do one to the right size..

Many thanks,

Tadek
Tadek

e-type S1 3.8 FHC - in restoration phase...
Jaguar XK120 OTS
Austin-Healey 100 BN2

Link:
BBcode:
HTML:
Hide post links
Show post links


Doug Buchan
Posts: 37
Joined: Sun Apr 17, 2011 2:46 pm
Location: Atlantic City, NJ
United States of America

#9 Re: Churchill J17 tool dimensions

Post by Doug Buchan » Sat Nov 02, 2019 5:02 pm

Tadek,
Here is one of the threads however the dimensions listed aren't complete.
I will get to my tools in a day or so and measure them for you.

https://forums.jag-lovers.com/t/e-type- ... ion/120358

Regards, Doug
Doug
'67 ots

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

abowie
Posts: 2758
Joined: Wed Sep 07, 2011 9:15 pm
Location: Australia
Contact:
Australia

#10 Re: Churchill J17 tool dimensions

Post by abowie » Sat Nov 02, 2019 9:28 pm

Quoting Doug:

"My Zelenda J17B measures 3.1194
A crank I have measures 3.1252 so the tool undersizes the
seal by .0058"

That makes sense.
Andrew.
881824, 1E21538. 889457..oops. Jezza the V12 XJS race car.
http://www.projectetype.com/index.php/the-blog.html
Adelaide, Australia

Link:
BBcode:
HTML:
Hide post links
Show post links


Geoff Green
Posts: 141
Joined: Tue Apr 22, 2014 3:13 am
United States of America

#11 Re: Churchill J17 tool dimensions

Post by Geoff Green » Sun Nov 03, 2019 3:46 pm

Confirming measurements. Churchill J17 small diameter 2.92 inches 74.1 mm with this diameter 1 7/8 inches 47 mm with a 1mm 45 degree chamfer at the end. The midpoint between small and large diameters is 3/8 inch 9mm chamfer of abut 15 degrees then the large diameter 3.12 inches 79.2 mm with this diameter for a distance of 1 1/4 inches 32 mm.

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
ysmalkie
Posts: 216
Joined: Fri May 16, 2014 9:11 am
Location: Poland
Poland

#12 Re: Churchill J17 tool dimensions

Post by ysmalkie » Sun Nov 03, 2019 9:13 pm

Many thanks all,

I would presume than that 3.1195 - 3.12 sounds optimal.

Thanks for all help!

Tadek
Tadek

e-type S1 3.8 FHC - in restoration phase...
Jaguar XK120 OTS
Austin-Healey 100 BN2

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
ysmalkie
Posts: 216
Joined: Fri May 16, 2014 9:11 am
Location: Poland
Poland

#13 Re: Churchill J17 tool dimensions

Post by ysmalkie » Wed Nov 06, 2019 8:22 pm

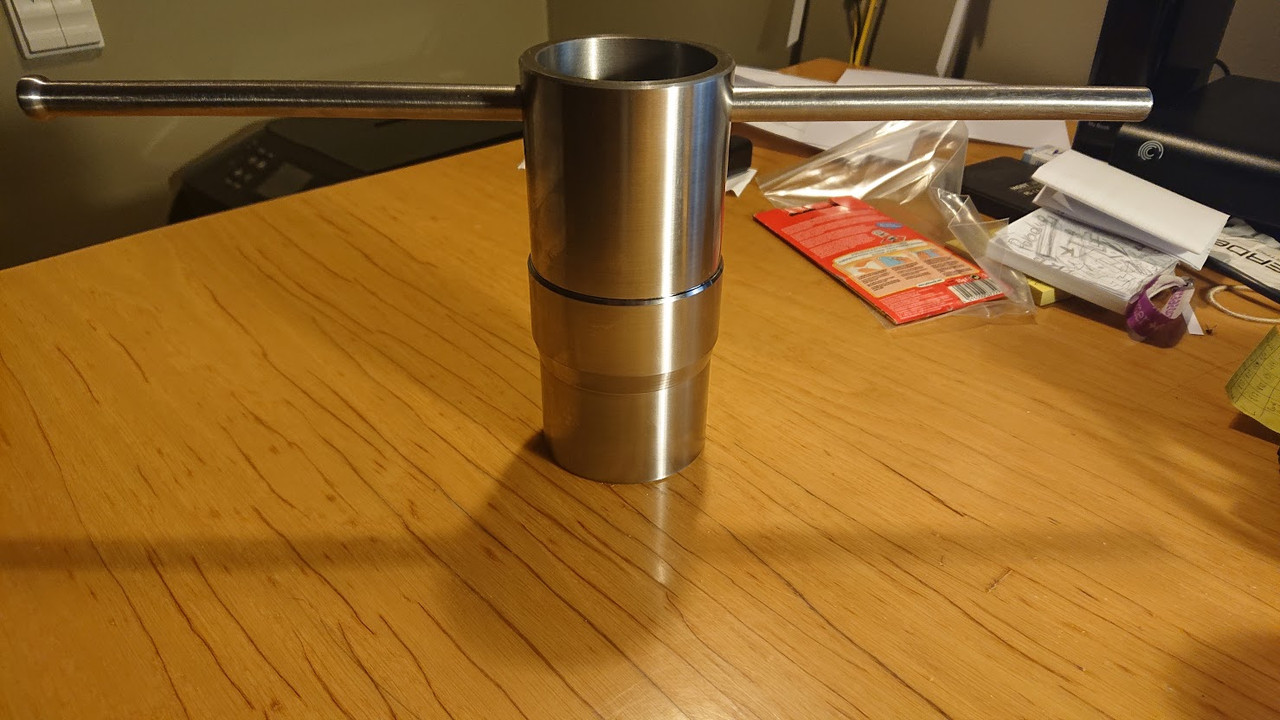

Done :-)

My machinist was not happy with the fact I insisted on a 0.0004 tolerance..

But, here it is:




Many thanks for help!
Tadek
