#1 Rare S1 wiper delay/hazard/fan override module

Post by Jeremy » Mon Jan 27, 2020 8:23 pm

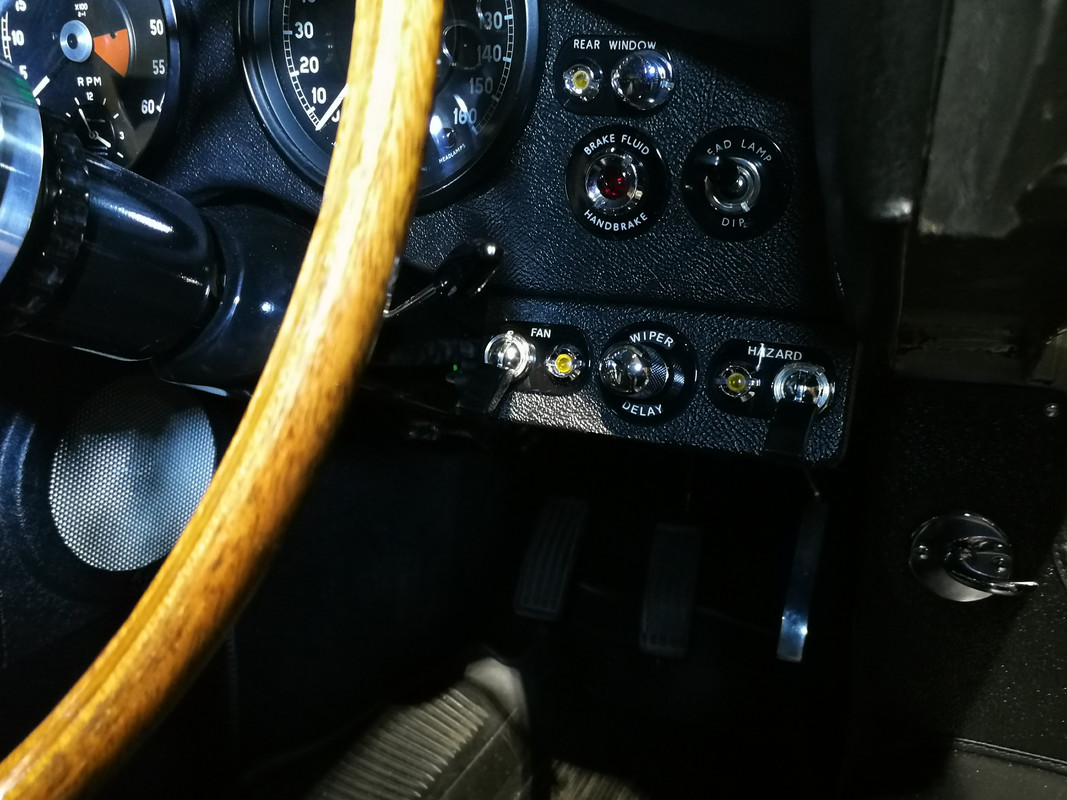

After a couple of years' searching I was overjoyed to find a pristine example of this module, introduced by Jaguar as an option in 1967 towards the end of S1 production:




It works perfectly and fits in visually much better than many of the upgrade alternatives available. Unfortunately these units seem to be as rare as hen's teeth.....
Jeremy
1967 S1 4.2 FHC

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
Jeremy
Posts: 666
Joined: Sat Nov 28, 2015 11:16 pm
Location: West London
Great Britain

#2 Re: Rare S1 wiper delay/hazard/fan override module

Post by Jeremy » Mon Jan 27, 2020 8:27 pm

Yes, of course I'm kidding. What follows is not so much a recommendation, more a confession. Sane forum members may choose to move on to other posts. Or you might regard it as an instructive case study into what happens when the E Type obsession starts taking a serious hold on the patient....in which case, stay with it...
Jeremy
1967 S1 4.2 FHC

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
Jeremy
Posts: 666
Joined: Sat Nov 28, 2015 11:16 pm
Location: West London
Great Britain

#3 Re: Rare S1 wiper delay/hazard/fan override module

Post by Jeremy » Mon Jan 27, 2020 8:39 pm

Anyone who saw the film "Flash of Genius" (brilliant, the story of the inventor of the intermittent wiper) will know, these things didn't appear until about 1970 when Ford stole his invention....

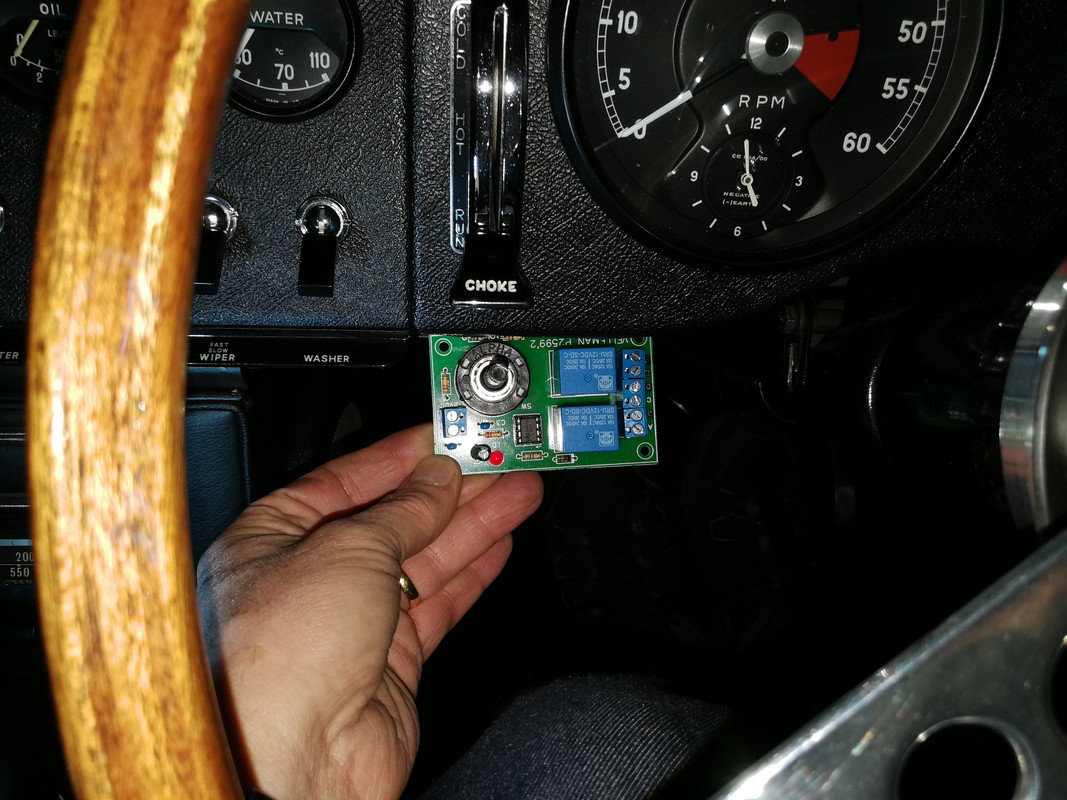

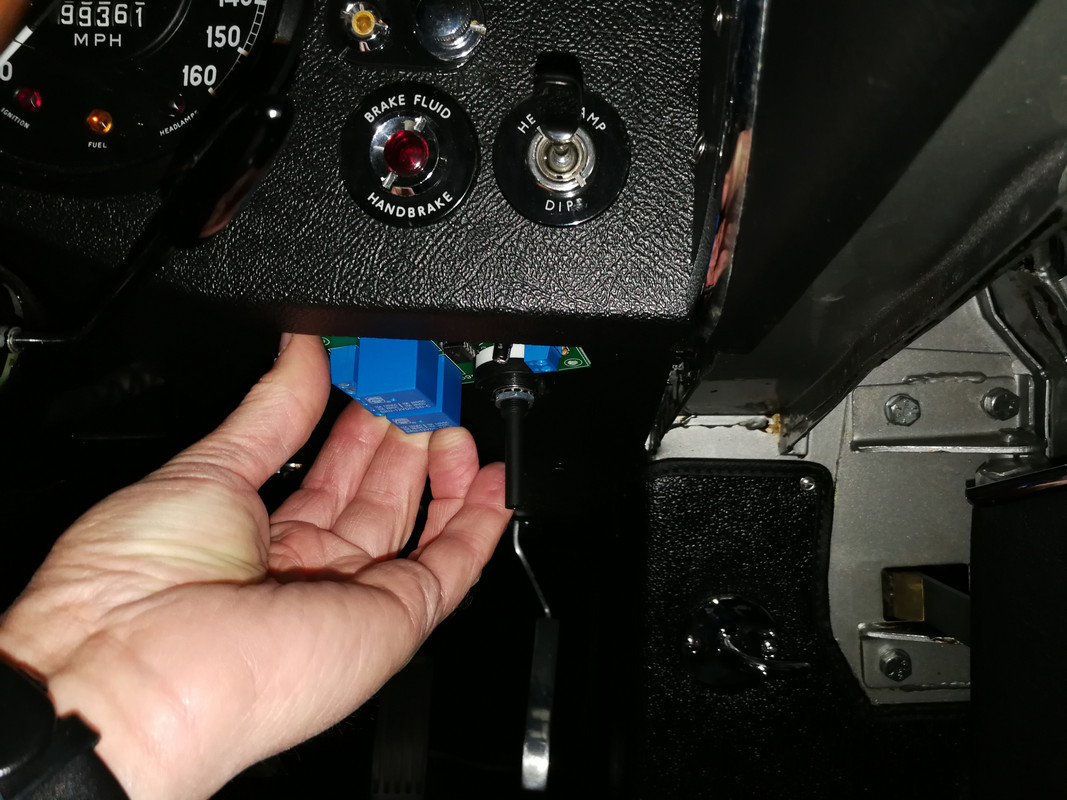

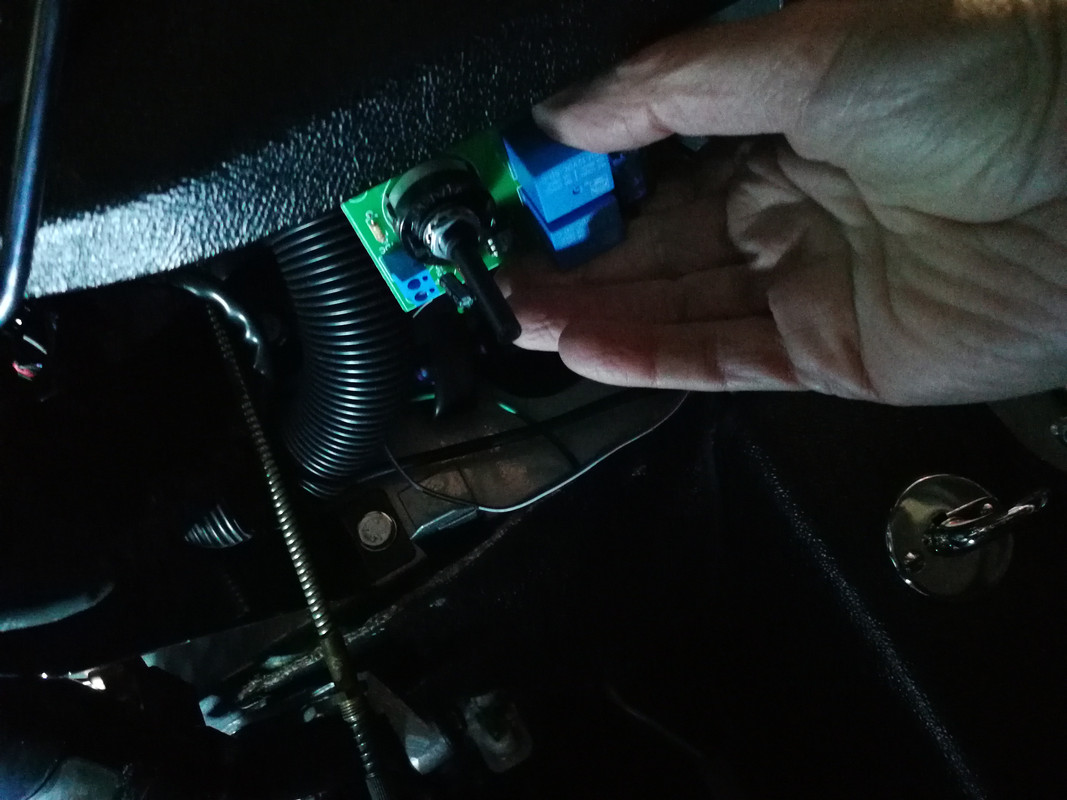

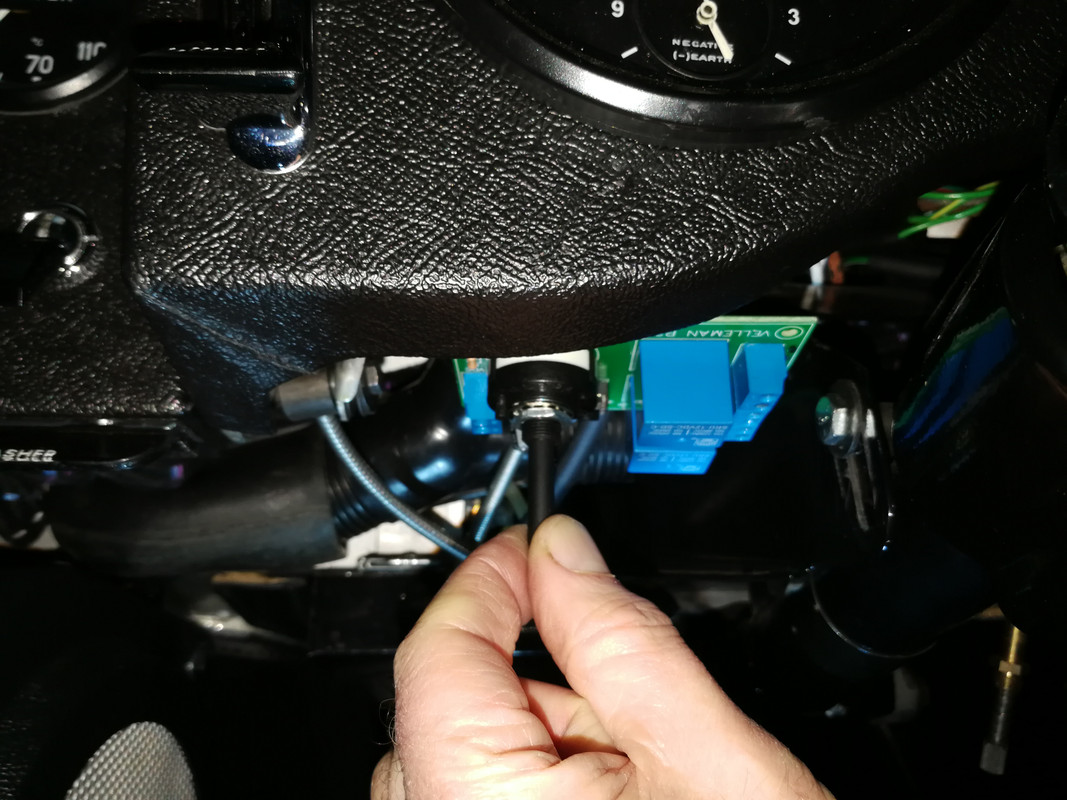

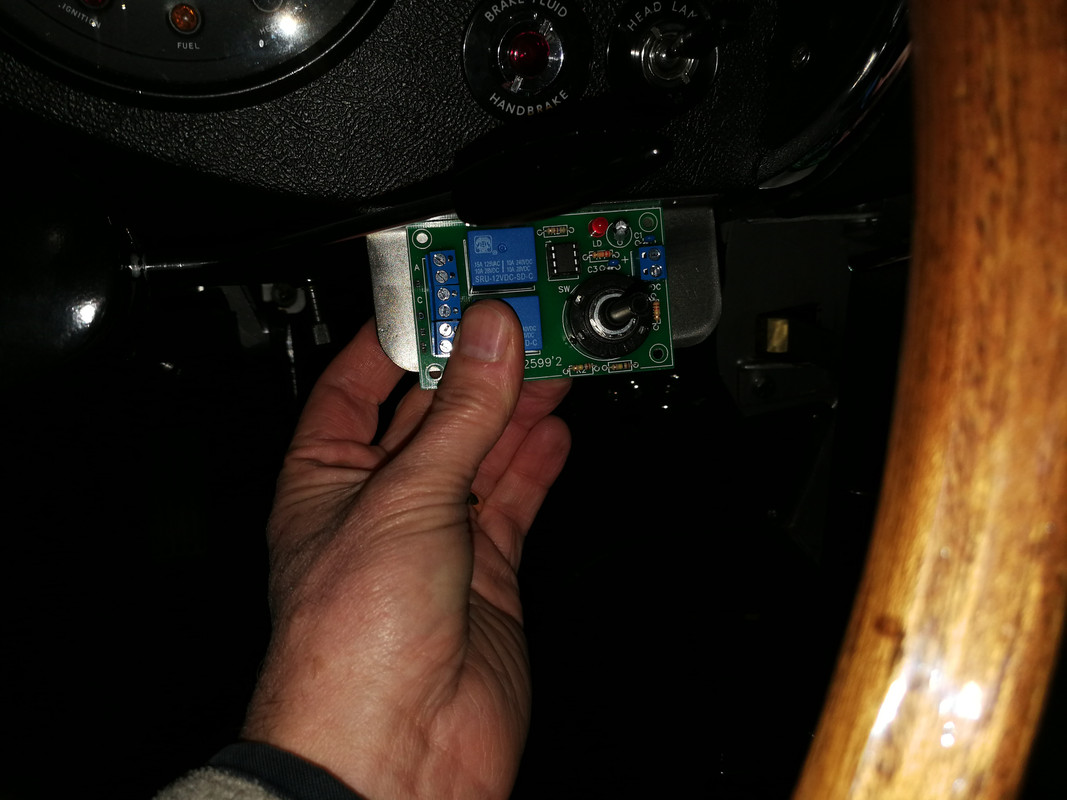

Anyway, my story started when Angus sent me a Velleman K2599 wiper delay circuit that David (Heuer) had tested and OK'd as functional, and asked me to see if there was a reasonably non-invasive way of installing it. There wasn't, really, not without cutting a hole in the dash or in the under-dash panel, which I was reluctant to do:







Jeremy
1967 S1 4.2 FHC

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
Jeremy
Posts: 666
Joined: Sat Nov 28, 2015 11:16 pm
Location: West London
Great Britain

#4 Re: Rare S1 wiper delay/hazard/fan override module

Post by Jeremy » Mon Jan 27, 2020 9:01 pm

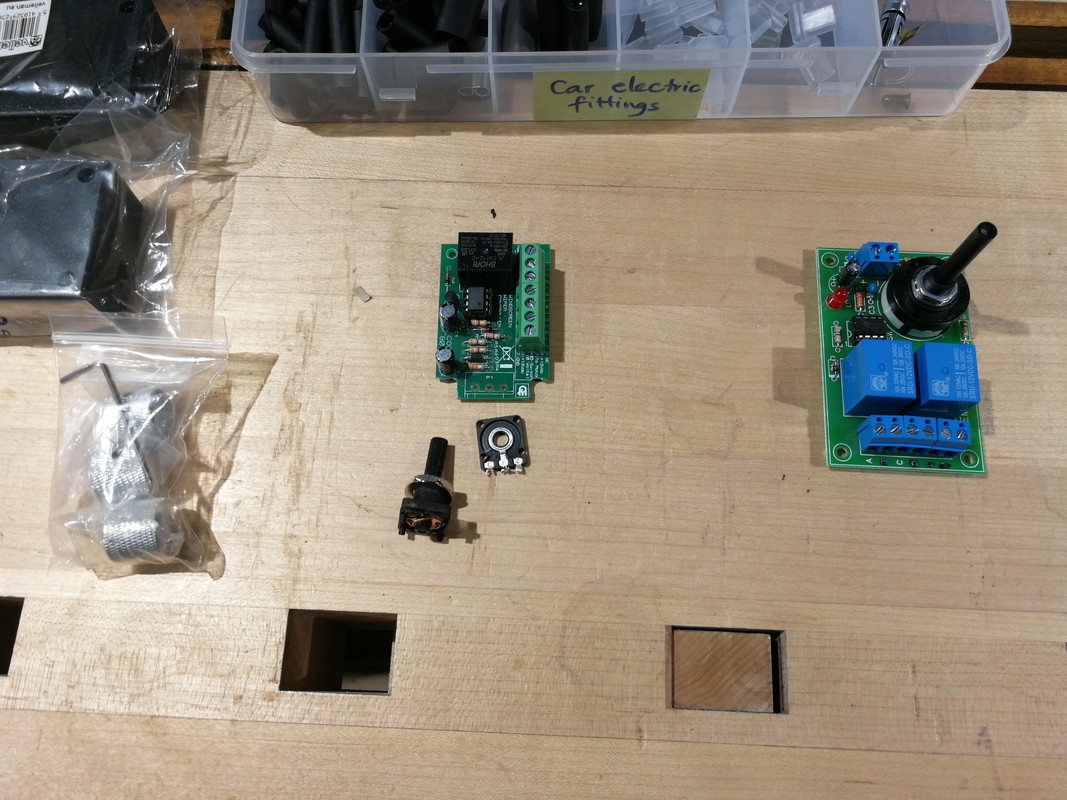

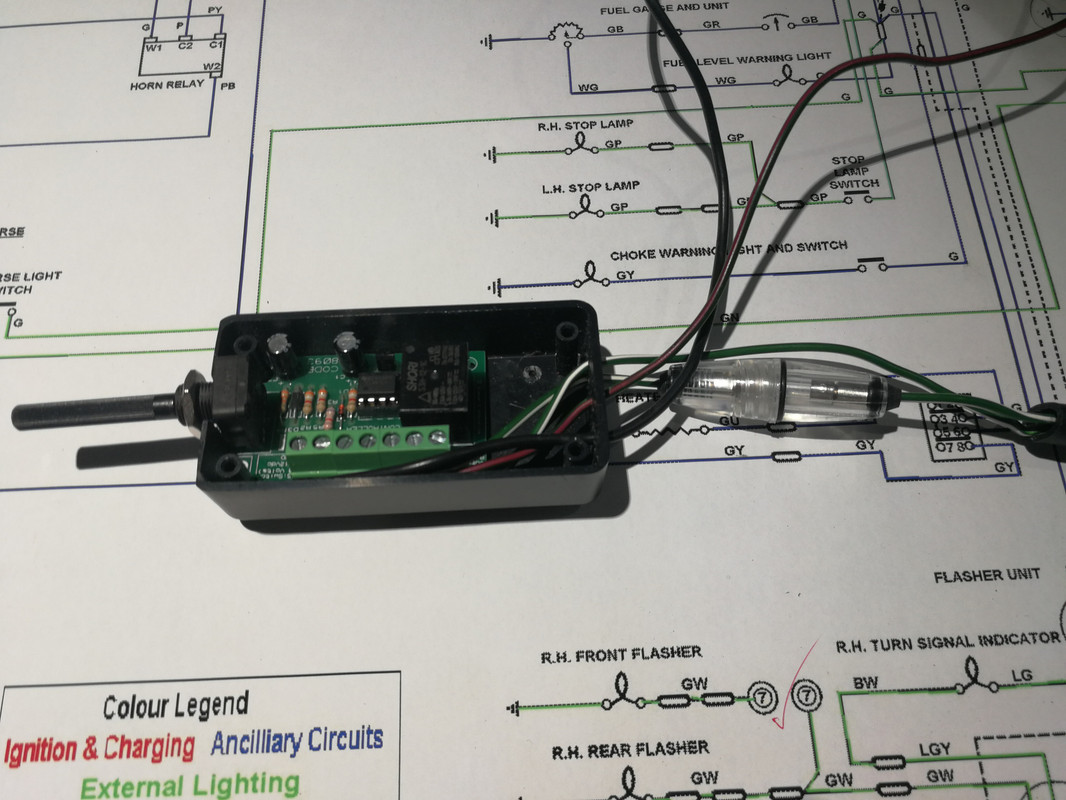

But I found a new, smaller unit from the same supplier (Quasar Electronics) – the AS8093 – with the control rod sticking out longitudinally rather than perpendicular to the PCB, and decided this would allow me to fit the thing on a bracket hanging down from the dash, with the knob sticking out towards the driver. It’s on the left of this photo, with the potentiometer in pieces (I’ll come back to that):

Jeremy
1967 S1 4.2 FHC

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
Jeremy
Posts: 666
Joined: Sat Nov 28, 2015 11:16 pm
Location: West London
Great Britain

#5 Re: Rare S1 wiper delay/hazard/fan override module

Post by Jeremy » Mon Jan 27, 2020 9:02 pm

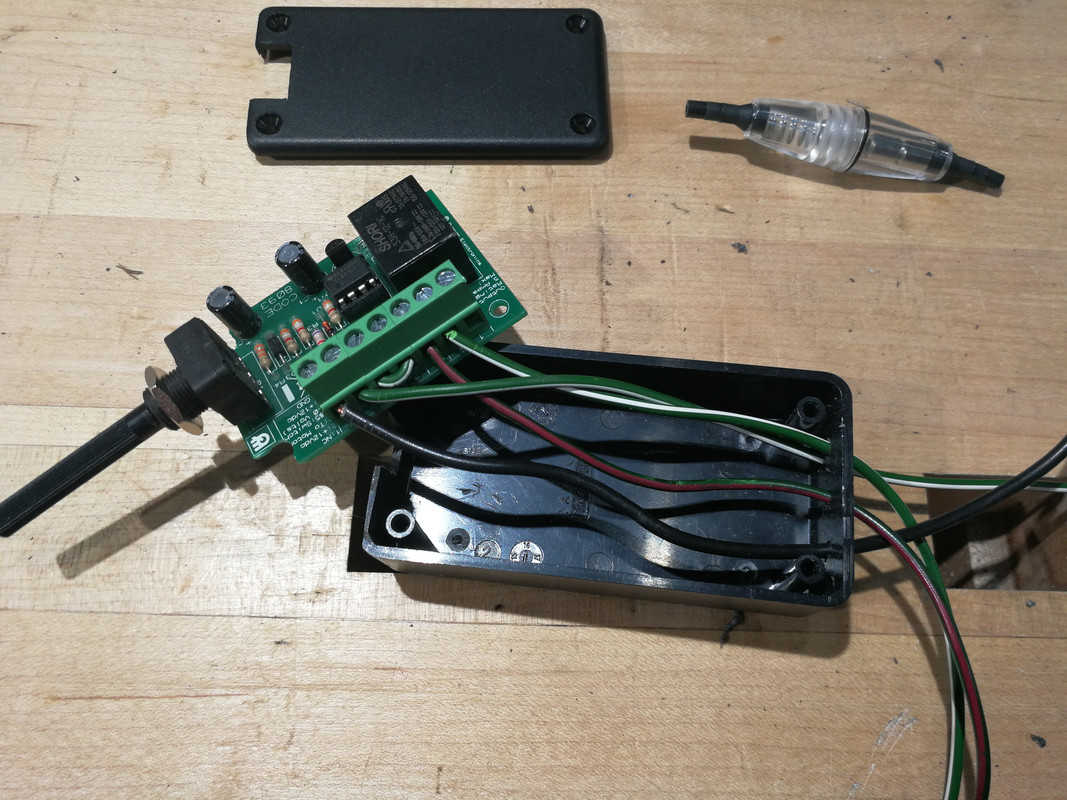

I couldn’t find a case big enough to accommodate the unit and small enough to fit behind a modest bracket, so I had to do some creative butchery on both PCB and case:


Jeremy
1967 S1 4.2 FHC

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
Jeremy
Posts: 666
Joined: Sat Nov 28, 2015 11:16 pm
Location: West London
Great Britain

#6 Re: Rare S1 wiper delay/hazard/fan override module

Post by Jeremy » Mon Jan 27, 2020 9:11 pm

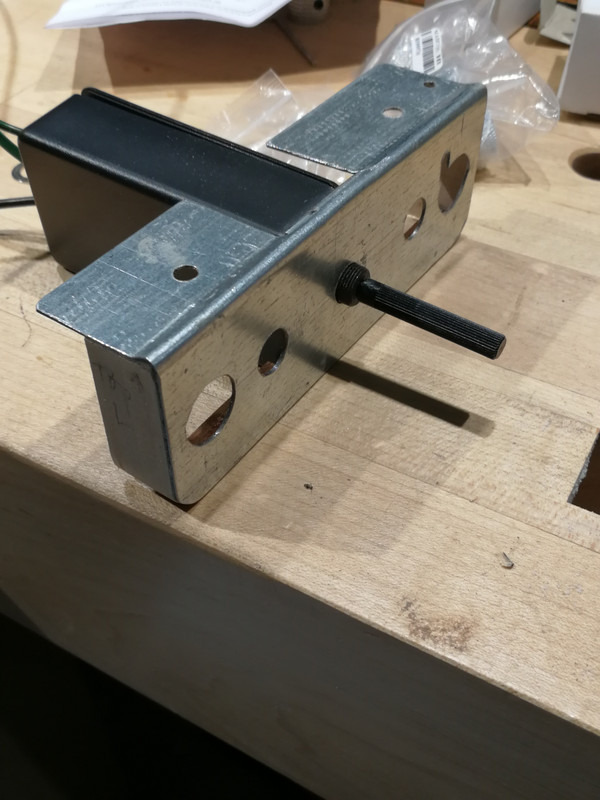

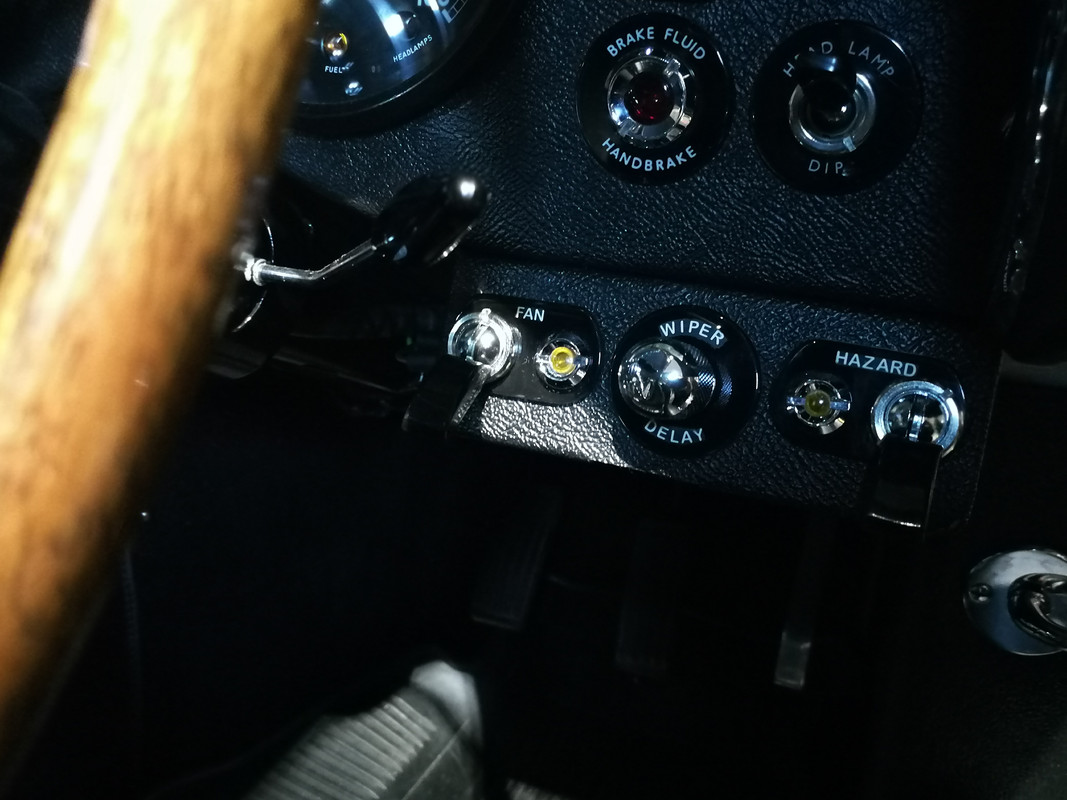

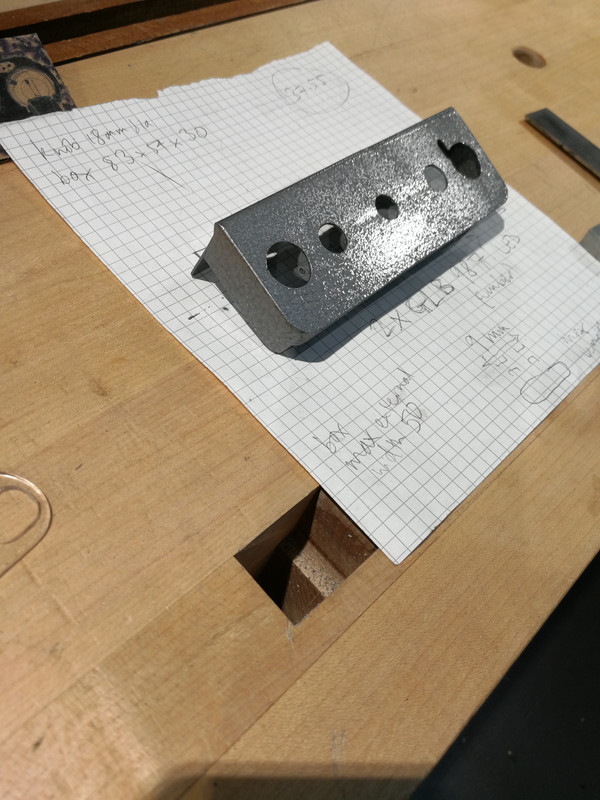

Then the bracket. And now you can see I had more ambitions for this bracket – a hazard switch and the fan override that Angus recommends for when the Otter fails. A 3-in-1 solution. The bracket itself was easy, with a couple of spire nuts and just 2 holes drilled into the return under the dash face to secure it. I glued and shaped hardwood ends to make it look more solid, and Graham at GB Classic Trim kindly sent me a piece of dash vinyl to cover it.




And what switches was I going to use? Not modern ones, for sure. I bought 2 HRW switches/escutcheons and a Dip escutcheon from SNGB and during idle moments over Christmas asked myself how on earth I was going to get new lettering onto the back of them….Also decided on a chromed, knurled knob for the wiper control. Electric guitar knob on Ebay, cheap as chips.
Jeremy
1967 S1 4.2 FHC

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
Jeremy
Posts: 666
Joined: Sat Nov 28, 2015 11:16 pm
Location: West London
Great Britain

#7 Re: Rare S1 wiper delay/hazard/fan override module

Post by Jeremy » Mon Jan 27, 2020 9:19 pm

I won't bore you with my attempts to get decent lettering onto the backs of the escutcheons. The font had to match the other switches, for a start. The black background can only be obtained if you spray paint the back of the Perspex. You can get white transfer and stick-on pvc letters for railway modelers and so forth. But oddly enough, nobody sells reverse letters, nor exactly the right size, nor the correct font...This was the point at which I started wondering about my sanity. Eventually I did a powerpoint mock-up (Arial Bold Rounded is the best match, if you care - I know you don't) and printed off. Then with a lot of masking and messing about I got the result you see. Sheer madness.

Time for supper now but in the next exciting episode I'll briefly cover the electrical aspects. I know you just can't wait.....
Jeremy
1967 S1 4.2 FHC

Link:
BBcode:
HTML:
Hide post links
Show post links


288gto
Posts: 1264
Joined: Wed Nov 14, 2012 8:59 pm
Location: United Kingdom
Russia

#8 Re: Rare S1 wiper delay/hazard/fan override module

Post by 288gto » Mon Jan 27, 2020 9:27 pm

Very impressive Jeremy, especially the escutcheons. I know what a pain it was trying to get a new switch legend strip with "hazards" in it made.

:yellow: :yellow:

Simon
Simon
1969 S2 OTS

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

mgcjag
Moderator
Posts: 5388
Joined: Fri Jul 09, 2010 6:15 pm
Location: Ludlow Shropshire
Great Britain

#9 Re: Rare S1 wiper delay/hazard/fan override module

Post by mgcjag » Mon Jan 27, 2020 9:52 pm

Great Jeremy....you could start churning them out for forum members :bigrin: .....Steve
Steve
1969 S2 2+2 & Building a C type replica

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
Jeremy
Posts: 666
Joined: Sat Nov 28, 2015 11:16 pm
Location: West London
Great Britain

#10 Re: Rare S1 wiper delay/hazard/fan override module

Post by Jeremy » Mon Jan 27, 2020 11:08 pm

I did consider mass production Steve, but I fear the men in white coats would arrive to take me away before I got very far…..
Anyway – the electrics:

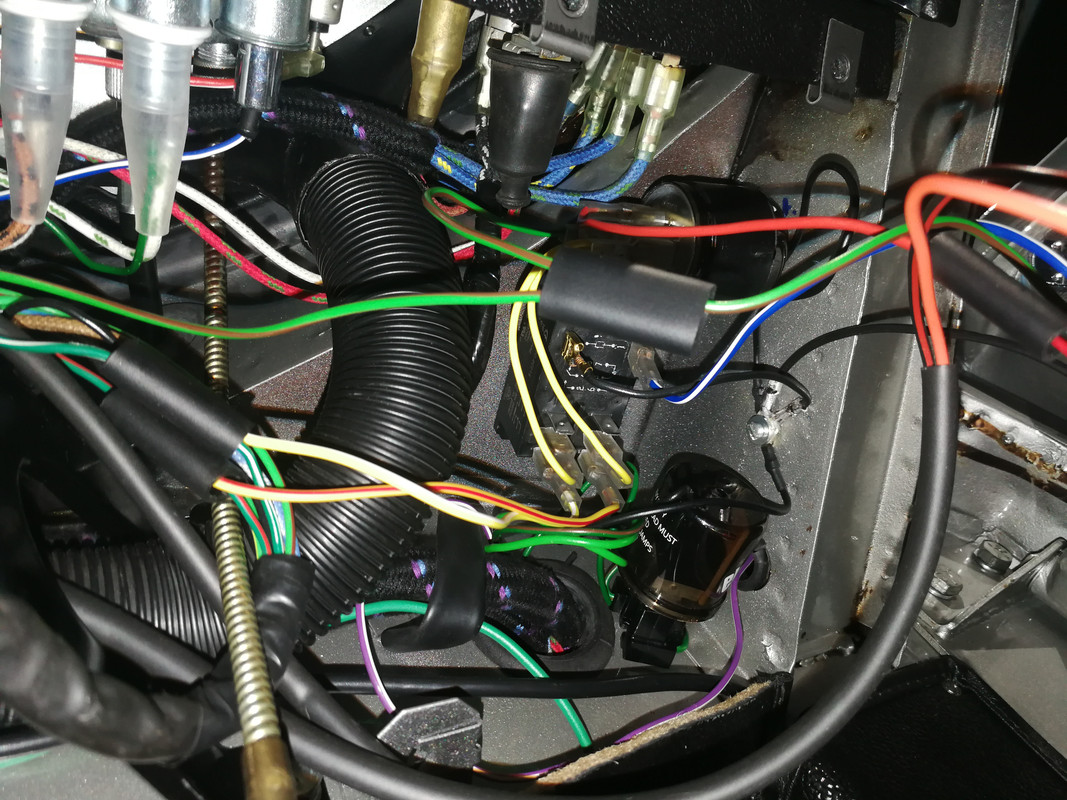

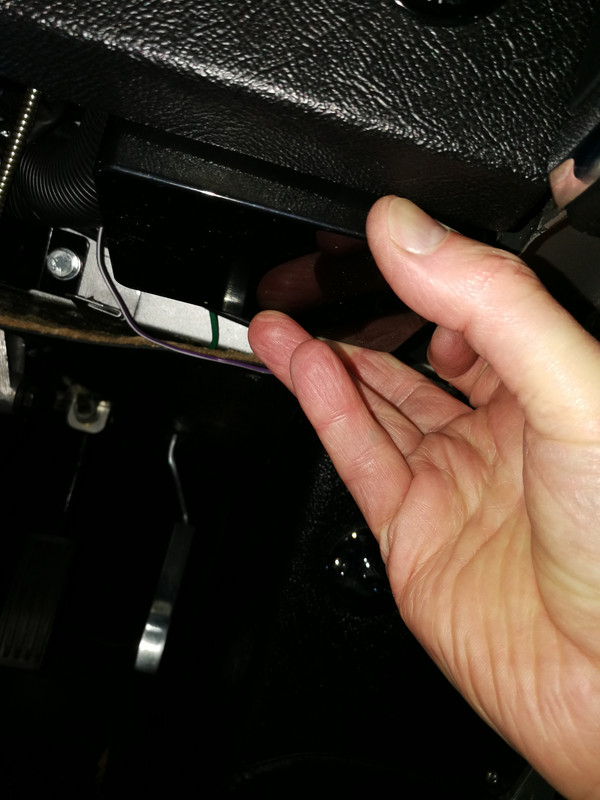

1. The radiator fan override was easy. I have a Coolcat with a relay, so it was one earth lead from the relay to the new switch, to mimic the action of the Otter, and another lead from the fan motor to illuminate the lamp when the motor is running. Just the work of running the cables in an outer through the bulkhead (I opted for the choke cable hole, same place I used for the upgraded rev-counter cable from the dizzy), then re-doing the strapping along the frame. Simples.
