#1 Engine rebuild - almost done!..

Post by ysmalkie » Wed Mar 11, 2020 10:55 pm

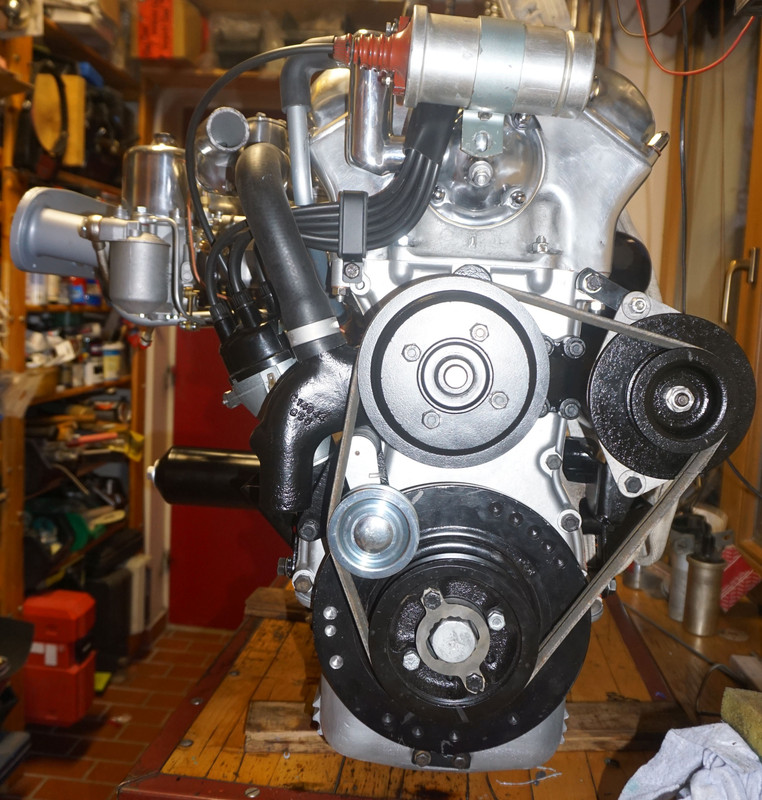

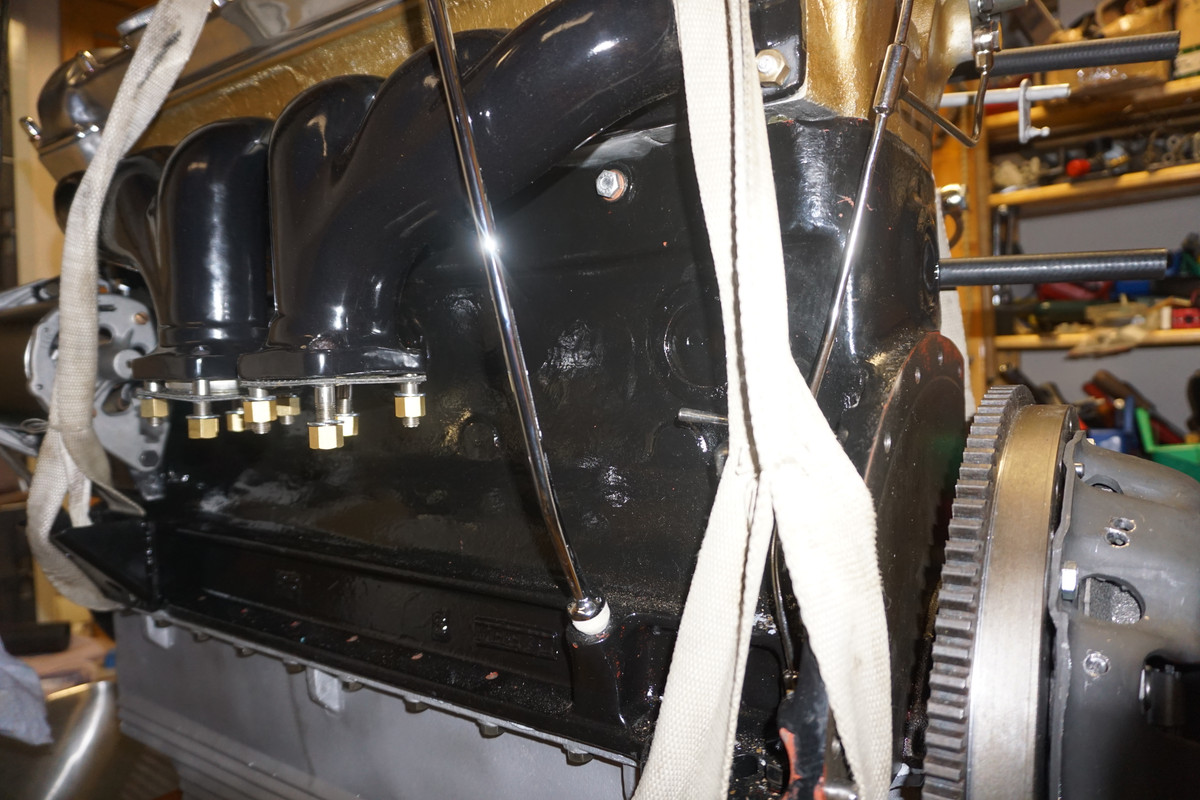

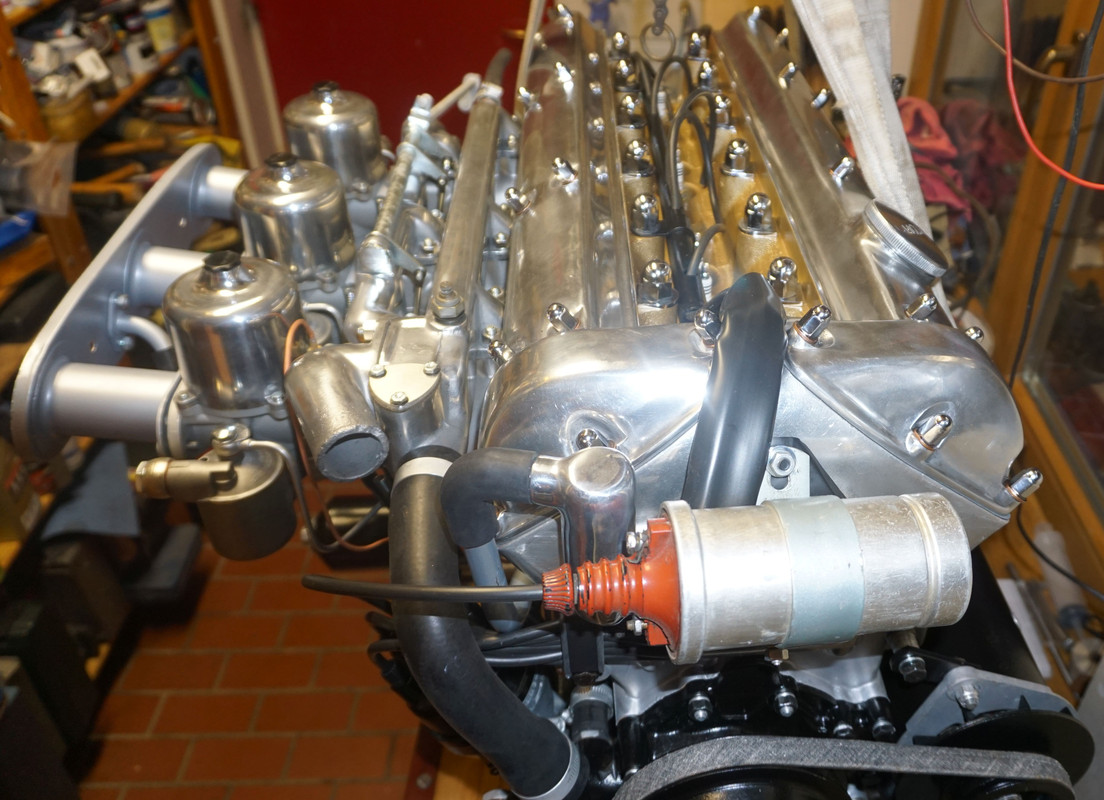

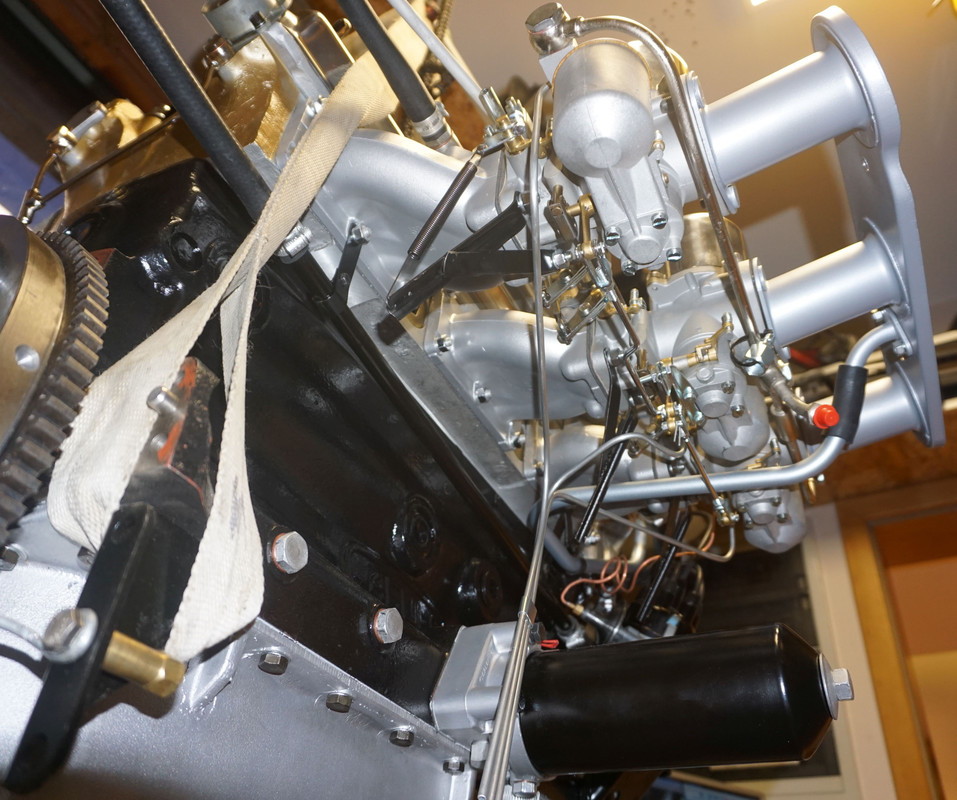

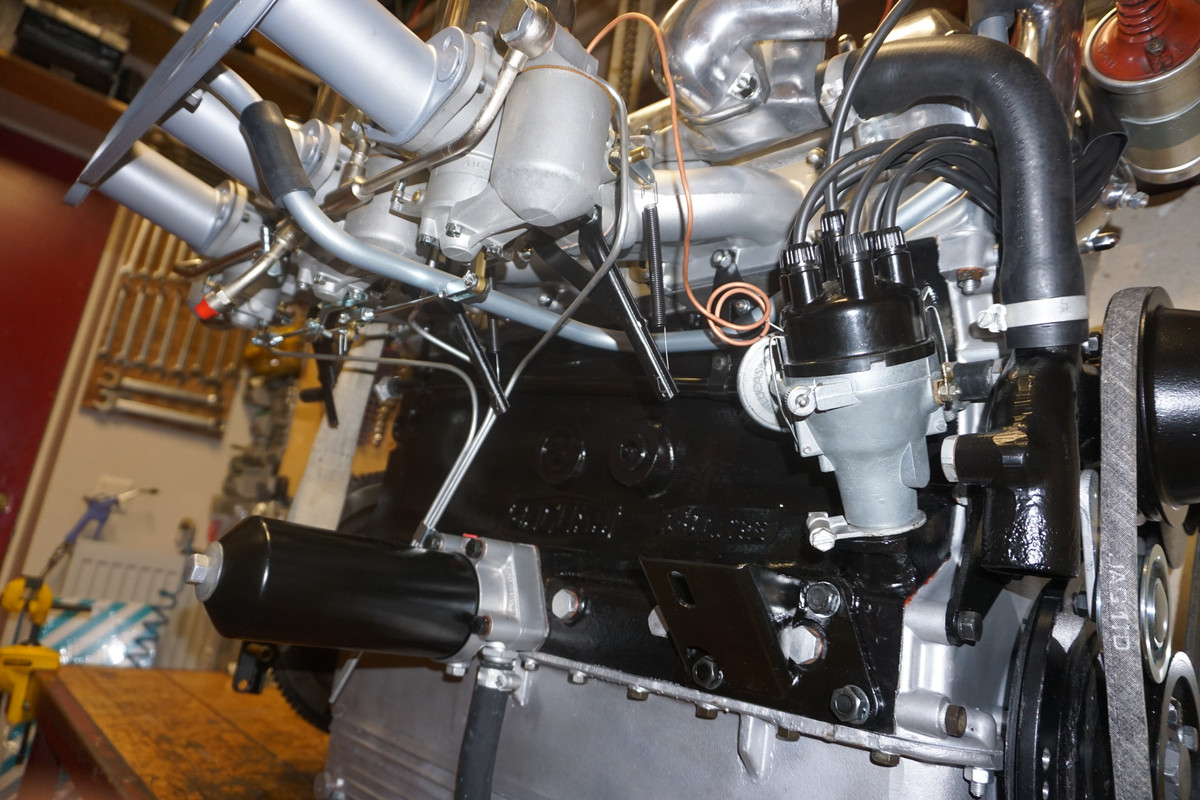

I wanted to thank all who helped me in the rebuild - my very first engine build :-)..

I am still missing few bits and pieces, however almost there...

Comments are most welcome - have I missed something??

I do know I need:
- 4 clips for the breather pipe
- generator bracket spacer
- oil stick hold down and the spacer
- coil lower bracket
- Champion ignition spark plug caps
- oil pressure sender
- coil label

Also, I am not sure if there is supposed to be some extension tube for the oil dip stick and the felt seal from SNG seems really big...


Tadek










Tadek

e-type S1 3.8 FHC - in restoration phase...
Jaguar XK120 OTS
Austin-Healey 100 BN2

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

abowie
Posts: 2824
Joined: Wed Sep 07, 2011 9:15 pm
Location: Australia
Contact:
Australia

#2 Re: Engine rebuild - almost done!..

Post by abowie » Wed Mar 11, 2020 11:36 pm

They are beautiful aren't they!
Andrew.
881824, 1E21538. 889457..oops. Jezza the V12 XJS race car.
http://www.projectetype.com/index.php/the-blog.html
Adelaide, Australia

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

politeperson
Posts: 1026
Joined: Tue Jun 07, 2016 8:26 pm
Location: Boston UK
Great Britain

#3 Re: Engine rebuild - almost done!..

Post by politeperson » Thu Mar 12, 2020 8:16 am

Tadek,

NIce!

Instead of the felt seal, I have been using electrical heat shrink to form the seal.

I start with a short tube, heat it on, then shrink on a few longer tubes to form a tapering seal which plugs the hole in the tube nicely.

James
Last edited by politeperson on Thu Mar 12, 2020 8:18 pm, edited 1 time in total.
James

L.J.K. Setright was right.
"You just cant beat a good E-type"

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Jeremy
Posts: 666
Joined: Sat Nov 28, 2015 11:16 pm
Location: West London
Great Britain

#4 Re: Engine rebuild - almost done!..

Post by Jeremy » Thu Mar 12, 2020 9:20 am

Beautiful job Tadek! I am hugely impressed.
Re: oil pressure sender - when Rob Beere rebuilt my engine, he fitted a new (electrical) one but cautioned me that they are notoriously unreliable. Later Angus persuaded me of the benefits of replacing it with a hydraulic one and corresponding gauge, which is working perfectly.
Jeremy
1967 S1 4.2 FHC

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

mgcjag
Moderator
Posts: 5388
Joined: Fri Jul 09, 2010 6:15 pm
Location: Ludlow Shropshire
Great Britain

#5 Re: Engine rebuild - almost done!..

Post by mgcjag » Thu Mar 12, 2020 9:29 am

Very nice job Tadek....well done....when you fill with oil make sure you use the correct measured amount rather that useing the dipstick marks.....then mark this level on the dipstick.....Steve
Steve
1969 S2 2+2 & Building a C type replica

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

H7OB
Posts: 234
Joined: Wed May 10, 2017 3:42 pm
Location: Warwickshire
Great Britain

#6 Re: Engine rebuild - almost done!..

Post by H7OB » Thu Mar 12, 2020 9:32 am

That looks stunning Tadek!
Credit to you.
There are few things more exciting then starting up a rebuilt engine!
:thumbsup:
Paul
'68 Series 1.25 2+2

Link:
BBcode:
HTML:
Hide post links
Show post links


paulsco
Posts: 690
Joined: Mon May 04, 2009 5:12 pm
Location: Oxfordshire
Great Britain

#7 Re: Engine rebuild - almost done!..

Post by paulsco » Thu Mar 12, 2020 10:24 am

I am not sure if there is supposed to be some extension tube for the oil dip stick
There is no extension tube as such, but there is an insert in the block that when fitted, is flush with the top.
Yours is probably already there.

Your coil is a Lucas SA12 or HA12 sports coil, I am not quite sure which, I have one myself.

There is information on it here: viewtopic.php?t=2006&start=170

and where to obtain the lables.


Paul
65 Series 1 FHC, 68 Jaguar 340

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
ysmalkie
Posts: 233
Joined: Fri May 16, 2014 9:11 am
Location: Poland
Poland

#8 Re: Engine rebuild - almost done!..

Post by ysmalkie » Thu Mar 12, 2020 8:53 pm

Thank you all for the kind words :-)

It's SA12 - the exciting part is that it's from June '63 and my car is from October, so a pretty good match :-)

So Steve, when I fill 8.5 l of oil this should be the maximum or middle on the dipstick?
Tadek

e-type S1 3.8 FHC - in restoration phase...
Jaguar XK120 OTS
Austin-Healey 100 BN2

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
ysmalkie
Posts: 233
Joined: Fri May 16, 2014 9:11 am
Location: Poland
Poland

#9 Re: Engine rebuild - almost done!..

Post by ysmalkie » Thu Mar 12, 2020 9:03 pm

As for the oil pressure sender - I actually found a NOS about a year ago - I was overwhelmed with joy (photos ended up even on the Original Fit), however when I tested it recently it turned out it does not work.... :cry: :sad:
Tadek

e-type S1 3.8 FHC - in restoration phase...
Jaguar XK120 OTS
Austin-Healey 100 BN2

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

mgcjag
Moderator
Posts: 5388
Joined: Fri Jul 09, 2010 6:15 pm
Location: Ludlow Shropshire
Great Britain

#10 Re: Engine rebuild - almost done!..

Post by mgcjag » Thu Mar 12, 2020 9:17 pm

Hi Tadek...im not sure where the correct amount of oil will come up to on your dipstick......but where ever it comes to make a small mark.......this will then be the ideal level for you to maintain.....Steve
Steve
1969 S2 2+2 & Building a C type replica

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

chrisfell
Posts: 1159
Joined: Tue Oct 06, 2009 9:52 am
Location: Salisbury
St Lucia

#11 Re: Engine rebuild - almost done!..

Post by chrisfell » Fri Mar 13, 2020 1:49 pm

On my dipstick the collar which covers what’s left of the felt pad can be moved up and down the dipstick. This allowed me to correct the reading to the ...er.... correct level. On my 4.2 it is exactly 10inches from the tip of the dipstick.
Chris '67 S1 2+2

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
ysmalkie
Posts: 233
Joined: Fri May 16, 2014 9:11 am
Location: Poland
Poland

#12 Re: Engine rebuild - almost done!..

Post by ysmalkie » Fri Mar 13, 2020 6:53 pm

Your dipstck is very flexible then ;-)

my collar is fixed :-)

T.
Tadek

e-type S1 3.8 FHC - in restoration phase...
Jaguar XK120 OTS
Austin-Healey 100 BN2

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Nick V12 e type
Posts: 71
Joined: Mon Dec 11, 2017 9:21 pm
Location: Midlands UK
Great Britain

#13 Re: Engine rebuild - almost done!..

Post by Nick V12 e type » Sun Mar 15, 2020 9:30 am

Tadek, congratulations, the out put of you hard work and dedication is magnificent.

A beautiful result

Best wishes
Nick
e type series 3 V12 2+2 1972, Tesla Model S 2016

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

rswaffie
Posts: 1088
Joined: Sat Jul 19, 2014 7:56 am
Location: Lincolnshire
Great Britain

#14 Re: Engine rebuild - almost done!..

Post by rswaffie » Sun Mar 15, 2020 12:05 pm

The xk engine is a work of art, particularly when painted & polished and even out of the car, it looks like it means business. When I first saw mine in it’s rebuilt state in the display area of the restoration shop, I just stood and shook my head. Silly really, as I’d seen loads of pics of shiny rebuilt engines, but in the flesh and knowing that it’s yours makes a huge difference.
Great work.
Richard

S1 3.8 FHC Opalescent Golden Sand with Tan Trim 889504
Now running-in my diy nut ‘n’ bolt restoration. :wrench: :hammer: :fingerscrossed:

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
ysmalkie
Posts: 233
Joined: Fri May 16, 2014 9:11 am
Location: Poland
Poland

#15 Re: Engine rebuild - almost done!..

Post by ysmalkie » Sun Mar 15, 2020 9:49 pm

Thanks Nick :-)

I am truly anxious to see it running.. and hoping it will be ok..

It's my 1st engine I have restored, so I _am_ worried...

Tadek
Tadek

e-type S1 3.8 FHC - in restoration phase...
Jaguar XK120 OTS
Austin-Healey 100 BN2

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Mich7920
Posts: 589
Joined: Sun Mar 15, 2015 4:43 pm
Location: France
France

#16 Re: Engine rebuild - almost done!..

Post by Mich7920 » Mon Mar 16, 2020 11:14 am

Why don't you built a mini jig to put your engine on ?
Built a small wiring.
Connect the minimum of the exhaust.
COnnect the radiator.
Connect you fuel pump to a jerrycan and start your engine out of the car.
You could also validate your clutch and gearbox.
If here is a fault you'll can repair it really mor easily.
I did that and after some lite corrections, the engine run perfectly into the car.

Mich
Michel
1965 E Type FHC - On the road - 1963 E Type OTS - Angus Restoration
Gran Torino Sport 1975 - Renault 4cv 1956 - CItroen 15/6 1951 - CItroen Traction 1945
Citroen Coupé docteur 5Hp 1924 - Citroen B12 1926 - Torpedo Sygma 1913
Harley D. 1915 sidecar

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
ysmalkie
Posts: 233
Joined: Fri May 16, 2014 9:11 am
Location: Poland
Poland

#17 Re: Engine rebuild - almost done!..

Post by ysmalkie » Mon Mar 16, 2020 10:29 pm

Nice one :-)

What's on the control panel??

Tadek
Tadek

e-type S1 3.8 FHC - in restoration phase...
Jaguar XK120 OTS
Austin-Healey 100 BN2

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Mich7920
Posts: 589
Joined: Sun Mar 15, 2015 4:43 pm
Location: France
France

#18 Re: Engine rebuild - almost done!..

Post by Mich7920 » Mon Mar 16, 2020 10:42 pm

I bought a cheap rev conter connected to the coil
From the car I used the water temp and oil pressure dash, the power contact and the push to start the engine.
I also used a switch for an extra fan on the radiator.
Thats all
Michel
1965 E Type FHC - On the road - 1963 E Type OTS - Angus Restoration
Gran Torino Sport 1975 - Renault 4cv 1956 - CItroen 15/6 1951 - CItroen Traction 1945
Citroen Coupé docteur 5Hp 1924 - Citroen B12 1926 - Torpedo Sygma 1913
Harley D. 1915 sidecar

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
ysmalkie
Posts: 233
Joined: Fri May 16, 2014 9:11 am
Location: Poland
Poland

#19 Re: Engine rebuild - almost done!..

Post by ysmalkie » Sat Mar 21, 2020 8:15 pm

I have made these:


for the damper. Mine has a diameter of 228mm and it is designed for this size.

I am happy to share a TIFF so you can print a decal yourself or I can send it to you (once the post offices open for international post).

Feel free to PM me for the TIFF.

Tadek
Tadek

e-type S1 3.8 FHC - in restoration phase...
Jaguar XK120 OTS
Austin-Healey 100 BN2

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

AshM
Posts: 392
Joined: Wed Dec 14, 2016 4:59 pm
Location: Edinburgh, Scotland
Great Britain

#20 Re: Engine rebuild - almost done!..

Post by AshM » Sun Mar 22, 2020 6:46 pm

Beautiful job Tadek - congrats.

As others have already said, there is nothing as beautiful as a prepared E Type engine.

Don't get worried about the dipstick marks - its a dark art. When it's back in the car with exactly 8.5l of oil in it. Dip it somewhere on a level surface and that's your mark. Wherever it is on the stick.

cheers
Ash
Series 2 FHC 1970
1R 20607
