#41 Re: [edited] Spin on oil filter vs retrofitting OEM filter housing on Series 1

Post by tinworm » Thu Jun 25, 2020 6:04 pm

The deflector disc is pressed on - but they can become loose after 60 years. You can panel beat the edge around the centre boss to reduce the bore slightly -until it fits tightly on. The spring etc works as mentioned to hold the filter against the disc. The system will allow the filter to lift off its seat (and leak full oil flow by) if the filter is not serviced and gets clogged - a fail safe arrangement. Other jaguars of the period used all the same parts on a different housing - so its worthwhile buying a mk10/mk2/420 one if you want spare parts. The ebay link selling a centre bolt is not e-type - or any other jag - it should have a formed flange on the end which is part of the bolt. The 3.8 bolt is longer with a coarse thread than the shorter fine threaded 4.2 version.

hope this helps
Barrie
1968 E-type roadster, 1964 E-type fixed head 1995 Ferrari 355 1980 Ferrari 308 1987 V8 90 Landrover 1988 Bedford rascal van 1943 Ford GPW

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

ralphr1780
Posts: 974
Joined: Wed Apr 11, 2012 4:29 pm
Belgium

#42 Re: [edited] Spin on oil filter vs retrofitting OEM filter housing on Series 1

Post by ralphr1780 » Thu Jun 25, 2020 9:20 pm

Serge, congrats for reaching a good fit of the canister ultimately. I feel your painful experience because I lived the same.

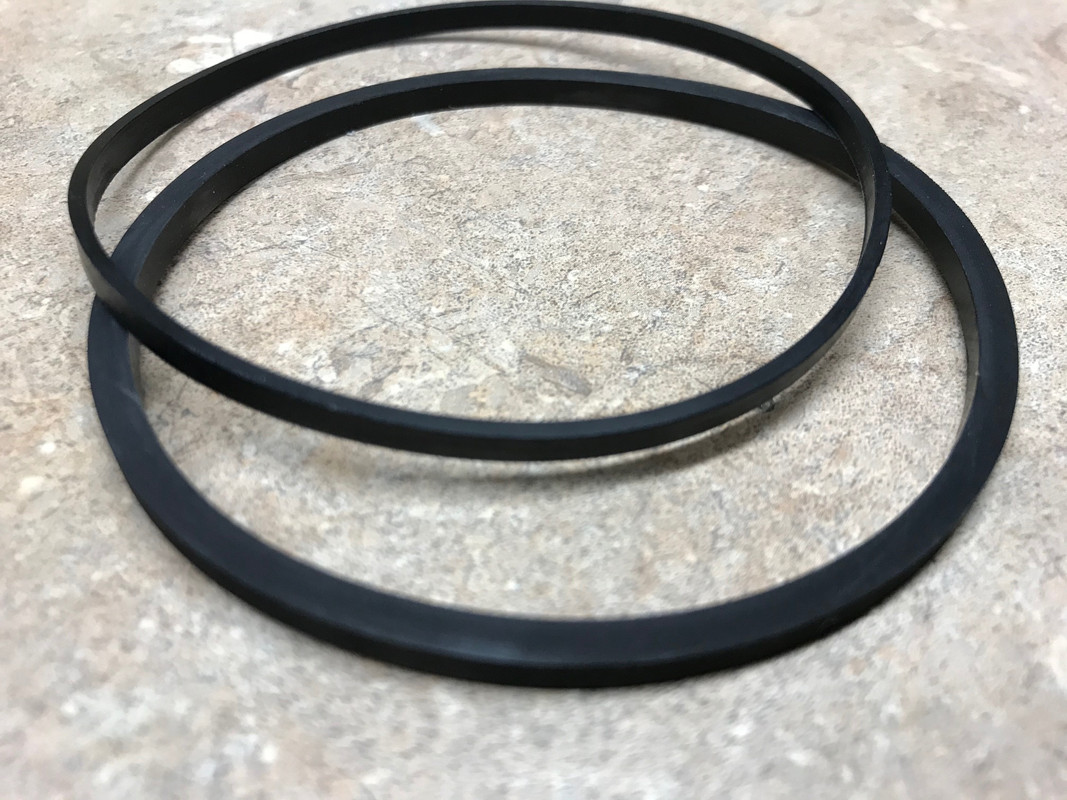

A slight difference though: the thin seal provided with the filter was too thin, so when tightening the canister edge simply twisted it and I got 3 liters of oil on the garage floor.
The thick seal was too thick to fit in the groove, so had to patiently sand it down by 0.3mm to get it to fit.
I also welded a washer to the long bolt and doubled the felt washer. Not one drop of oil leaked since.
Ralph
'69 OTS + '62 OTS - Belgium

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

MonAndrew77
Posts: 4
Joined: Sat Nov 30, 2019 1:36 pm
United States of America

#43 Re: [edited] Spin on oil filter vs retrofitting OEM filter housing on Series 1

Post by MonAndrew77 » Thu Jul 30, 2020 11:52 pm

Greetings E-Type Buddies,

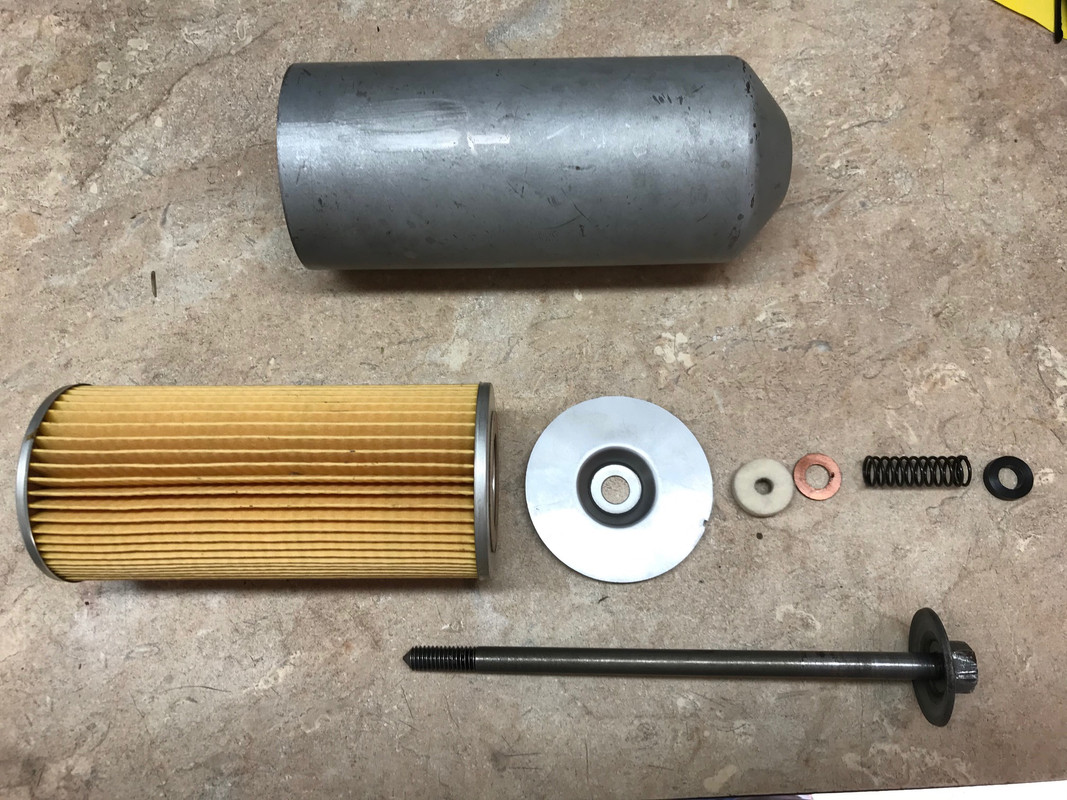

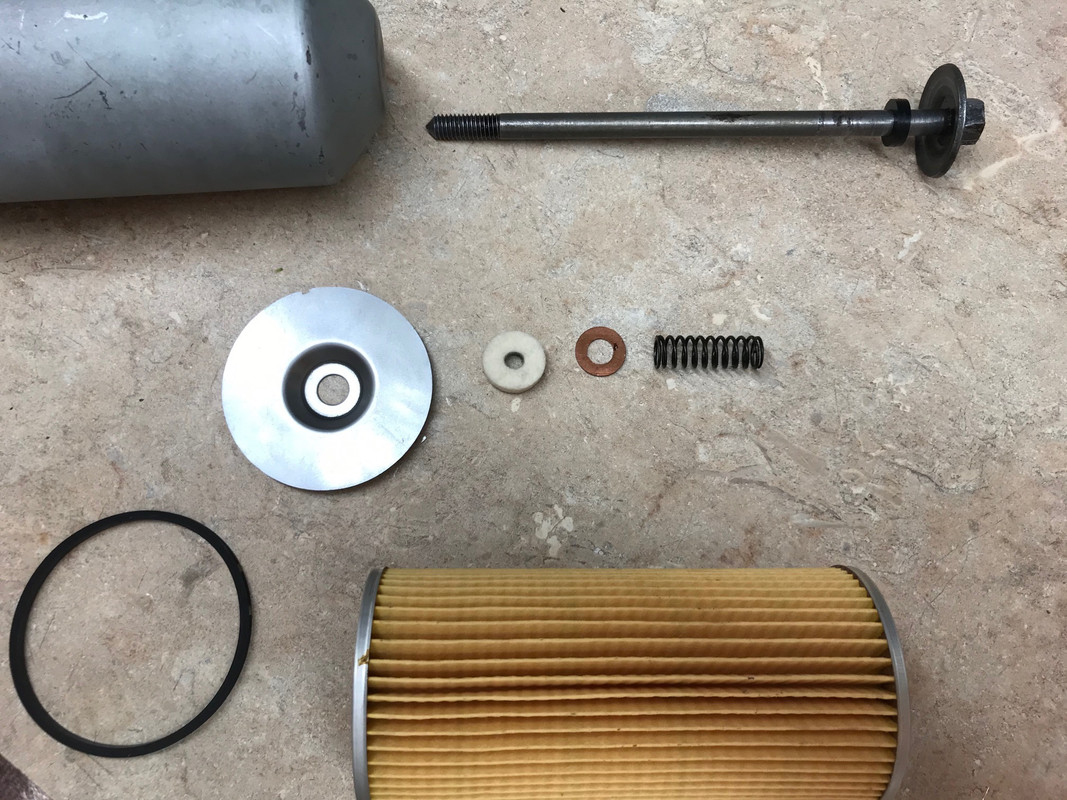

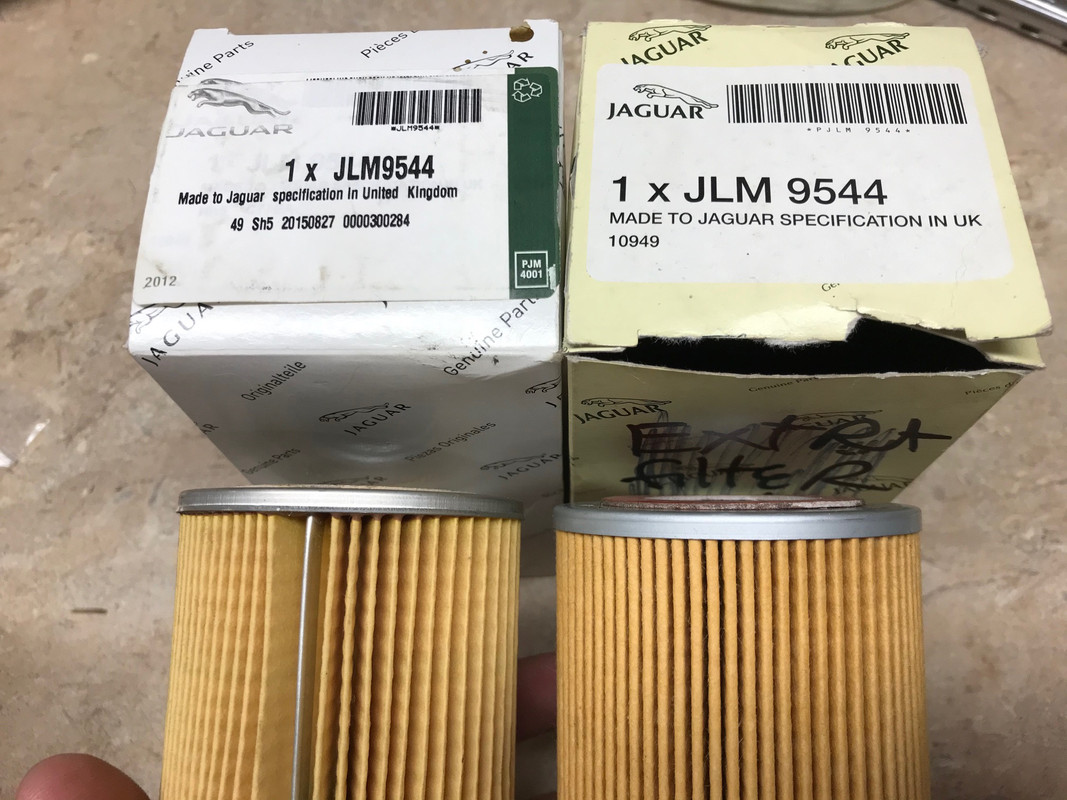

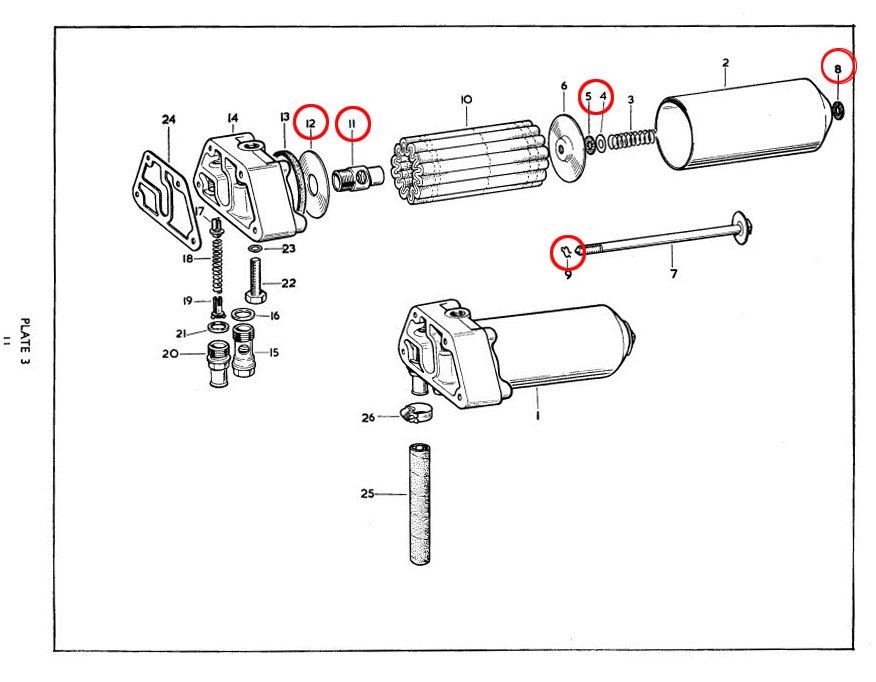

I've read through all of this and please forgive my trepidation regarding the original oil filter canister.... Would some kind soul be willing to confirm that I have the requisite parts to reassemble my canister utilizing the JLM9544 filter element? There were several "homemade" parts inside when I disassembled it for the first time. I've ordered what I think I need from SNGB. Is this the best filter element to use? My car is a 1964 3.8 S-I OTS. Many many thanks.....

Andrew :Scotland:






Andrew
1964 S-I 3.8 OTS
Northern VA USA

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Mich7920
Posts: 631
Joined: Sun Mar 15, 2015 4:43 pm
Location: France
France

#44 Re: [edited] Spin on oil filter vs retrofitting OEM filter housing on Series 1

Post by Mich7920 » Fri Jul 31, 2020 6:27 am

Hi,
Missing. I'll forget the washers you have.
You must used the thicker seal. With a knife, "cut" or " break" the interior angle of the seal, oil it, and it will fit more easialy into the grove. You'll must to push hard anyway.
Don't tighten the canister just like that, you must centerlised it properly when you arrive in contact with the seal.

Mich
Michel
1965 E Type FHC - On the road - 1963 E Type OTS - Angus Restoration
Gran Torino Sport 1975 - Renault 4cv 1956 - CItroen 15/6 1951 - CItroen Traction 1945
Citroen Coupé docteur 5Hp 1924 - Citroen B12 1926 - Torpedo Sygma 1913
Harley D. 1915 sidecar

Link:
BBcode:
HTML:
Hide post links
Show post links


CoolCat
Posts: 6
Joined: Wed Dec 12, 2018 10:26 pm
Location: US
Contact:
United States of America

#45 Re: [edited] Spin on oil filter vs retrofitting OEM filter housing on Series 1

Post by CoolCat » Thu Sep 24, 2020 12:38 pm

Series1 Stu wrote:
Wed Jun 03, 2020 9:15 pm
Ok but don't take it too seriously because 1" UNF has 14 tpi, not 12 as they say.

Regards
I only want to get involved here to this extent: 1"-12 UNF is correct. This is the odd size that Jaguar used for their oil filters from the S3 XJ6 to the eight cylinder motors.
