#1 Refurbishing door handles/locks

Post by Robbiee » Sat Sep 22, 2018 3:56 pm

Hi
I’d like to refurbish my door handles (March 1962 OTS RHD)
Yeah ...I know you can buy new but they are original with keys. They have that “to lock” with an arrow on them that the replacement parts don’t have.

Questions..1. Has anyone got any advice or knowledge please?

2. I have 3 ignition keys which are the same serial number FP*** The door handle locks each have a key that turns the barrel FS~~~ and FS^^^ (different each side).
Is it normal to have different keys for each side that also differ from the ignition key?

Thanks in anticipation of a deluge of knowledge!

Robbie
Robbie 1962 3.8 Coupe OSG 1962 OTS ODG

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Philk
Posts: 277
Joined: Wed Dec 07, 2016 7:48 am
Great Britain

#2 Re: Refurbishing door handles/locks

Post by Philk » Sat Sep 22, 2018 4:20 pm

I would say that it is not unusual to have a different ignition key but I would expect the locks on both doors to have the same key (which is what I have on my '64 3.8 S1 OTS).
Phil
1964 S1 3.8 OTS

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

mark10337
Posts: 749
Joined: Wed Jul 22, 2015 11:11 am
Location: Switzerland
Switzerland

#3 Re: Refurbishing door handles/locks

Post by mark10337 » Sat Sep 22, 2018 7:31 pm

You can change which key the barrels take by swapping around the parts in the barrel. If you want to get really original, you can ask Jaguar Classic parts (not Heritage), which key numbers your car originally came with.

Here is an email I received from them.

--------------------------------------------------------

Hello Sir,

Your email has been forwarded by my colleague in the archive. They are not able to answer parts or technical enquiries, these need to come directly to us.

Regarding the keys for your vehicle, there are two key codes listed for your Chassis Number. I would expect the ignition to be one key and the door, trunk and glove box the other.

Key codes can be supplied at £21,98 + VAT each - Part No. JHP1175.

Please be aware, cut keys and/or key codes are supplied from the original data, recorded on the vehicle build record. Keys and codes cannot be accepted for return or refund, should they not function correctly, due to locks being replaced.

A scanned copy of the vehicle registration will be required with any order, as proof of ownership

Best regards
Glen Parkes
Internet & Technical Parts Coordinator

Jaguar Land Rover Classic

T: +44 (0) 2476 565708
E: jclassic@jaguarlandrover.com (Jaguar Classic Parts)
-Mark

1969 Series 2 OTS, Regency Red
'Life's to short to drive a boring car'

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
Robbiee
Posts: 298
Joined: Sun Aug 16, 2015 12:07 pm
Location: Derbyshire

#4 Re: Refurbishing door handles/locks

Post by Robbiee » Sat Sep 22, 2018 7:41 pm

Thanks for all the responses
Robbie
Robbie 1962 3.8 Coupe OSG 1962 OTS ODG

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Jeremy
Posts: 574
Joined: Sat Nov 28, 2015 11:16 pm
Location: West London
Great Britain

#5 Re: Refurbishing door handles/locks

Post by Jeremy » Sat Sep 22, 2018 8:43 pm

I tried refurbing mine Robbie - replated the handles, fitted new lock barrels. But the insides (esp that mazak bit) were too badly worn and the whole mechanism was sufficiently sloppy that the plungers would catch and stick, and the locking lever would not turn reliably to lock and unlock cleanly with the key despite my attempts to fettle things with little files. Faced with the real possibility of locking myself out of the car and not being able to get back in, I bought a new pair from Wilkinsons...
Jeremy
1967 S1 4.2 FHC

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Herblay
Posts: 63
Joined: Sun Oct 12, 2014 7:30 pm
Location: Spain
Spain

#6 Re: Refurbishing door handles/locks

Post by Herblay » Mon Oct 07, 2019 8:02 pm

One question related to keys. Does the Series 1 have two separate keys, one for the doors and the other for the ignition?
S1 FHC 3.8

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

abowie
Posts: 2508
Joined: Wed Sep 07, 2011 9:15 pm
Location: Australia
Contact:
Australia

#7 Re: Refurbishing door handles/locks

Post by abowie » Mon Oct 07, 2019 11:11 pm

Good luck. I've tried this on several occasions and have finally given up in frustration and bought new handles and locks each time.

The locks are incredibly cheaply made and are very hard to get to work properly again if they are broken. Rechroming the handles looks nice but then you have to get the lock barrel to fit properly into the handle and his is often dam near impossible.

If what you want is to retain the "lock" marking on the barrel you could probably get a locksmith to transplant the plates into new locks. Were it me this is what I would do.

AFAIK the ignition and door locks should match, and certainly the door locks should match. This is trivial for a locksmith to do with new locks if you can provide a key.
Andrew.
881824, 1E21538. 889457..oops
http://www.projectetype.com/index.php/the-blog.html
Adelaide, Australia

Link:
BBcode:
HTML:
Hide post links
Show post links


lopena
Posts: 59
Joined: Sun Feb 12, 2017 11:35 am
United States of America

#8 Re: Refurbishing door handles/locks

Post by lopena » Tue Oct 08, 2019 12:24 pm

Herblay wrote:
Mon Oct 07, 2019 8:02 pm
One question related to keys. Does the Series 1 have two separate keys, one for the doors and the other for the ignition?
My ‘64 OTS has its original keys...one key unlocks both doors and the ignition.

Alan
N.J.

Link:
BBcode:
HTML:
Hide post links
Show post links


288gto
Posts: 1094
Joined: Wed Nov 14, 2012 8:59 pm
Location: United Kingdom
Russia

#9 Re: Refurbishing door handles/locks

Post by 288gto » Tue Oct 08, 2019 1:02 pm

It is possible to transfer the barrel and locking mechanism from your originals into a new set of handles. This is what I did with mine. It is very fiddly but can be done. As with most of the repro stuff, the new mechanisms aren’t as good as the originals.
There is a little pin in the barrel that you have to remove to disassemble it. I’m not at home at the moment but seem to remember I took pics of mine so I knew how it all went back together.

The dilemma once apart is do you rebuild them with both key slots the same way or as what I’m informed is original, one up one down.
Just typing this upsets my ocd again. :lol:

Simon
Simon
1969 S2 OTS

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

rswaffie
Posts: 848
Joined: Sat Jul 19, 2014 7:56 am
Location: Lincolnshire
Great Britain

#10 Re: Refurbishing door handles/locks

Post by rswaffie » Tue Oct 08, 2019 1:50 pm

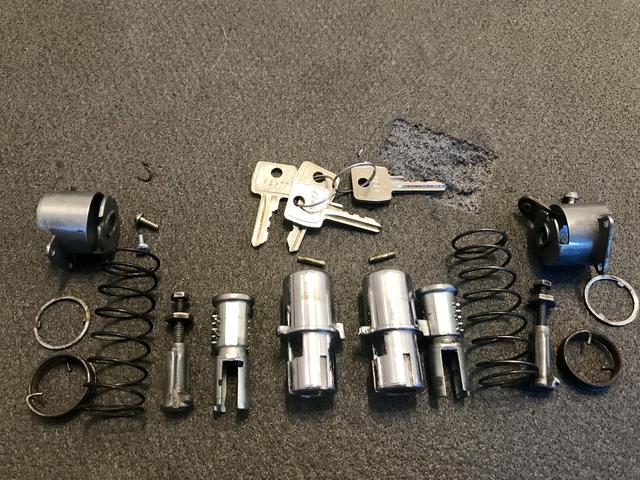

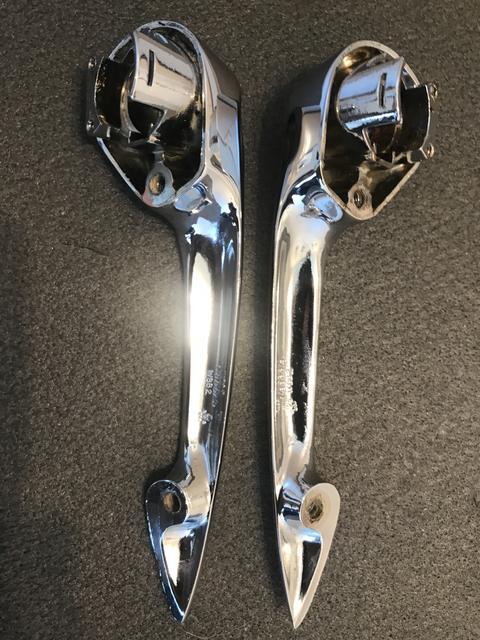

If it’s of any interest, these are my locks/barrels stripped down during the rechroming of the handles.



Richard

S1 3.8 FHC Opalescent Golden Sand with Tan Trim 889504
Now running-in my diy nut ‘n’ bolt restoration. :wrench: :hammer: :fingerscrossed:

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
Robbiee
Posts: 298
Joined: Sun Aug 16, 2015 12:07 pm
Location: Derbyshire

#11 Re: Refurbishing door handles/locks

Post by Robbiee » Sun Oct 20, 2019 6:52 am

Hi Richard
Thoroughly enjoyed the derbyshire run last year ..sorry I couldn’t make Tissington

I’m just doing mine at the moment

Question....what are the flat spring and ?circlip-like parts in your photo at the far left and right of the photo?
I don’t seem to have these

Thanks
Robbie
(Derbyshire)
Robbie 1962 3.8 Coupe OSG 1962 OTS ODG

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

rswaffie
Posts: 848
Joined: Sat Jul 19, 2014 7:56 am
Location: Lincolnshire
Great Britain

#12 Re: Refurbishing door handles/locks

Post by rswaffie » Sun Oct 20, 2019 10:17 am

Hi Robbiee
The springs fit over the barrels, as do the washers to enable them to ‘return’ when the key is turned.
I’ll see if I can find a pic of them in-situ.
Btw, I think you may have me mixed up with someone else - I haven’t been involved with the Derbyshire event - I will try and make it next year though!
Richard

S1 3.8 FHC Opalescent Golden Sand with Tan Trim 889504
Now running-in my diy nut ‘n’ bolt restoration. :wrench: :hammer: :fingerscrossed:

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
Robbiee
Posts: 298
Joined: Sun Aug 16, 2015 12:07 pm
Location: Derbyshire

#13 Re: Refurbishing door handles/locks

Post by Robbiee » Sun Oct 20, 2019 11:06 am

Apologies Richard
Thanks v much
A photo would be great
Can one purchase these parts separately???
Regards
Robbie
Robbie 1962 3.8 Coupe OSG 1962 OTS ODG

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
Robbiee
Posts: 298
Joined: Sun Aug 16, 2015 12:07 pm
Location: Derbyshire

#14 Re: Refurbishing door handles/locks

Post by Robbiee » Wed Nov 13, 2019 7:09 pm

Hi Richard..or anyone else
I don’t know if it’s possible to get a photo showing the dimensions of the washer and return spring
I have a friend who could make them both for me
Robbie
Robbie 1962 3.8 Coupe OSG 1962 OTS ODG

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

rswaffie
Posts: 848
Joined: Sat Jul 19, 2014 7:56 am
Location: Lincolnshire
Great Britain

#15 Re: Refurbishing door handles/locks

Post by rswaffie » Wed Nov 13, 2019 8:02 pm

Unfortunately, the only pic I’ve got is the one posted above.
Richard

S1 3.8 FHC Opalescent Golden Sand with Tan Trim 889504
Now running-in my diy nut ‘n’ bolt restoration. :wrench: :hammer: :fingerscrossed:

Link:
BBcode:
HTML:
Hide post links
Show post links


288gto
Posts: 1094
Joined: Wed Nov 14, 2012 8:59 pm
Location: United Kingdom
Russia

#16 Re: Refurbishing door handles/locks

Post by 288gto » Thu Nov 14, 2019 8:31 am

Hi Robbie,

If you can wait until the weekend I have a spare pair of originals I can maybe measure for you. Failing that, you say you were on the Derbyshire run so you can’t be too far away, you could call in person and have a look/measure/borrow.
I might even be able to show you how to sort the keys.

Simon
Simon
1969 S2 OTS

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
Robbiee
Posts: 298
Joined: Sun Aug 16, 2015 12:07 pm
Location: Derbyshire

#17 Re: Refurbishing door handles/locks

Post by Robbiee » Thu Nov 14, 2019 9:52 am

Hi
Great
I’ll PM you
Robbie
Robbie 1962 3.8 Coupe OSG 1962 OTS ODG

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
Robbiee
Posts: 298
Joined: Sun Aug 16, 2015 12:07 pm
Location: Derbyshire

#18 Re: Refurbishing door handles/locks

Post by Robbiee » Thu Nov 14, 2019 9:53 am

288gto wrote:
Thu Nov 14, 2019 8:31 am
Hi Robbie,

If you can wait until the weekend I have a spare pair of originals I can maybe measure for you. Failing that, you say you were on the Derbyshire run so you can’t be too far away, you could call in person and have a look/measure/borrow.
I might even be able to show you how to sort the keys.

Simon
Robbie 1962 3.8 Coupe OSG 1962 OTS ODG

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
Robbiee
Posts: 298
Joined: Sun Aug 16, 2015 12:07 pm
Location: Derbyshire

#19 Re: Refurbishing door handles/locks

Post by Robbiee » Wed Nov 27, 2019 8:52 am

Hi all
I have found someone who will make me some door lock barrel return springs (torsion springs)
They are the flat ones with about 5 coils and two bent ends to locate them
They are often missing in old locks and are not available

Would anyone out there be interested in having one or two as it would be cheaper per item (a few quid) to get a batch made?

Robbie
Robbie 1962 3.8 Coupe OSG 1962 OTS ODG

Link:
BBcode:
HTML:
Hide post links
Show post links


tonyabacus
Posts: 61
Joined: Sun Sep 28, 2014 12:02 am
Great Britain

#20 Re: Refurbishing door handles/locks

Post by tonyabacus » Thu Nov 28, 2019 9:08 pm

Robbie
Here is a link to an article on Willmot Breedon locks as fitted by Jaguar, it relates to XK120,140,150, but I think Jaguar continued to use the same keys on the S1 E Type, so it may give you some answers as to which key and style of key fitted where.

Also some of the responses talk about having the handles rechromed and then not being able to refit the barrels, this is due in some cases to a thick layer of chrome being deposited on the inside of the hole where the barrel fits. If you check the tightness of your barrel in the hole first and then talk to the rechromer, he will usually if requested put something into the hole to prevent the chrome being deposited, so the barrel can then be refitted.

The bigger problem is the wear of the thin fingers that are in the barrel as these over the years get very worn as does the carriageway that they sit in, from continual use. But if they are not too worn then you can strip the barrel (beware the very tiny springs in each of the finger locations), clean all the parts but when reassembling don't use grease, just a light oil, otherwise the lock picks up the dust and rubbish into the grease and increases the wear.

As far as I am aware to cannot buy the thin fingers any more, so will have to use the existing.

Let me know if you can definitely get those other springs made please.
Tony

http://www.bobine.nl/jaguar/12-body/wil ... -and-keys/

Link:
BBcode:
HTML:
Hide post links
Show post links
