Pictures of the brake servo fluid bottle mount please.

Talk about the E-Type Series 1

Topic author
lestere
Posts: 40
Joined: Wed Jan 06, 2016 9:27 pm
Location: Birchington UK
Great Britain

#1 Pictures of the brake servo fluid bottle mount please.

Post by lestere » Fri Feb 09, 2018 12:52 pm

I am in the process of converting my 66 2+2 to RHD. When I look at the RHD mounting for the servo fluid bottle, suppliers seem to offer more than method of supporting the metal band that goes around the bottle:
Some seem to offer a bracket fitted on to the narrower of the blanking plates that covers the LHD steering shaft accelerator outlet below.
http://www.ebay.co.uk/itm/JAGUAR-E-TYPE ... XQLQJREjSi

Other offer a bracket fitted to the brake/clutch peddle box blanking plate.
http://etype.chrisvine.com/wp-content/u ... ake005.JPG

Or even as in this link a bolt on bracket for the single servo fluid reservoir.
https://www.ebay.ie/itm/Jaguar-e-type-4 ... 3caa727ded

Would any of you with a RHD E Type tell me or even better mind posting pictures of the bracket that should be fitted to a 1966 series one as I’m not sure which type I should have?
Thank you.
Lester
Lester
Series 1. 2+2 Willow Green

Link:
BBcode:
HTML:
Hide post links
Show post links


paulsco
Posts: 551
Joined: Mon May 04, 2009 5:12 pm
Location: Oxfordshire
Great Britain

#2 Re: Pictures of the brake servo fluid bottle mount please.

Post by paulsco » Fri Feb 09, 2018 2:41 pm

Hi Lester,

Your 66 should have the wider mount as in the centre picture; the top one won't fit, it is for earlier cars.
The bottom picture shows the brackets for the brake and clutch bottles mounted to the bulkhead in front of the driver and a bolt on adaptor bracket to fit the redundant LHD cover (moved over to the left side) when converting to RHD.
It is not originally a bolt on fitment, but would work.

I hope this helps,

Paul
65 Series 1 FHC, 68 Jaguar 340

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

chrisfell
Posts: 935
Joined: Tue Oct 06, 2009 9:52 am
Location: Salisbury
St Lucia

#3 Re: Pictures of the brake servo fluid bottle mount please.

Post by chrisfell » Fri Feb 09, 2018 2:58 pm

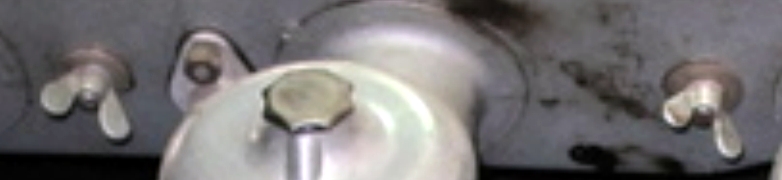

Photo of mine, early 67 2+2.


Likely to be original.
Chris '67 S1 2+2

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
lestere
Posts: 40
Joined: Wed Jan 06, 2016 9:27 pm
Location: Birchington UK
Great Britain

#4 Re: Pictures of the brake servo fluid bottle mount please.

Post by lestere » Fri Feb 09, 2018 3:36 pm

Thank you both Chris and Paul.
That is all very helpful and just the info and picture i needed.
Lester
Lester
Series 1. 2+2 Willow Green

Link:
BBcode:
HTML:
Hide post links
Show post links


Jeremy66
Posts: 89
Joined: Sat Dec 16, 2017 6:50 pm
Great Britain

#5 Re: Pictures of the brake servo fluid bottle mount please.

Post by Jeremy66 » Sat Feb 10, 2018 8:29 pm


Link:
BBcode:
HTML:
Hide post links
Show post links


Wadders
Posts: 2
Joined: Sun Oct 08, 2017 9:07 pm
Great Britain

#6 Re: Pictures of the brake servo fluid bottle mount please.

Post by Wadders » Sun Feb 03, 2019 2:16 pm

I’m converting a 1970 series 2 from LHD to RHD. I am also after a blanking plate with the bracket to hold the reservoir bottle. Does anyone know where they can be bought? Many thanks.
1970 Series 2 FHC
In the process of restoring to the road.

Link:
BBcode:
HTML:
Hide post links
Show post links


tim wood
Posts: 523
Joined: Fri Nov 20, 2009 6:52 pm
Location: Leighton Buzzard UK
Great Britain

#7 Re: Pictures of the brake servo fluid bottle mount please.

Post by tim wood » Sun Feb 03, 2019 3:04 pm

Huston’s do them.
Series 1 FHC purchased 40 years ago when I was young. Sold
Series 1 2+2 when the kids were small now sold
Series 1.5 OTS in opalescent maroon, Californian car. My retirement present.

Link:
BBcode:
HTML:
Hide post links
Show post links


Wadders
Posts: 2
Joined: Sun Oct 08, 2017 9:07 pm
Great Britain

#8 Re: Pictures of the brake servo fluid bottle mount please.

Post by Wadders » Sun Feb 17, 2019 11:13 am

Thank you Tim.
1970 Series 2 FHC
In the process of restoring to the road.

Link:
BBcode:
HTML:
Hide post links
Show post links
