#1 Stuck Choke (Enrichment) mechanism

Post by Bill Michigan » Sun Mar 10, 2019 6:17 pm

After months of difficulty cold starting my S1 3.8L, it looks like I finally found the culprit (with much education from this forum). I had initially thought it was the starter motor disengaging prematurely each time the engine fired, but it now looks like the enrichment mechanism on one of the carburetors is stuck. Because of the choke linkage, the stuck carburetor prevents the choke adjustment from full travel, which also prevents the other two carburetors from getting any enrichment.

The sticking portion could be the outside lever assemblies or the mixture control jet inside the carburetor. I have poured penetrating oil on the lever assembly, but that hasn't loosened it up--at least not yet.

Q1: Is the sticking likely to be the outer lever assembly, or the jet inside the carburetor?

Q2: If the problem is inside the carburetor, can I get to it from the top or bottom with the carburetor still on the engine, or do I need to remove the carburetor to fix it?

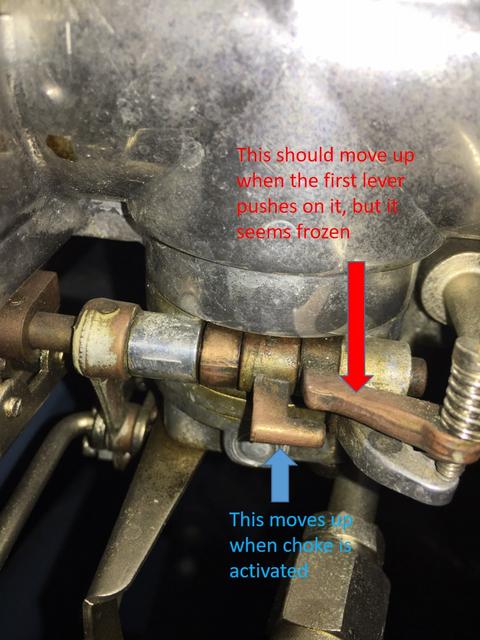

Photo of linkage is below. The center lever with a tab is the one that is moved upward when the choke control on the dash is moved upward. The lever that is above and to the right of it (with the mixture adjustment screw) is the one that seems to be frozen. (Photo is of center carb, but stuck mechanism is actually on the front carb.)

Any guidance and advice would be much appreciated.

Thanks,

Bill



1963 S1 3.8L OTS Cotswold Blue
2013 XF
Previous:
2002 XJR Series 100
1996 XJ6

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Mich7920
Posts: 595
Joined: Sun Mar 15, 2015 4:43 pm
Location: France
France

#2 Re: Stuck Choke (Enrichment) mechanism

Post by Mich7920 » Sun Mar 10, 2019 8:04 pm

Hi Bill,
To work properly Prefer remove the carb.
This is the part where you have a problem


All the parts can be remove from their axle, there are pins for every thing but I didn't touch the brass cam.
Beware, the pins are tappered. Look at them closely to find the good way before using the hammer .
You'll check also the main jet.
Mich
Michel
1965 E Type FHC - On the road - 1963 E Type OTS - Angus Restoration
Gran Torino Sport 1975 - Renault 4cv 1956 - CItroen 15/6 1951 - CItroen Traction 1945
Citroen Coupé docteur 5Hp 1924 - Citroen B12 1926 - Torpedo Sygma 1913
Harley D. 1915 sidecar

Link:
BBcode:
HTML:
Hide post links
Show post links


Robbiee
Posts: 448
Joined: Sun Aug 16, 2015 12:07 pm
Location: Derbyshire

#3 Re: Stuck Choke (Enrichment) mechanism

Post by Robbiee » Sun Mar 10, 2019 8:26 pm

Hi Bill
I’ve just taken mine apart , cleaned and rebuilt them

All of mine were stuck!

The first bit of choke adjustment opens the butterfly a chink, then the lever that is stuck on your one is pushed up and this pivots and pulls the jet downwards to enrich the mixture, the butterfly opening a little more at the same time.

Essentially in mine the jet was stuck completely in its support bearing cylinder ..possibly dirt/deposits in old petrol.

I had to get new jets anyway due to the rubber diaphragm being cracked. I cleaned the inside of the bearing cylinder so the new jet was free to slide up and down.


When replacin the mechanism tyou will have to Centre the jet and lock it in place so the needle can fall freely

You shouldn’t need to mess with the spindle attachments, pins etc

Robbie
Robbie 1962 3.8 Coupe OSG 1962 OTS ODG

Link:
BBcode:
HTML:
Hide post links
Show post links


Robbiee
Posts: 448
Joined: Sun Aug 16, 2015 12:07 pm
Location: Derbyshire

#4 Re: Stuck Choke (Enrichment) mechanism

Post by Robbiee » Sun Mar 10, 2019 8:29 pm

...sorry .. you deffo have to remove the carb

Robbie
Robbie 1962 3.8 Coupe OSG 1962 OTS ODG

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
Bill Michigan
Posts: 18
Joined: Thu Apr 26, 2018 9:20 pm
Location: Michigan, USA
United States of America

#5 Re: Stuck Choke (Enrichment) mechanism

Post by Bill Michigan » Sun Mar 10, 2019 10:08 pm

Thanks, Mich and Robbie, for the quick and clear advice. Looks like I need to clear the workbench and the calendar for this little project.

Bill
1963 S1 3.8L OTS Cotswold Blue
2013 XF
Previous:
2002 XJR Series 100
1996 XJ6

Link:
BBcode:
HTML:
Hide post links
Show post links


Robbiee
Posts: 448
Joined: Sun Aug 16, 2015 12:07 pm
Location: Derbyshire

#6 Re: Stuck Choke (Enrichment) mechanism

Post by Robbiee » Sun Mar 10, 2019 10:24 pm

If you take lots of photos and get the SU guide it helps
Also don’t mix parts from each one, particularly the dash pots and pistons
DON’T polish the insides of these just make sure they’re clean
Maybe best to keep one intact as a reference!

Get a plastic box for each carb and DONT THROW ANYTHING AWAY

ITS FUN

ROBBIE
Robbie 1962 3.8 Coupe OSG 1962 OTS ODG

Link:
BBcode:
HTML:
Hide post links
Show post links


64etype
Posts: 418
Joined: Sun Mar 20, 2011 2:07 pm
Location: Texas, USA
United States of America

#7 Re: Stuck Choke (Enrichment) mechanism

Post by 64etype » Mon Mar 11, 2019 2:10 pm

This recent thread from Jag-Lovers might be useful depending on the nature of the problem.

https://forums.jag-lovers.com/t/stuck-hd8-parts/371249
Eric
