#1 Wheel inner arch & floor paint in original S1 3.8

Post by ysmalkie » Tue Sep 24, 2019 8:35 pm

I am getting close to paint my 3.8 S1 '63 and I am trying to figure out the paint underneath the car.

From the photos from the Factory Fit section, I gather the following:
- the inner wheel arches front and rear are painted BODY colour over rubber coating,
- the front inner wheel engine shields are painted BLACK over rubberized coating, (the other side is black, too but no rubber coat),
- the floors are painted BLACK over rubberized coating,
I presume that the demarcation line is along the sill panel (sill panel, obviously body colour).
- the rear suspension cradle space is painted BLACK over rubberized coating,
- the boot floor (underside) is painted body colour, the seams are partially filled with a filler (is there any specific place the filler ceases?..)

Could anyone confirm or correct these assumptions?
Is there any other place where rubberized coating is used?

Tadek






Tadek

e-type S1 3.8 FHC - in restoration phase...
Jaguar XK120 OTS
Austin-Healey 100 BN2

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

abowie
Posts: 2513
Joined: Wed Sep 07, 2011 9:15 pm
Location: Australia
Contact:
Australia

#2 Re: Wheel inner arch & floor paint in original S1 3.8

Post by abowie » Tue Sep 24, 2019 9:10 pm

- the inner wheel arches front and rear are painted BODY colour over rubber coating,

Just body colour on the front; no rubberised coating. The rear is coated and painted.

- the front inner wheel engine shields are painted BLACK over rubberized coating, (the other side is black, too but no rubber coat),

just satin or gloss black, no coating

- the floors are painted BLACK over rubberized coating,

Inside is coated and painted body colour, underside of the floor pan, area above the IRS and rear wheel
arches are body colour over coating


I presume that the demarcation line is along the sill panel (sill panel, obviously body colour).

Correct; there is no coating on the sills.


- the rear suspension cradle space is painted BLACK over rubberized coating,

There is no coating on the IRS cradle. We usually powder coat it satin black but you could paint it

- the boot floor (underside) is painted body colour, the seams are partially filled with a filler (is there any specific place the filler ceases?..)

About 2/3 of the way in but I don't have a car to take measurements on at the moment

Could anyone confirm or correct these assumptions?
Is there any other place where rubberized coating is used?
Andrew.
881824, 1E21538. 889457..oops
http://www.projectetype.com/index.php/the-blog.html
Adelaide, Australia

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
ysmalkie
Posts: 130
Joined: Fri May 16, 2014 9:11 am
Location: Poland
Poland

#3 Re: Wheel inner arch & floor paint in original S1 3.8

Post by ysmalkie » Wed Sep 25, 2019 5:42 am

Many thanks Andrew,

However the photos of the cars in the Factory Fit section (which I picked for this topic) show different on the underside of the car:
- front wheel arches are rubber coated, same for the engine shields,
- floor black (on white the car).

Do you think they are not that original after all?

Tadek
Tadek

e-type S1 3.8 FHC - in restoration phase...
Jaguar XK120 OTS
Austin-Healey 100 BN2

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
ysmalkie
Posts: 130
Joined: Fri May 16, 2014 9:11 am
Location: Poland
Poland

#4 Re: Wheel inner arch & floor paint in original S1 3.8

Post by ysmalkie » Wed Sep 25, 2019 6:18 am

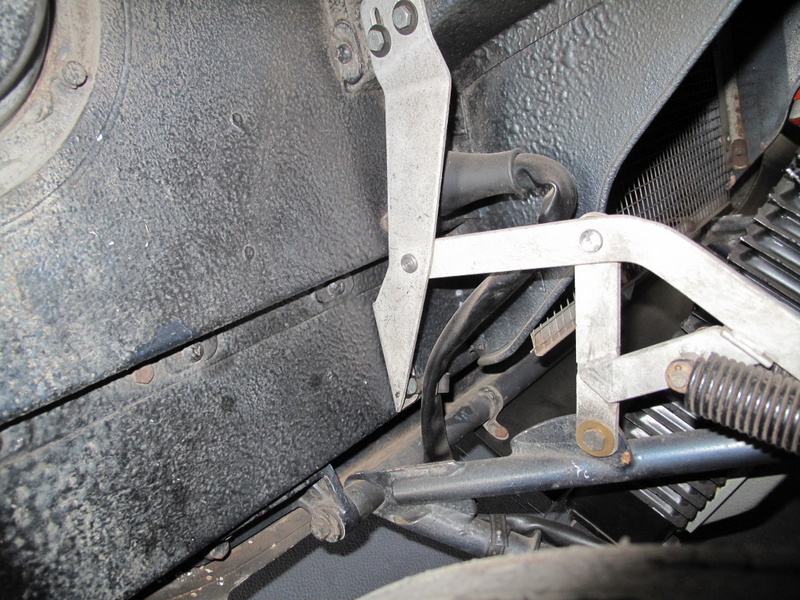

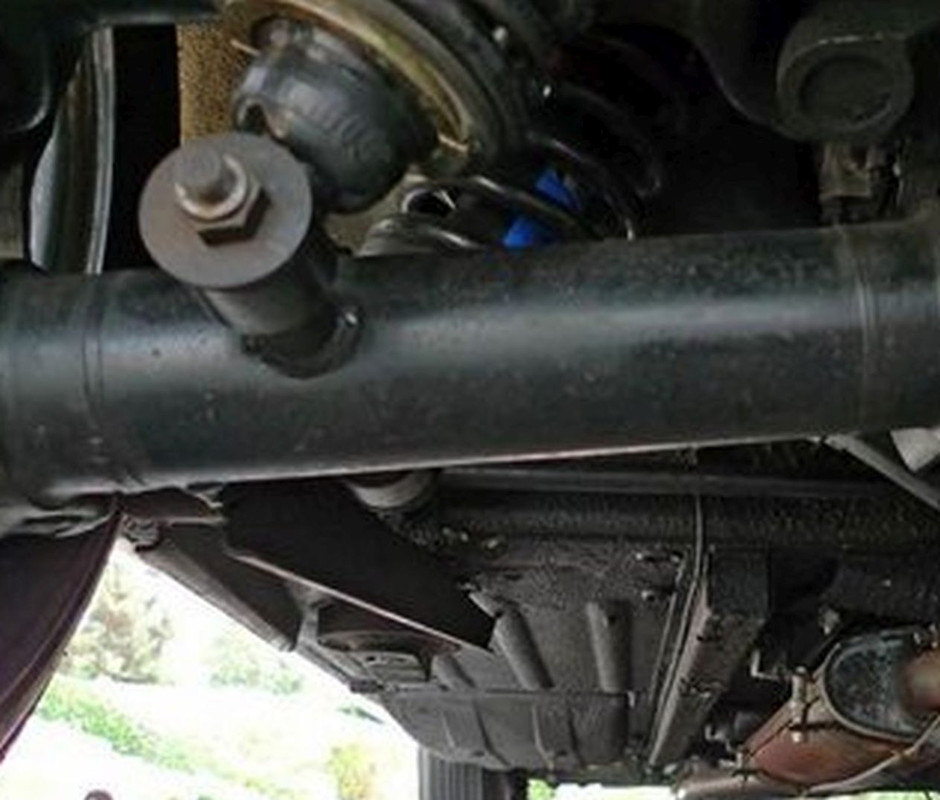

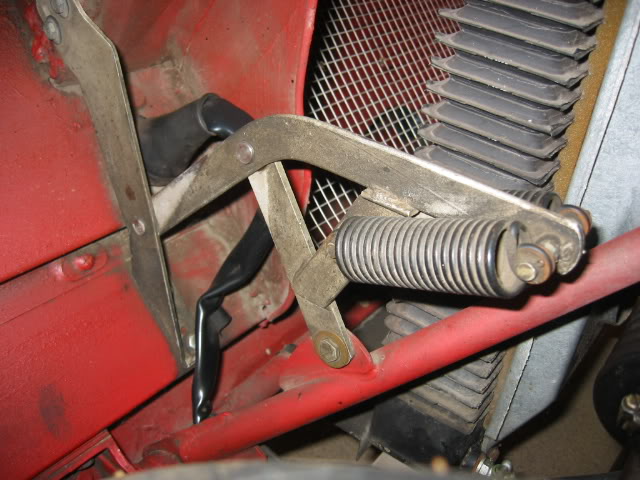

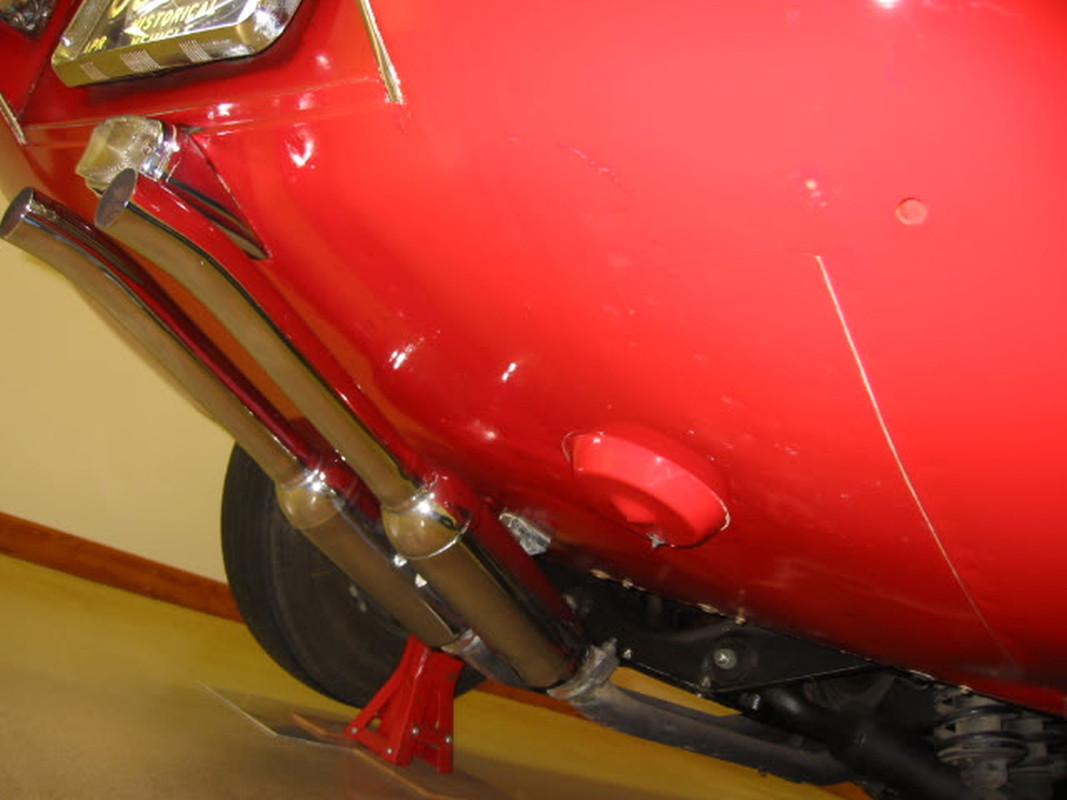

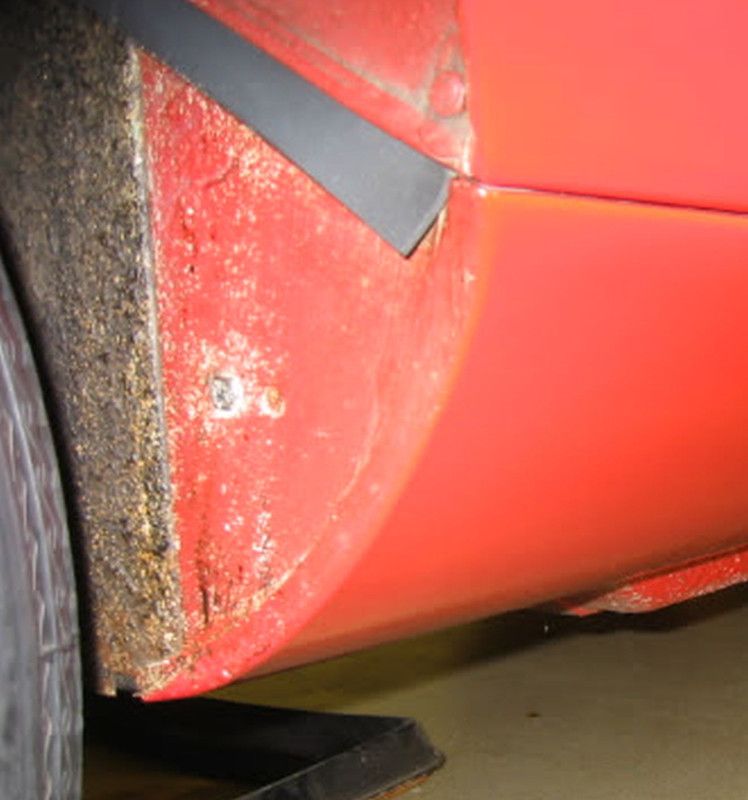

Few more shots, this time though of the unrestored 4.2s:











Tadek
Tadek

e-type S1 3.8 FHC - in restoration phase...
Jaguar XK120 OTS
Austin-Healey 100 BN2

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

MarkRado
Posts: 217
Joined: Fri Jan 26, 2018 9:13 am
Location: Graz
Austria

#5 Re: Wheel inner arch & floor paint in original S1 3.8

Post by MarkRado » Wed Sep 25, 2019 11:35 am

Tadek,

if you are going for a car that is to be driven rather than 100% concours, I' d strongly recommend not to use the black stuff on the underside or anywhere else. I did use it in the first instance and found rust developing in some places between panels and coating that became brittle, making it necessary to remove it by dry ice (C02) blasting - not funny on a fully assembled car. Even less funny to mask off everything and repaint :shock: . In the end I painted the underside of the floors body colour (2pack), the wheelarches received 3M bodyguard anti stonechip coating (ref 08868) before painting. This coating is available with coarse and flat texture. All painted panels have the advantage of being cleaned easily and showing any damage readily.
Mark
1963 OTS 880436

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

rswaffie
Posts: 851
Joined: Sat Jul 19, 2014 7:56 am
Location: Lincolnshire
Great Britain

#6 Re: Wheel inner arch & floor paint in original S1 3.8

Post by rswaffie » Wed Sep 25, 2019 12:20 pm

Hi,
My bodyshop recommended U-Pol Raptor, which is a urethane based protective coating that can be tinted to match paintwork. It has a textured finish and provides rust inhibitor protection as well. Might be worth a look.
Richard

S1 3.8 FHC Opalescent Golden Sand with Tan Trim 889504
Now running-in my diy nut ‘n’ bolt restoration. :wrench: :hammer: :fingerscrossed:

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
ysmalkie
Posts: 130
Joined: Fri May 16, 2014 9:11 am
Location: Poland
Poland

#7 Re: Wheel inner arch & floor paint in original S1 3.8

Post by ysmalkie » Wed Sep 25, 2019 4:51 pm

Many thanks guys,

However, I would prefer to restore the car as original :-)

So, if anyone can shed more light on it, I would be most grateful...

Mark, I (or my painter, actually) never overdo the rubber coating - a thin layer is perfectly sufficient and it does work well, provided it's _thin_. If it's so heavy, hard and inflexible, it just looses its purpose..

Tadek
Tadek

e-type S1 3.8 FHC - in restoration phase...
Jaguar XK120 OTS
Austin-Healey 100 BN2

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Sarthe72
Posts: 201
Joined: Fri Oct 25, 2013 7:21 pm
Great Britain

#8 Re: Wheel inner arch & floor paint in original S1 3.8

Post by Sarthe72 » Fri Sep 27, 2019 1:15 am

Original is all very well if you don't plan to use the car much, but you might be making a dreadful decision if you do. The U-Pol is used for pick-up beds and is exceptionally tough, and you can't see the difference once the top coat is on. I rest easy knowing mine has this treatment. Just my take on things.
