#1 FHC body changes in 1962

Post by Desmo » Sat Jan 02, 2021 2:58 pm

Hello,

in the book "Jaguar e-TYpe six-Cylinder Originality Guide/Dr. Haddock/Dr. Mueller" on page 61 there is the note, that in 1962 significant changes have been made to the bodywork of the FHC like "the shapes of both rear sidelights, from a smaller window to a larger one (likely taller).". What is meant by this? Are there pictures on which the difference before and after can be seen? What other changes have been made to the outer skin of the FHC body in 1962? I thank you for your information.

Kind regards
John

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Philk
Posts: 442
Joined: Wed Dec 07, 2016 7:48 am
Great Britain

#2 Re: FHC body changes in 1962

Post by Philk » Sat Jan 02, 2021 5:56 pm

The Spares Bulletin (P.60) covering this was published in June 1962. The changes took place from Chassis Nos 860479 (RHD) and 886014 (LHD) and were extensive (the bulletin covers 6 pages setting out all the revised part numbers). The changes were subtle in terms of appearance yet necessitated other parts being modified (such as the rear tail lamps as set out in Spares Bulletin Q.43).
Phil
1964 S1 3.8 OTS

Link:
BBcode:
HTML:
Hide post links
Show post links


paulsco
Posts: 780
Joined: Mon May 04, 2009 5:12 pm
Location: Oxfordshire
Great Britain

#3 Re: FHC body changes in 1962

Post by paulsco » Sat Jan 02, 2021 7:25 pm

Hello John,

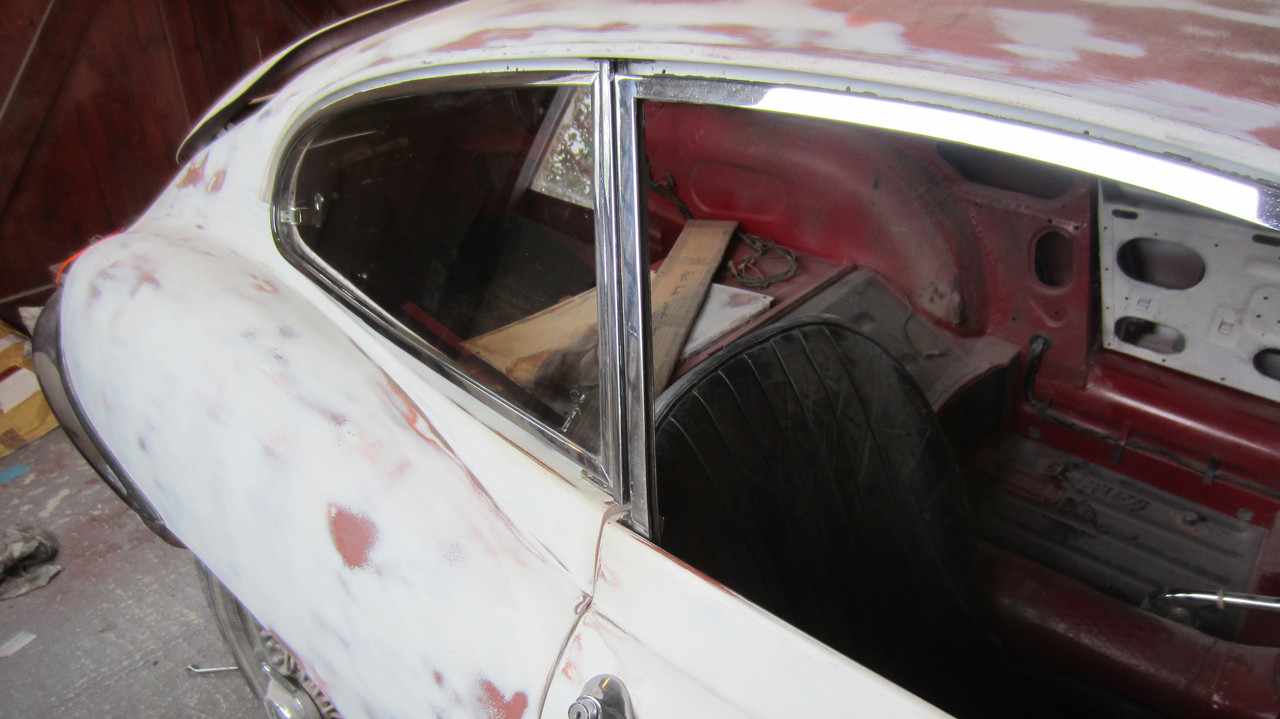

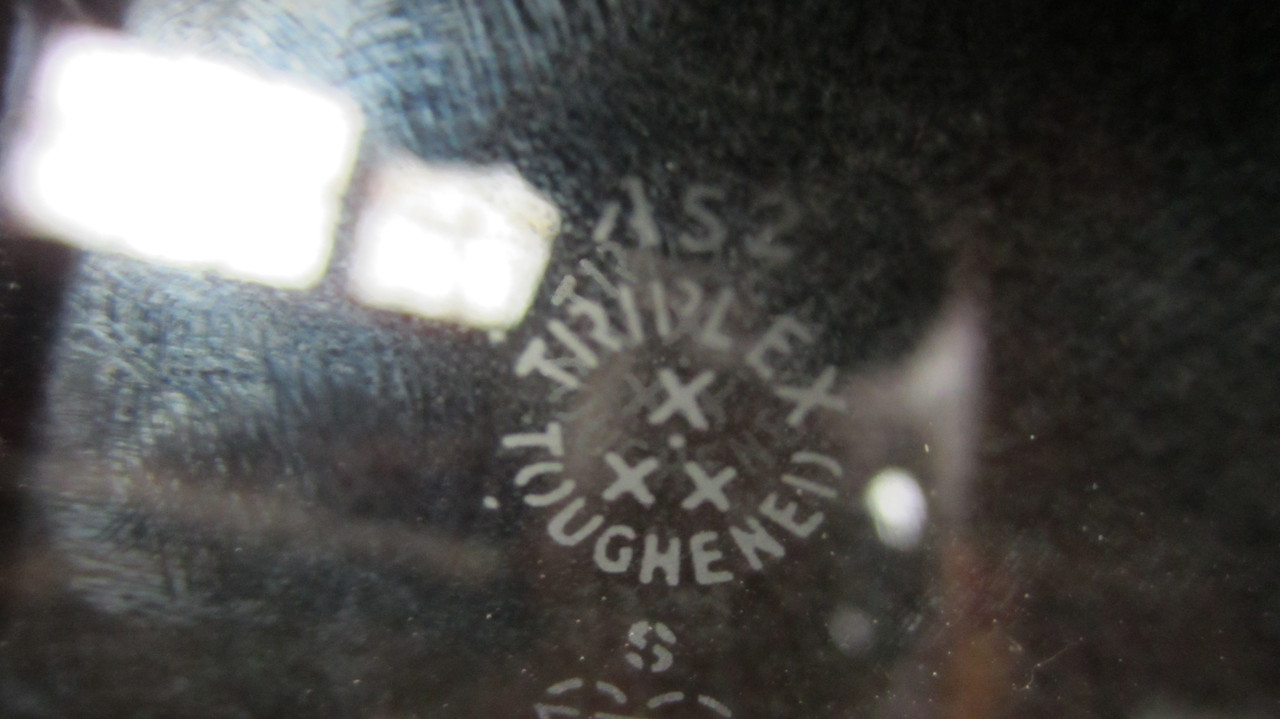

I bought some earlier (Jan-March 1962) quarterlights in error some years ago and attached are some photos of the difference I found.

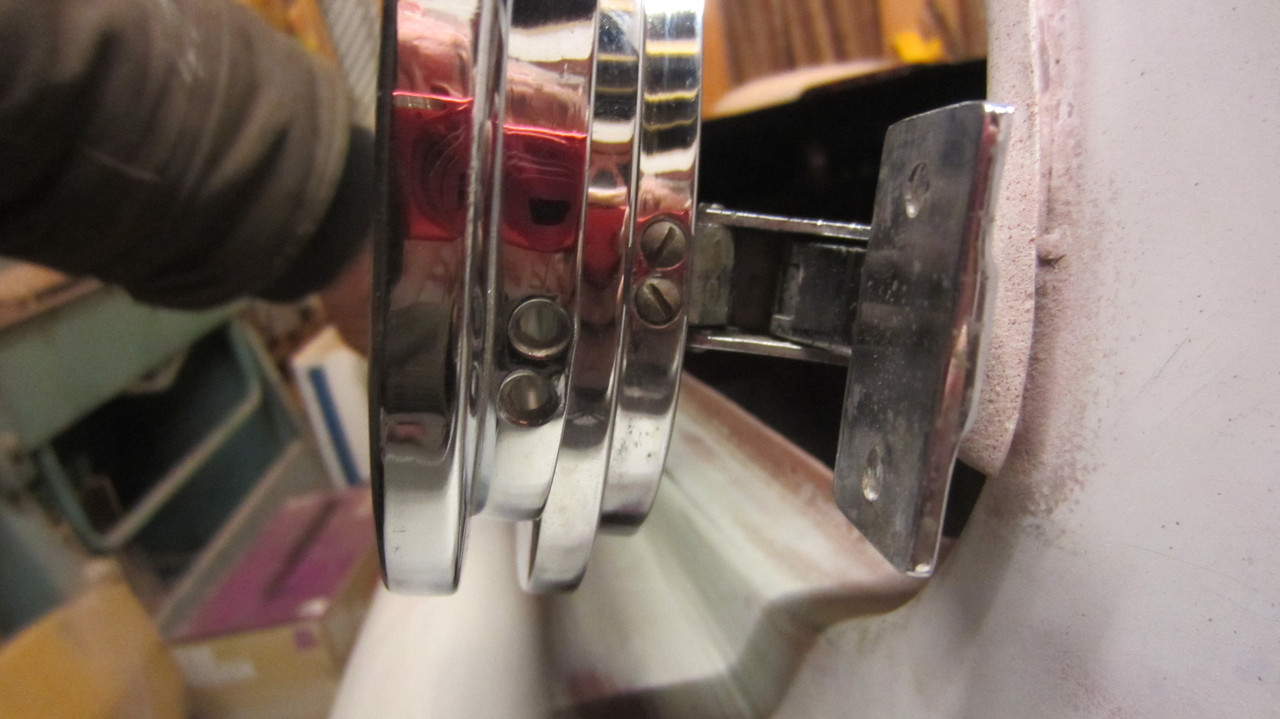

The holes for the catches are further up the frame, so more horizontal and not in the bottom quarter.

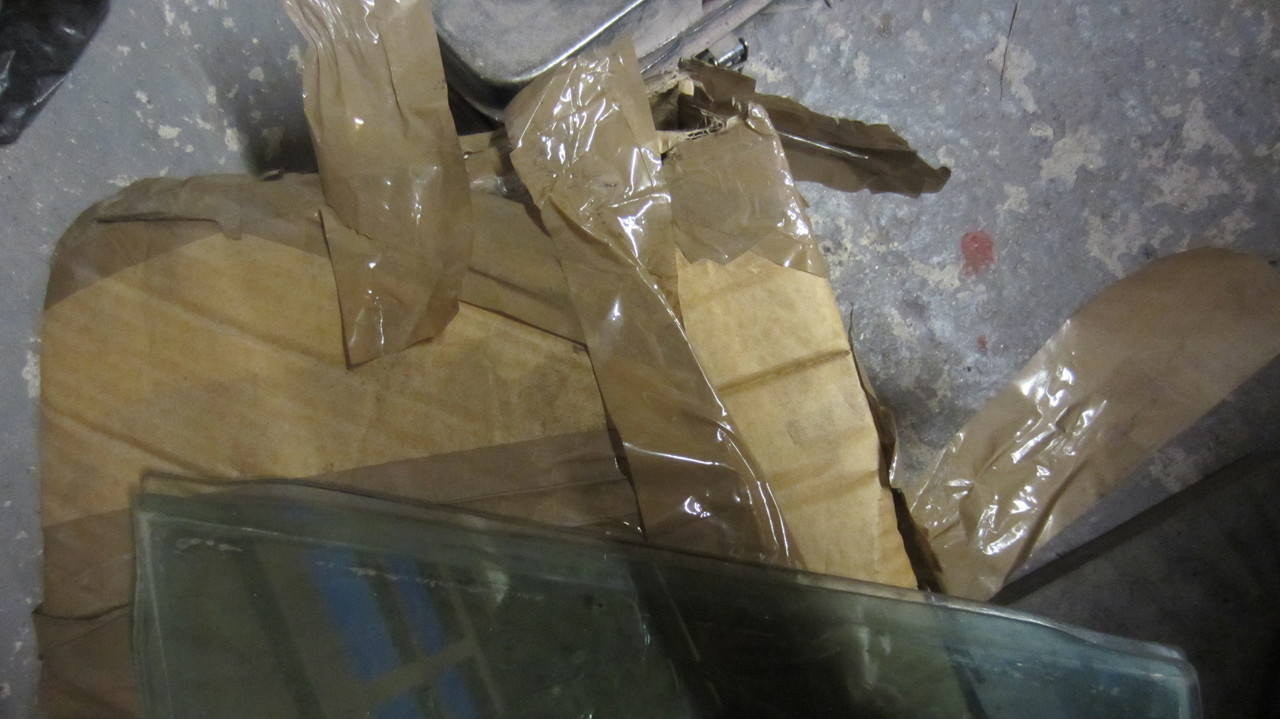

The frames are slightly longer; the glass is too long for the later frame.

The quarter light itself does appear to fit in the opening, but is slightly longer as mentioned above.

I still have them and one day I hope they become rare enough that I can retire on the proceeds. :wow: :bigrin: :bigrin:





Paul
65 Series 1 FHC, 68 Jaguar 340

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
Desmo
Posts: 67
Joined: Fri Dec 05, 2014 8:52 pm
Location: Germany
Great Britain

#4 Re: FHC body changes in 1962

Post by Desmo » Sat Jan 02, 2021 7:45 pm

Thank you Phil and Paul,

Do I understand correctly that the body openings for the quaterlights from 860479 (RHD) and 886014 (LHD) are not identical to the openings in the early bodies? Can this difference be seen in a direct comparison when looking at the cars? I haven't noticed any so far.

Kind regards
John

Link:
BBcode:
HTML:
Hide post links
Show post links


tinworm
Posts: 408
Joined: Mon Jan 02, 2012 9:48 am
Location: devon
Great Britain

#5 Re: FHC body changes in 1962

Post by tinworm » Sun Jan 03, 2021 6:36 am

Its not just the quarter lights , the rear door is different there are reinforcement pressings around the hinge mountings, the glass is different and won't fit the later door, the hinges are forged steel (aluminium casting on late door). The fuel flap also will not fit a later recess. This is just the tip of the iceberg . It makes an accurate early car very hard to build, also easy to spot a forgery if you know where to look. The quarter light screw positions is a new one on me - I will have to go and drag the various examples I have out for inspection now !

Barrie
1968 E-type roadster, 1964 E-type fixed head 1995 Ferrari 355 1980 Ferrari 308 1987 V8 90 Landrover 1988 Bedford rascal van 1943 Ford GPW

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Heuer
Administrator
Posts: 13580
Joined: Sat Mar 01, 2008 5:29 pm
Location: Nottinghamshire
Great Britain

#6 Re: FHC body changes in 1962

Post by Heuer » Sun Jan 03, 2021 11:44 am

David Jones
S1 OTS OSB; S1 FHC ODB

Add your E-Type to our World Map: viewtopic.php?f=1&t=1810

Link:
BBcode:
HTML:
Hide post links
Show post links


tinworm
Posts: 408
Joined: Mon Jan 02, 2012 9:48 am
Location: devon
Great Britain

#7 Re: FHC body changes in 1962

Post by tinworm » Sun Jan 03, 2021 2:26 pm

I think these quarterlights are BD22462/3 the interim item. The earlier quarterlights had the soldered block to locate the catch where these had the screw holes - though according to the parts book these were interchangeable (in entirety with the catches I assume).

Barrie
1968 E-type roadster, 1964 E-type fixed head 1995 Ferrari 355 1980 Ferrari 308 1987 V8 90 Landrover 1988 Bedford rascal van 1943 Ford GPW

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
Desmo
Posts: 67
Joined: Fri Dec 05, 2014 8:52 pm
Location: Germany
Great Britain

#8 Re: FHC body changes in 1962

Post by Desmo » Mon Jan 04, 2021 2:39 pm

Thank you all.
I am still not sure if I would recognize the difference between the rear side windows 1961 and 1962 onwards.

Kind regards
John

Link:
BBcode:
HTML:
Hide post links
Show post links


paulsco
Posts: 780
Joined: Mon May 04, 2009 5:12 pm
Location: Oxfordshire
Great Britain

#9 Re: FHC body changes in 1962

Post by paulsco » Mon Jan 04, 2021 6:11 pm

John,
I tried to take some more pictures of the 62 ones I have, but the differences are quite subtle.
I would say overall that they are about 3/8” longer and slightly more curvaceous at the back and on top.
I think it would be impossible to tell the difference without having the earlier and later ones side by side.

As I stated previously, the catch is higher up than the later ones and as Barrie has stated, the very early ones did not have the catch screwed on, although I suspect the very earlier catch was in the same position as mine.
As the quarter light is slightly longer, this would imply that the opening, particularly at the back was bigger.

By the way, looking at my first picture, I cannot be sure whether this is the early version fitted or the later, it was some years ago now :oops:

Paul
65 Series 1 FHC, 68 Jaguar 340

Link:
BBcode:
HTML:
Hide post links
Show post links

Post Reply Previous topicNext topic
