#1 Back on wheels !

Post by Durango2k » Sat Feb 27, 2016 5:55 pm

...I started dismantling my car in January 2009, and changed the tub about 2 years later.

Today, after putting the remaining front suspension back together, I put her on wheels back again- now I can roll and steer it.

If someone would push me, I could "drive" on the yard - despite no filled brakes, no bonnet, no rad....

It feels like a small milestone. The next weeks and months, I will fit the steering ball joints, radiator, and have a go - through the electrics.

Finally, still waiting for shims and a head bolt set from SNG, after it's arrival its time to put the head back on- and buy a set of water hoses. The set I have is factory original, "harmonium style", and complete. Just 50 years old makes me think to better go for a new set...but I saved and plated all the Cheneys...

After that, I also did the front brakes on my Merc. What an easy game, one hour for both sides, discs and pads, and including cleaning the lot and ramping the car up edge by edge.

Tomorrow, maybe more working on the E and/ or doing the Merc's rear brake. A combination of drums and discs !

Carsten
Jag E '66 S1 2+2, Citroen DS 23 Pallas iE, Citroen SM 3.0, Concept Centaur MK1, Citroen 11 BL '54, Sinclair C5, Velosolex

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

mgcjag
Moderator
Posts: 5378
Joined: Fri Jul 09, 2010 6:15 pm
Location: Ludlow Shropshire
Great Britain

#2

Post by mgcjag » Sat Feb 27, 2016 6:05 pm

Well done Carsten.....have it running by the summer then....keep up the good work..
Steve
1969 S2 2+2 & Building a C type replica

Link:
BBcode:
HTML:
Hide post links
Show post links


cactusman
Posts: 2032
Joined: Wed Nov 14, 2012 11:09 pm
Location: Hertfordshire
Great Britain

#3 Wheels

Post by cactusman » Sat Feb 27, 2016 7:32 pm

Well done....a milestone indeed.
Julian the E-type man
1962 FHC
1966 MGB....fab little car too

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

PeterCrespin
Posts: 4279
Joined: Fri Mar 05, 2010 8:22 pm
Location: Gaithersburg, Maryland.
Contact:
United States of America

#4

Post by PeterCrespin » Sun Feb 28, 2016 12:52 am

If by 'harmonium-style' you mean corrugated hoses the kit is not original. No 4.2 had corrugated hoses.

Well done on achieving 'rolling' status.
1E75339 UberLynx D-Type; 1R27190 70 FHC; 1E78478; 2001 Vanden Plas

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
Durango2k
Posts: 1399
Joined: Fri Feb 11, 2011 11:59 pm
Location: Germany
Germany

#5

Post by Durango2k » Sun Feb 28, 2016 8:05 am

Hi Pete,

I'll send you a pic. The hoses look like this

/\/\/\
\/\/\/

when cut longitudinally.

I believe this to be original, all the Cheneys are there, it just felt that way.

But you never know of course. Maybe PO had a blow and decided to replace them all so they're a nice touch from 1966 or later USA...

Carsten
Jag E '66 S1 2+2, Citroen DS 23 Pallas iE, Citroen SM 3.0, Concept Centaur MK1, Citroen 11 BL '54, Sinclair C5, Velosolex

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

PeterCrespin
Posts: 4279
Joined: Fri Mar 05, 2010 8:22 pm
Location: Gaithersburg, Maryland.
Contact:
United States of America

#6

Post by PeterCrespin » Sun Feb 28, 2016 10:13 am

Durango2k wrote:I believe this to be original, all the Cheneys are there, it just felt that way.

But you never know of course.

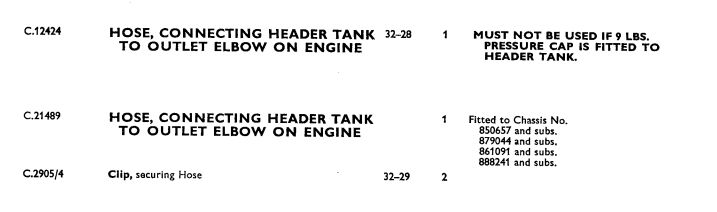

On the contrary, one can easily know by checking the parts book and photos of original E-types. You must feel whatever you like Carsten, but again the 4.2 never had such hoses. I would not use them, as even if they work they scream 'one-size-fits-all' bodge. Even the 3.8 only had one with a short corrugated section (in the top hose),

Sie k?nnen Ihre eigenen Gef?hle, aber nicht Ihre eigenen Fakten haben.
1E75339 UberLynx D-Type; 1R27190 70 FHC; 1E78478; 2001 Vanden Plas

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Heuer
Administrator
Posts: 13157
Joined: Sat Mar 01, 2008 5:29 pm
Location: Nottinghamshire
Great Britain

#7

Post by Heuer » Sun Feb 28, 2016 12:02 pm

The convoluted top hose was fitted on the early 3.8's until they changed the pressure of the cooling system from 4psi to 9psi by recalibrating the filler cap. You MUST NOT use the convoluted hose with a 9psi cooling system.


The 3.8 hoses, convoluted or straight, are not suitable for the 4.2 in any case!
David Jones
S1 OTS OSB; S1 FHC ODB
