#1 Gearbox Tunnel Foam BD27833

Post by MSM » Fri Jan 10, 2020 6:18 pm

I am replacing the gear lever rubber gaiter on the gearbox cover because it is old and torn. Whilst I was there I removed the gearbox cover to also fit the gearbox tunnel foam. My question is which way round is the foam fitted? Does anyone have any photos of it in place.

The reason I ask is that it is not obvious how it fits. The foam has a roughly central small hole and the rear corners are cut away. The illustration on the SNGB website suggests that it is fitted with the longer dimension along the length of the car but this would mean that the rear end would interfere with the gear lever or the front end would have to be tucked up around the bell housing.

Thus a photo to show one installed would be very helpful.

Link to SNGB picture:

https://www.sngbarratt.com/uk/#!/Englis ... cf86592a6e
Mike

S2 FHC

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Heuer
Administrator
Posts: 13394
Joined: Sat Mar 01, 2008 5:29 pm
Location: Nottinghamshire
Great Britain

#2 Re: Gearbox Tunnel Foam BD27833

Post by Heuer » Sat Jan 11, 2020 11:43 am

Any help?

David Jones
S1 OTS OSB; S1 FHC ODB

Add your E-Type to our World Map: viewtopic.php?f=1&t=1810

Link:
BBcode:
HTML:
Hide post links
Show post links


288gto
Posts: 1316
Joined: Wed Nov 14, 2012 8:59 pm
Location: United Kingdom
Russia

#3 Re: Gearbox Tunnel Foam BD27833

Post by 288gto » Sat Jan 11, 2020 1:03 pm

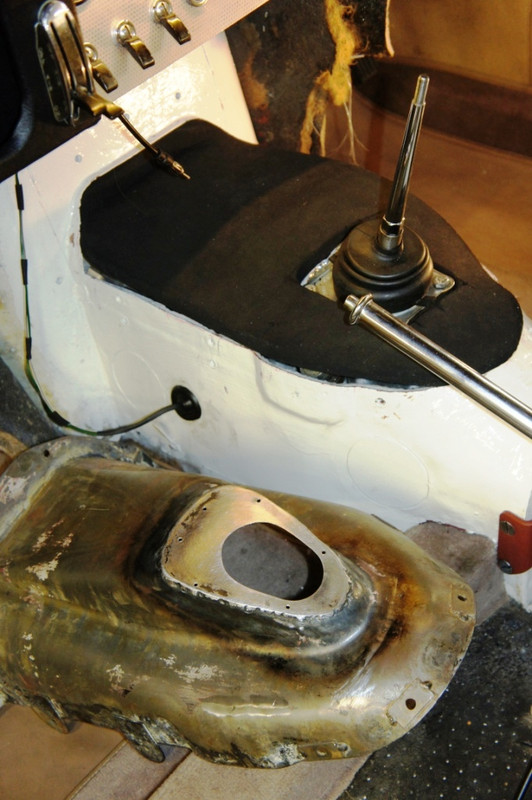

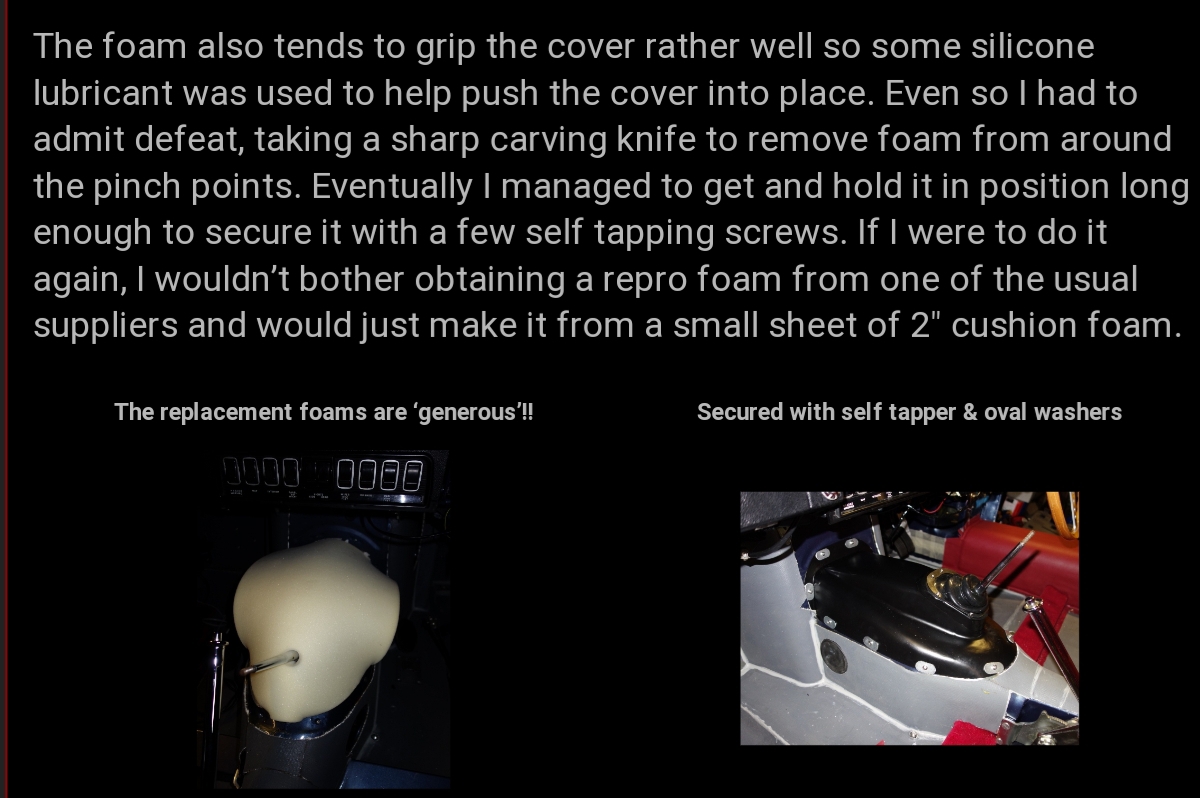

From Chris Vine's excellent blog...


Rather than pay Barratts £30 for a bit of foam, I got an offcut of epdm foam from a local company for £3.00 and made my own.

Simon
Simon
1969 S2 OTS

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
MSM
Posts: 81
Joined: Wed Jun 22, 2016 8:46 pm
Location: South Bucks, UK
Great Britain

#4 Re: Gearbox Tunnel Foam BD27833

Post by MSM » Sat Jan 11, 2020 1:14 pm

Simon - Excellent, thank you. Just what I need. I thought of Chris Vine's blog but couldn't remember his name!!

David - Thank you also.
Mike

S2 FHC

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Mephistopheles
Posts: 46
Joined: Sat Jan 06, 2018 10:00 am
Germany

#5 Re: Gearbox Tunnel Foam BD27833

Post by Mephistopheles » Fri Jan 24, 2020 8:41 am

My question may seem stupid, but what is the function of the gearbox tunnel foam?
Holger
1973 manual LHD OTS E Type
Holger

Link:
BBcode:
HTML:
Hide post links
Show post links


Gfhug
Posts: 2138
Joined: Thu Jun 19, 2014 3:08 pm
Location: Near Andover, Hampshire,in D.O. Blighty
Great Britain

#6 Re: Gearbox Tunnel Foam BD27833

Post by Gfhug » Fri Jan 24, 2020 1:39 pm

Insulation
S2 FHC Light Blue
S2 OTS LHD - RHD full restoration

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

rfs1957
Posts: 1066
Joined: Sat Jan 15, 2011 2:52 pm
Location: Montpellier, France
France

#7 Re: Gearbox Tunnel Foam BD27833

Post by rfs1957 » Fri Jan 24, 2020 2:04 pm

Indeed, silence is, I think, the chief function.

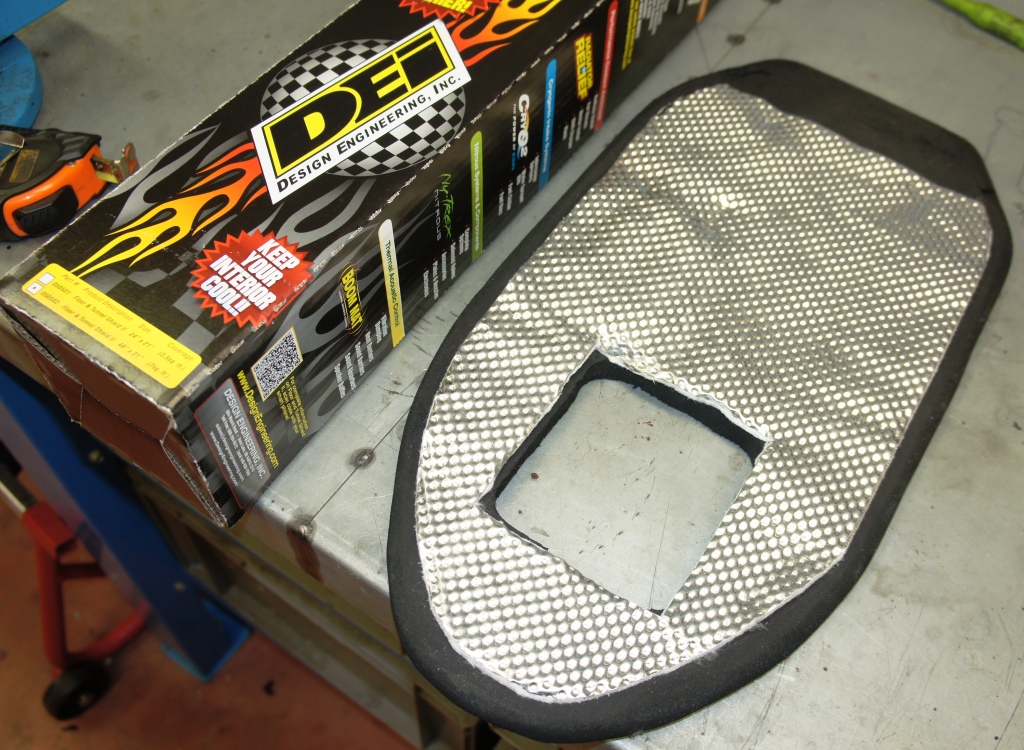

I made mine to measure from dense closed-cell black foam, and used some dimpled aluminium reflective insulation (left over from the tunnel-wall insulation) to protect it from gearbox heat, reckoning that this would prolong its life.
