Turn signal adjustment

Talk about the E-Type Series 3

Topic author
Chuckp
Posts: 3
Joined: Sun Jun 09, 2019 1:12 am
United States of America

#1 Turn signal adjustment

Post by Chuckp » Mon Jun 10, 2019 12:19 am

Trying to rotate the turn signal housing so it will cancel. It also slants down and hits my knee. Any suggestions?

Chuck

Link:
BBcode:
HTML:
Hide post links
Show post links


Bob.
Posts: 168
Joined: Fri Sep 18, 2015 9:05 pm
Location: North Gloucestershire
Great Britain

#2 Re: Turn signal adjustment

Post by Bob. » Tue Jun 11, 2019 9:25 pm

Hi Chuck,
IIRC The correct rotational switch position is set by engaging a raised button pressed into C31756, one of the two halves of the bracket which clamps the switch to the steering column, with a hole in the column housing C29134.

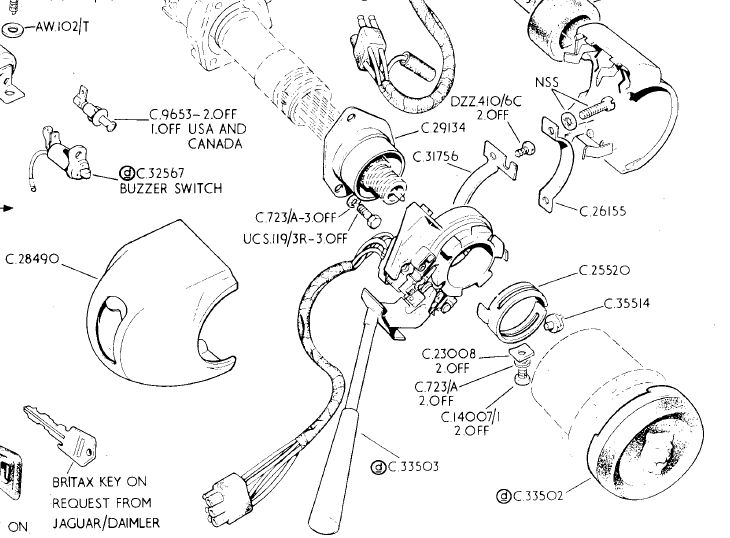

This picture shows the feature although the bracket is mounted 180deg out.

Self cancelling is adjusted by rotating the nylon sleeve part of the switch using the slotted clamp C25520 then fixing it such that the trip feature of the sleeve is mid way between the two "flippers" on the switch when the steering is straight ahead.

Bob
Bob
'71 S3
