Front indicator lenses Series 3

Talk about the E-Type Series 3

Topic author
paustin
Posts: 36
Joined: Tue Aug 21, 2012 4:48 pm

#1 Front indicator lenses Series 3

Post by paustin » Wed Apr 24, 2019 9:38 am

Anyone know why the lower half of my lenses are painted white?

Phil

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Heuer
Administrator
Posts: 12878
Joined: Sat Mar 01, 2008 5:29 pm
Location: Nottinghamshire
Great Britain

#2 Re: Front indicator lenses Series 3

Post by Heuer » Wed Apr 24, 2019 4:09 pm

No one has come up with an explanation as to why:
David Jones
S1 OTS OSB; S1 FHC ODB

Add your E-Type to our World Map: viewtopic.php?f=1&t=1810

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Adamski
Posts: 49
Joined: Sat Jan 07, 2017 2:36 pm
Location: London UK
Great Britain

#3 Re: Front indicator lenses Series 3

Post by Adamski » Wed Apr 24, 2019 6:44 pm

The attachment you enclose states Series 2 on top but you are enquiring about series 3?
I have checked my parts manual and there are only White or Amber shown and no combination mix.
I'm wondering if people are fitting these to S3's from S2's?
Adam
S3 V12 E Type FHC Manual 1972-owned since 1978

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
paustin
Posts: 36
Joined: Tue Aug 21, 2012 4:48 pm

#4 Re: Front indicator lenses Series 3

Post by paustin » Thu Apr 25, 2019 8:56 am

It's a UK original car, series 3 with what appear original lenses ( amber top half and white paint? on inside lower half)

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

mgcjag
Moderator
Posts: 4683
Joined: Fri Jul 09, 2010 6:15 pm
Location: Ludlow Shropshire
Great Britain

#5 Re: Front indicator lenses Series 3

Post by mgcjag » Thu Apr 25, 2019 9:03 am

Hi....can you post photos inside and out.....is it paint or powdery deposit?....Steve
Steve
1969 S2 2+2 & Building a C type replica

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Ole-xke1974
Posts: 151
Joined: Sat Nov 08, 2014 9:52 am
Location: Annapolis, USA
United States of America

#6 Re: Front indicator lenses Series 3

Post by Ole-xke1974 » Fri Apr 26, 2019 11:14 am

I'm pretty sure I have seen lenses with amber and white vertically divided. My US lights are vertically divided but the socket for the outside white parking light was blanked off and only the dual filament socket used.
I decided to have white parking lights and amber indicators as well as the deleted side marker lights integrated into the front indicators.




Grey lenses and covered headlights by Marek.
1974 SIII E-Type w. XJ S2 4sp w. O/D

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Heuer
Administrator
Posts: 12878
Joined: Sat Mar 01, 2008 5:29 pm
Location: Nottinghamshire
Great Britain

#7 Re: Front indicator lenses Series 3

Post by Heuer » Fri Apr 26, 2019 12:56 pm

Marek is probably the best source of information on this: http://forum.etypeuk.com/viewtopic.php?p=59789#p59789

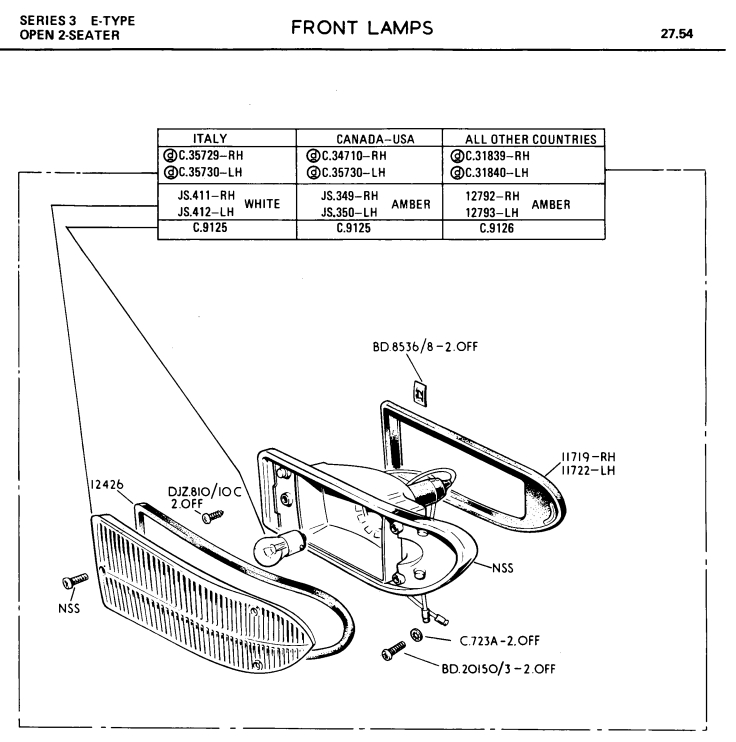

This is all that is in the S3 SPC:

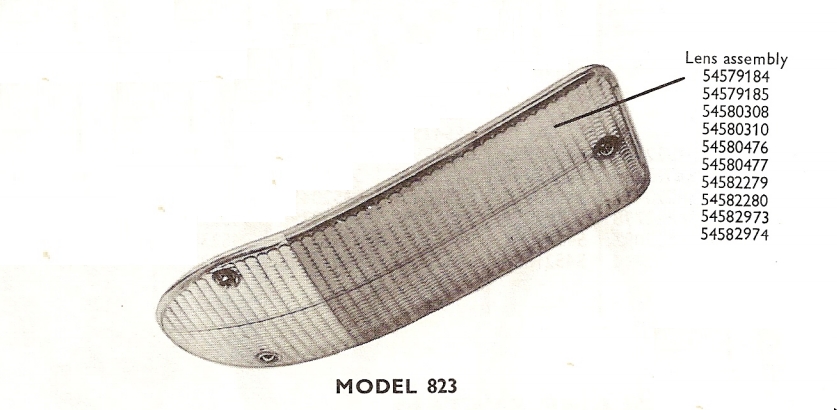

The 1973 Lucas catalogue lists all the lens variants but no description of the differences:

David Jones
S1 OTS OSB; S1 FHC ODB

Add your E-Type to our World Map: viewtopic.php?f=1&t=1810

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

H7OB
Posts: 171
Joined: Wed May 10, 2017 3:42 pm
Location: Warwickshire
Great Britain

#8 Re: Front indicator lenses Series 3

Post by H7OB » Fri Apr 26, 2019 5:00 pm

If the lower half is blanked off could it be to get round a minimum legal height requirement of the time? Might be more likely on US spec cars but the form lists it as UK spec.

(Post comes with the caveat that I recognise much more knowledgeable people are present here)!

:scratchheadyellow:
Paul
'68 Series 1.25 2+2

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

JJC
Posts: 388
Joined: Fri Apr 21, 2017 3:06 pm
United States of America

#9 Re: Front indicator lenses Series 3

Post by JJC » Fri Apr 26, 2019 7:49 pm

USA cars all yellow. Interested in a different look, contact Marek......he is the best !

JJ

Link:
BBcode:
HTML:
Hide post links
Show post links


MarekH
Posts: 856
Joined: Wed Jul 21, 2010 8:30 pm
Location: Surrey
Great Britain

#10 Re: Front indicator lenses Series 3

Post by MarekH » Fri Apr 26, 2019 8:01 pm

Current UK legislation for cars built after 1989 is for the minimum height to be 35cms and the s2/3 etype front indicator placement falls right down the middle of this.

My hunch is that this is an XJ12 question, in that one wants to look at the height of the XJ12 front indicators and work backwards. I suspect it's a Lucas compatibility issue between the XJ12 and etype, but perhaps not for all markets.

On the XJ6/12, the same indicator lens appears nice and high above the bumper. On the etype, it is mounted below the bumper.

The XJ6/12 front indicator is well above the horizontal centre line of the front tyre but the etype has the front indicator right down the middle line of the tyre. By blanking off the lower half when fitting the same lens to the etype, the indicator appears above the centre line of the tyre, that being 30cms.

I purchased s2 indicators at Stoneleigh one year (when Pete and I used to run a stall). These were boxed Lucas items which were blanked off on the lower half and two stamps with "E11 - 6121" & "E11 - 7128". My 1974 US spec s3 came with all orange front indicators which were not blanked off on the lower half - they are marked "E11 - 6121" & "E11 - 7128". Interestingly, when you look at the bobble pattern on the inside of the glass, it is quite clear that the lower half (but only as for as the indicator goes, not the sidelight portion) has a different bobble pattern to the rest of it and I suspect this is what would have been blanked off, were the inside to have been painted with silver/grey paint. That suggests it isn't a euro-thing, as I also have a non E marked one which is not blanked off.

I suspect there was a proposed change of law pending sometime during the etype/XJ6/12 production run such that the height of the indicator had to be fiddled on the UK etype, but the XJ12 was unaffected. By having replacement lenses which were blanked off, the minimum height restriction could be satisfied without retooling anything.

kind regards
Marek

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Heuer
Administrator
Posts: 12878
Joined: Sat Mar 01, 2008 5:29 pm
Location: Nottinghamshire
Great Britain

#11 Re: Front indicator lenses Series 3

Post by Heuer » Sat Apr 27, 2019 11:06 am

Thanks Marek!
David Jones
S1 OTS OSB; S1 FHC ODB

Add your E-Type to our World Map: viewtopic.php?f=1&t=1810

Link:
BBcode:
HTML:
Hide post links
Show post links
