Rear light cluster

Talk about the E-Type Series 3

Topic author
PAT4126
Posts: 6
Joined: Tue Jan 02, 2018 10:24 pm
Location: Bromley
Great Britain

#1 Rear light cluster

Post by PAT4126 » Sun Nov 08, 2020 1:24 pm

Hi All

My very early S3 which was sent to the States and has been re-imported to the UK has half yellow/half red rear light clusters.

I opened them up today to give them a clean and found black tape over the inside of part of both lenses. Any idea why anyone? I presume it's something to do with UK/US regulations being different?

Also if I were to/had to replace the lenses any suggestions as to which ones would be appropriate?

Many thanks in anticipation.

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Heuer
Administrator
Posts: 13510
Joined: Sat Mar 01, 2008 5:29 pm
Location: Nottinghamshire
Great Britain

#2 Re: Rear light cluster

Post by Heuer » Sun Nov 08, 2020 2:13 pm

PM MarekH - he makes them in a range of colours: http://forum.etypeuk.com/viewtopic.php?p=59789#p59789
David Jones
S1 OTS OSB; S1 FHC ODB

Add your E-Type to our World Map: viewtopic.php?f=1&t=1810

Link:
BBcode:
HTML:
Hide post links
Show post links


Joes66
Posts: 175
Joined: Sun Apr 26, 2020 7:16 am
Great Britain

#3 Re: Rear light cluster

Post by Joes66 » Mon Nov 09, 2020 5:42 pm

Holden vintage and classic sell them
They also sell the ones with the reverse lights in them
Jie
1969 series 2 2+2

Link:
BBcode:
HTML:
Hide post links
Show post links


MarekH
Posts: 1063
Joined: Wed Jul 21, 2010 8:30 pm
Location: Surrey
Great Britain

#4 Re: Rear light cluster

Post by MarekH » Mon Nov 09, 2020 6:54 pm

US spec cars have chrome housings which have the split between indicator and stop light set vertically. Lucas only ever made all-red lenses for these, so for the UK MOT requirement of amber indicators to be met, both the lenses and housings need replacement. This can be done via the Holden route at a cost of GBP199.99 plus VAT per side.

Alternatively, if you want me to make a custom set of lenses to match the housings you have, then this can be done more cheaply and come with both white LED reversing lights and additional bright red LED stop lights mounted into the lenses.

The choice is yours. It all comes down to whether you want to reuse your current chrome housings or whether you want something different or perhaps just brighter rear lights.

kind regards
Marek

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Tbob
Posts: 165
Joined: Mon Aug 10, 2015 1:44 pm
Location: Kenton co, ky
United States of America

#5 Re: Rear light cluster

Post by Tbob » Tue Nov 10, 2020 2:50 am

Got a nice compliment on my “Marek” LED brake lights yesterday. Led a cruise, and the guy at the back of the line said he could see my brake lights from 1/4 mile away. Bright daylight, too! The brake LEDs integrated into the reversing lenses are especially bright.

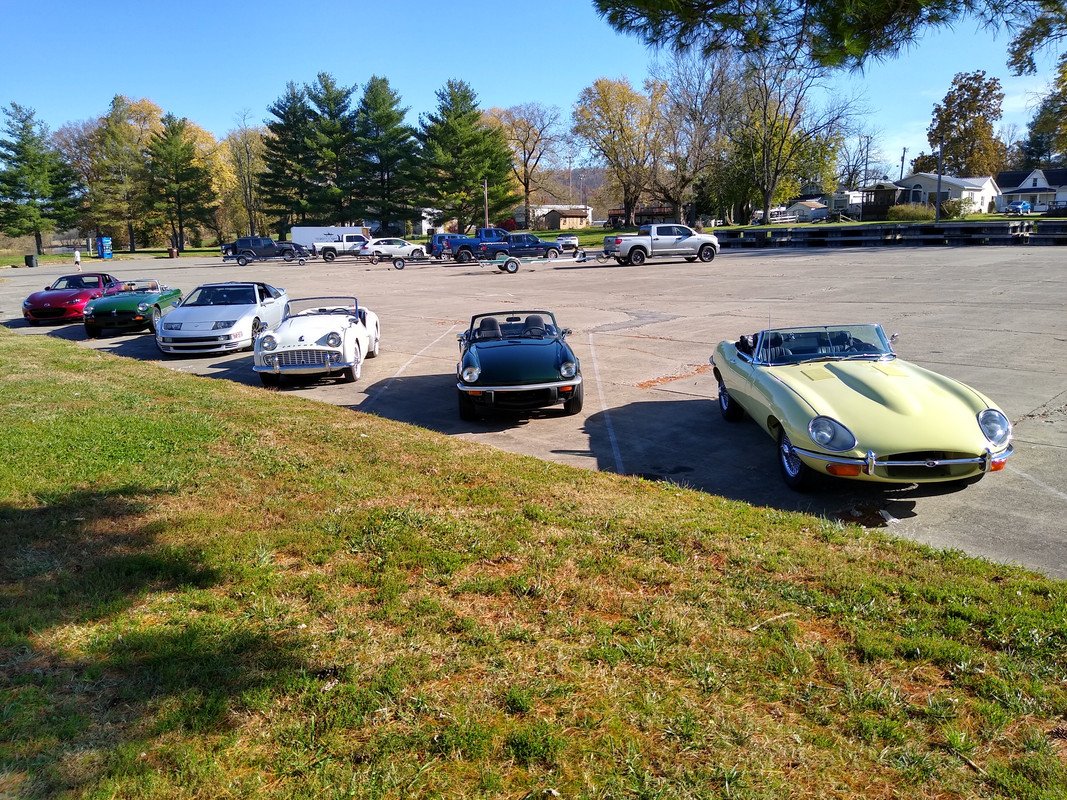

Here we are stopped at a waypoint.


Thanks Marek.
Bob t

LHD '69 OTS. (Former) basket case

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
PAT4126
Posts: 6
Joined: Tue Jan 02, 2018 10:24 pm
Location: Bromley
Great Britain

#6 Re: Rear light cluster

Post by PAT4126 » Tue Nov 10, 2020 10:44 pm

Thanks all.

It seems my lenses are correct but the housing are the issue.
