Series 3 carb removal

Talk about the E-Type Series 3

Topic author
nigeld
Posts: 5
Joined: Thu Nov 15, 2018 5:29 pm
Great Britain

#1 Series 3 carb removal

Post by nigeld » Thu Nov 15, 2018 7:02 pm

Hi. I’m just starting to tinker with a Series 3 fhc. I believe it’s a 1973 in Uk spec. First job is to service the Stombergs
I assume the carbs can be removed with the manifold still on the car but I’m having difficulty accessing the 4th nut (lower inner side ie nearest the other carb). Does anyone have any special tips/techniques for this? seems like my hands are too big to get a spanner or socket on it. Thanks

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

baganz.sven@web.de
Posts: 116
Joined: Tue Mar 21, 2017 7:58 pm
Germany

#2 Re: Series 3 carb removal

Post by baganz.sven@web.de » Thu Nov 15, 2018 9:33 pm

Hi,

I think you have no chance to get a socket on the nut.
Also a ring spanner is not possible.
I used a normal spanner, it has not been too difficult to remove the carbs.
I acessed the nut from below.
Of course it took some time because I could always only turn some degrees :wrench:
And then turn the spanner around for the next degrees.

There is no magic or trick behind it.
Sven
Sven
'71 S3 coupe LHD manual

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
nigeld
Posts: 5
Joined: Thu Nov 15, 2018 5:29 pm
Great Britain

#3 Re: Series 3 carb removal

Post by nigeld » Thu Nov 15, 2018 10:05 pm

Hi Sven

Thanks - yes I had another go and was able to get a c spanner in it. Not as hard as I thought once I knew it was possible!

Nigel.

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

JJC
Posts: 388
Joined: Fri Apr 21, 2017 3:06 pm
United States of America

#4 Re: Series 3 carb removal

Post by JJC » Fri Nov 16, 2018 12:02 am

Pain in the neck job for sure. It helps if you keep a few extra nuts around , cause your gonna drop one, and of course it will never be found ! LOL
JJ

Link:
BBcode:
HTML:
Hide post links
Show post links


Woolfi
Posts: 288
Joined: Thu Jan 28, 2010 5:57 pm
Location: Germany
Germany

#5 Re: Series 3 carb removal

Post by Woolfi » Fri Nov 16, 2018 11:18 am

Easy solution: take a spare spanner (in german language is called "fork key" or "open mouth" key) and saw it short and grind the mouth slim. Drill a small hole at the end and make a thin 1 m long yarn at it. 5 minutes to work, if you have a saw and a grinder. With this special stromberg-tool I was able to put it on the fourth nut and to turn it a few degrees. The first half turn I have done with such a tool , which was not cutted shorter. You have full torque to turn the first half turn.
Regards Wolfgang Gatza
Last edited by Woolfi on Wed Feb 06, 2019 6:21 pm, edited 1 time in total.

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Ole-xke1974
Posts: 139
Joined: Sat Nov 08, 2014 9:52 am
Location: Annapolis, USA
United States of America

#6 Re: Series 3 carb removal

Post by Ole-xke1974 » Sun Nov 18, 2018 11:22 am

When I took mine off I used an adjustable 4" spanner.
When I fitted them again, I had purchased a set of "stubby" wrenches.
The advise of securing the wrench with a piece of string to aid easy retrieval WHEN you drop it, seem like a good idea.
It's a lot quicker to take the manifolds off with the carbs attached, but then you have to consider the added cost of new gaskets. On the other hand then you have the opportunity to refresh the manifolds if the need it.
1974 SIII E-Type w. XJ S2 4sp w. O/D

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Leekade
Posts: 38
Joined: Wed May 30, 2018 1:57 pm
Location: Leek, Staffordshire
Great Britain

#7 Re: Series 3 carb removal

Post by Leekade » Sat Feb 02, 2019 9:16 am

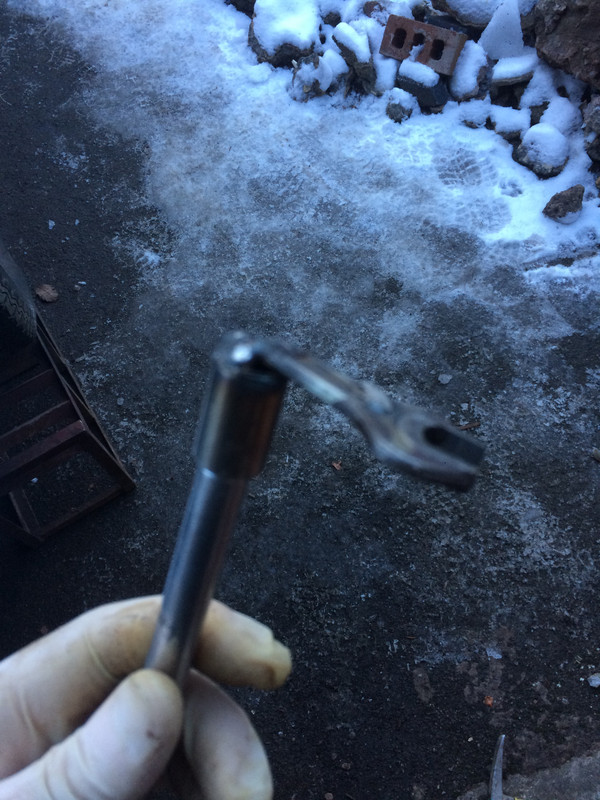

Forgive the delay in reply but I thought I’d post this to help others in future. My father in law, a talented mechanic, devised a solution when we encountered the same issue. He cut a 1/2” open end spanner in half and welded an old socket to it. This enabled us to insert a socket extension and ratchet which made tightening and undoing much easier. Beware, once the nut is removed, the most difficult bit is putting it on again... apologies as the picture isn’t the best but it shows what I mean.
Adrian
1971 Series 3 2+2 RHD manual

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

JJC
Posts: 388
Joined: Fri Apr 21, 2017 3:06 pm
United States of America

#8 Re: Series 3 carb removal

Post by JJC » Sat Feb 02, 2019 10:59 am

Adrian......Bravo !! Necessity is the mother of invention !! That's the way to go. And, as I posted a while back, keep a couple of extra handy for the inevitable dropped, and never found, nut . Now I am going to go build one myself....well done !

JC

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Leekade
Posts: 38
Joined: Wed May 30, 2018 1:57 pm
Location: Leek, Staffordshire
Great Britain

#9 Re: Series 3 carb removal

Post by Leekade » Sat Feb 02, 2019 4:40 pm

Thanks JC. It is simple but very effective! Glad you’re inspired. As for nuts, yes, they were dropped a few times but we had a few spares however this gave me an idea, why not paint them with day-glo yellow paint?!!!!! It might look odd under the bonnet but darn easier to find on the floor :bigrin:

Adrian
Adrian
1971 Series 3 2+2 RHD manual

Link:
BBcode:
HTML:
Hide post links
Show post links


angelw
Posts: 208
Joined: Sat Feb 16, 2013 8:27 pm
Location: Ballarat, Vic, Australia
Australia

#10 Re: Series 3 carb removal

Post by angelw » Sun Feb 03, 2019 6:16 am

Hello Adrian,
Simply place a piece of cloth, or paper towel under the carburetors to catch the dropped washers and nuts.

Regards,

Bill

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Leekade
Posts: 38
Joined: Wed May 30, 2018 1:57 pm
Location: Leek, Staffordshire
Great Britain

#11 Re: Series 3 carb removal

Post by Leekade » Sun Feb 03, 2019 5:33 pm

Cheers, Bill, though nowhere near as much fun as painting them!! :bigrin:

Best wishes
Adrian
Adrian
1971 Series 3 2+2 RHD manual

Link:
BBcode:
HTML:
Hide post links
Show post links


angelw
Posts: 208
Joined: Sat Feb 16, 2013 8:27 pm
Location: Ballarat, Vic, Australia
Australia

#12 Re: Series 3 carb removal

Post by angelw » Mon Feb 04, 2019 4:42 am

Adrian Wrote:
This enabled us to insert a socket extension and ratchet which made tightening and undoing much easier.

Hello Adrian,
I don't see much, if any advantage in being able to attach a ratchet, apart from the added leverage for the initial loosening of the nut, as the nut can only be turned a relatively small amount before the spanner fouls with the carburetor.

The following pictures show the modified spanners I use if the intent is to leave the Intake Manifolds in place. Except for having to use new gaskets between the Intake Manifolds and the Heads, removing the carburetors complete with the Manifolds is a much simpler and quicker method.

The spanners bent at right angles are Left and Right handed so as to alternate between the two, when required, when the one hand won't quite engage with the hex to progress.

Regards,

Bill
