#1 Angus’s upper wishbone inserts

Post by Robbiee » Wed Jun 12, 2019 4:15 pm

Hi chaps
Just fixing the “boots” onto my old upper wishbones which have Angus’s new cups fitted ...I had the wishbones powder coated as this as worked well on my coupe

The metal ring tha came with pinged off v easily so I used safety wire which seems to take twisting and tension very well..this seems to work very well

Robbie
Robbie 1962 3.8 Coupe OSG 1962 OTS ODG

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
Robbiee
Posts: 240
Joined: Sun Aug 16, 2015 12:07 pm
Location: Derbyshire

#2 Re: Angus’s upper wishbone inserts

Post by Robbiee » Wed Jun 12, 2019 4:16 pm

Sorry..here are some photos
Robbie

Robbie 1962 3.8 Coupe OSG 1962 OTS ODG

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

mgcjag
Moderator
Posts: 4347
Joined: Fri Jul 09, 2010 6:15 pm
Location: Ludlow Shropshire
Great Britain

#3 Re: Angus’s upper wishbone inserts

Post by mgcjag » Wed Jun 12, 2019 4:22 pm

Hi Robbie....what are Angus,s new cups....have you had the wishbones machined?.....Steve
Steve
1969 S2 2+2 & Building a C type replica

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Heuer
Administrator
Posts: 12523
Joined: Sat Mar 01, 2008 5:29 pm
Location: Nottinghamshire
Great Britain

#4 Re: Angus’s upper wishbone inserts

Post by Heuer » Wed Jun 12, 2019 4:26 pm

Good idea - the steering rack bellows was secured to the pinion end housing by tie wire C15211 so it is in keeping. More info here: http://forum.etypeuk.com/viewtopic.php?p=65653#p65653
David Jones
S1 OTS OSB; S1 FHC ODB

Add your E-Type to our World Map: viewtopic.php?f=1&t=1810

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
Robbiee
Posts: 240
Joined: Sun Aug 16, 2015 12:07 pm
Location: Derbyshire

#5 Re: Angus’s upper wishbone inserts

Post by Robbiee » Wed Jun 12, 2019 4:53 pm

Thanks David

Hi Steve...sorry
Angus Moss (Mossjaguar.com) will take out your worn upper wishbone ball joint cups, ream them slightly and fit “fit and forget” cups and new ball joint.
Great and personal service..he’s happy to talk on the phone.
Robbie
Robbie 1962 3.8 Coupe OSG 1962 OTS ODG

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

abowie
Posts: 2177
Joined: Wed Sep 07, 2011 9:15 pm
Location: Australia
Contact:
Australia

#6 Re: Angus’s upper wishbone inserts

Post by abowie » Wed Jun 12, 2019 10:39 pm

Robbiee wrote:
Wed Jun 12, 2019 4:53 pm

Angus Moss (Mossjaguar.com) will take out your worn upper wishbone ball joint cups, ream them slightly and fit “fit and forget” cups and new ball joint.
Are these the same as the ones SNGB etc sell? Lime green plastic cup?

How much does it cost?
Andrew.
881824, 1E21538. 889457..oops
http://www.projectetype.com/index.php/the-blog.html
Adelaide, Australia

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
Robbiee
Posts: 240
Joined: Sun Aug 16, 2015 12:07 pm
Location: Derbyshire

#7 Re: Angus’s upper wishbone inserts

Post by Robbiee » Thu Jun 13, 2019 5:57 am

Hi Andrew
I’m pretty sure SNG B sell you a new wishbone with insert all built up, although I’m not sure if the cup is metal or a nylon replacement.

Angus takes YOUR original wishbone, machines out the old metal cup, replaces it with a hard nylon insert and puts a new ball in. It is sent back with a clear cup which you then wire on yourself.

I went with Angus because of reputation, the fact that I wanted to use the original wishbones and I liked the personal service he offers. Nice product

Cost:
Parts £210
Labour £120
Carriage £20
+VAR
Total= £420 (210 per side)

BW
Robbie
Robbie 1962 3.8 Coupe OSG 1962 OTS ODG

Link:
BBcode:
HTML:
Hide post links
Show post links


angelw
Posts: 191
Joined: Sat Feb 16, 2013 8:27 pm
Location: Ballarat, Vic, Australia
Australia

#8 Re: Angus’s upper wishbone inserts

Post by angelw » Thu Jun 13, 2019 10:54 am

Hello Andrew,
I just sent you a PM, but I'm not sure if it was sent successfully. Would you please let me know if it didn't arrive.

Regards,

Bill

Link:
BBcode:
HTML:
Hide post links
Show post links


christopher storey
Posts: 4476
Joined: Sun Mar 09, 2008 3:07 pm
Location: cheshire , england
Great Britain

#9 Re: Angus’s upper wishbone inserts

Post by christopher storey » Thu Jun 13, 2019 6:15 pm

How is the insert secured within the machined out space in either of these cases ? , and are shims still used ? Perhaps either Julian Barratt and/or Angus can tell us, please

Link:
BBcode:
HTML:
Hide post links
Show post links


angelw
Posts: 191
Joined: Sat Feb 16, 2013 8:27 pm
Location: Ballarat, Vic, Australia
Australia

#10 Re: Angus’s upper wishbone inserts

Post by angelw » Thu Jun 13, 2019 10:00 pm

Christopher Wrote
How is the insert secured within the machined out space in either of these cases ? , and are shims still used ? Perhaps either Julian Barratt and/or Angus can tell us, please
Hello Christopher,

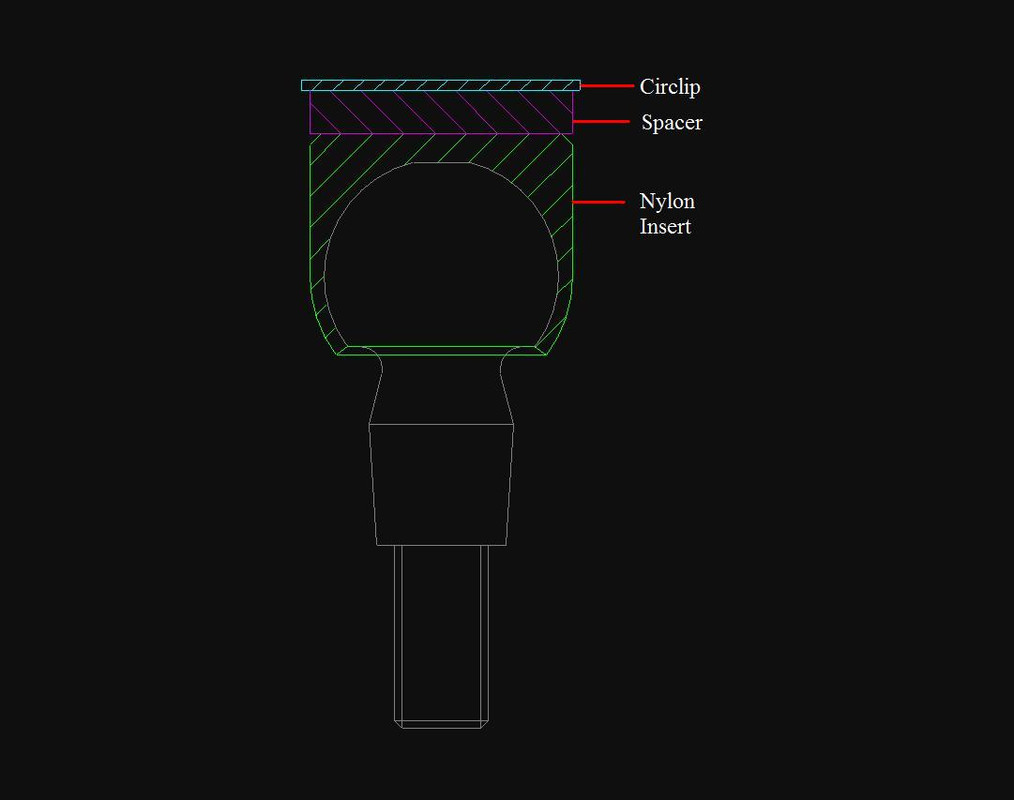

Following is the general assembly of the unit supplied by SNG Barratt.


If the device used by Angus is the same as supplied by SNG Barratt, the machining entails more than just "ream them slightly" as described by Robbie. The original diameter where the original metal cup fits is ø1.236” – ø1.234” , the OD of the Nylon Insert is ø1.4”

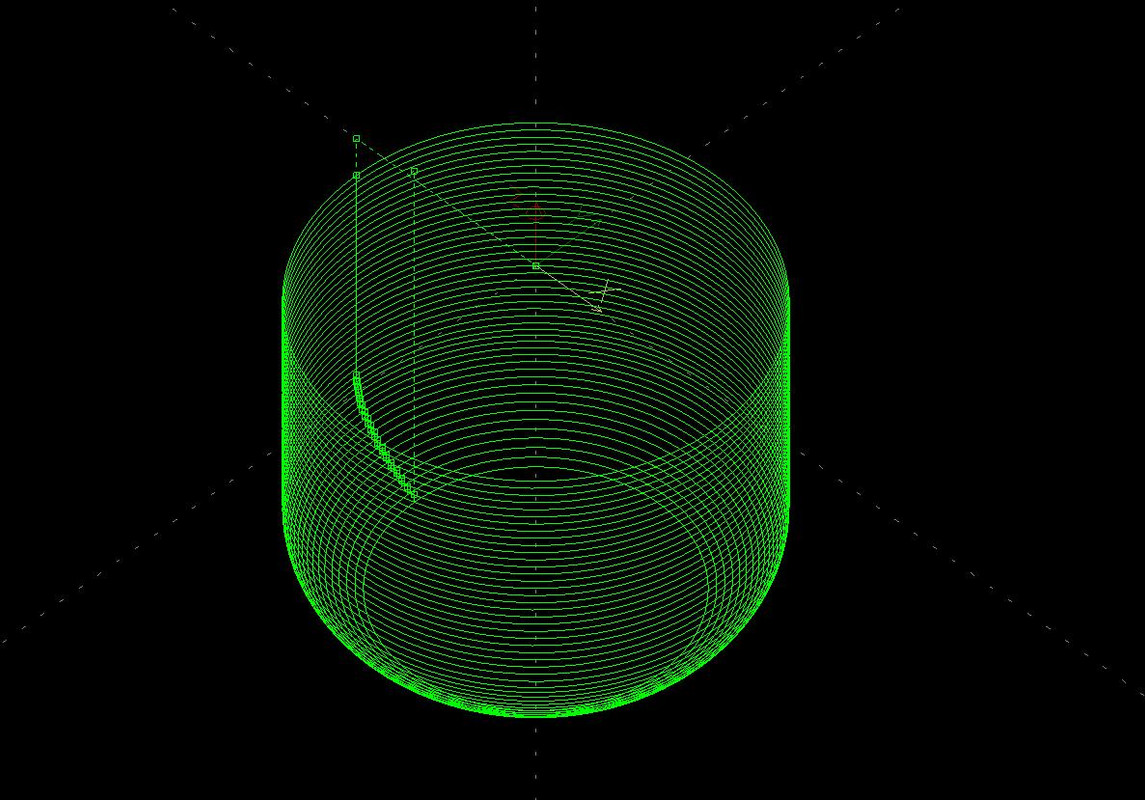

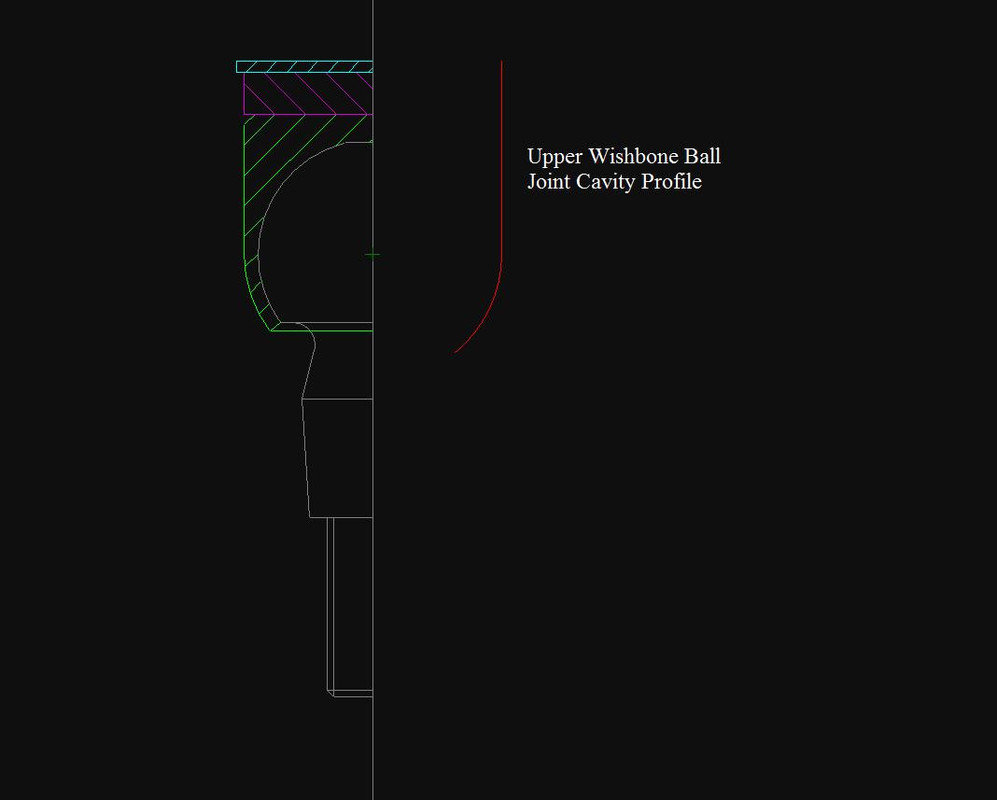

Following is my developed profile and graphic image of the resulting CNC tool path.

If the machining is done correctly, shims need not be required.

Regards,

Bill



Link:
BBcode:
HTML:
Hide post links
Show post links


christopher storey
Posts: 4476
Joined: Sun Mar 09, 2008 3:07 pm
Location: cheshire , england
Great Britain

#11 Re: Angus’s upper wishbone inserts

Post by christopher storey » Fri Jun 14, 2019 10:06 am

Bill : thank you for that. As I understand it, then the nylon insert is prevented from coming out by an interference fit ? Or am I misunderstanding your drawings ?

Link:
BBcode:
HTML:
Hide post links
Show post links


angelw
Posts: 191
Joined: Sat Feb 16, 2013 8:27 pm
Location: Ballarat, Vic, Australia
Australia

#12 Re: Angus’s upper wishbone inserts

Post by angelw » Fri Jun 14, 2019 11:07 am

Christopher Wrote:
Bill : thank you for that. As I understand it, then the nylon insert is prevented from coming out by an interference fit ? Or am I misunderstanding your drawings ?
Hello Christopher,
It can't come out the top as the assembly is held in place by a cir-clip; the same as the original system. It can't come out the bottom, as the machined cavity is blind except for the slot through which the tapered and threaded pin of the Ball Pin passes to engage with the Stub Axle carrier.

Basically, the metal spherical surface that the Ball originally ran on south of the Ball's equator is replaced with part of the Nylon Insert and the original metal cup that sat north of the Ball's equator has also been replaced with the Nylon Insert with the whole assembly being held in place with a cir-clip. The fit of the insert in the parallel part of the cavity is a slight interference fit, but nothing like what would be required to retain it.

Regards,

Bill

Link:
BBcode:
HTML:
Hide post links
Show post links


christopher storey
Posts: 4476
Joined: Sun Mar 09, 2008 3:07 pm
Location: cheshire , england
Great Britain

#13 Re: Angus’s upper wishbone inserts

Post by christopher storey » Fri Jun 14, 2019 5:58 pm

Bill : my stupidity I'm afraid ; I had forgotten that it would be put in through the top of the wishbone ball housing :banghead: :banghead:
