Orphan wires in my 1972 Series 3 2+2

Talk about the E-Type Series 3

Topic author
Walluski
Posts: 5
Joined: Tue Jul 23, 2019 9:50 pm
United States of America

#1 Orphan wires in my 1972 Series 3 2+2

Post by Walluski » Fri Oct 11, 2019 3:56 pm

Howdy,

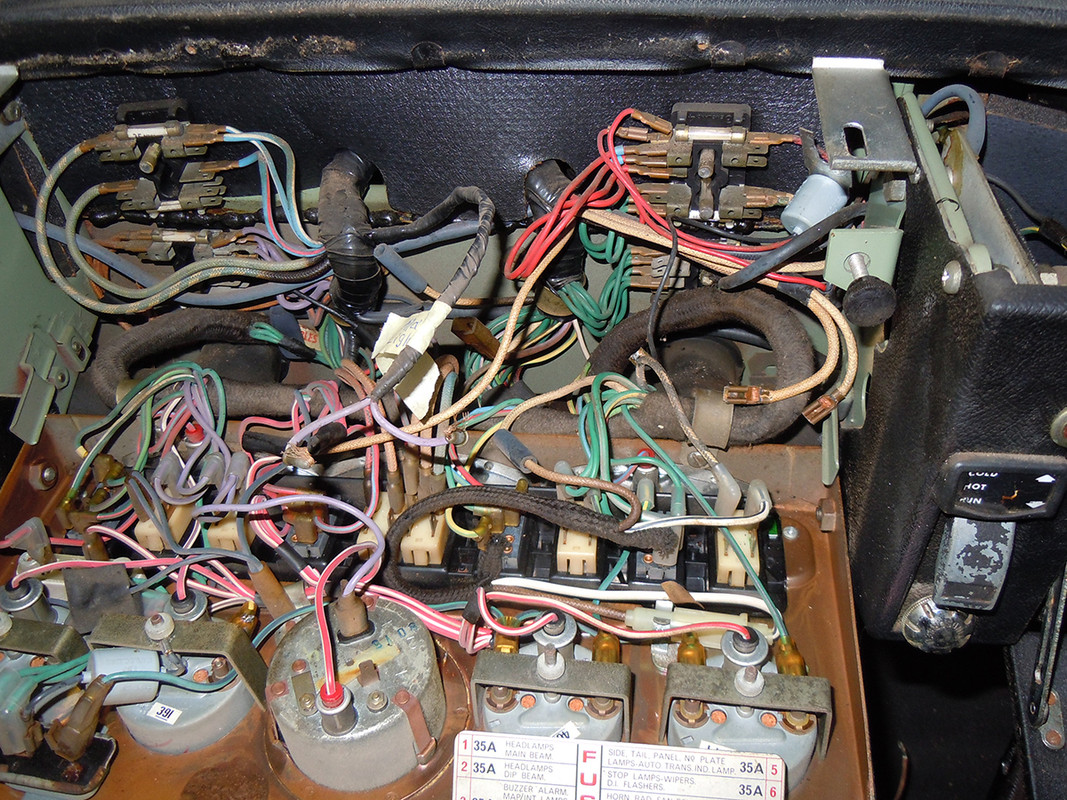

I need some help with some orphan wires (flagged with tape) I found behind the dash of my 72 S3 2+2.
The only electrical system that doesn't appear to be working is the handbrake warning light.
I'm a complete novice at electrical and was hoping someone had an idea of what these might be for and where they should connect?
Thanks in advance for your help!
Mark


Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
Walluski
Posts: 5
Joined: Tue Jul 23, 2019 9:50 pm
United States of America

#2 Re: Orphan wires in my 1972 Series 3 2+2

Post by Walluski » Fri Oct 11, 2019 3:57 pm

Additionally, this is a US spec car with AC.
Thanks again!

Link:
BBcode:
HTML:
Hide post links
Show post links


ManniB
Posts: 22
Joined: Sat Oct 17, 2015 9:01 am
Location: Pfaffenhofen/Germany
Germany

#3 Re: Orphan wires in my 1972 Series 3 2+2

Post by ManniB » Fri Oct 11, 2019 4:15 pm

Mark,

below is a picture of the wiring of my '72 S3, maybe it helps. On first sight, I looks like someone has removed the black/white wire from the rightmost switch and replaced it with the black wire. Also, the isolation on that wire looks different from the rest.

- Manfred

1972 E type 2+2 Willow Green

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
Walluski
Posts: 5
Joined: Tue Jul 23, 2019 9:50 pm
United States of America

#4 Re: Orphan wires in my 1972 Series 3 2+2

Post by Walluski » Fri Oct 11, 2019 4:26 pm

Thank you Manfred!
I'll see if I can track down where that 'new' black wire runs to.
It looks like you have two similar white orphan orphan wires as my car. Maybe they are for a component neither of us have on our cars?
Thanks again for your help. It looks like maybe I just have one mystery to solve instead of three.
Mark

Link:
BBcode:
HTML:
Hide post links
Show post links


angelw
Posts: 230
Joined: Sat Feb 16, 2013 8:27 pm
Location: Ballarat, Vic, Australia
Australia

#5 Re: Orphan wires in my 1972 Series 3 2+2

Post by angelw » Fri Oct 11, 2019 9:28 pm

Hello Mark,
In a 2+2 S3. the Right most rocker switch is usually for a Heated Rear Hatch Door Window; in an OTS its vacant for the control of some optional item.

I believe if you were to trace the White Wire it will terminate at F7 Fuse via an Inline Fuse. If its connected to the F7 fuse and both it and the Inline Fuse are OK, it will carry 12VDC (you can check this with a Multi-meter). The White Wire with Black Trace should head off towards the Back of the Car. There will be a number of connectors this wire will encounter, so it may only go so far and stop if the car is not equipped with a Heated Rear Window.

Regards,

Bill
