#1 Oil pressure relief valve

Post by mgcjag » Thu Feb 13, 2020 11:13 am

Hi All.....looks like im forgetting more than i remember :bigrin: Oil pressure relief valve in the filter housing....nothing clear in the service manual on its operation......does it just open under a fault condition of high pressure due to a blockage etc.......or does it also act more like a regulator at higher pressure to maintain a steady rate....a bit like the instrument voltage regulator switching on/off to maintain 10v....Cheers.....Steve
Steve
1969 S2 2+2 & Building a C type replica

Link:
BBcode:
HTML:
Hide post links
Show post links


flatfloor 3.8
Posts: 48
Joined: Sun Feb 12, 2012 4:35 pm
Location: Essex UK
Great Britain

#2 Re: Oil pressure relief valve

Post by flatfloor 3.8 » Thu Feb 13, 2020 11:58 am

I think it's more of a pressure relief and by-pass if the filter gets blocked.

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
mgcjag
Moderator
Posts: 4990
Joined: Fri Jul 09, 2010 6:15 pm
Location: Ludlow Shropshire
Great Britain

#3 Re: Oil pressure relief valve

Post by mgcjag » Thu Feb 13, 2020 12:04 pm

There are 2 valves...one a pressure relief....the other a balance valve to bypass the filter if it gets blocked...its the pressure relief info im after....Steve
Steve
1969 S2 2+2 & Building a C type replica

Link:
BBcode:
HTML:
Hide post links
Show post links


flatfloor 3.8
Posts: 48
Joined: Sun Feb 12, 2012 4:35 pm
Location: Essex UK
Great Britain

#4 Re: Oil pressure relief valve

Post by flatfloor 3.8 » Thu Feb 13, 2020 1:21 pm

Sorry !

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
mgcjag
Moderator
Posts: 4990
Joined: Fri Jul 09, 2010 6:15 pm
Location: Ludlow Shropshire
Great Britain

#5 Re: Oil pressure relief valve

Post by mgcjag » Thu Feb 13, 2020 1:48 pm

No need to say sorry.....all answers welcome :bigrin:
Steve
1969 S2 2+2 & Building a C type replica

Link:
BBcode:
HTML:
Hide post links
Show post links


Bob.
Posts: 206
Joined: Fri Sep 18, 2015 9:05 pm
Location: North Gloucestershire
Great Britain

#6 Re: Oil pressure relief valve

Post by Bob. » Thu Feb 13, 2020 2:06 pm

Hi Steve,

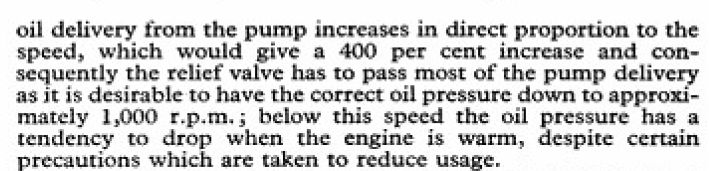

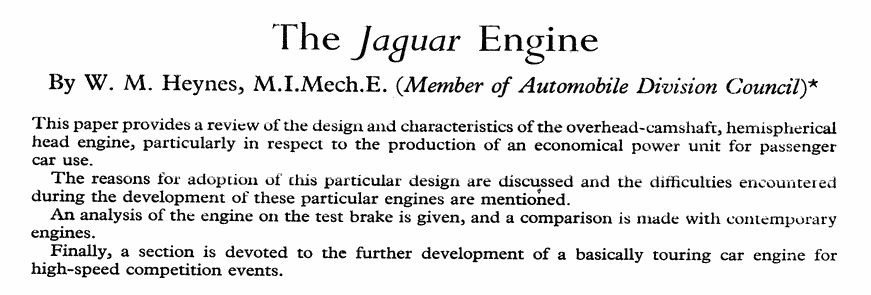

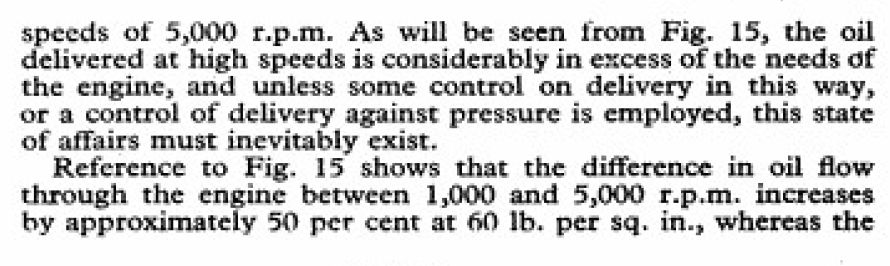

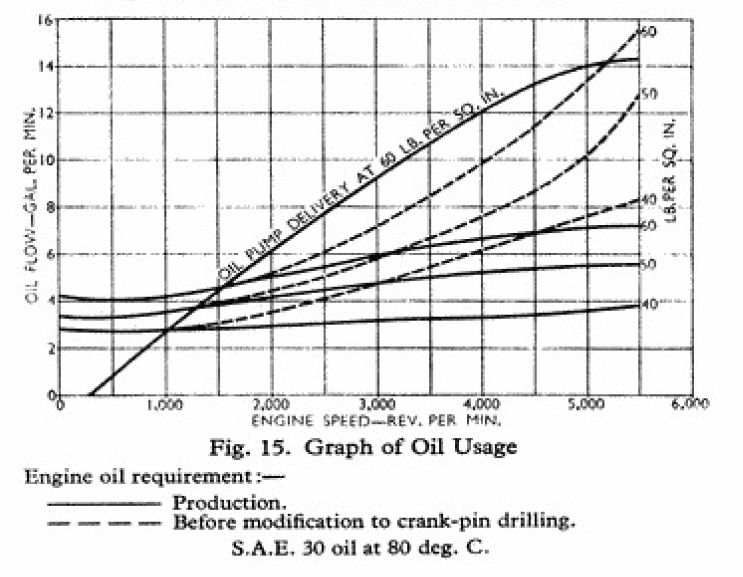

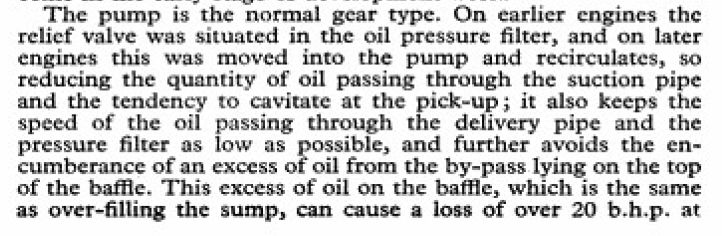

This description was given by Jaguar's Chief Engineer Bill Heynes in a paper to the IMechE in 1953 so, unless there were changes in later years, hopefully answers your question.
Bob

Bob
'71 S3

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
mgcjag
Moderator
Posts: 4990
Joined: Fri Jul 09, 2010 6:15 pm
Location: Ludlow Shropshire
Great Britain

#7 Re: Oil pressure relief valve

Post by mgcjag » Thu Feb 13, 2020 2:21 pm

Hi Bob...thanks for posting..interesting artical but not sure what its relating to....does it mention the XK engine in any other pages of artical....the pressure relief valve it mentions is in the pump ...in E type engine its in the filter housing....so not sure the description of how it works is relevant...but i could be wrong....any more info...cheers...Steve
Steve
1969 S2 2+2 & Building a C type replica

Link:
BBcode:
HTML:
Hide post links
Show post links


Bob.
Posts: 206
Joined: Fri Sep 18, 2015 9:05 pm
Location: North Gloucestershire
Great Britain

#8 Re: Oil pressure relief valve

Post by Bob. » Thu Feb 13, 2020 5:33 pm

Hi Steve,
Yes it is the XK engine but as it was in 1953 so in the XK120 and MKV11 I think. Apart from turning the filter from the vertical to horizontal to fit the E I don't know what other changes might have been made.
Heynes' paper gives a fascinating and detailed account the design intent and development of the engine but only up to 1953.

You can access the full paper here: http://www.myds420.info/motor/m.01.m.html
Bob
Bob
'71 S3

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
mgcjag
Moderator
Posts: 4990
Joined: Fri Jul 09, 2010 6:15 pm
Location: Ludlow Shropshire
Great Britain

#9 Re: Oil pressure relief valve

Post by mgcjag » Thu Feb 13, 2020 6:00 pm

Hi Bob...that is fantastic info....im assuming that even though much later in the XK engine the valves were moved into the filter housing... they were designed to do the same job as in the artical you post......so not just a simple valve to open in the event if a blockage but to also control flow as well as pressure...think i understand it :scratchheadyellow: Cheers....Steve
Steve
1969 S2 2+2 & Building a C type replica

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

PeterCrespin
Posts: 4211
Joined: Fri Mar 05, 2010 8:22 pm
Location: Gaithersburg, Maryland.
Contact:
United States of America

#10 Re: Oil pressure relief valve

Post by PeterCrespin » Thu Feb 13, 2020 6:18 pm

‘Our’ engines have not got gear pumps. As noted, our post XK120 engines have the pressure relief venting oil back to the sump via the external pipe. The filter bypass should never operate in a well-maintained engine but the PR valve operates every cold start.
1E75339 UberLynx D-Type; 1R27190 70 FHC; 1E78478; 2001 Vanden Plas
