#1 Series 3 Drivers Footrest Location

Post by rossco_j » Sun Jun 28, 2020 11:13 pm

Hello All,
Could someone provide the mounting details of the drivers footrest (BD39516) for a Series 3 2+2 please. A photo or a sketch with some dimensions would be great. Thanks
Ross
1972 Series 3 E Type 2+2
1972 MGB GT
1965 Mini Cooper
https://rossjohnsonphotography.zenfolio.com/

Link:
BBcode:
HTML:
Hide post links
Show post links


Bob.
Posts: 232
Joined: Fri Sep 18, 2015 9:05 pm
Location: North Gloucestershire
Great Britain

#2 Re: Series 3 Drivers Footrest Location

Post by Bob. » Mon Jun 29, 2020 10:31 am

Hi Ross,
I have only seen footrests fitted to LHD cars - is yours still LHD? Those I have pictures of vary in shape (some flat, others curved) and position so I suspect some were fabricated locally then fitted to suit the owner's preference within the constraints of the metalwork behind the trim. If you have a genuine BD39516 I would be interested to see some pictures of it. I don't have dimensions but these images might help you choose your location.

Bob
'71 S3

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
rossco_j
Posts: 22
Joined: Fri Feb 15, 2019 2:58 am
Location: Queensland, Australia
Contact:
Australia

#3 Re: Series 3 Drivers Footrest Location

Post by rossco_j » Tue Jun 30, 2020 12:09 am

Hello Bob,

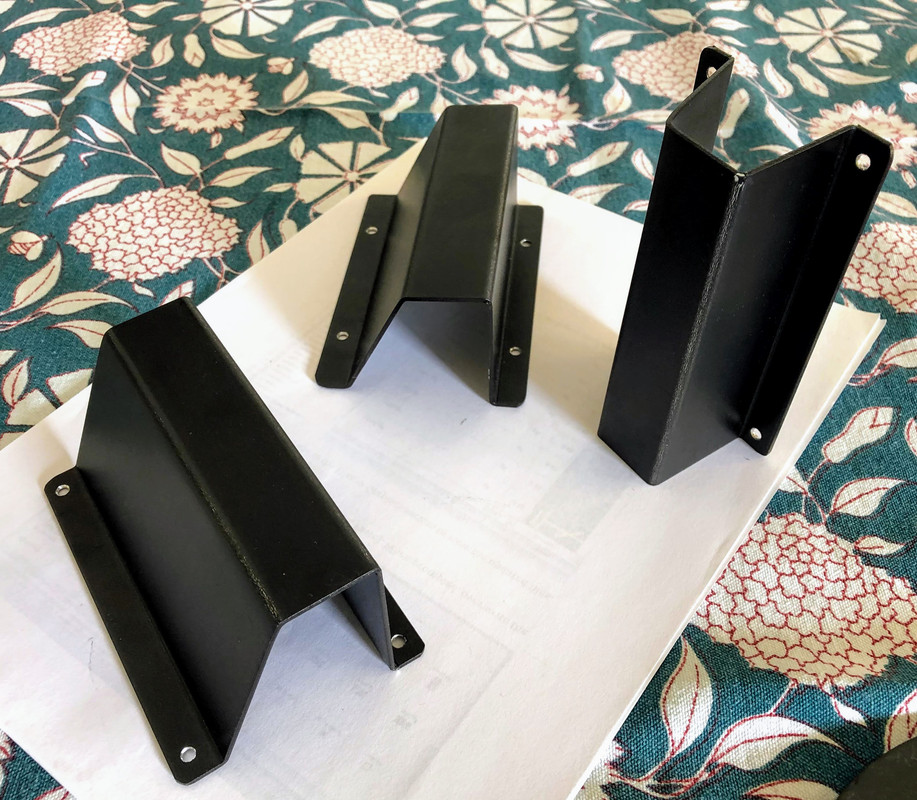

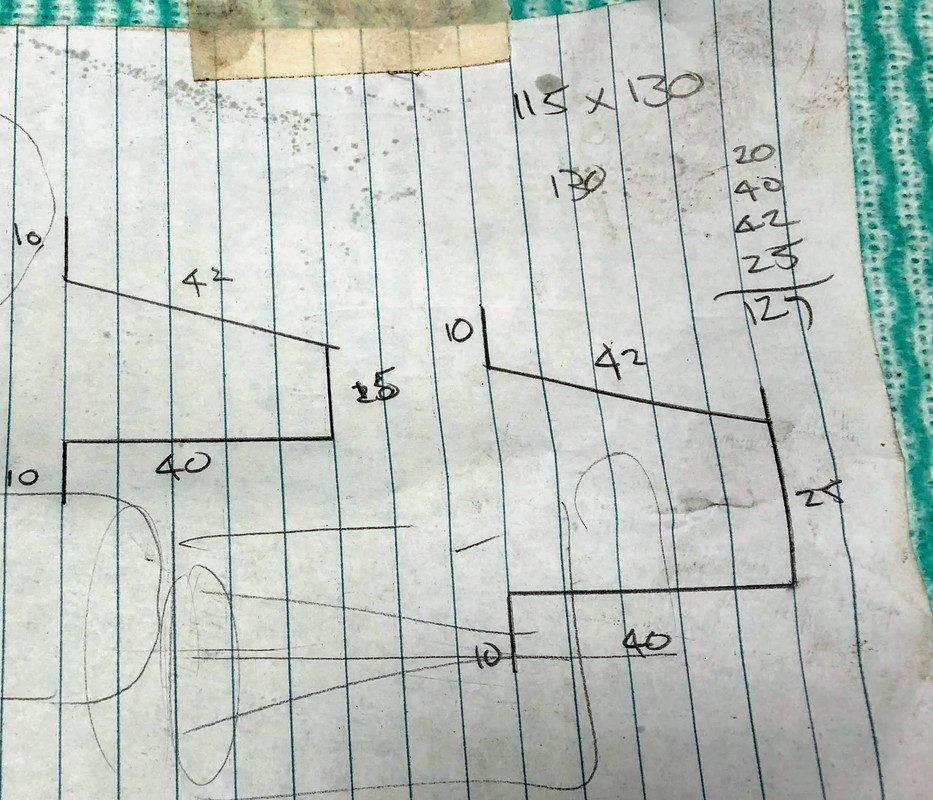

Thanks for the photos. Yes the car is LHD & will remain so. I don't have an original BD39516 but I've tried to fabricate a replica using the illustration from the parts manual. I've made 3 prototypes of different widths, 40, 45 & 50mm. I'll install the most suitable.



Ross
1972 Series 3 E Type 2+2
1972 MGB GT
1965 Mini Cooper
https://rossjohnsonphotography.zenfolio.com/

Link:
BBcode:
HTML:
Hide post links
Show post links


Bob.
Posts: 232
Joined: Fri Sep 18, 2015 9:05 pm
Location: North Gloucestershire
Great Britain

#4 Re: Series 3 Drivers Footrest Location

Post by Bob. » Tue Jun 30, 2020 8:37 pm

Neat metalworking Ross. One point, the PM shows it attached with three screws rather than via the four holes you have incorporated. The use of three might define where Jaguar intended it to fit when you look at the metalwork behind the trim.
Bob
Bob
'71 S3

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
rossco_j
Posts: 22
Joined: Fri Feb 15, 2019 2:58 am
Location: Queensland, Australia
Contact:
Australia

#5 Re: Series 3 Drivers Footrest Location

Post by rossco_j » Wed Jul 01, 2020 10:50 am

Thanks Bob, however attention to detail isn't a strong point. Maybe when I remove the trim panel & see what lies beneath, I'll make a mk II version with 3 screw holes.
Ross
1972 Series 3 E Type 2+2
1972 MGB GT
1965 Mini Cooper
https://rossjohnsonphotography.zenfolio.com/

Link:
BBcode:
HTML:
Hide post links
Show post links
