https://i.postimg.cc/VsGf48pf/IMG-0063.jpg Many thanks to all who have offered their help - I have today cut off the head of the bolt and removed the mounting bracket. This allowed me to drive the bolt and tube out together leaving the oversized hole shown in the photo. I now have to find a way to ...

Thanks for the tip Dave - will try to get some tomorrow - just hope I can get it to penetrate into the chassis arm. As you can see from the photo access is limited and if the bolt is rusted to the guide tube over its full length then it may take several applications along with pressure with the G cl...

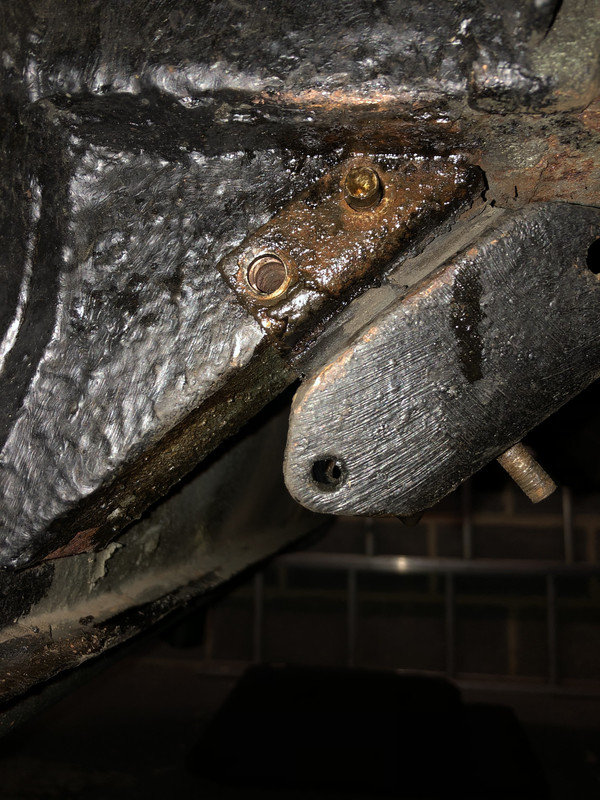

Photo of seized bolt. Will try with a G clamp tomorrow - thanks for help

I have a bolt which seems to be rusted to the guide tube in the chassis member where the rubber mounting block is attached. I have dropped the cradle and removed it but cannot release this bolt despite soaking with release oil for a couple of days. The bolt spins and has some movement in and out but...

My wiring loom has 3 purple/yellow (PY) wires leaving the loom adjacent to the lower picture frame member. Two exit together on near side (left) and are not as heavy as the single cable which exits on offside (right). All three extend about 6 inches from the loom and are obviously positioned to conn...

Thanks everyone for advice - will post fotos when engine is in

Thanks Mich - can the starter motor be fitted beforehand

Is it possible to install the engine and gearbox (without inlet and outlet manifolds) from underneath without a lift. I have the bonnet, radiator etc off the car and was thinking I could attach a hoist to the picture frame and lift the car over the engine/gearbox. The engine/gearbox could then be li...

Many thanks Andrew - bit of drilling and a bit of filing and it came out in four pieces eventually. New adaptor in now - a great relief

in trying to remove a rusty adaptor (C17421) it has sheared off leaving the threaded part in the inlet manifold.
It will not move with an extractor and I don't want to use too much force and crack the alloy. Anyone had this problem and found a solution
