Correct distributor position?

[ysmalkie]

I am finishing my engine assembly and am trying to position the distributor.

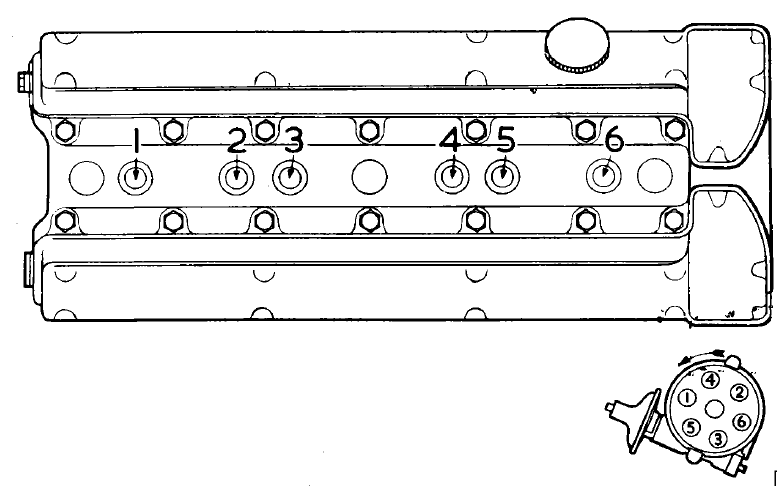

In order to position the cables according to the manual:

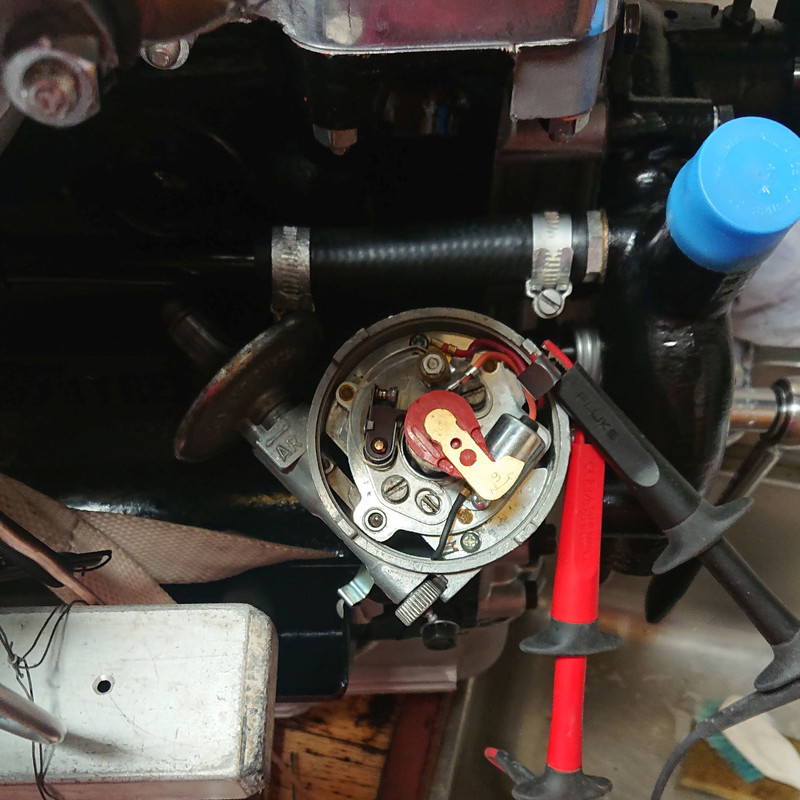

I would have to place the distributor with the vacuum unit almost touching the water pipe:

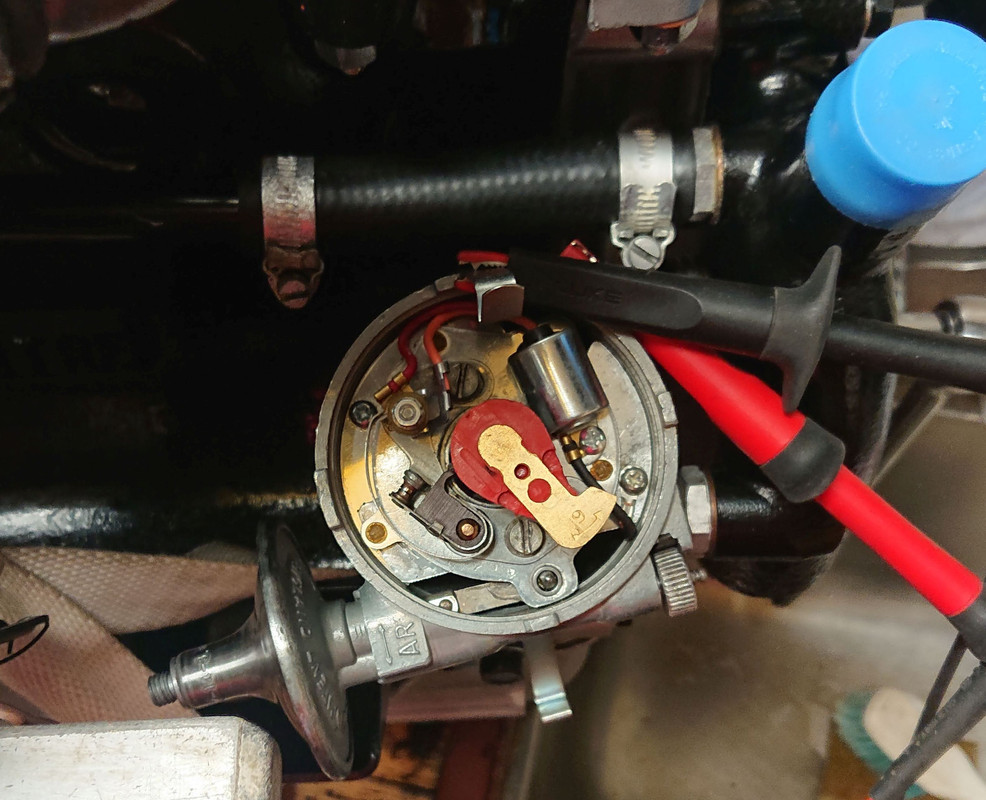

Otherwise, I would have to move the cables by one connection and it would look like this:

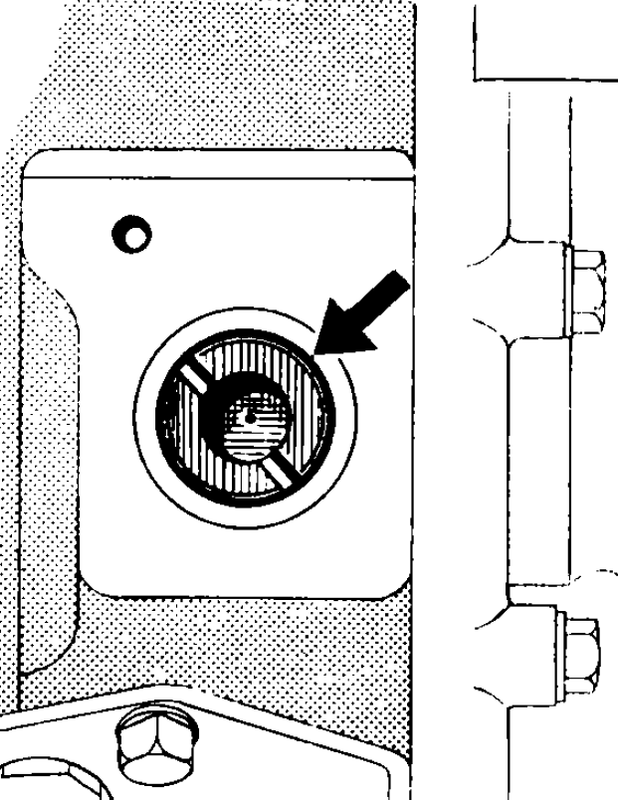

And, before you ask, the distributor shaft is positioned according to the manual:





What's your experience ? How should it be properly done?

tadek

[mgcjag]

Hi Tadek.....is your timing pointer set at 10deg btdc (static)on the crank pully...and your vernier scale on the vacume unit set to the mid point...Steve

[abowie]

This is correct.

[ysmalkie]

Hi Tadek.....is your timing pointer set at 10deg btdc (static)on the crank pully...and your vernier scale on the vacume unit set to the mid point...Steve

Yes Steve, of course..

[ysmalkie]

This is correct.

Trouble is, that in such a position the vacuum pipe touches the water pipe. I could move the water pipe inwards on the bracket a bit, but the two will be very, very close...

Tadek

[mgcjag]

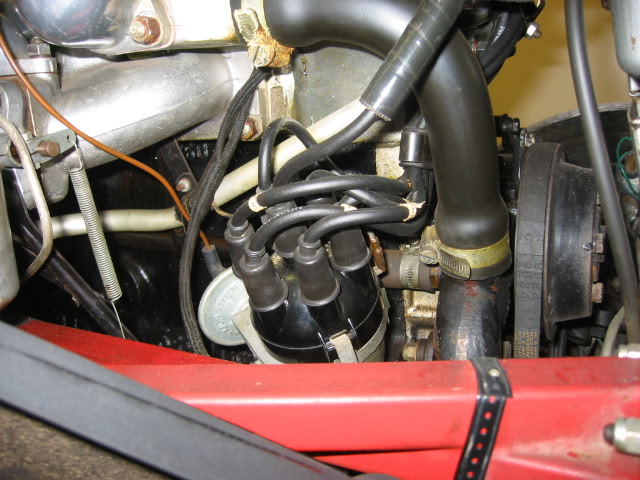

Hi Tadek....a 3.8 photo ftom the factory fit section

[ysmalkie]

I know this photo very well. There are others that indicate same position, too.

However I am always sceptical to photos where something is wrong, such as the vacuum suction pipe must have been broken off and the tip was replaced with the rubber angle connector from a later car....


Well, I guess you are right, I just need t move the water pipe a bit..

Tadek

[Mich7920]

Hi
This link could interest you.

viewtopic.php?f=3&t=14155&p=115168#p115168

Mich
