Choke lever mechanism: series 2 FHC

[skodajag]

The choke lever on my car is missing the mechanism which holds it in the on positions. Can anyone direct me to an exploded view of the lever mechanism so I can see what's missing?
Thank you.

[DWW]

https://www.moss-europe.co.uk/choke-cab ... -1975.html

[JerryL770]

Hi Jonathan,

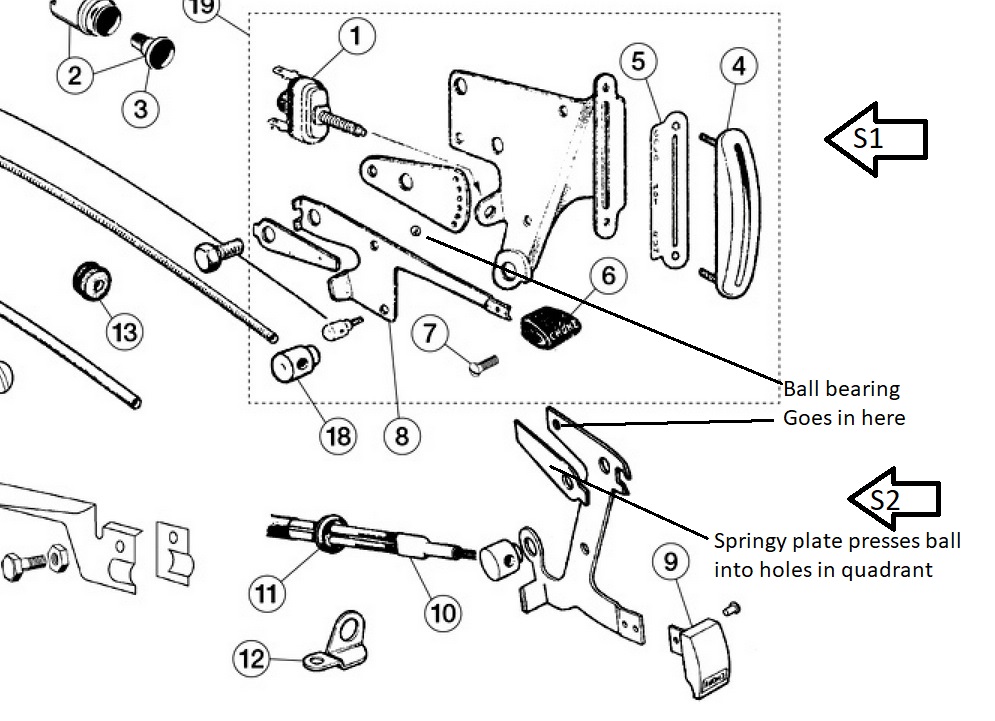

I'm not sure if you found that diagram to be helpful or not as it shows S1 and 2 mechanisms and is unclear about separation. I've marked up the diagram with some info.

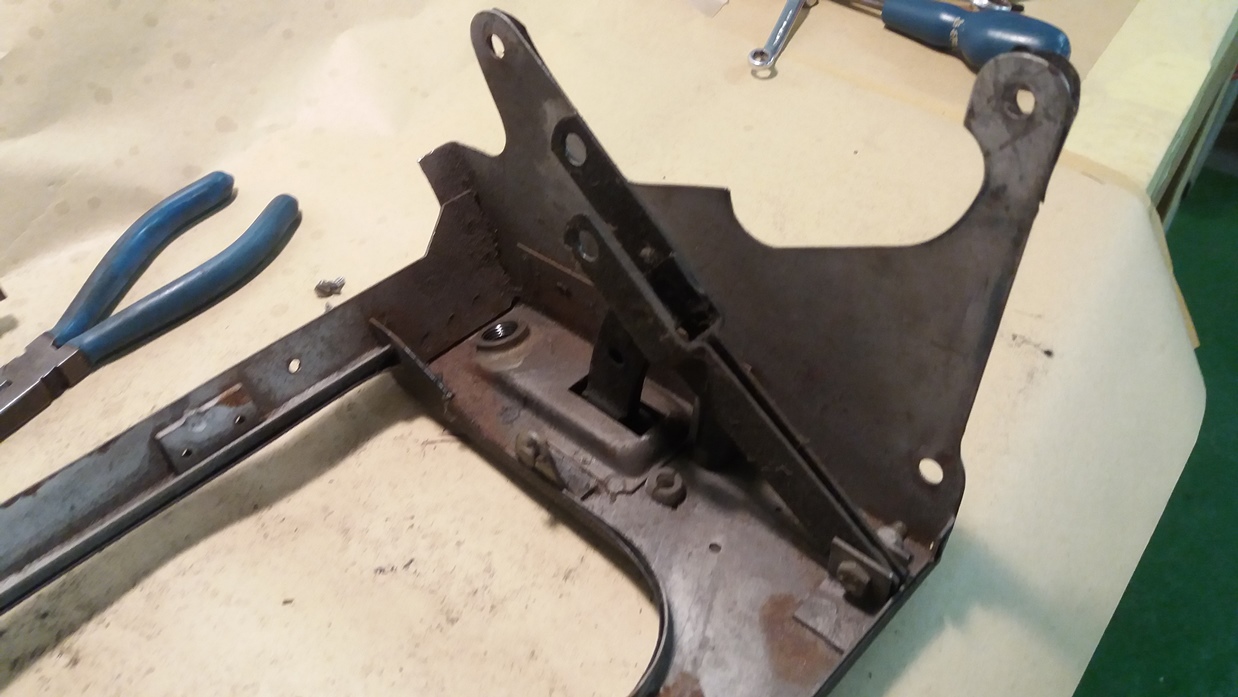

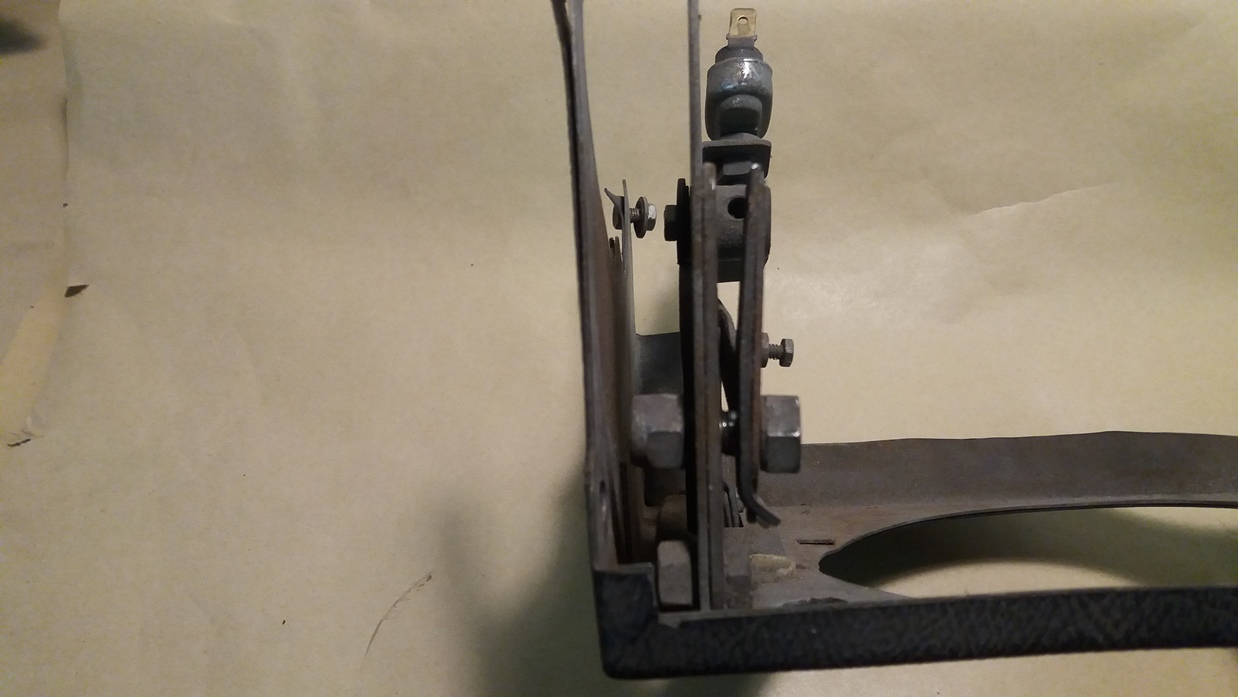

I took some aid memoir pictures of my mechanism whilst working on its restoration. I hope these may help some.

Lever drwg.jpg (168.16 KiB) Viewed 5319 times



[JerryL770]

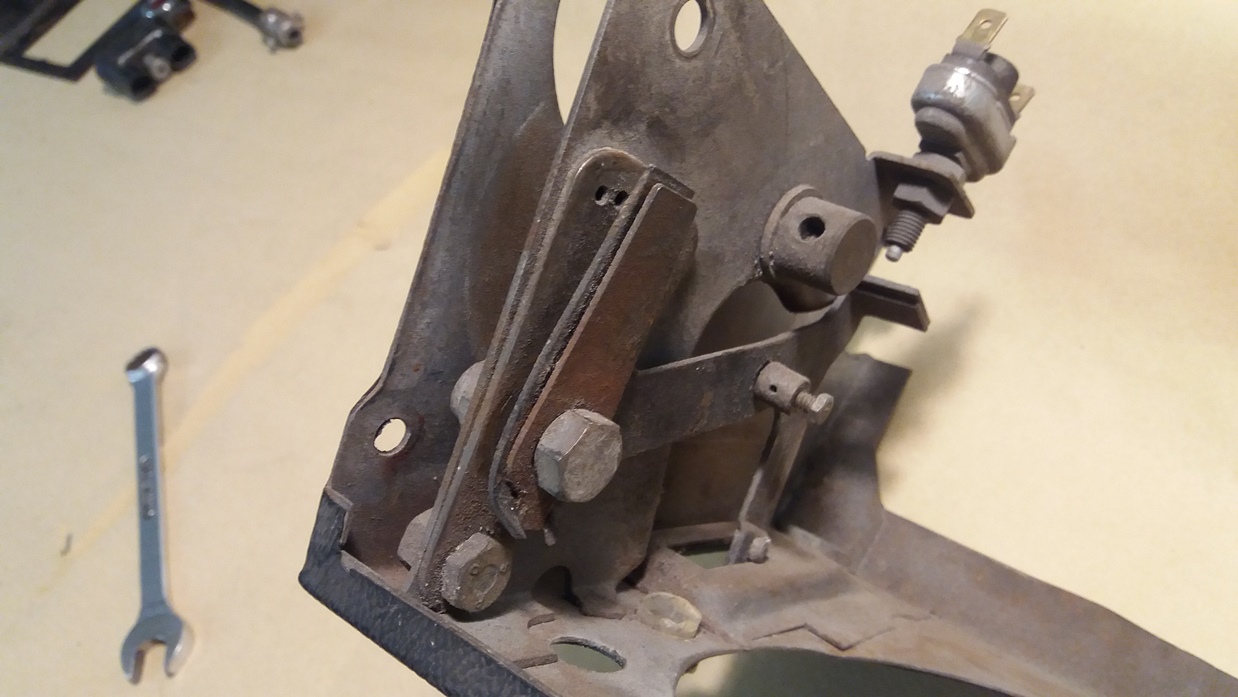

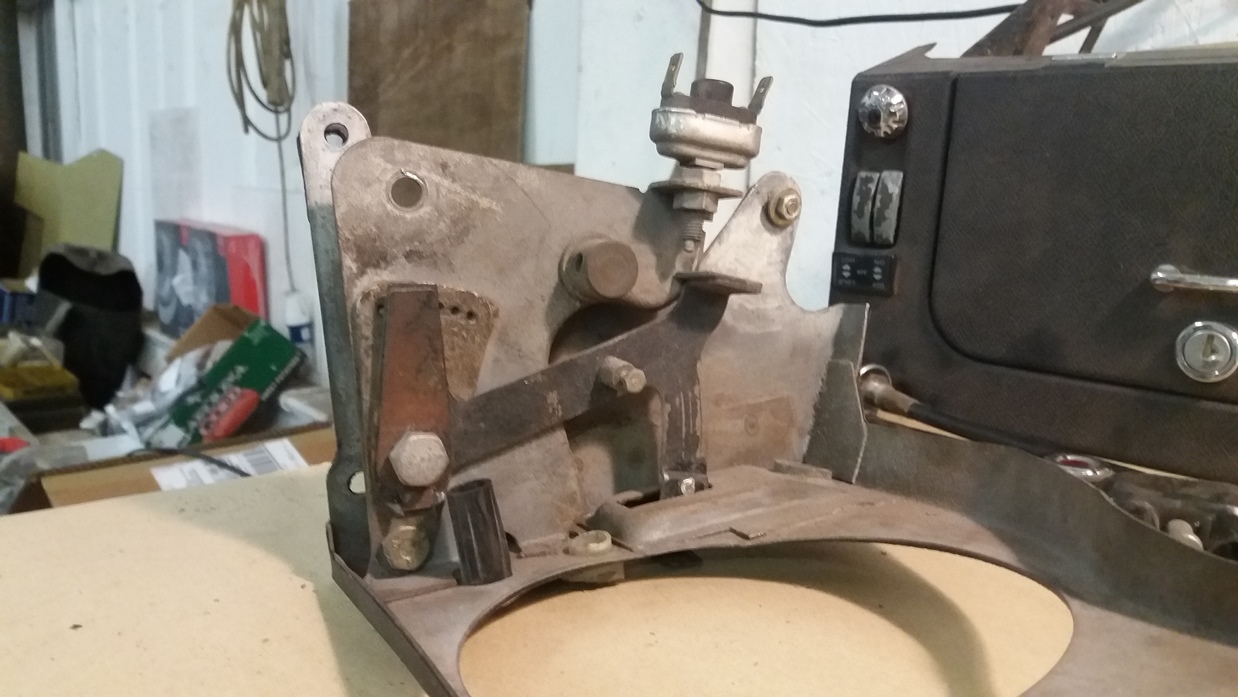

Only 3 pictures per post allowed now so here's 2 more.



I hope this helps some.

[61Elite]

Here is a page from the S3 parts manual. I have a S2 and a S3. the controls are the same. The only difference is the S2 has a single cable to the carbs and the S3 has two cables (one to each side). I hope this helps.
