#1 Choke lever mechanism: series 2 FHC
Posted: Tue Mar 22, 2022 1:19 pm
by skodajag
The choke lever on my car is missing the mechanism which holds it in the on positions. Can anyone direct me to an exploded view of the lever mechanism so I can see what's missing?
Thank you.
#2 Re: Choke lever mechanism: series 2 FHC
Posted: Tue Mar 22, 2022 1:31 pm
by DWW
#3 Re: Choke lever mechanism: series 2 FHC
Posted: Thu Mar 24, 2022 1:26 am
by JerryL770
Hi Jonathan,
I'm not sure if you found that diagram to be helpful or not as it shows S1 and 2 mechanisms and is unclear about separation. I've marked up the diagram with some info.
I took some aid memoir pictures of my mechanism whilst working on its restoration. I hope these may help some.

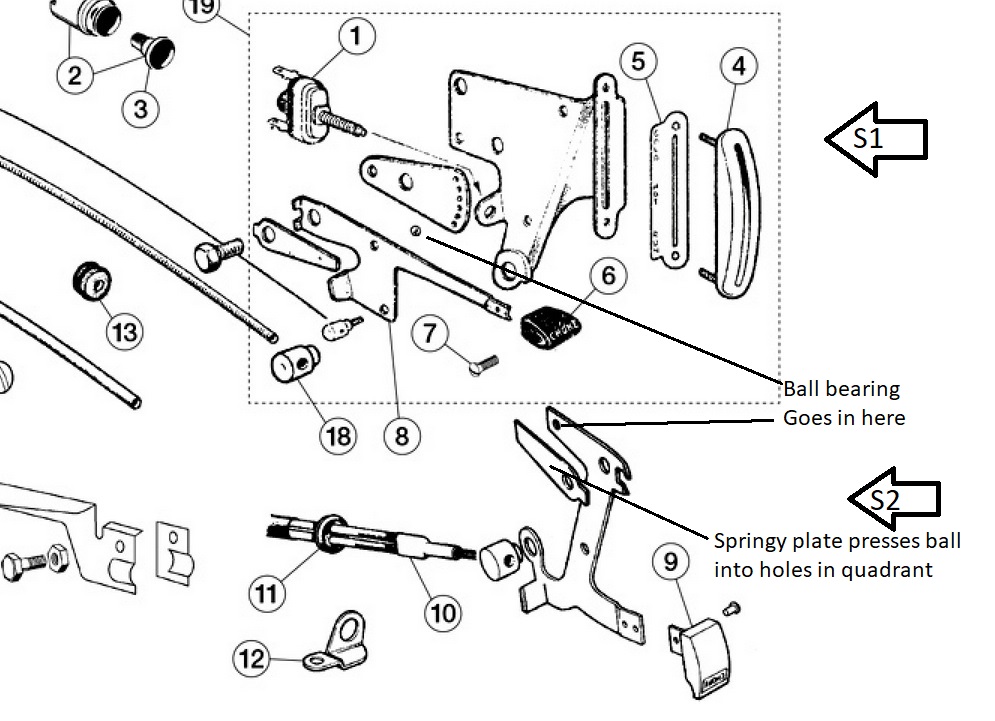

- Lever drwg.jpg (168.16 KiB) Viewed 5326 times

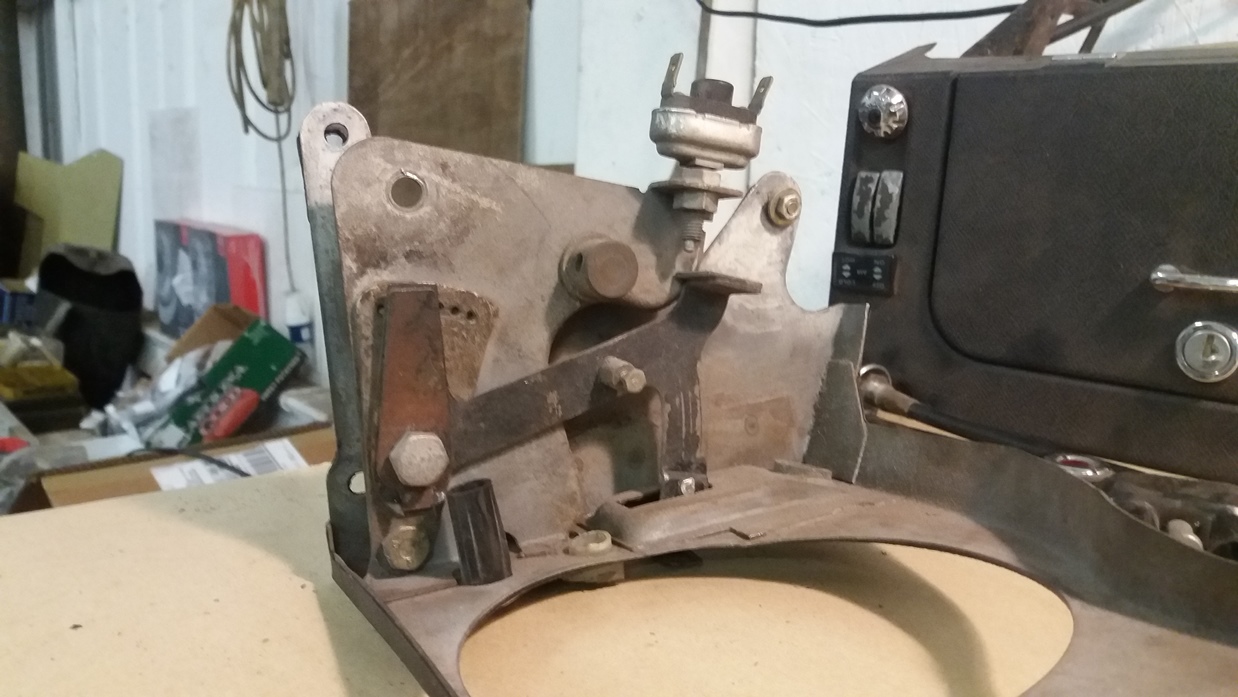

- 20170301_125341.jpg (251.6 KiB) Viewed 5326 times

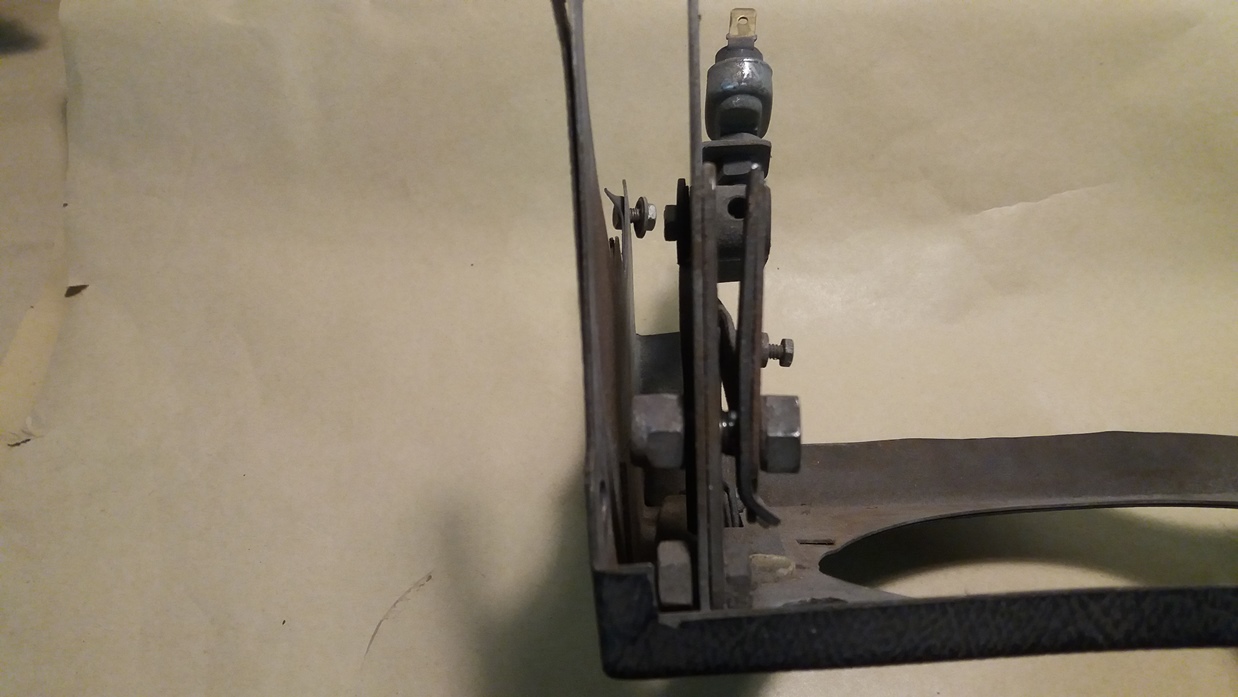

- 20170301_130010s.jpg (203.22 KiB) Viewed 5326 times
#4 Re: Choke lever mechanism: series 2 FHC
Posted: Thu Mar 24, 2022 1:28 am
by JerryL770
Only 3 pictures per post allowed now so here's 2 more.

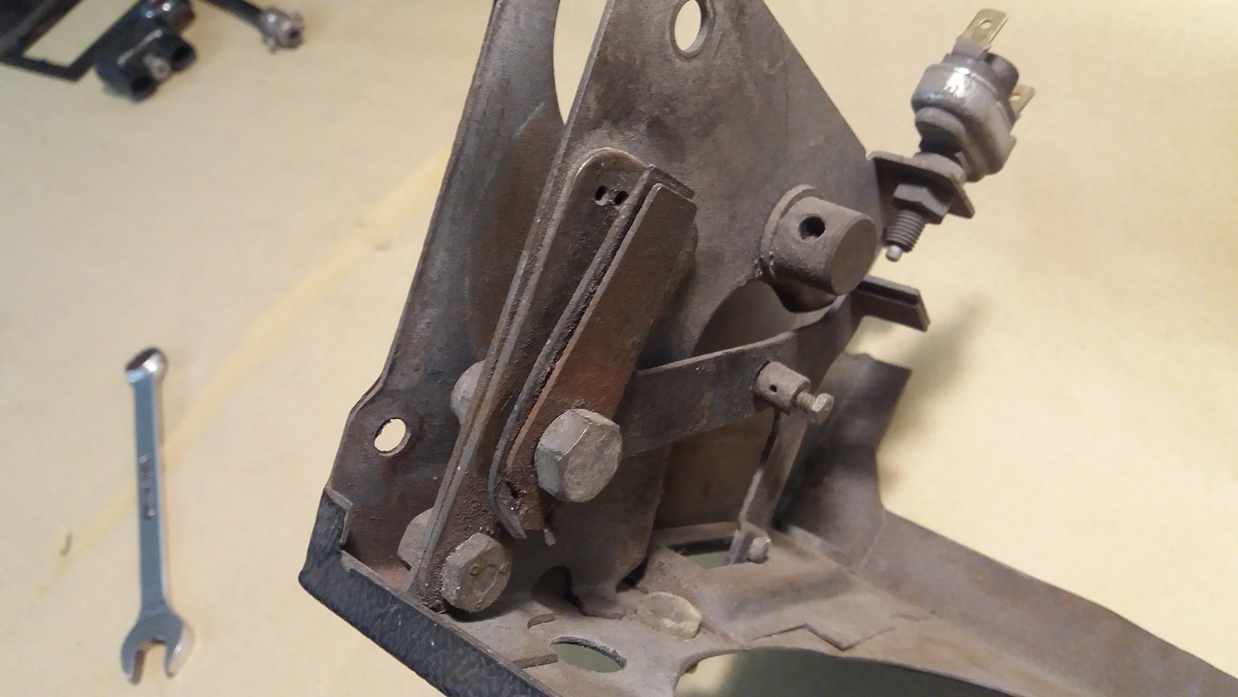

- 20170301_130020s.jpg (224.67 KiB) Viewed 5326 times

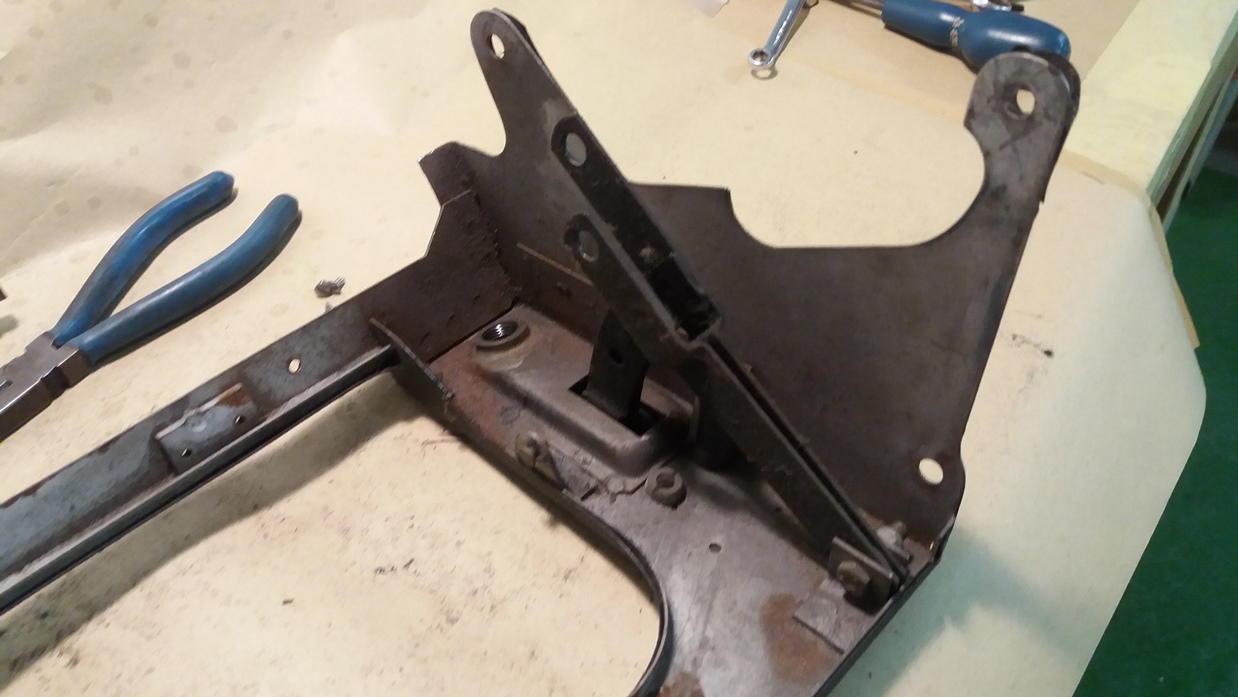

- 20170301_155122s.jpg (231.25 KiB) Viewed 5326 times
I hope this helps some.
#5 Re: Choke lever mechanism: series 2 FHC
Posted: Fri Mar 25, 2022 1:54 pm
by 61Elite
Here is a page from the S3 parts manual. I have a S2 and a S3. the controls are the same. The only difference is the S2 has a single cable to the carbs and the S3 has two cables (one to each side). I hope this helps.
