fuel pipe route

[Stevejaguar]

Hi does anyone have a photo of how the fuel pipe comes from under the car up the toeboade and misses the vacuum tank please?
Preferably on a series 1 2+2 unless they are all the same.
Steve.

[mgcjag]

Hi Steve if you google search vac e type vac tank youvwill find photos.....i posted a couple in another thread yesterday that might help you...you can see the pipe routing im not sure if its absolutely correct for your model......Steve http://forum.etypeuk.com/viewtopic.php? ... 47#p137467

[paulsco]

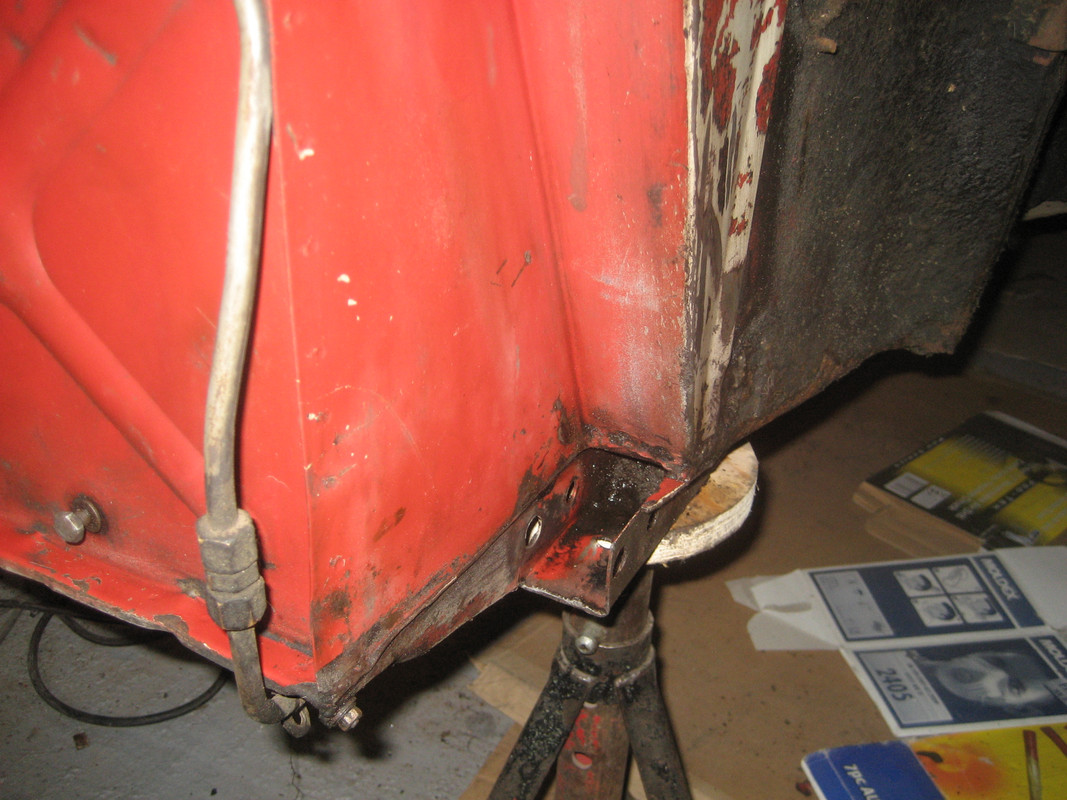

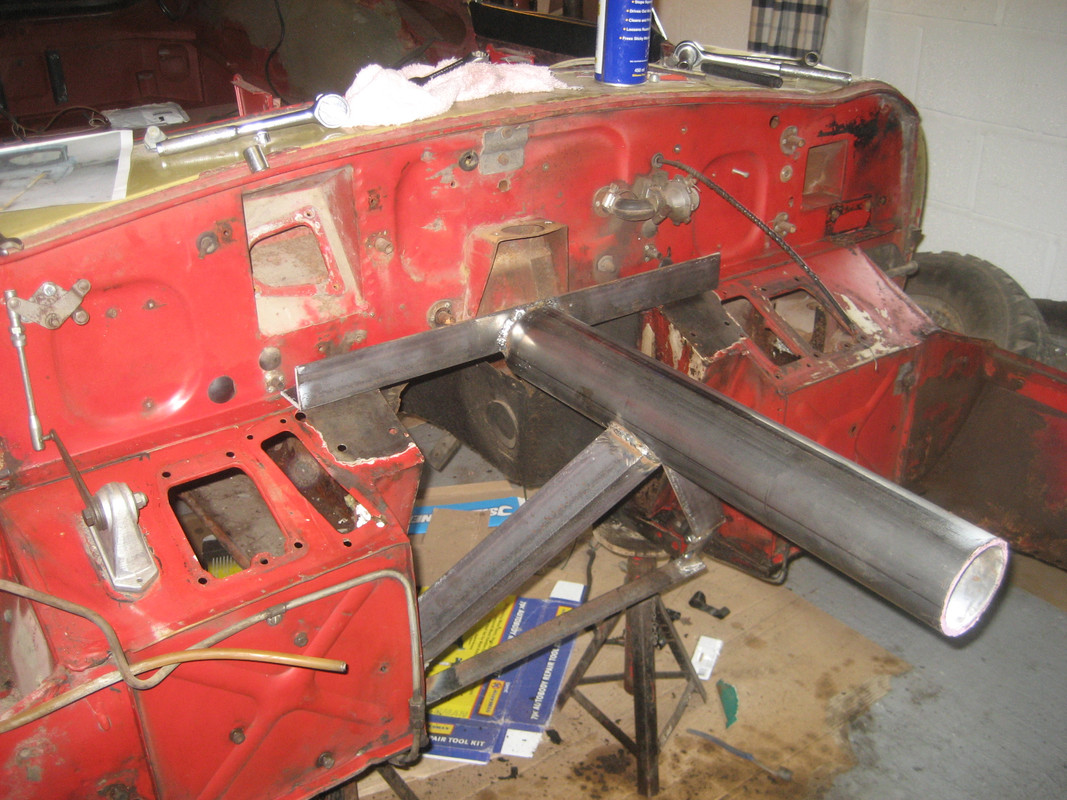

This is my 65, which I assume is the same as the 2+2.






Paul

[Stevejaguar]

Thanks Paul, that is exactly what I was looking for.
Steve
