Series 1 seat frame reassembly question

[BobKTX]

I realize now that I should have taken more photos prior to disassembling the Series 1 FHC seats. I had the seats re-upholstered and now I’m busy putting them back together. The issue I’ve come up with is this.

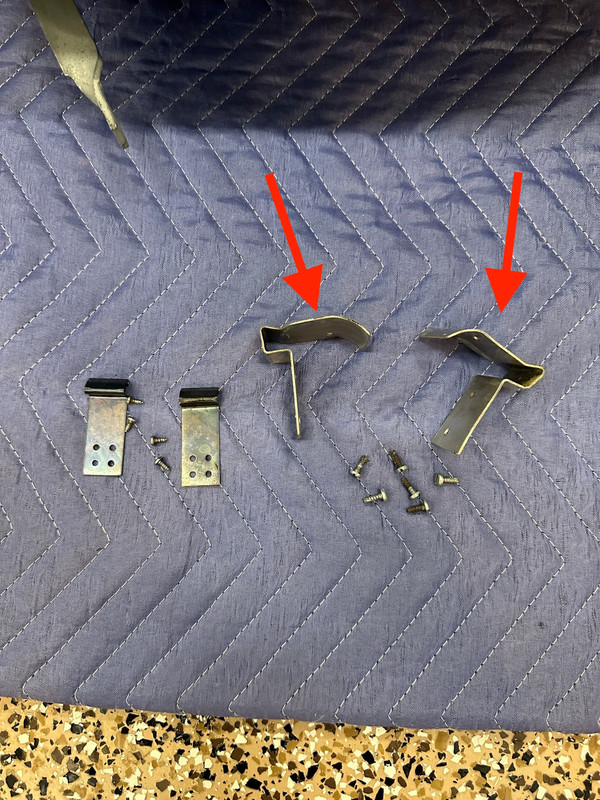

I have these two brackets with six screws, but on the seat base I can only locate two holes (under the seat slide mechanism) and therefore can’t figure out the correct location and orientation of the brackets.

[rswaffie]

Have you looked on any of the supplier websites for diagrams of the Seat base/runner parts? I can’t see them in the SNG Seat parts section. Mine was a 3.8 so had different seats, but similar slider assemblies and I don’t recognise those bits in your photo. Could they be part of the recliner mechanism? Are you sure they are original to the car and not an addition by a previous owner?

[caveman]

I recognise the other two as the recliner brackets that help hold/lock the backrest in upright position. Don't recognise the two you point out.

[BobKTX]

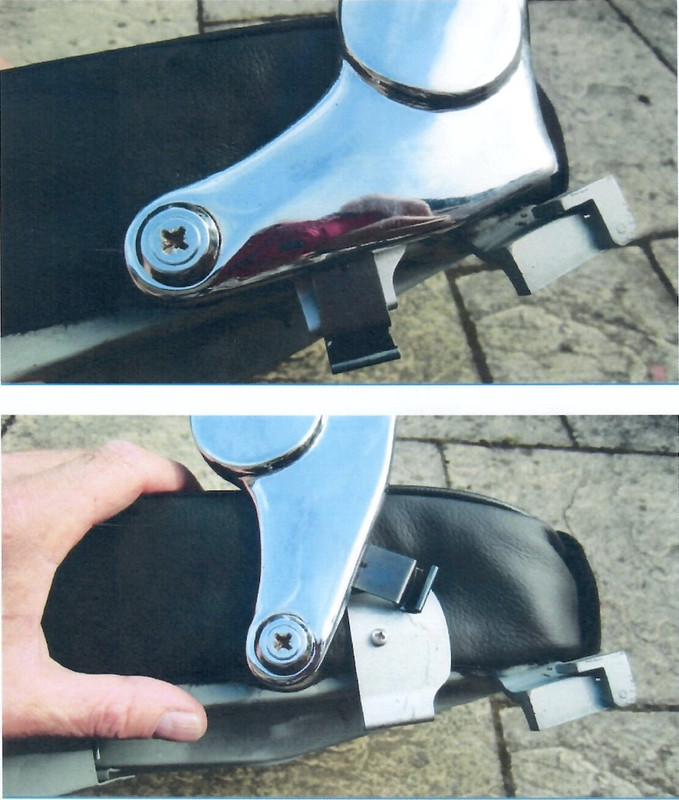

I think I figured out both bracket locations after doing a whole lot of digging on this forum. Here is a phot that I located that illustrates the position of both parts.



I too was unable to locate the larger of the two brackets at SNG, Moss, and others. Luckily mine aren't broken.
