Advice on 2+2 rear wheelarch inner panel

[H7OB]

Could anyone point me in the direction of an image and / or a source for the component that creates the armrest area that runs off the wheelarch in the second row of a 2+2? My interior was not original and had what appeared to be a hand made sheet steel part at one side and a similar one in aluminium riveted to the front surface of the rear wheelarches at the other. These had foam glued on, beneath the trim. Neither of which looked original. I will also be looking to create a seatbelt run within this for my newly added inertia reels. I’m struggling to find anything that shows the break up in this area. Any help much appreciated!

[mgcjag]

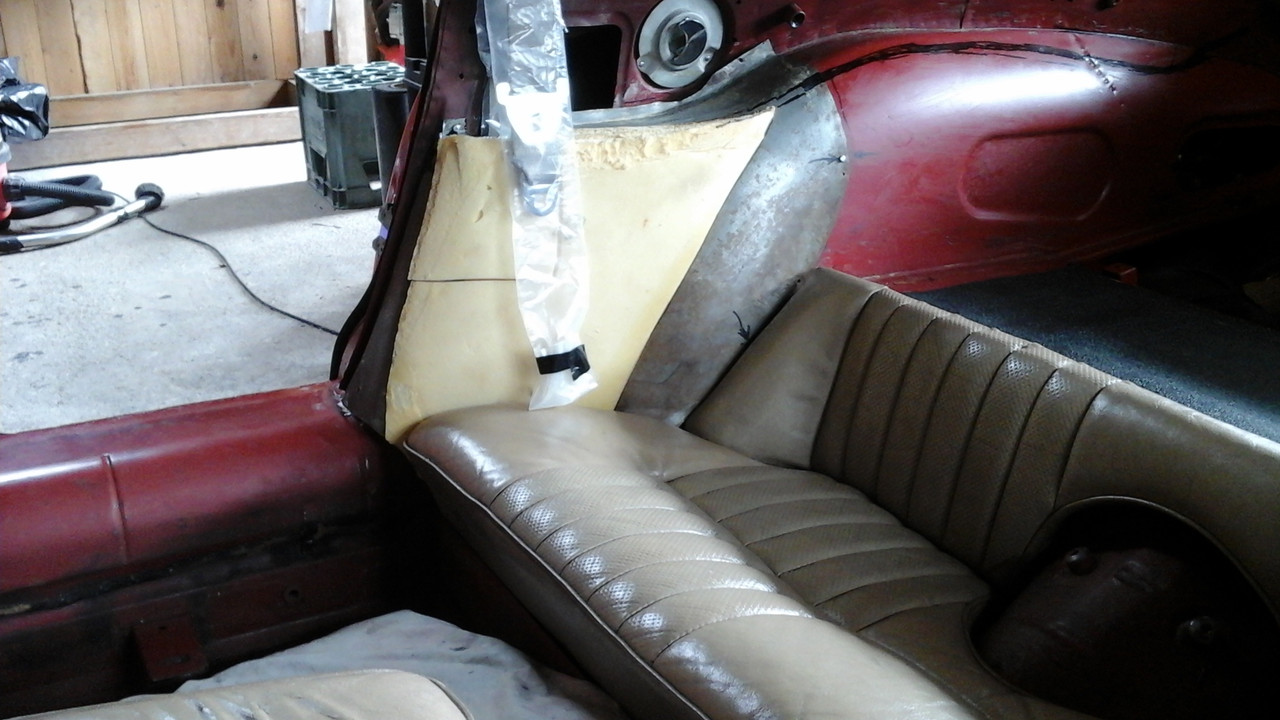

Hi Paul...what you describe sound about right...a home made looking metal panel covered in foam as mine here
and here completed .. note that i have split the wheelarch trim the join is where the rear seat fits so is hidden quite well its not easy making a neat job of the seatbelt entry/exit...if you need any help pm me... Steve

[mgcjag]

This may help also

[H7OB]

Steve, youre a hero, thats exactly what I was looking for. Im now glad I didnt throw anything out, as home-made as it looked! Youve also done exactly as I plan to on the seatbelt. Could I ask where you got the bezels from? Ive bought a pair of black plastic parts but chrome would look better. I imagine that whole area will be a fun job, particularly when that contact adhesive takes hold!

[mgcjag]

Hi Paul...i assume you mean the chrome part where the belt comes through....its called an escutcheon....so search for that..mine were from CMC they are about £40 each........you get the top chrome part and a bottom unchromed plate to fit under........you will have to alter the top of the metal panel to make it a bit wider to fit..Steve

[H7OB]

Thanks again Steve, much appreciated.
