#1 3.8 wiring confusion

Post by Robbiee » Sun Oct 24, 2021 3:10 pm

Help please

I am reworking my 3.8 62 car
New loom from auto sparks

I’m cannot establish any connection between the ignition warning light (white wire going into bulb holder)) and the white wires at the fuse boxes!

There is another spade connected white wire also braided which also emerges behind the speedo/rev counter area and I can get a connection to that one (not sure of its function though)

Any ideas

Robbie
Robbie 1962 3.8 Coupe OSG 1962 OTS ODG

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

abowie
Posts: 3360
Joined: Wed Sep 07, 2011 9:15 pm
Location: Australia
Contact:
Australia

#2 Re: 3.8 wiring confusion

Post by abowie » Sun Oct 24, 2021 7:43 pm

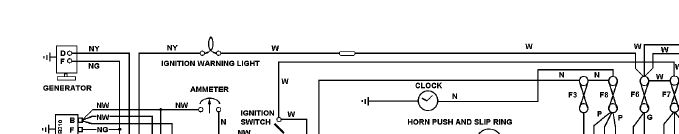

There should be a white wire in the loom that has a spade to go to fuse 6 and a bullet to connect to your light.

Confirm by using an ohm meter.


Andrew.
881824, 1E21538. 889457. 1961 3.4l Mk2. 1975 XJS.
http://www.projectetype.com/index.php/the-blog.html
Adelaide, Australia

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
Robbiee
Posts: 616
Joined: Sun Aug 16, 2015 12:07 pm
Location: Derbyshire

#3 Re: 3.8 wiring confusion

Post by Robbiee » Sun Oct 24, 2021 9:33 pm

Thanks Andrew
I’ll check it out when I’ve slept on it😊
I have a “beep” meter to help!
Robbie
Robbie 1962 3.8 Coupe OSG 1962 OTS ODG
