Cooling fan relay questions

[No Quarter]

Wiring loom installed, almost, down to the details.

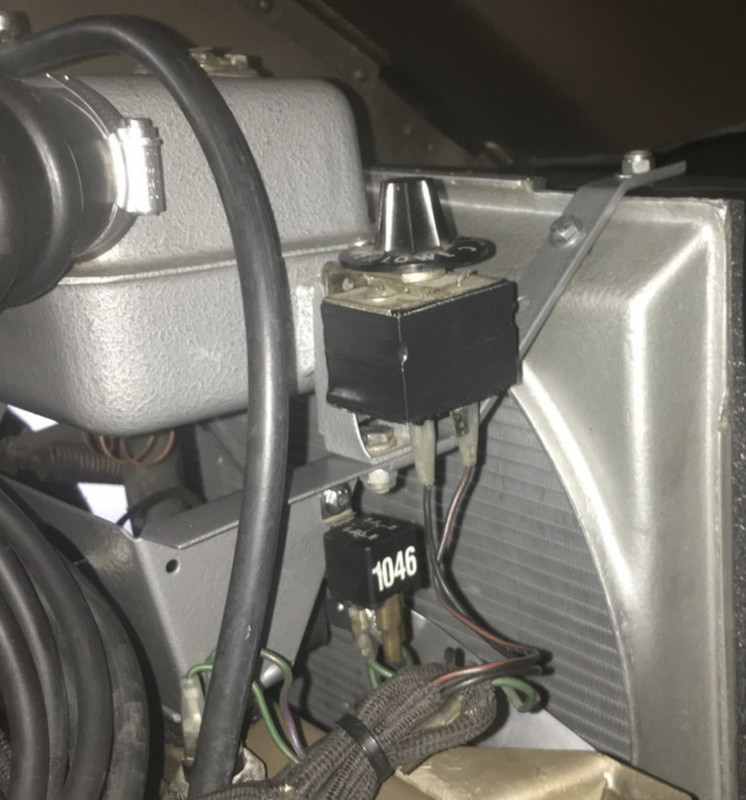

1. Picture shows the cooling fan relay, right?


2. How is it to be attached? I can't see any attachment points near for the two holes. I'm sure bracket C28134 will do the trick, but everywhere I see it, it's named for 4.2 only, so how was the relay attached on our 3.8s?


3. Wires are numbered 1, 2, 3 etc, not visible on my relay, where can I find schematic of the 5 legs?

[dlgis]

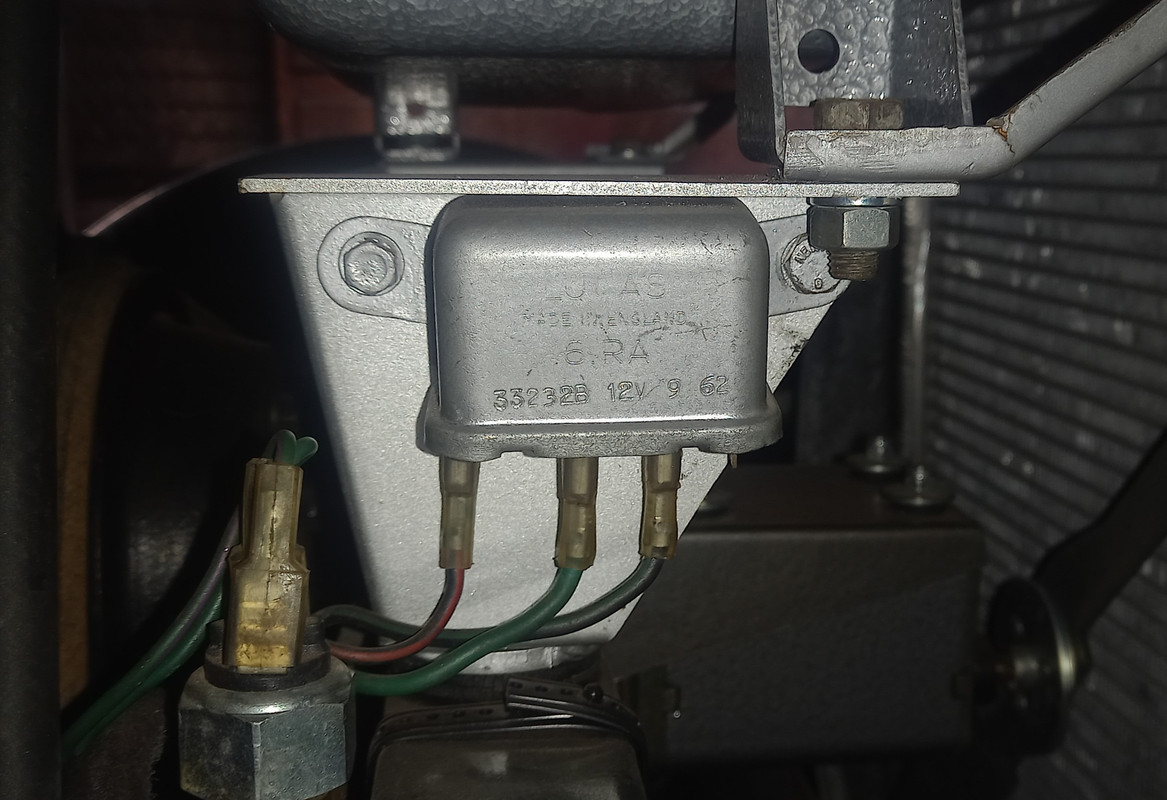

Here’s a pic of the back of the relay which might help:

[caveman]

viewtopic.php?f=3&t=19822&p=161565&hili ... ch#p161565

[caveman]

Position for later cars:
viewtopic.php?t=14684

[mgcjag]

The original poster if after the location of the relay...not the wireing details....had a quick look in the 3.8 factory fit section and found this....Steve

[caveman]

[quote

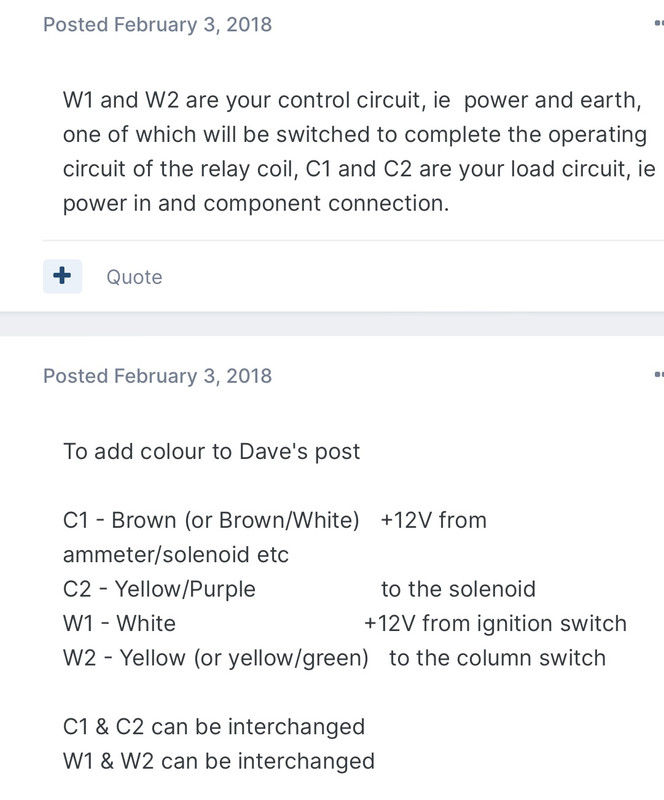

3. Wires are numbered 1, 2, 3 etc, not visible on my relay, where can I find schematic of the 5 legs?
[/quote]

You may want to read OP thoroughly.

[No Quarter]

Thanks, great answers on wiring. Not understood positioning yet. I use the original wiring, which is in remarkable condition, and the relay has to be placed on the left side, 15-25 cm in front of starter relay. I just donøt see anything to attach it to. And remember the reason for most of my questions, I didn't take it apart, I bought it in boxes. The next E-Type will be easier

[mgcjag]

Yes your correct my mistake....Steve

[caveman]

[No Quarter]

It's LHD BTW

[mgcjag]

Have a look here.....post 98.....note relay was not used on later 3.8 cars...Steve viewtopic.php?f=4&t=2006&start=80

[caveman]

It's LHD BTW

Just swap to other side

[No Quarter]

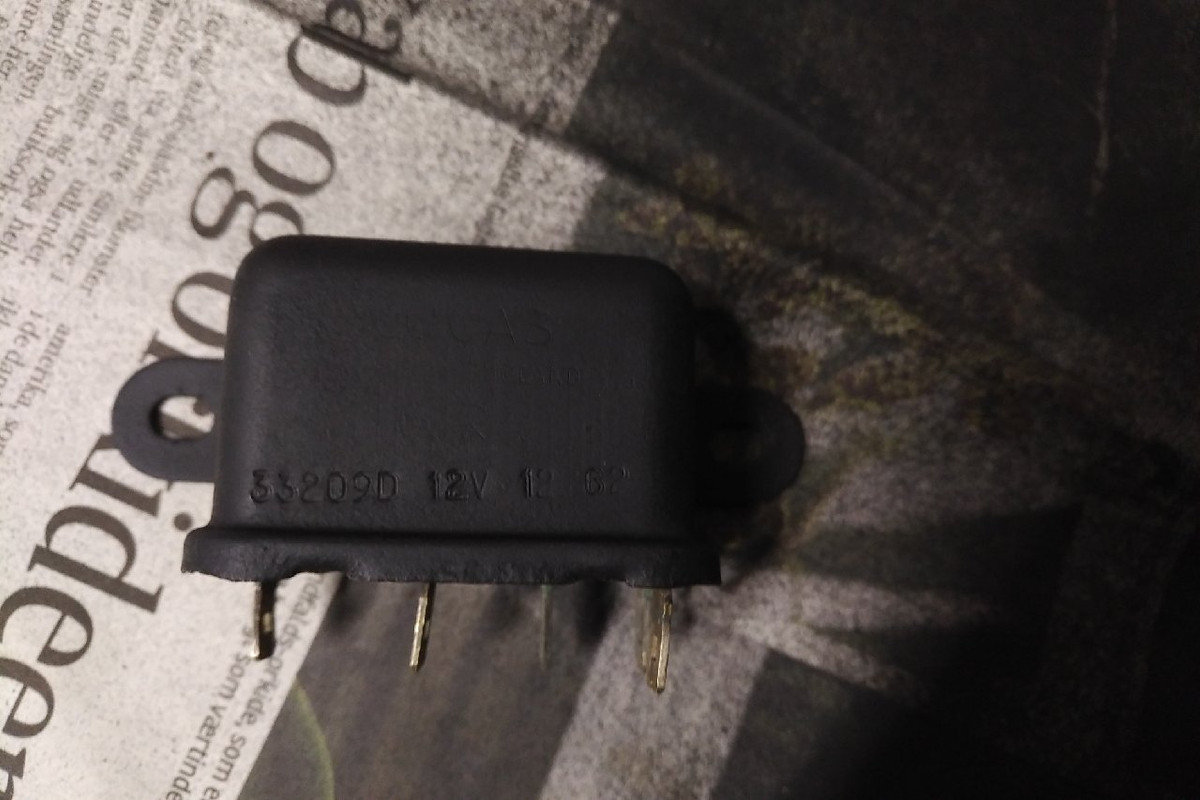

If the relay is to be able to reach the wiring ( ), it has to be attached somewhere in the yellow area. Would hate to drill unnecessary holes...
Is there not a reasonable original LHD 3.8 out there to look at? I have a handful of helping people with E-Types here in Denmark, but all 4.2 or V12

[ralphr1780]

On the LHD the relay remains in the same position/location as in above pics: on the right side under the header tank.

[Allrand]

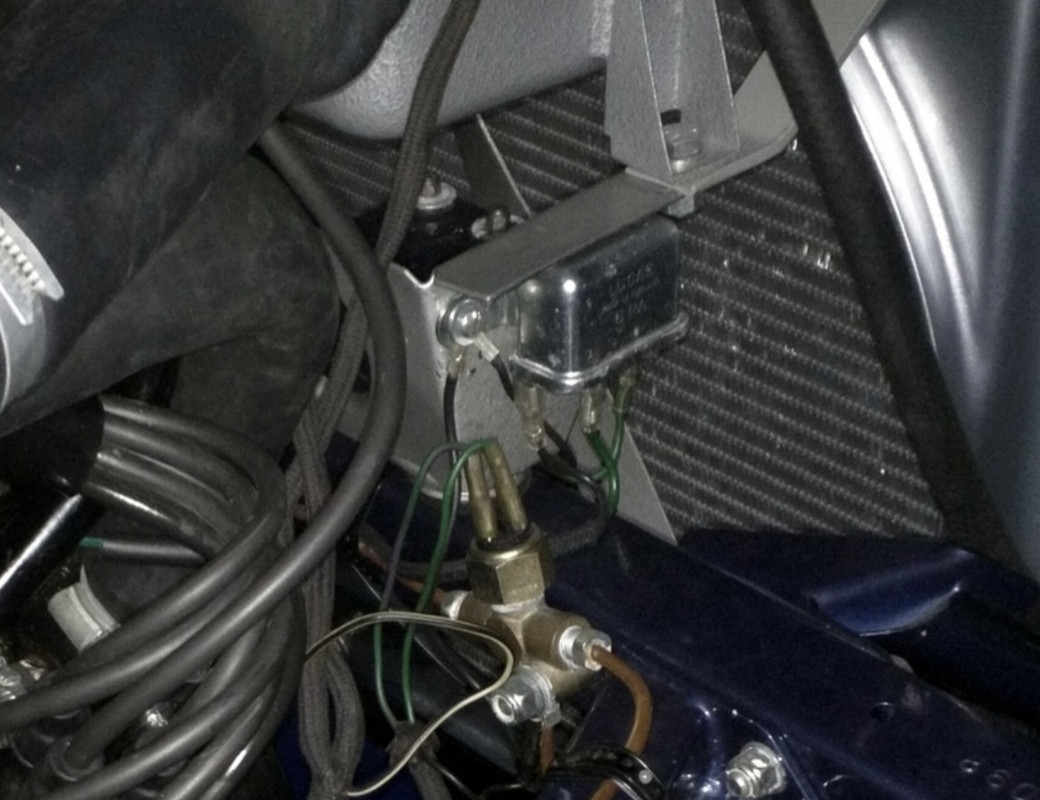

Here it is on my 64 3.8.

[Series1 Stu]

Is it possible, Maikel, that you have the horn relay which is mounted on the inside of the left hand mudguard, just ahead of the starter solenoid?

Regards

[No Quarter]

Could be horn relay if horn relay is still placed there if car is early enought to have horns placed beside headlights in bonnet?

[Series1 Stu]

Could be horn relay if horn relay is still placed there if car is early enought to have horns placed beside headlights in bonnet?

Yes, mine is a (very) late '62 FHC and has the horns in the bonnet and the relay on the mudguard.

Regards

[DWW]

Mine too.

[No Quarter]

Think I got what I need now, a few days before I can get to it to try it...

Thanks
