Clutch pipe/hose/bracket routing LHD

[No Quarter]

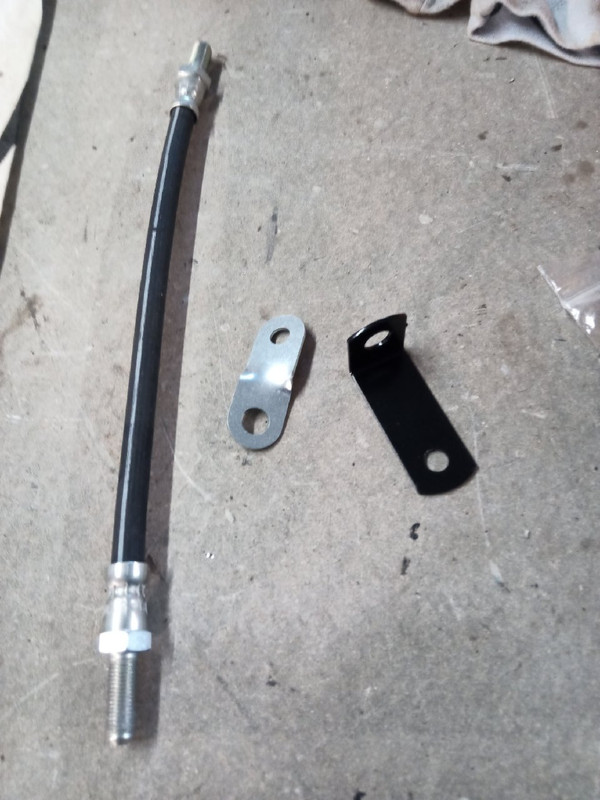

I have the parts below and can make double flanged pipes. But can't find a picture of routing. Where exact are brackets attached, and picture of pipe routing would be great. Remember LHD.

Thanks

[ysmalkie]

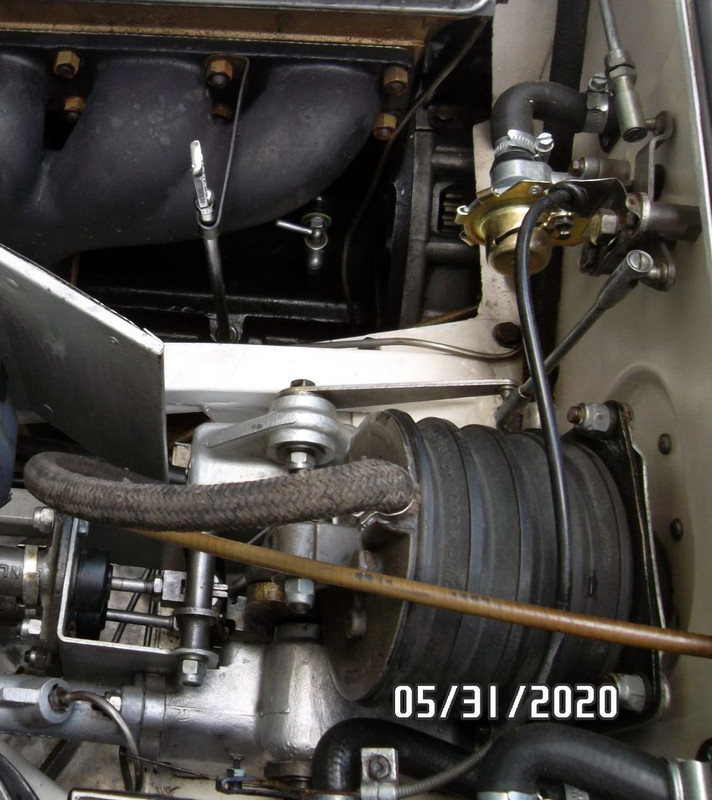

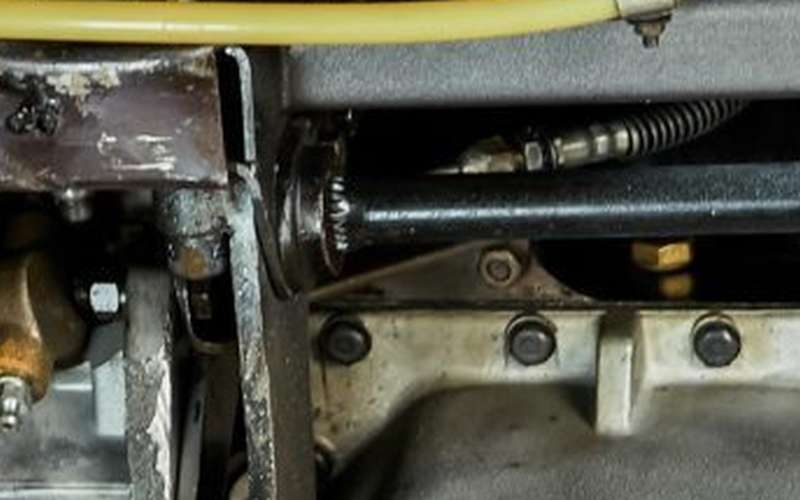

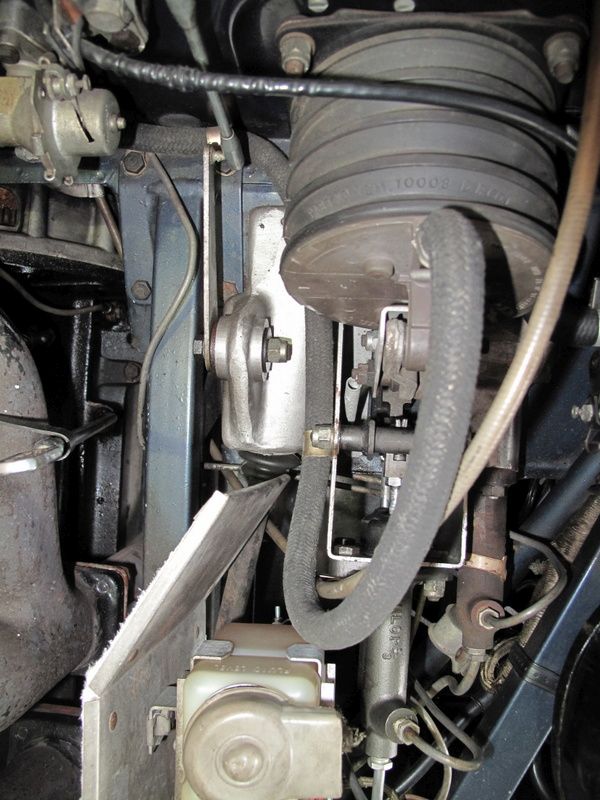

Not the best photo, but should give you an idea:
- top L shaped bracket is mounted on the inner, lower frame setscrew
- the small bracket is mounted on one of the screws mounting the block to the gearbox bracket

BTW, they are both the same colour as the radiator brackets (blueish).





Tadek

[ysmalkie]

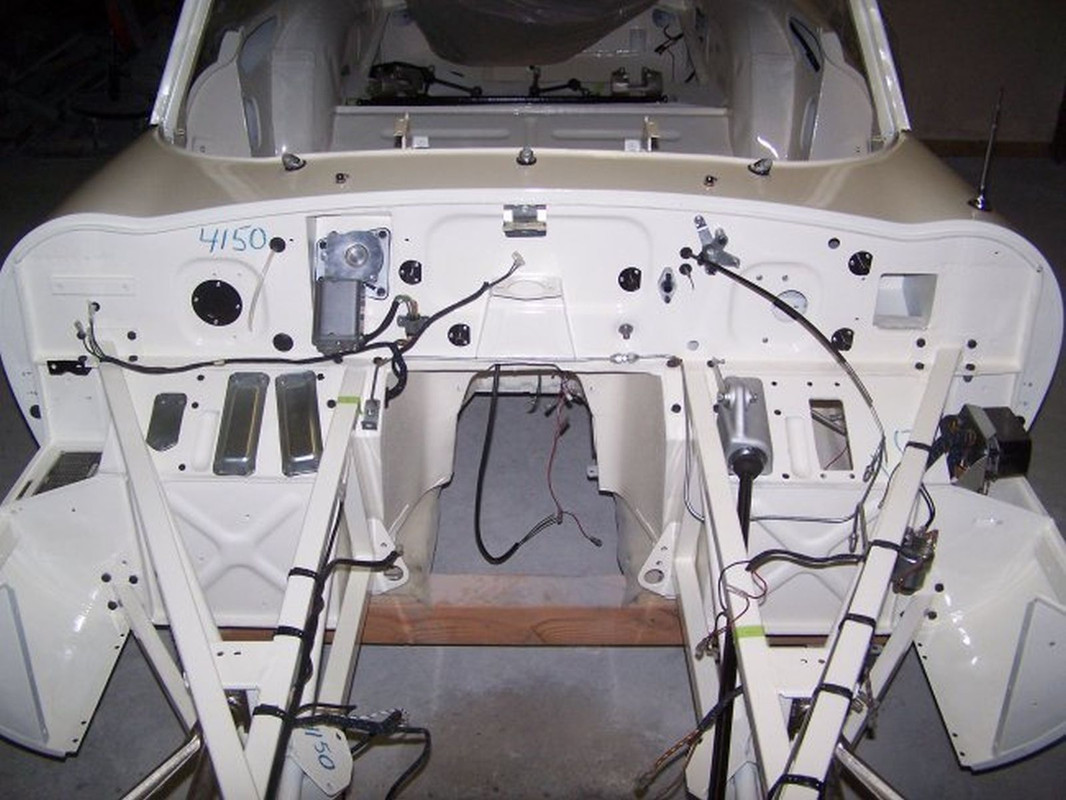

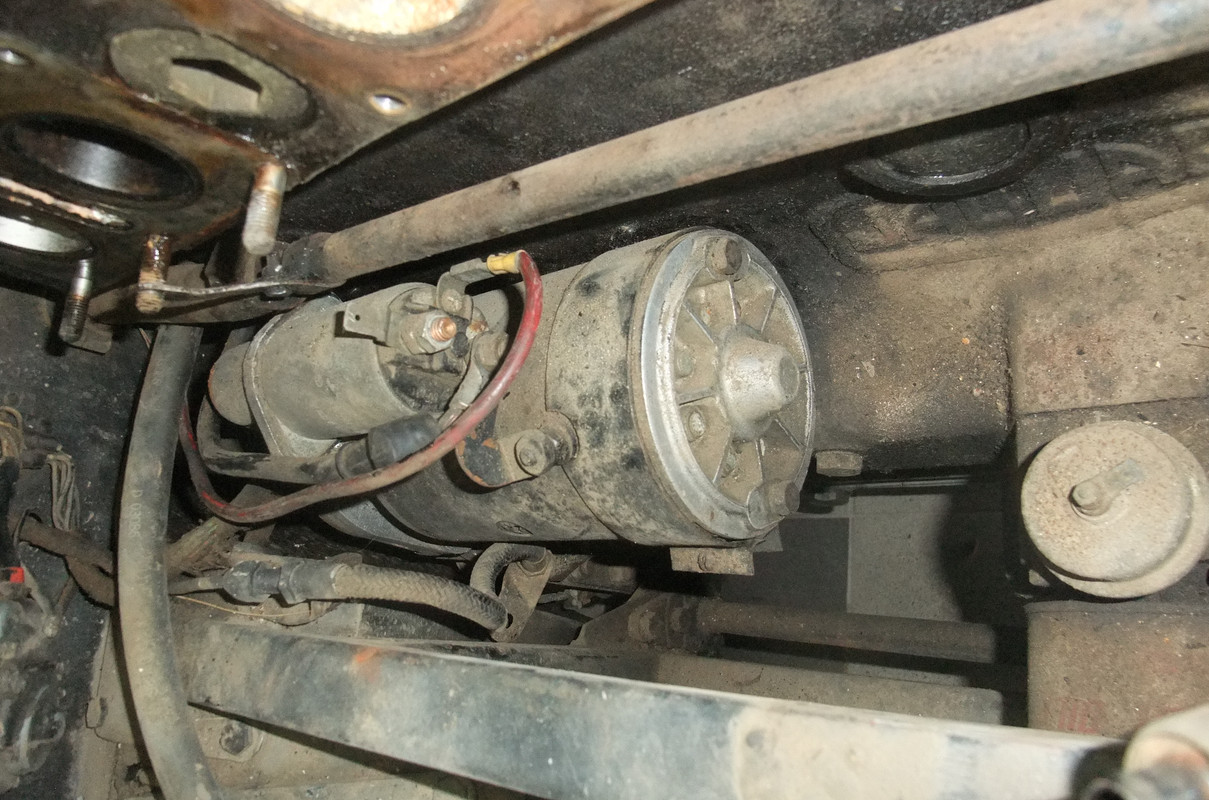

In addition, the metal pipe routing:











Note the 2 clips.

Tadek

[No Quarter]

Perfect Tadek
