Roadster Interior mirror fixing

Talk about the E-Type Series 2
User avatar

Topic author
Monkeyfinger
Posts: 210
Joined: Thu Jun 30, 2016 9:53 pm
Great Britain

#1 Roadster Interior mirror fixing

Post by Monkeyfinger » Sun Jul 03, 2022 11:49 am

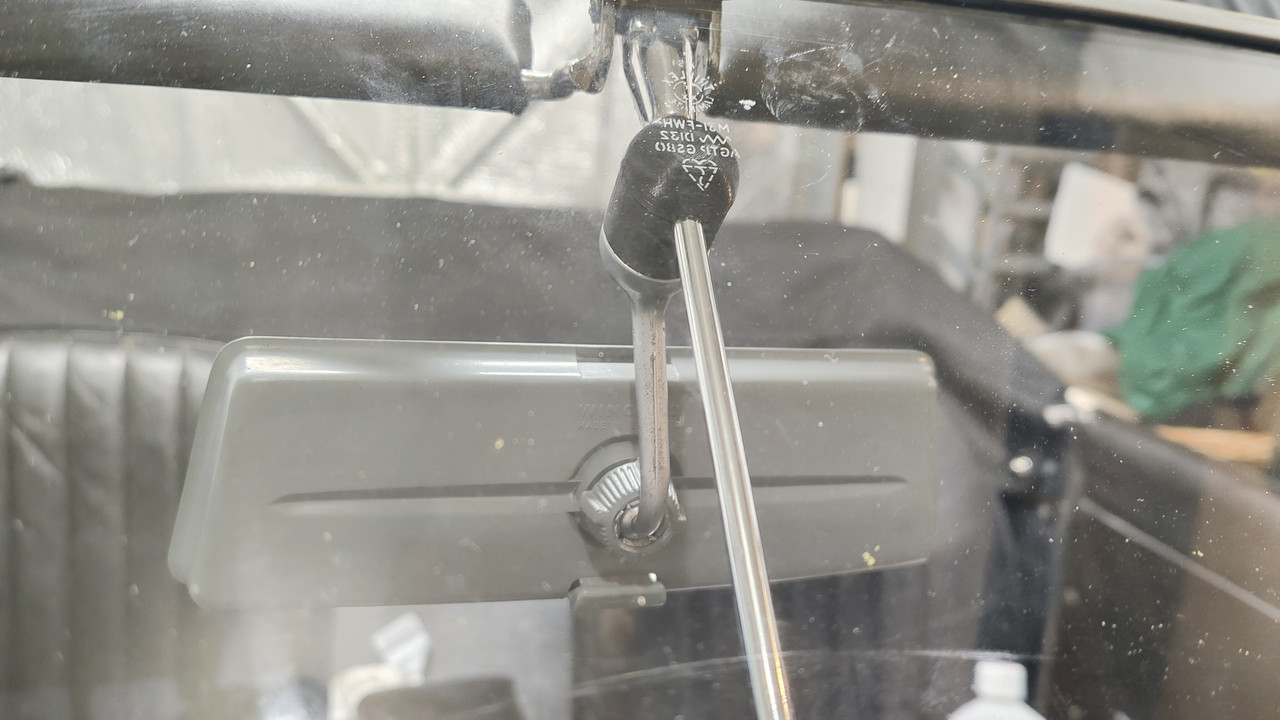

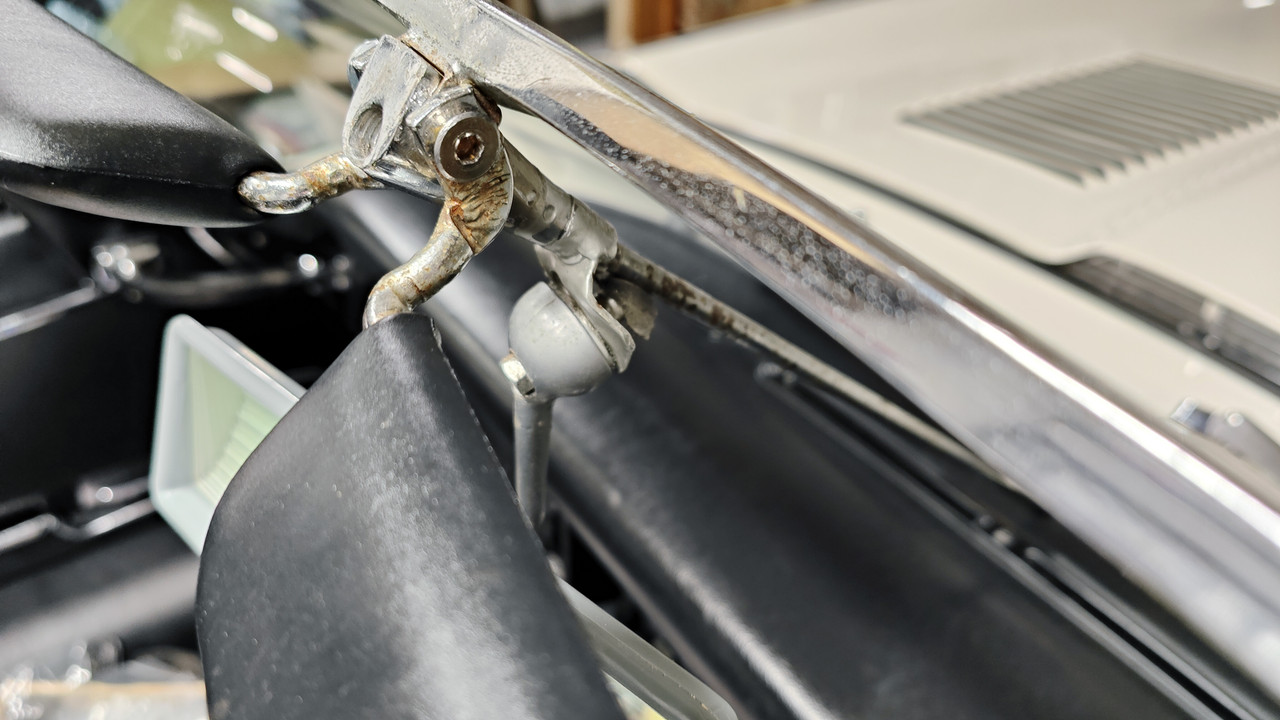

I've been trying to find the correct way to fit the S2 plastic interior mirror (C28516) onto a roadster screen. My car currently has a home made bracket fitted directly below the boss at the top of the tensioning rod. This works fine, but I like to put things back to 'standard' if I can. I've seen some mention of it being glued to the screen - if that's the case, then I may leave things as they are. As you'll see from the attached photo, the boss on mine has also been drilled out to accept a bolt/nut to hold the sunvisors - I'd also like to install a standard boss with the correct screws.

Grateful if anyone has any insight or pictures of a correct factory set-up for this style of plastic mirror - I've tried, but failed to find any appropriate images online or in the forum.
Richard
- 1969 Series 2 OTS, family owned 40+ years

Link:
BBcode:
HTML:
Hide post links
Show post links


Gfhug
Posts: 2861
Joined: Thu Jun 19, 2014 3:08 pm
Location: Near Andover, Hampshire,in D.O. Blighty
Great Britain

#2 Re: Roadster Interior mirror fixing

Post by Gfhug » Sun Jul 03, 2022 3:35 pm

Richard, why not fit an earlier mirror from an S1? They fit to the rod correctly and aren’t the awful S2 plastic.
Just a thought, cheers.

Geoff
S2 FHC Light Blue
S2 OTS LHD - RHD full restoration

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
Monkeyfinger
Posts: 210
Joined: Thu Jun 30, 2016 9:53 pm
Great Britain

#3 Re: Roadster Interior mirror fixing

Post by Monkeyfinger » Sun Jul 03, 2022 4:01 pm

Thanks Geoff - since my father binned the S2 mirror and fitted an S1 item around 40 years ago, that’s what it had! I finally sourced an original Wingard plastic one a couple of years ago, which I wanted from the originality standpoint, and also because it irked me that the original had been thrown away. I still have the S1 mirror, but I really want to know how the correct one is supposed to be fitted. I don’t remember it being glued on, but maybe memory deceives me.
Richard
- 1969 Series 2 OTS, family owned 40+ years

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Heuer
Administrator
Posts: 14282
Joined: Sat Mar 01, 2008 5:29 pm
Location: Nottinghamshire
Great Britain

#4 Re: Roadster Interior mirror fixing

Post by Heuer » Sun Jul 03, 2022 4:57 pm

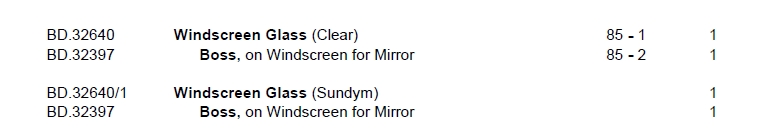

Glued on but NLA from SNGB:

David Jones
S1 OTS OSB; S1 FHC ODB

Add your E-Type to our World Map: viewtopic.php?f=1&t=1810

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
Monkeyfinger
Posts: 210
Joined: Thu Jun 30, 2016 9:53 pm
Great Britain

#5 Re: Roadster Interior mirror fixing

Post by Monkeyfinger » Sun Jul 03, 2022 5:16 pm

Thanks David, but is that definitely for OTS? If it's glued on, then it can't be mounted centrally.
Richard
- 1969 Series 2 OTS, family owned 40+ years

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Heuer
Administrator
Posts: 14282
Joined: Sat Mar 01, 2008 5:29 pm
Location: Nottinghamshire
Great Britain

#6 Re: Roadster Interior mirror fixing

Post by Heuer » Sun Jul 03, 2022 6:06 pm

Ye, of little faith!


I seem to recall it came from Pilkington with the boss already mounted centrally.
David Jones
S1 OTS OSB; S1 FHC ODB

Add your E-Type to our World Map: viewtopic.php?f=1&t=1810

Link:
BBcode:
HTML:
Hide post links
Show post links


SimonBrown
Posts: 99
Joined: Sun Dec 04, 2016 9:15 pm
Location: Solihull
Great Britain

#7 Re: Roadster Interior mirror fixing

Post by SimonBrown » Sun Jul 03, 2022 7:57 pm

Hi Richard,
I believe this to be correct for Series 2 OTS apart from the spread of the adhesive. I copied it from the original mounting when replacing my original screen
Simon
Simon Brown
1969 S2 OTS
1998 XK8 Coupe
1993 Morgan Plus 4
1991 Mini Cooper 1.3i

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
Monkeyfinger
Posts: 210
Joined: Thu Jun 30, 2016 9:53 pm
Great Britain

#8 Re: Roadster Interior mirror fixing

Post by Monkeyfinger » Sun Jul 03, 2022 8:05 pm

Awesome Simon, thanks!
Richard
- 1969 Series 2 OTS, family owned 40+ years

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

nefematic
Posts: 345
Joined: Sun Aug 12, 2012 4:18 pm
Location: Stuttgart, Germany
Germany

#9 Re: Roadster Interior mirror fixing

Post by nefematic » Tue Jul 05, 2022 5:06 pm

Here some measurements off my OTS, when I installed a new Pilkington windshield. This is where the mount was sitting on the old windshield. It is/was not centered. It also was not the original windshield I believe, since was stamped as Royal Doulton. So the measurements might be off. My mirror had a broken adjuster, a friend made one up out of aluminium, it was before 3D printing came about.






Last edited by nefematic on Mon Jul 25, 2022 9:11 pm, edited 1 time in total.
Martin Scherz
Late S2 1970 OTS US LHD

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
Monkeyfinger
Posts: 210
Joined: Thu Jun 30, 2016 9:53 pm
Great Britain

#10 Re: Roadster Interior mirror fixing

Post by Monkeyfinger » Mon Jul 25, 2022 11:21 am

So, I had a go at fixing the mirror to the screen. Wasn't successful using 3M VHB tape, although a firm setting glass adhesive may have been better.

Instead I designed and 3D printed a simple 2 piece clamp that mounts on the screen tension rod. Works perfectly and easily removable. Also will allow me to swap the (some say) hideous plastic mirror for the earlier versions...

Richard
- 1969 Series 2 OTS, family owned 40+ years

Link:
BBcode:
HTML:
Hide post links
Show post links

Post Reply Previous topicNext topic
