#1 Rear quarter window catch

Post by Fuel.inj » Thu Jul 14, 2022 2:56 pm

The near side quarter window catch seems sloppy inso much that when the window is open and it’s fully extended as soon as you speed up the wind closes it. Is there anyway to tighten it up or recommendations to improve it. The opposite side is far stiffer and holds the window open with no issues.
Paul.
1971 S2 FHC (Opalescent Blue)
1990 Mercedes Benz 260E
A number of Nortons.
1939 Triumph T100

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

mgcjag
Moderator
Posts: 7291
Joined: Fri Jul 09, 2010 6:15 pm
Location: Ludlow Shropshire
Great Britain

#2 Re: Rear quarter window catch

Post by mgcjag » Fri Jul 15, 2022 7:43 am

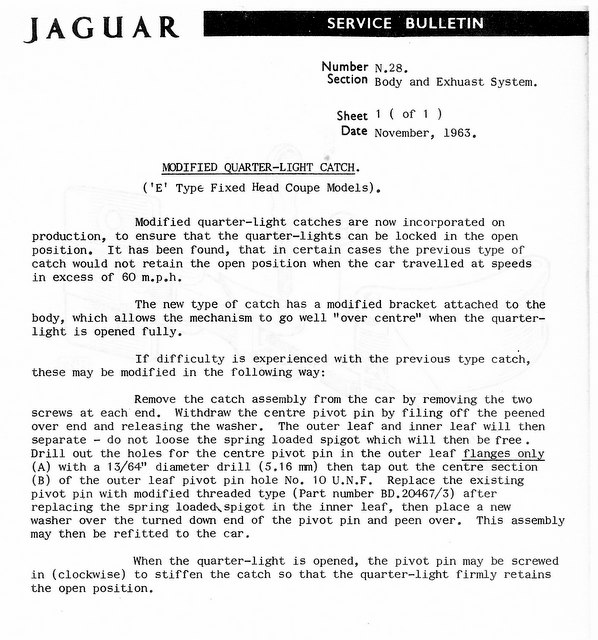

Hi Paul...there should be a wedge shape spacer that fits under the rear mount of the catch..often gets lost during retrim etc...without it the catch dosnt operste correctly..look to see if you have the same fitted both sides..also..this is for early cars...but worth a look....Steve
Steve
69 S2 2+2 (just sold) & Building a C type replica, 1960 xk150fhc

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Topic author
Fuel.inj
Posts: 113
Joined: Sat Oct 03, 2020 12:26 pm
Location: Monmouthshire
Wales

#3 Re: Rear quarter window catch

Post by Fuel.inj » Fri Jul 15, 2022 8:55 am

Thanks Steve, I’ll investigate and report back.
Paul.
1971 S2 FHC (Opalescent Blue)
1990 Mercedes Benz 260E
A number of Nortons.
1939 Triumph T100
