Great Britain

#1 Opus Amplifier

Post by Pete G » Mon May 03, 2021 5:05 pm

Many years ago prior to my ownership the original Opus Amplifier has been replaced with the "long lead" version for fitting on the picture frame. Unfortunately (for me) it was never actually fitted on the picture frame.
Can anyone supply photos of how it should be installed and the routing of the cables to/from the dizzy and ballast?
I have a short length of cable, about 3 ins. connected/earthed to the picture frame adjacent to the lhs header tank mounting. Is this an earth for the Opus or something else?
Pete G(formally e-bygum)
1971 S3 2+2 OSB

Link:
BBcode:
HTML:
Hide post links
Show post links


Craig Balzer
Posts: 19
Joined: Fri Mar 03, 2017 2:02 am
United States of America

#2 Re: Opus Amplifier

Post by Craig Balzer » Tue May 04, 2021 2:13 am

Pete

This is a tough area to get a good photo of, but I am in the process of pulling the engine on mine. The amplifier is mounted below the header tank -- it in fact uses the drivers side mount of the header tank on the cross bar.

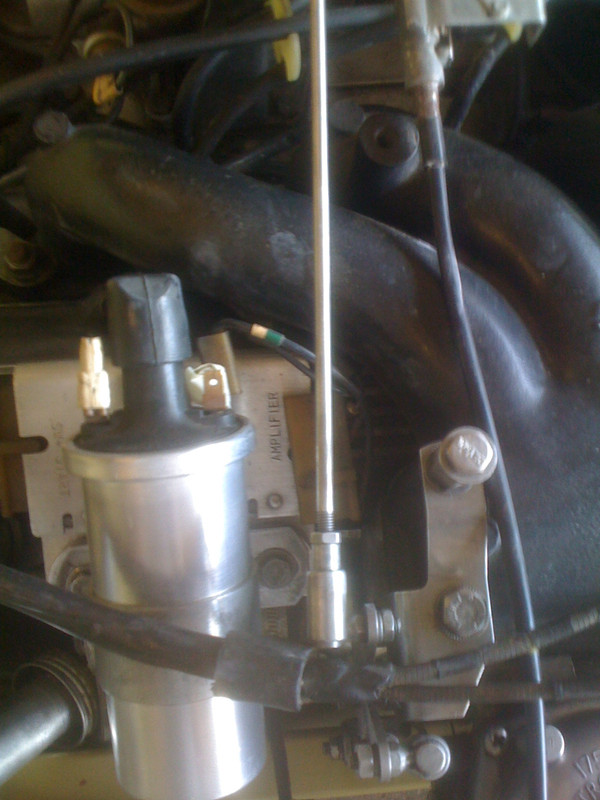

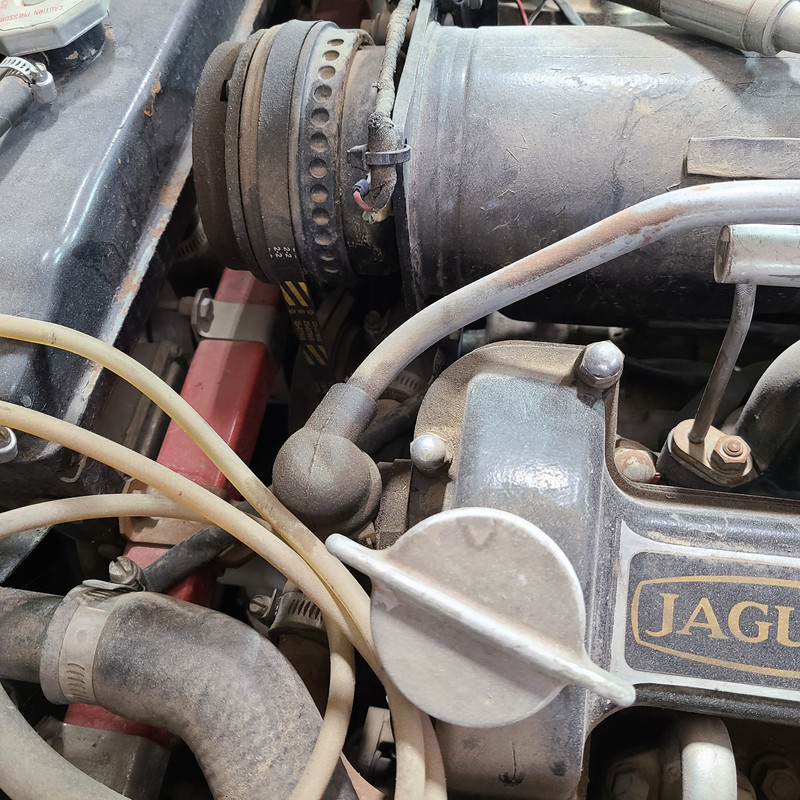

The first photo sorta captures that, but is hard to see:

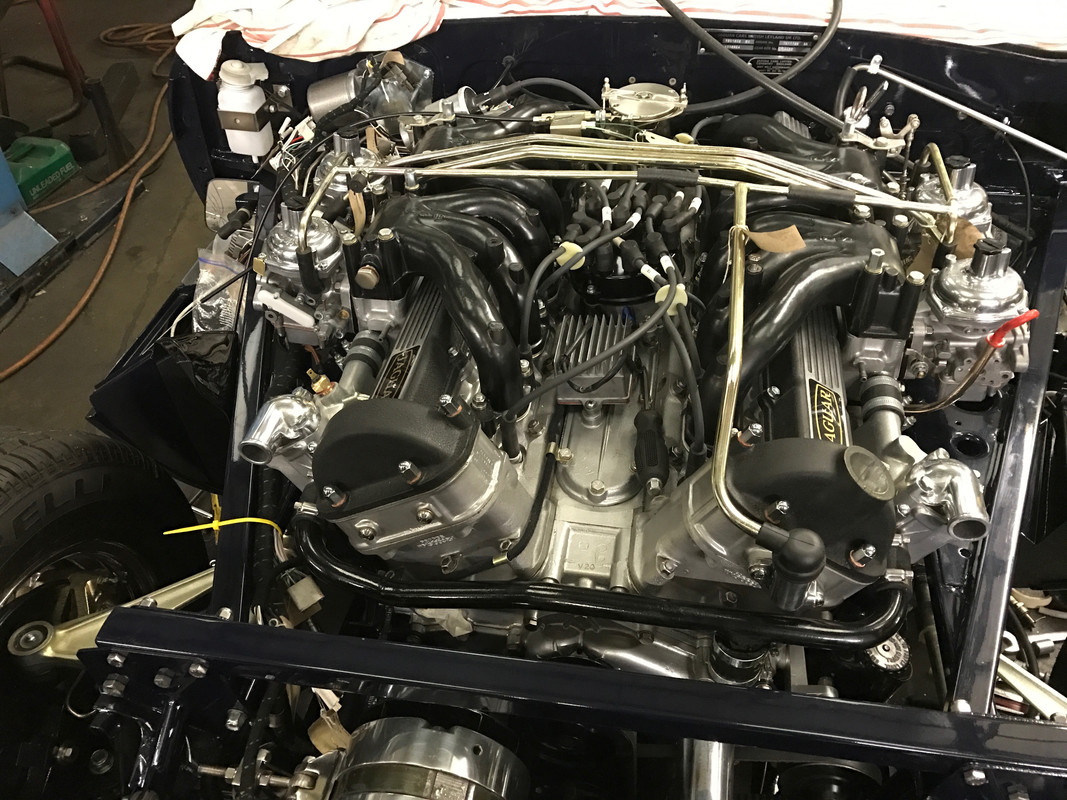

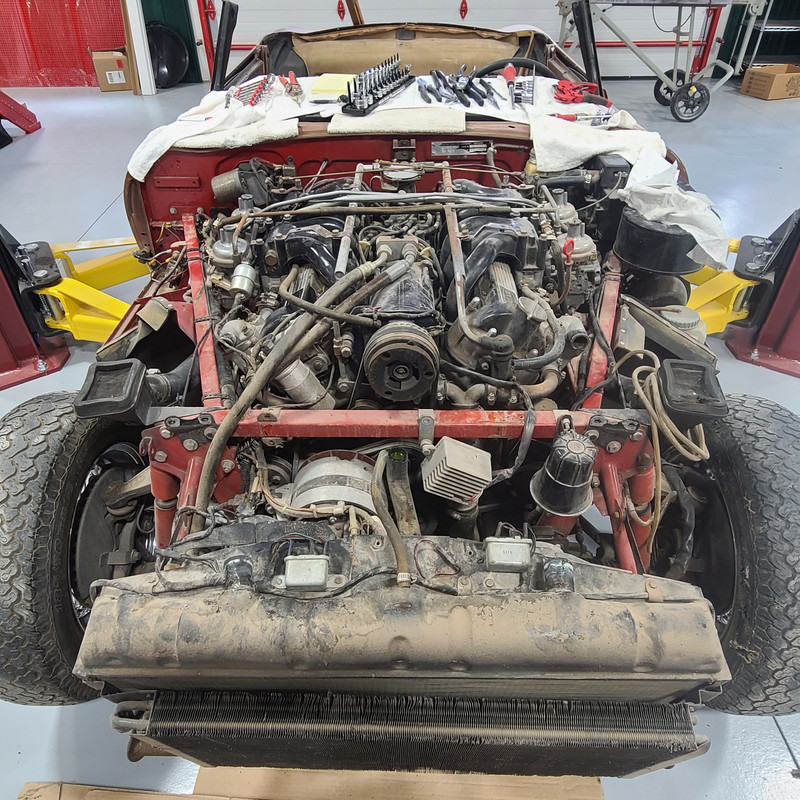

The second photo shows the header tank having been removed (thereby removing one half the support to the amplifier) and the amplifier "dangling" from the cross bar.



This photo also shows the wiring bundle from the amplifier running backward between the A/C compressor and the cam cover and hence on to the distributor.

It has been way too many years for me to remember well, but I believe the relocating kit came with the one bracket that wraps around the cross bar and secures one side of the amplifier as seen above. It is about the same structure as the brackets used to support the header tank (the passenger side bracket for the header tank is still wrapped around the cross) but is not nearly as robust.

Two minor points:
-- there is no short grounding strap associated with the amplifier. Most be something else
-- a close look reveals a ~1/2" circular spacer that keeps the amplifier away from the cross bar that IIRC came with the kit

Hope this helps -- Craig

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

lowact
Posts: 330
Joined: Mon Oct 09, 2017 10:05 am
Location: Canberra, Australia
Contact:
Australia

#3 Re: Opus Amplifier

Post by lowact » Tue May 04, 2021 4:53 am

Drivers side = left
Mine was originally on the cross-bar, not relocated, the long wires are part of the amplifier.
Amplifier wires fold back on themselves and were fixed by three clamps, on the left-inner head/timing cover bolt and 2 of the right side valley cover bolts.
There was a short earth wire from the amplifier mount to the adjacent water pump bolt. No circular spacer.
My Opus excl. distributor is available, if u need any bits, PM...
Regards,
ColinL
'72 OTS manual V12

Link:
BBcode:
HTML:
Hide post links
Show post links


Colin
Posts: 23
Joined: Wed Aug 17, 2011 9:24 am
Location: Bromley Kent UK
Great Britain

#4 Re: Opus Amplifier

Post by Colin » Tue May 04, 2021 12:05 pm

Hi Pete
This may help - heres a couple of photos from my late (June build) 1973 V12 2+2.

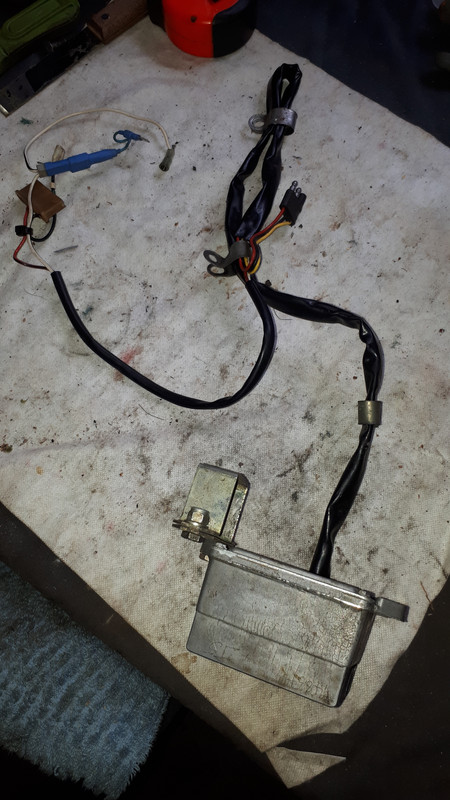

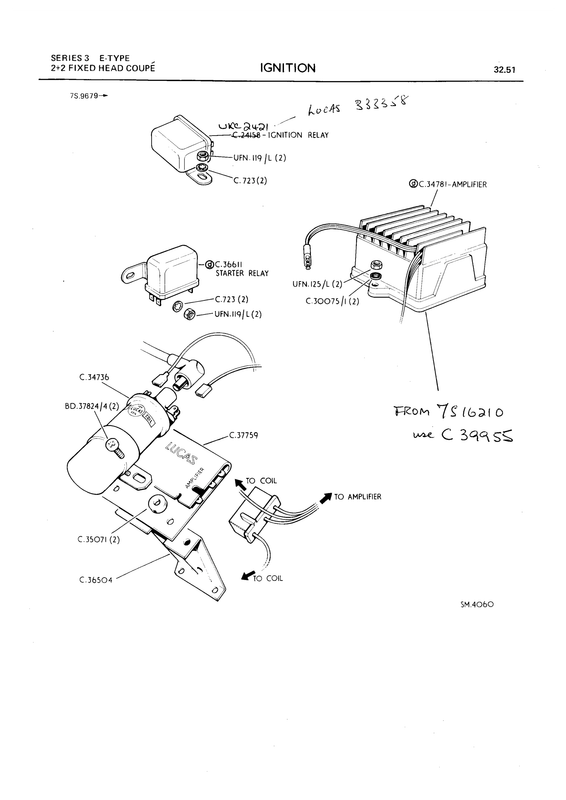

Both the photos refer to "Amplifier" so I have attached the two photos plus the parts manual page for the later vehicles.The parts manual shows the wiring requirements and you may be able to work out where the wires go from that image. I seem to remember on the earlier cars that one of the two parts was moved from the radiator area due to the heat generated which caused failure and I think this what you are asking about (C37759). This now sits under the coil just in front of the wiper motor. Anyway hope these images help.
