S3 V12 2+2 1973 rear end wiring/trim

Colin · Post by **Colin** » Sat Jun 28, 2025 10:20 am

Hi Guys
Can anybody confirm whether the wiring that serves the rear end (ie) brake light/reversing/lights etc should be showing in the boot area (See photo)
I thought that this all disappeared in the void-aperture/behind that area. Also has anybody got a photo of where the trim finishes in the same area (see Photo)
As you can see its partially fitted but unsure where to finish under the boot boards.

Any help appreciated
Many thanks

Colin W
S3 2+2 1973

Colin · Post by **Colin** » Sat Jun 28, 2025 10:25 am

I don't know where the photos went ill try again

Colin W

Colin · Post by **Colin** » Sat Jun 28, 2025 10:37 am

Hope this works

Colin W

Gfhug · Post by **Gfhug** » Sat Jun 28, 2025 7:13 pm

Colin, those photos have come out rather small and we have to sign in to the hosting place to see them
If you follow this viewtopic.php?f=2&t=19527
You can post full size photos on Imgur, which are automatically resized for use on the forum and are very detailed.
Alternatively use postimage.cc not .org

Geoff

Colin · Post by **Colin** » Sun Jun 29, 2025 10:11 am

Hi Geoff

appreciate you responding

Did try your suggestion of IMGUR but to be honest got completely lost so Ill try again here

Hopefully they are clearer now so if anybody can help

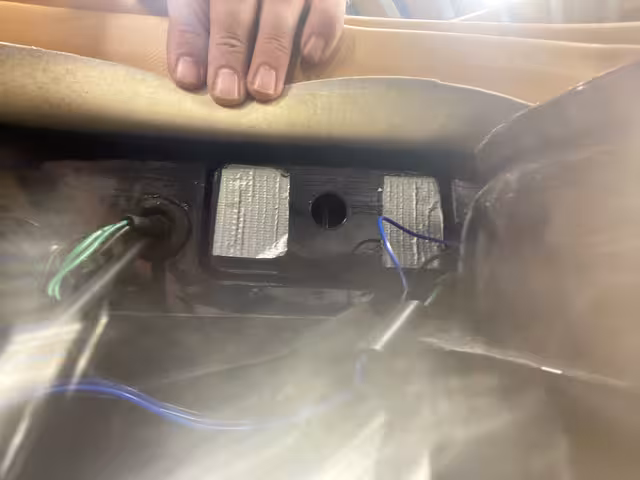

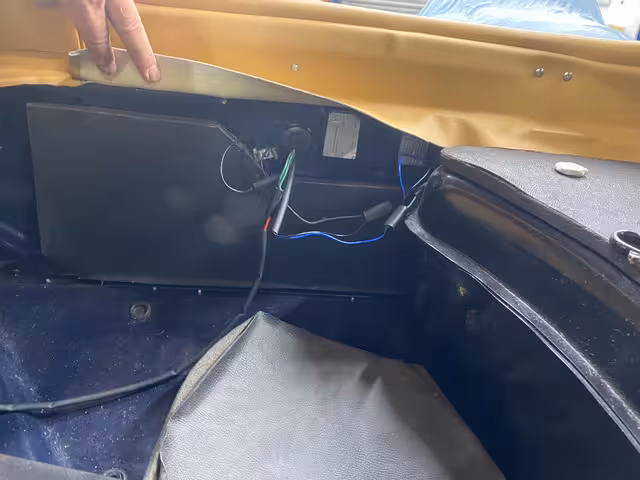

Looking at the photos there are the holes that have the wiring grommets which suggest that they should be there but it does seem illogical to have the wires in the open boot area which are open to getting pulled/broken when removing the spare wheel albeit they are under the boot boards. So if anybody can take a photo of their setup or can advise it would be appreciated

Many thanks

Colin W

Post by **mgcjag** » Sun Jun 29, 2025 12:28 pm

Your wireing should all be hidden behind the trim panel's ..Steve

jfmassa · Post by **jfmassa** » Wed Jul 02, 2025 2:29 pm

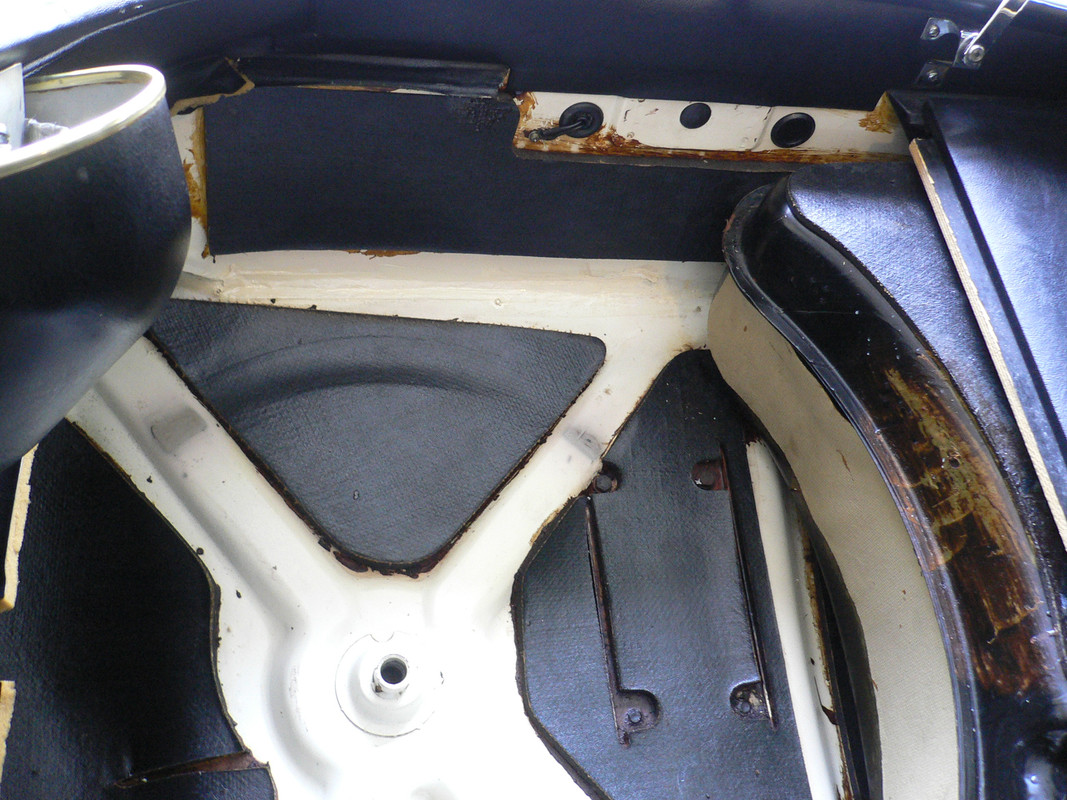

Only wire showing is for ground. Low mileage unrestored but can not confirm correct.

Colin · Post by **Colin** » Fri Jul 04, 2025 11:33 am

Hi Steve
Many thanks for responding and confirming that these wires should not be showing. I just found an earlier post showing the routing of the wires which looks like removing the rear lights and number plate and using a fish tape to pull them through the cavity.

viewtopic.php?f=6&t=12617&p=105975&hili ... es#p102320

Thanks again

Colin W

Colin · Post by **Colin** » Fri Jul 04, 2025 11:38 am

Hi Joe

Thanks for the photo which is fantastic.

I have the two wires for the earth as shown in your photo and these are the only wires that should be showing.

The photo also helps with regard to the finishing of the vinyl

Really very much appreciated

Colin W
