#1 Radiator Grille

Post by kevh » Thu Jun 23, 2022 8:13 pm

The upper chrome trim around the bonnet grille on my s3 ots had some spring clips in the back, they sat loose inside the trim and could be slid along to the required position, these clips pushed into holes along the lip of the bonnet to hold the trim tightly in position. As the old one had several dings in it I have bought a replacement trim but I cannot find the clips and SNG say they have never heard of them and the trim should only be held by a rivet at either end, has anyone else come across these clips or is mine the only one like this?
Kev
1969 S2 Coupe
1973 S3 OTS
2003 XKR Convertible
1935 Rover 12

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

mgcjag
Moderator
Posts: 7291
Joined: Fri Jul 09, 2010 6:15 pm
Location: Ludlow Shropshire
Great Britain

#2 Re: Radiator Grille

Post by mgcjag » Thu Jun 23, 2022 8:21 pm

Are the clips shown here...diagram from the parts catalogue in the knowledge base..
Steve
69 S2 2+2 (just sold) & Building a C type replica, 1960 xk150fhc

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
kevh
Posts: 54
Joined: Fri Dec 10, 2021 12:27 pm
Location: Yorkshire
Great Britain

#3 Re: Radiator Grille

Post by kevh » Thu Jun 23, 2022 8:34 pm

Hi Steve,
Thats the same drawing that Martin Robey use and the clips are not shown, neither are they on the SNG drawing.
The above would seem to indicate they are not original but they certainly seem to go with the trim and the trim even has small notches to allow the clips to be fed into the channel.
As the car is currently being prepped for painting I need to decide if we should weld up the holes and rely on just the rivets at either end.
Kev
1969 S2 Coupe
1973 S3 OTS
2003 XKR Convertible
1935 Rover 12

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

mgcjag
Moderator
Posts: 7291
Joined: Fri Jul 09, 2010 6:15 pm
Location: Ludlow Shropshire
Great Britain

#4 Re: Radiator Grille

Post by mgcjag » Thu Jun 23, 2022 9:32 pm

They are original ..they are shown on the parts cataloguein the drawing above......Here you go an few have them https://www.etypeparts.com/bd38867-e-ty ... lding-clip
Steve
69 S2 2+2 (just sold) & Building a C type replica, 1960 xk150fhc

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

AussieEtype
Posts: 591
Joined: Wed Jun 24, 2009 10:59 am
Location: Canberra, Australia
Australia

#5 Re: Radiator Grille

Post by AussieEtype » Fri Jun 24, 2022 2:53 am

They are definitely original - maybe some parts suppliers need to update their parts list.
1971 Series 3 E-type OTS

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
kevh
Posts: 54
Joined: Fri Dec 10, 2021 12:27 pm
Location: Yorkshire
Great Britain

#6 Re: Radiator Grille

Post by kevh » Fri Jun 24, 2022 5:45 am

The clips I am referring to sit inside the trim and protrude from the back into holes in the bonnet rim, once the trim is in place they are not visible, there are 4 of them along the length of the trim at equal spacings as well as the two at the ends which you have pointed out.
Kev
1969 S2 Coupe
1973 S3 OTS
2003 XKR Convertible
1935 Rover 12

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

mgcjag
Moderator
Posts: 7291
Joined: Fri Jul 09, 2010 6:15 pm
Location: Ludlow Shropshire
Great Britain

#7 Re: Radiator Grille

Post by mgcjag » Fri Jun 24, 2022 7:50 am

And this is where it would be a whole lot easier if you had posted a picture of your set up and your clips.....Steve
Steve
69 S2 2+2 (just sold) & Building a C type replica, 1960 xk150fhc

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
kevh
Posts: 54
Joined: Fri Dec 10, 2021 12:27 pm
Location: Yorkshire
Great Britain

#8 Re: Radiator Grille

Post by kevh » Fri Jun 24, 2022 12:40 pm

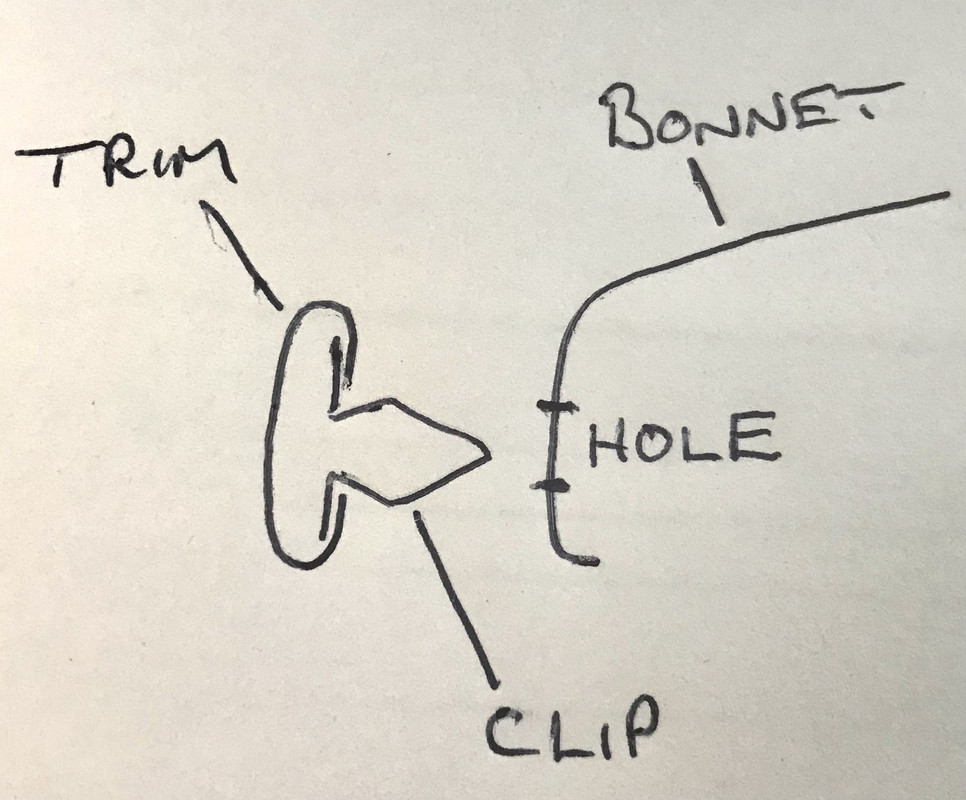

I have not got it with me but have done a rough sketch, I am doubtful that this trim is only held on at the very ends
Kev
1969 S2 Coupe
1973 S3 OTS
2003 XKR Convertible
1935 Rover 12

Link:
BBcode:
HTML:
Hide post links
Show post links


angelw
Posts: 559
Joined: Sat Feb 16, 2013 8:27 pm
Location: Ballarat, Vic, Australia
Australia

#9 Re: Radiator Grille

Post by angelw » Fri Jun 24, 2022 2:32 pm

Kev Wrote:
I have not got it with me but have done a rough sketch, I am doubtful that this trim is only held on at the very ends
Hello Kev,
The clip you show in your drawing is a generic moulding clip, but definitely not the original type used to hold the top grille moulding of the S3 E Type. There were also a small number of S2 cars fitted with the upper and lower moulding used on the S3 cars, but without the grille. The majority of automotive mouldings are similar in width and are constructed in a similar manner. Accordingly, its not surprising that you will find a myriad of clip design that serve a similar purpose.

Four clips in all are used to hold the moulding in place, two button, pop rivet type and two small metal bracket type.

Correctly fitted, the top moulding is really a terrible fit. It looks like it fits well looking down on it, but the lower edge sits well clear of the surface of the bonnet; you will only see that if you were to lay on your back and look up at the bottom edge of the moulding.

Regards,

Bill

Link:
BBcode:
HTML:
Hide post links
Show post links


Craig Balzer
Posts: 40
Joined: Fri Mar 03, 2017 2:02 am
United States of America

#10 Re: Radiator Grille

Post by Craig Balzer » Fri Jun 24, 2022 3:00 pm

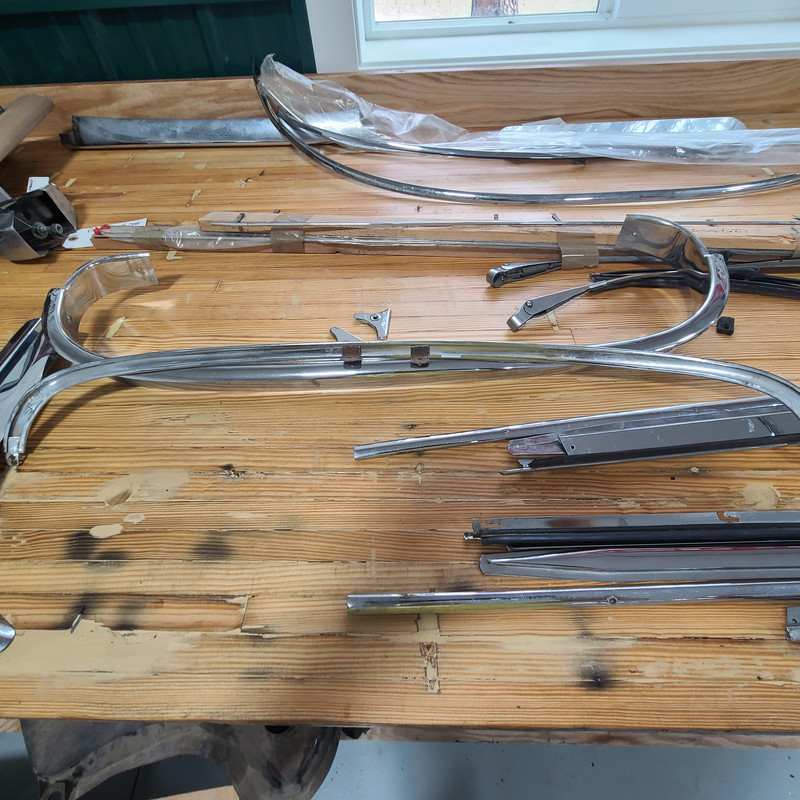

I'm late to this party, but believe I have photos of the subject clips. Photos taken on my bench during disassembly of 72 Jag Series III OTS for restoration:


Craig Balzer
Colorado Springs, CO, USA
1972 Series III OTS, 4-Speed (soon-to-be a Guy Broad 5-Speed), A/C, CWW

Link:
BBcode:
HTML:
Hide post links
Show post links


angelw
Posts: 559
Joined: Sat Feb 16, 2013 8:27 pm
Location: Ballarat, Vic, Australia
Australia

#11 Re: Radiator Grille

Post by angelw » Fri Jun 24, 2022 3:22 pm

Hello Craig,

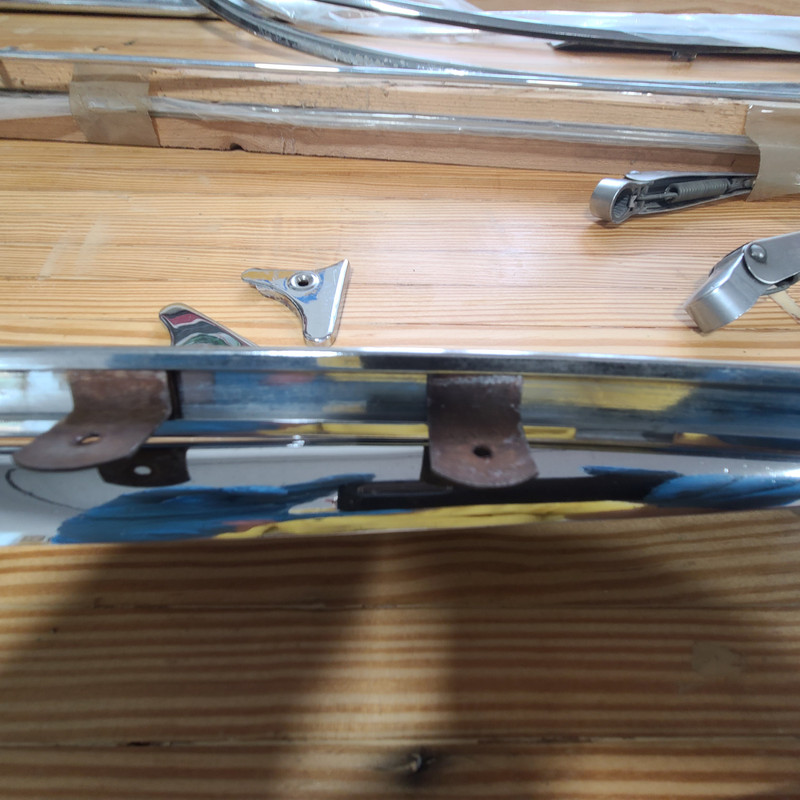

The rusty looking clips are the metal bracket clips I referred to and in addition to these two clips, two round button, pop rivet clips are used.

Regards,

Bill

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
kevh
Posts: 54
Joined: Fri Dec 10, 2021 12:27 pm
Location: Yorkshire
Great Britain

#12 Re: Radiator Grille

Post by kevh » Fri Jun 24, 2022 3:37 pm

Ahhh! all is clear, those clips sit inside the trim and screw to the underside of the nose, that's that sorted.

:thankyouyellow:
Kev
1969 S2 Coupe
1973 S3 OTS
2003 XKR Convertible
1935 Rover 12

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

AussieEtype
Posts: 591
Joined: Wed Jun 24, 2009 10:59 am
Location: Canberra, Australia
Australia

#13 Re: Radiator Grille

Post by AussieEtype » Sat Jun 25, 2022 3:11 am

angelw wrote:
Fri Jun 24, 2022 3:22 pm
Hello Craig,
The rusty looking clips are the metal bracket clips I referred to and in addition to these two clips, two round button, pop rivet clips are used.

Regards,

Bill
Bill, My clips fell out during storage and I only noticed they were missing when packing parts up - I will look in the cupboard where everything was stored to see if they are there.

Garry
1971 Series 3 E-type OTS

Link:
BBcode:
HTML:
Hide post links
Show post links


chris420sa
Posts: 64
Joined: Tue Aug 30, 2016 1:50 pm
Great Britain

#14 Re: Radiator Grille

Post by chris420sa » Sat Jun 25, 2022 8:46 am

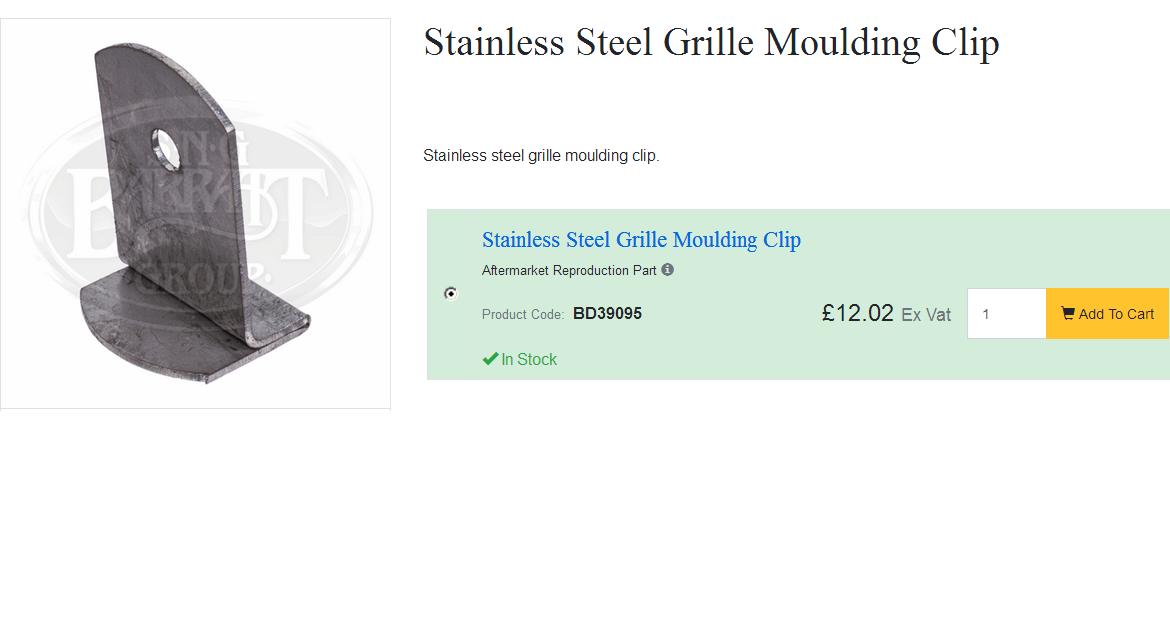

Hi - I just checked on the SNGB UK website. The clips referred to are listed as: Stainless Steel Grille Moulding Clip BD39095.
After fitting these clips I found that the rivets are not really necessary to fit as the bumper overriders hold the
moulding well in position at the corners and sides (or as well as can be reasonably expected).
As I'm sure you're aware, riveting can have unexpected consequences for paintwork!
Hope that helps.
All the best
Chris
Chris Davies
1972 Series 3 2+2

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

mgcjag
Moderator
Posts: 7291
Joined: Fri Jul 09, 2010 6:15 pm
Location: Ludlow Shropshire
Great Britain

#15 Re: Radiator Grille

Post by mgcjag » Sat Jun 25, 2022 8:52 am

BD39095 as shown in the parts diagram i posted above.....Steve
Steve
69 S2 2+2 (just sold) & Building a C type replica, 1960 xk150fhc

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
kevh
Posts: 54
Joined: Fri Dec 10, 2021 12:27 pm
Location: Yorkshire
Great Britain

#16 Re: Radiator Grille

Post by kevh » Sat Jun 25, 2022 10:04 am

BD39095 as shown in the parts diagram i posted above.....Steve
Yes Steve you are correct, I was looking for/trying to determine the ones I had on mine which it turns out were incorrect, now I have seen the correct clip in use they are indeed on all the parts drawings, it's hard to understand why the PO would not have used the correct clips.

Now ordered, I will trial fit while we are at the bare metal stage.

I am still not 100% sure of which colour paint to go with, I am currently sticking to dark BRG but every time I see one in signal red I have second thoughts as they do look good, I don't know why I keep imposing these headaches upon myself.
Kev
1969 S2 Coupe
1973 S3 OTS
2003 XKR Convertible
1935 Rover 12

Link:
BBcode:
HTML:
Hide post links
Show post links


angelw
Posts: 559
Joined: Sat Feb 16, 2013 8:27 pm
Location: Ballarat, Vic, Australia
Australia

#17 Re: Radiator Grille

Post by angelw » Sat Jun 25, 2022 11:20 am

Kev Wrote:
it's hard to understand why the PO would not have used the correct clips.
Hello Kev,
The task at hand for the PO was to secure the chrome moulding and the clip used, the type you have, would have done the job. As I wrote in an earlier Post, there are many clips that will serve the purpose of the original clip used by Jaguar. I suspect that the PO simply sourced the clip used from an Auto Parts store that was more convenient and most likely cheaper than the original, correct part.

Regards,

Bill

Link:
BBcode:
HTML:
Hide post links
Show post links


Paul Buckley
Posts: 84
Joined: Sun Jan 24, 2016 7:41 pm
Location: Northwich, Cheshire
Great Britain

#18 Re: Radiator Grille

Post by Paul Buckley » Sat Jun 25, 2022 3:09 pm

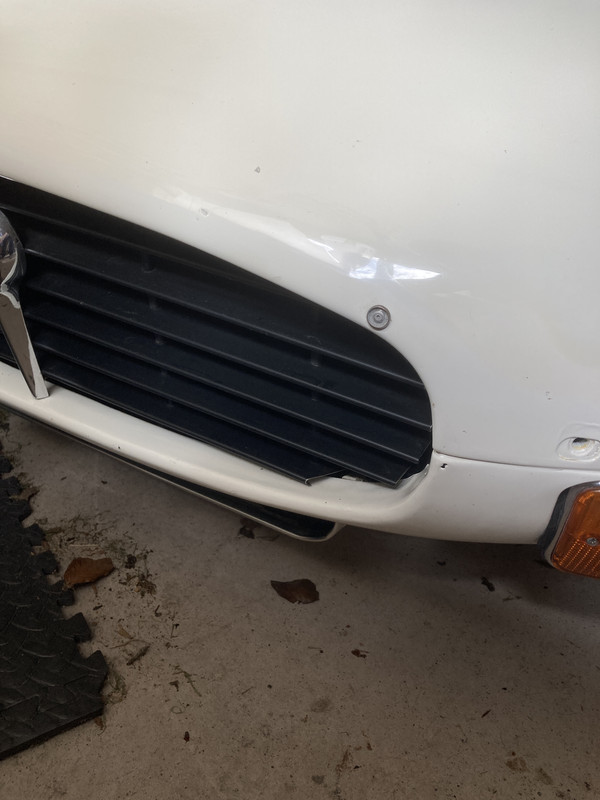

THe top curved chrome moulding around the air intake is held in place by two 'button' pop rivets.

The chrome clips previously shown are to cover the ends of the top and bottom mouldings where they meet at the side.

The pic is of an unmolested S3 sans chrome mouldings and bumpers.

Paul

1972 S3 OTS, 32k mls, a survivor.

Link:
BBcode:
HTML:
Hide post links
Show post links


angelw
Posts: 559
Joined: Sat Feb 16, 2013 8:27 pm
Location: Ballarat, Vic, Australia
Australia

#19 Re: Radiator Grille

Post by angelw » Sat Jun 25, 2022 4:46 pm

Paul Wrote:
THe top curved chrome moulding around the air intake is held in place by two 'button' pop rivets.
Plus two BD39095 clips; the originals were Zinc or Cadmium plated mild steel. hence the rusty appearance of the clips in Craig's picture.


Link:
BBcode:
HTML:
Hide post links
Show post links


Paul Buckley
Posts: 84
Joined: Sun Jan 24, 2016 7:41 pm
Location: Northwich, Cheshire
Great Britain

#20 Re: Radiator Grille

Post by Paul Buckley » Mon Jun 27, 2022 3:45 pm

The only other clips on my S3 radiator intake top chrome mouldings are BD38867.
These clips sit at either end of the chrome moulding and fit OVER the strip ends and are secured with a self tapper.
I do not have, and cannot visualise how they are used, the BD39095 clips.
Where are they on the parts drawing?
Paul

1972 S3 OTS, 32k mls, a survivor.
