#1 Starter Motor Heat Shield

Post by Tan » Sat Sep 03, 2022 1:39 pm

Does anybody know how the starter motor heat shield attaches to the body of a V12 E Type?
I have recently bought a new aluminium one from SNG Barrett, but can work out where it lives.

I have tried it on all angles around the starter motor but it has me totally puzzled.

A photo of one fitted would be brilliant!!

Thanks….. Tan

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

lowact
Posts: 532
Joined: Mon Oct 09, 2017 10:05 am
Location: Canberra, Australia
Contact:
Australia

#2 Re: Starter Motor Heat Shield

Post by lowact » Sat Sep 03, 2022 3:01 pm

On my US spec car it was clamped to the pipe from the air pump
Regards,
ColinL
'72 OTS manual V12

Link:
BBcode:
HTML:
Hide post links
Show post links

User avatar

Nick V12 e type
Posts: 105
Joined: Mon Dec 11, 2017 9:21 pm
Location: Midlands UK
Great Britain

#3 Re: Starter Motor Heat Shield

Post by Nick V12 e type » Sat Sep 03, 2022 4:29 pm

Hi Tan,

My car is also a US import.

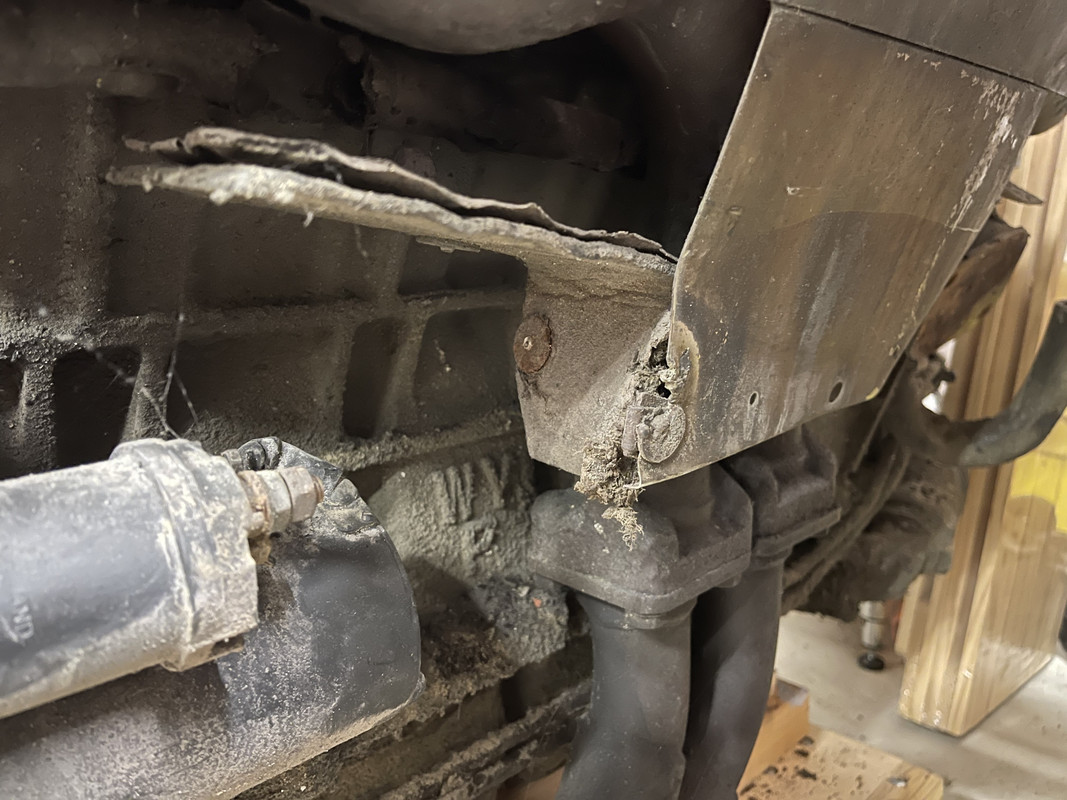

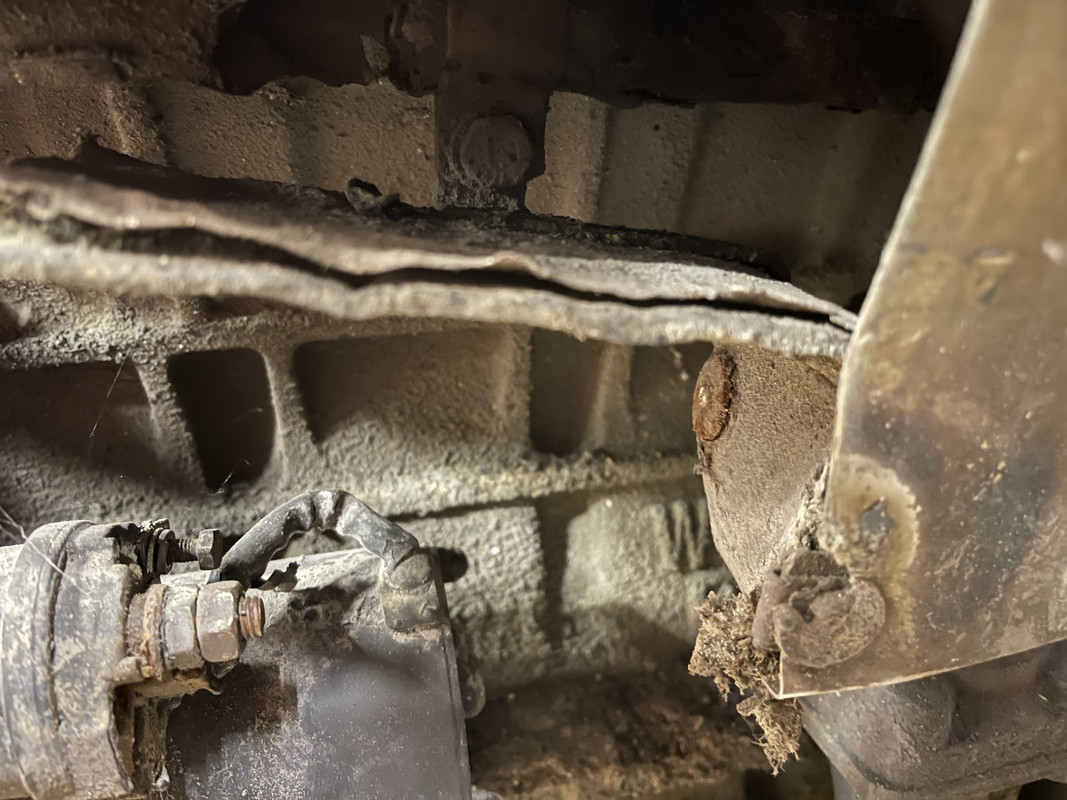

My starter motor heat shield is attached to what’s left of the supply pipe from the air pump and also to the bottom corner of the larger exhaust manifold heat shield.

Mine looks original but in poor condition. I hope the photos help you.

Kind regards
Nick


e type series 3 V12 2+2 1972, Tesla Model S 2016

Link:
BBcode:
HTML:
Hide post links
Show post links


Craig Balzer
Posts: 40
Joined: Fri Mar 03, 2017 2:02 am
United States of America

#4 Re: Starter Motor Heat Shield

Post by Craig Balzer » Sat Sep 03, 2022 4:59 pm

Theses photos of the remnants of my heat shield may provide additional persepctives








Craig Balzer
Colorado Springs, CO, USA
1972 Series III OTS, 4-Speed (soon-to-be a Guy Broad 5-Speed), A/C, CWW

Link:
BBcode:
HTML:
Hide post links
Show post links


Topic author
Tan
Posts: 6
Joined: Sat Oct 17, 2020 11:51 am
Location: South Wales
Great Britain

#5 Re: Starter Motor Heat Shield

Post by Tan » Sun Sep 04, 2022 10:16 am

Thanks Craig
I really appreciate that.
I take it the pipe is part of the emission control, which has been removed on my car!
I think I’ll buy the V shaped bracket shown in the parts manual and try to figure out where that attaches.

Thanks Again for the photos

Regards…… Mark

South Wales United Kingdom

Link:
BBcode:
HTML:
Hide post links
Show post links


Bob.
Posts: 344
Joined: Fri Sep 18, 2015 9:05 pm
Location: North Gloucestershire
Great Britain

#6 Re: Starter Motor Heat Shield

Post by Bob. » Sun Sep 04, 2022 11:57 am

The exhaust manifold studs are the only things in that area I can think of to mount the V bracket to.
Bob
'71 S3
