#1 Carbs - heat exchanger gasket question

Post by Holeshot » Fri Sep 09, 2022 2:43 pm

Hello guys.

I got a Zenith carb gasket kit from SNGB.

All good so far but I’m uncertain about the smaller gasket for the heat exchanger.

I’ve attached a photo:

The new one (B) looks the right diameter and like it should go inside the carb body but doesn’t reassemble the original one.
It’s not as thick and also resembles more of a washer than the original that is more like a button and more solid?

There is a mysterious o-ring (A) that ‘could’ fit but pretty sure it’s not right - but I was wondering if anyone could tell me whether the new one (B) is correct and fit-for-purpose please?

Many thanks,
Hilton
Attachments
Hilton - V12 2+2

Link:
BBcode:
HTML:
Hide post links
Show post links


Bob.
Posts: 344
Joined: Fri Sep 18, 2015 9:05 pm
Location: North Gloucestershire
Great Britain

#2 Re: Carbs - heat exchanger gasket question

Post by Bob. » Sat Sep 10, 2022 1:27 pm

Hi Hilton

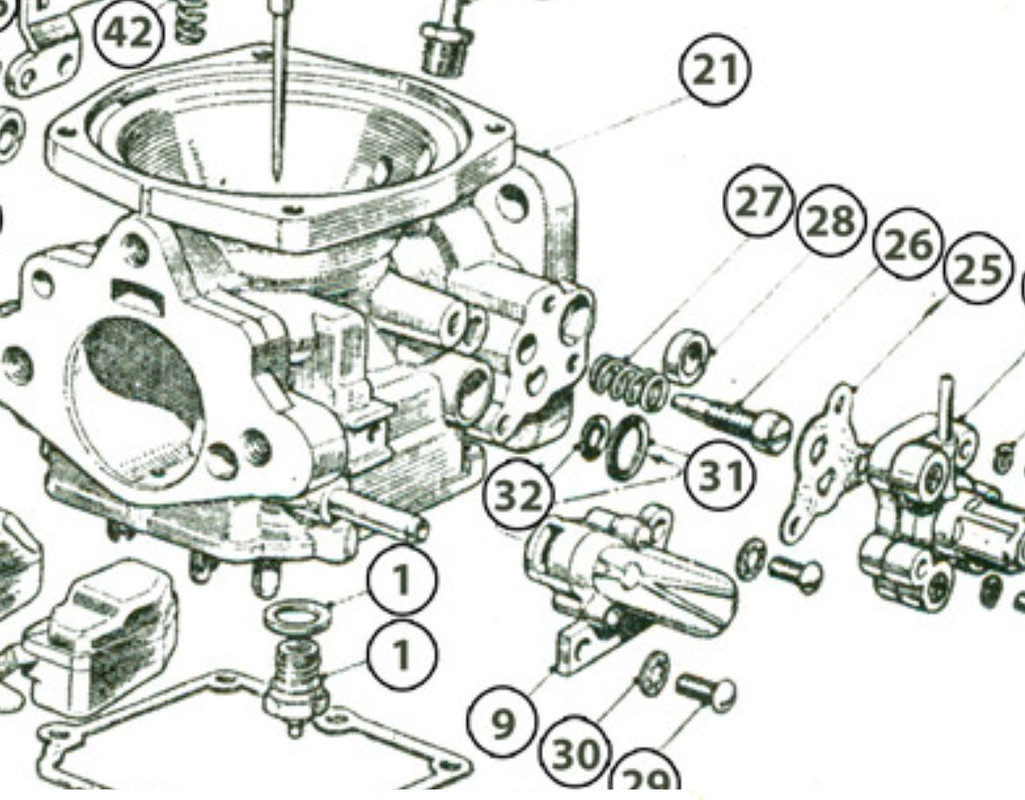

I'm not aware of a heat exchanger in the Stromberg. Are you referring to the Temperature Compensator - Item 9 below?
