Valve timing gauge

japomero · Post by **japomero** » Wed Mar 11, 2020 3:12 pm

Looking for someone who could provide a photo of the valve timing gauge with a ruler in the frame.
Thanks for the help
Jim

Post by **mgcjag** » Wed Mar 11, 2020 3:41 pm

Hi Jim.... sorry dont recognise the term..valve timing guage....what us it......Steve

japomero · Post by **japomero** » Wed Mar 11, 2020 3:45 pm

mgcjag wrote: ↑
Wed Mar 11, 2020 3:41 pm
Hi Jim.... sorry dont recognise the term..valve timing gauge....what us it......Steve

Thanks Steve
It is a flat steel gauge that fits over the end of the camshaft on engine assembly that holds the camshaft in position while the #6 piston is at TDC.

Post by **mgcjag** » Wed Mar 11, 2020 4:11 pm

Camshaft setting/Timing tool

japomero · Post by **japomero** » Wed Mar 11, 2020 6:12 pm

Perfect.
Thanks a bunch.

Jim

Gfhug · Post by **Gfhug** » Wed Mar 11, 2020 8:15 pm

They are readily available to buy for about £10 ($15) so no reason to make an imperfect one from guessing dimensions from a photo if that is your plan

Geoff

japomero · Post by **japomero** » Thu Mar 12, 2020 2:33 pm

Great information. Where are they available from?
Thanks
Jim

Post by **mgcjag** » Thu Mar 12, 2020 3:09 pm

Jim...google is your friend...just search Jag cam setting tool

Lost Horizon · Post by **Lost Horizon** » Fri Mar 13, 2020 9:46 pm

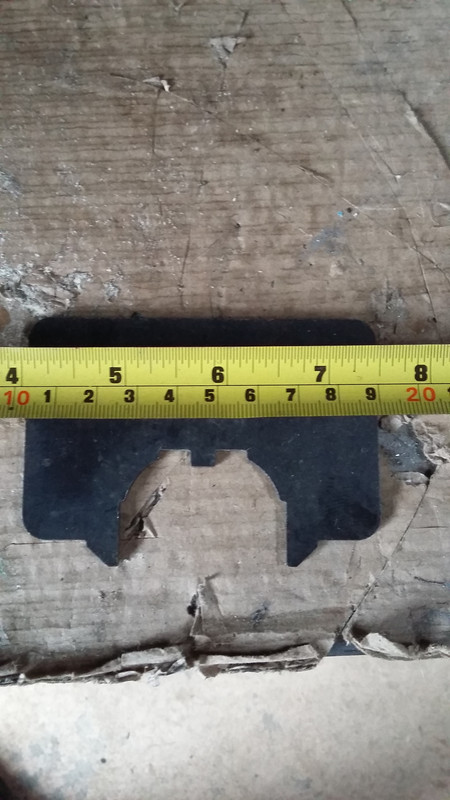

And, to round out the thread, here it is in action...

keithmac · Post by **keithmac** » Sat Mar 14, 2020 11:33 pm

Try Browns Lane Jaguar. Canadian E-Type specialist and parts supplier. He likely has them in stock.
http://brownslane.com/
Regards,
Keith

japomero · Post by **japomero** » Sun Mar 15, 2020 3:29 pm

Thanks all. The photo was great. Have the drawing done.
Easy cut from 3/16 plate.
Jim

malcolm · Post by **malcolm** » Tue Mar 17, 2020 10:36 am

Still wouldn't do that Jim. It may not look it, but the measurements are very sensitive. Little bit out, and engine won't be perfect. Just get one sent from UK if you can't source it.
