Clutch Slave pin clip

[mgcjag]

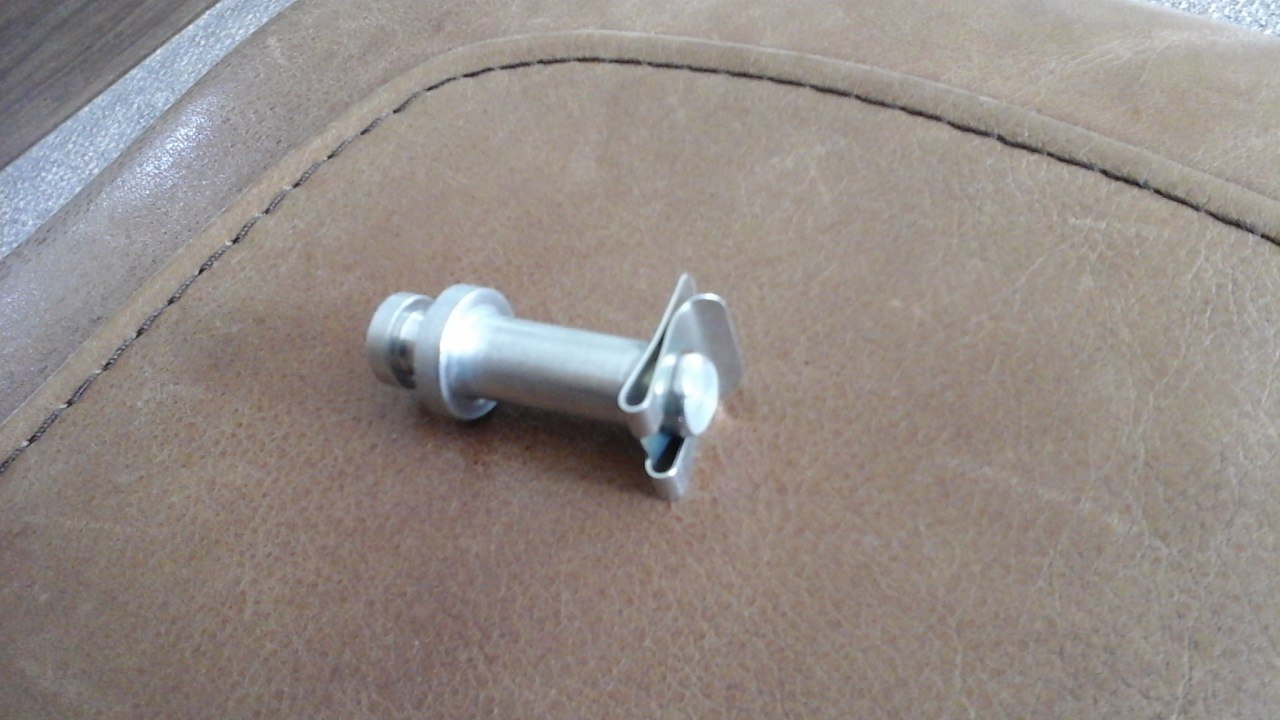

Hi All......im after a slide spring clip thats on the clutch slave pin....as in the photo (not mine).....not available from the usual suppliers...part number C27328 5Z........the 5z donates the size of the clip......new metric sizes are available but not a good fit.....new are also available in imperial sizes but i cant find one for the 7/16in pin...anyone know of a supplier....or have you used something similar.....thanks...Steve

[Jack the lad]

Morning Steve,
I see that no-one has been able to help re. your slave pin problem. I can help out as I am fortunate to have a lathe and milling machine. If you can send me a dimensioned drawing of the part that you need I will make one for you (free of charge of course). It is essential that the drawing is accurate, so please take care in preparing it. My main hobby is making small four stroke petrol/glow engines for model aircraft use, so I'm quite competent at making accurate small parts to drawings, so your pin would be simple, cheers John in sunny Devon.

[abowie]

I doubt you can make a spring clip on a lathe and a mill.

[mgcjag]

Hi John.....Thanks for the offer......currently waiting for a clip to arrive that fits a 10mm pin which is slightly smaller than the original....will then turn down the end of the pin to suit.......Steve

[Jack the lad]

Hi again Steve,
Sorry, I didn't know you had workshop facilities and could make or modify your own pin. Good luck with it, best wishes John.

[tim wood]

And this is what I find so great about this forum, people go out of their way to assist others. Either by advice, humour or other assistance. In this case offering to take time to make a part.

Good stuff I say.

Tim

[mgcjag]

Just an update....standard widely available 10mm clip arrived.....pin grove and end just turned down a bit...works well

[rfs1957]

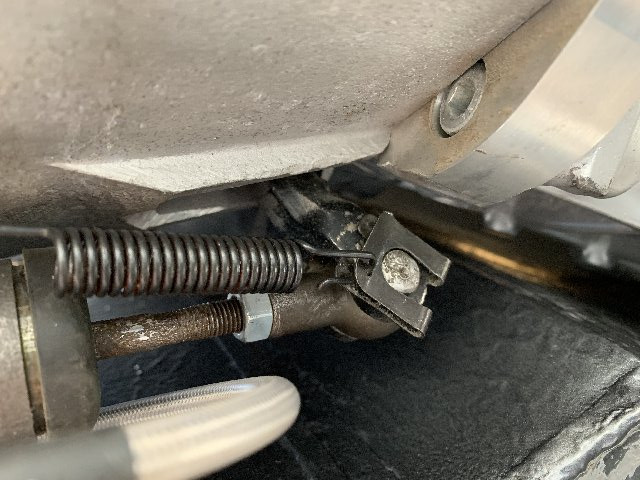

Yes, bonkers use of the clip in the picture anyway (not yours) as the spring was never intended to be attached to it surely ?

Pin is in wrong way round, the spring should hook over the turret on the other end.

Just thought I'd point this out in case anyone might think it was normal.

[Heuer]

According to the parts catalogue there should be:

1. Pivot pin, securing adjuster to Clutch operating Fork
2. Split Pin, securing pivot pin
3. Washer, Plain, behind split pin
4. Washer, Double Coil Spring, behind Plain Washer

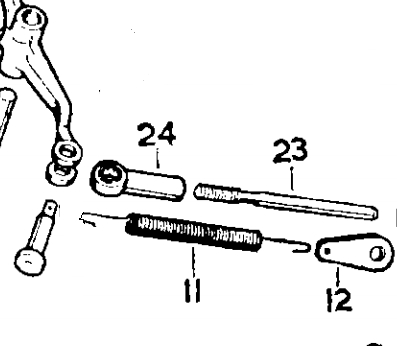

The spring goes around the pivot pin (turret end as Rory says):

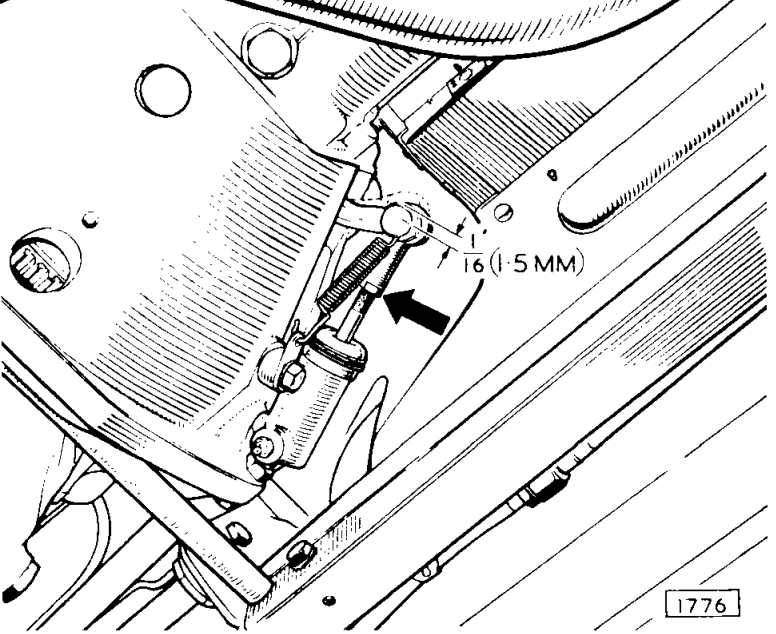

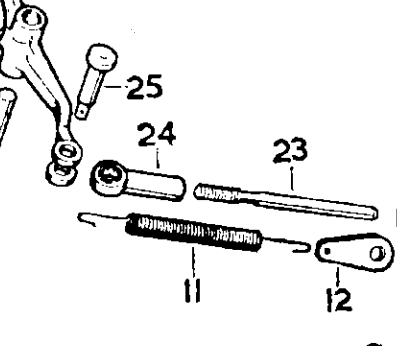

Not helped by the SPC showing the pivot pin the wrong way around:

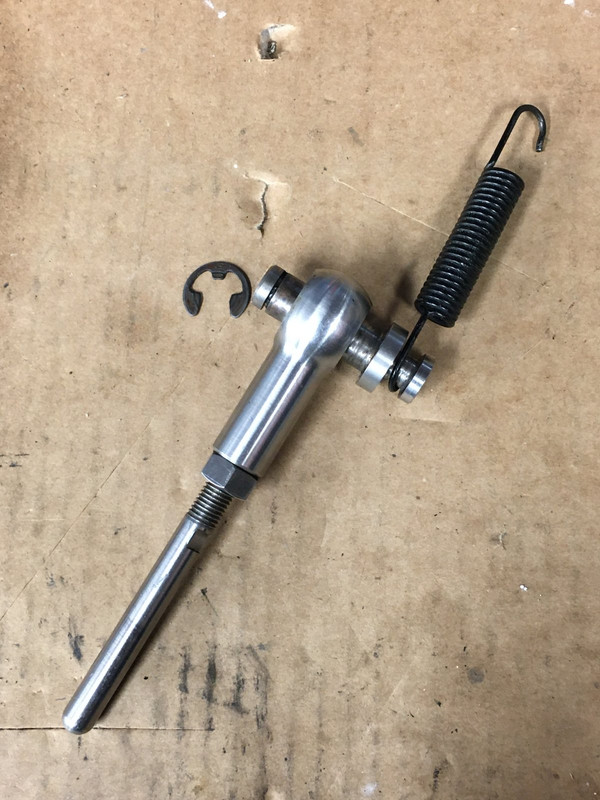

Here you go Jaguar:


The fun part is getting the split pin though the pivot pin hole whilst working blind!

[288gto]

According to the parts catalogue there should be:

2. Split Pin, securing pivot pin
3. Washer, Plain, behind split pin

The fun part is getting the split pin though the pivot pin hole whilst working blind!

Probably why they changed to the spring safety clip on later versions as seen in Steve's picture which is much easier to fit or remove "blind" . As I understand the difficulty now is getting a 7/16 safety clip if you lose or break the original.


Simon

[Heuer]

Yes, the S2 cars had part C29803 which is the one in Steve's photo. The S1 cars had the simple style pivot pin.

[mgcjag]

Hi David...yes thats the pin number i came up with from the parts catalogue but couldnt find one from the usuals however you can find them under C27327 https://www.etypeparts.com/c27327-e-typ ... sh-rod-pin
